JACTY395Q 48 hp 2.23L China II Diesel Engine

Export reference
MSRP N/A
Min. fuel consumption at full load:: 236g/kW.h
Bore × Stroke:: 95x105mm
Number of cylinders:: 3cylinder
Suitable Range: Low-speed cargo truck
Engine Model: TY395Q
Engine Series: 3-cylinder engine series

Overview

The JACTY395Q 48 hp 2.23L China II Diesel Engine is a parts product with fit for Low-speed cargo truck and spec TY395Q.

China II/Euro II 48 Diesel

Model Specs

Legend: ● Standard ○ Optional - N/A

Engine parameters
Engine Series: 3-cylinder engine series
Engine manufacturer: Anhui JAC Automobile Co., Ltd.
Suitable Range: Low-speed cargo truck
Min. fuel consumption at full load: 236g/kW.h
Engine net weight: 300kg
Engine Dimensions: 666x500x678mm
Bore × Stroke: 95x105mm
Engine Brand: JAC
Engine Model: TY395Q
Number of cylinders: 3cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.233L
Emission standard: China II/Euro II
Max output power: 35kW
Max hp: 48Horsepower
Max torque: 133N·m
Max torque speed: 1960rpm
Rated speed: 2800rpm
Engine Type: Inline, water-cooled, 4-stroke, direct injection

Photos

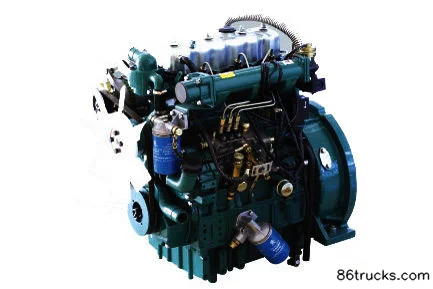

Exterior1

1 photos

FAQ

What emission standard does JACTY395Q 48 hp 2.23L China II Diesel Engine use, and can it enter my country?

This model is listed as China II/Euro II. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JACTY395Q 48 hp 2.23L China II Diesel Engine?

Key specs of JACTY395Q 48 hp 2.23L China II Diesel Engine: Horsepower: 48 hp; Emission: China II/Euro II; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JACTY395Q 48 hp 2.23L China II Diesel Engine suited for?

Match JACTY395Q 48 hp 2.23L China II Diesel Engine to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does JACTY395Q 48 hp 2.23L China II Diesel Engine differ from other variants in the same series?

JACTY395Q 48 hp 2.23L China II Diesel Engine belongs to JAC 3-Cylinder Engine Series (engine). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JACTY395Q 48 hp 2.23L China II Diesel Engine?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JACTY395Q 48 hp 2.23L China II Diesel Engine?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
