XCMG Hanfeng G5 N series 350hp 8X4(12 wheels) concrete mixer truck (China VI) (Wanshida brand)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 13.74ton
Wheelbase:: 1950+2900+1350mm
Tire Size:: 11.00R20 18PR
Cab dimensions:: 10.21×2.55×4m
Truck Type:: Concrete mixer truck
Rated payload: 17.13ton
Drive 8X4 (12 wheels)
Horsepower 350
Emission China VI

Overview

The XCMG Hanfeng G5 N series 350hp 8X4(12 wheels) concrete mixer truck (China VI) (Wanshida brand) is a concrete mixer truck featuring 17.13t payload, 13.74ton GVW, 8X4 (12 wheels) drive and Hanfeng G5NL cab. On the powertrain side, it comes with 350 hp, China VI emissions and Diesel fuel.

China VI 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.21×2.55×4m
Drive type: 8X4
Truck Type: Concrete mixer truck
Vehicle origin: Liangshan, Shandong
Front/rear track width: Front: 2022/2022mm; Rear: 1860/1860
Wheelbase: 1950+2900+1350mm
Curb Weight: 13.74ton
Rated payload: 17.13ton
Max. speed: 80km/h
Front/rear suspension: 1.485/2.525m
Body Parameters
Mixing drum capacity: 7.85m³
Vehicle certification code: SDW5313GJBX60A
Body Brand: Wanshida
Engine parameters
Engine Model: WeichaiWP8.350E61
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.8L
Emission standard: China VI
Max output power: 257kW
Max hp: 350Horsepower
Rated speed: 2100rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, high-pressure common rail, turbocharged intercooled, EGR
Chassis Specs
Chassis Series: Hanfeng G5 N Series
Chassis Model: XGA3310D6NEX
Leaf spring count: 10/10/12
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Fast Gear 10-Speed
Cab parameters
Cab: Hanfeng G5NL
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs

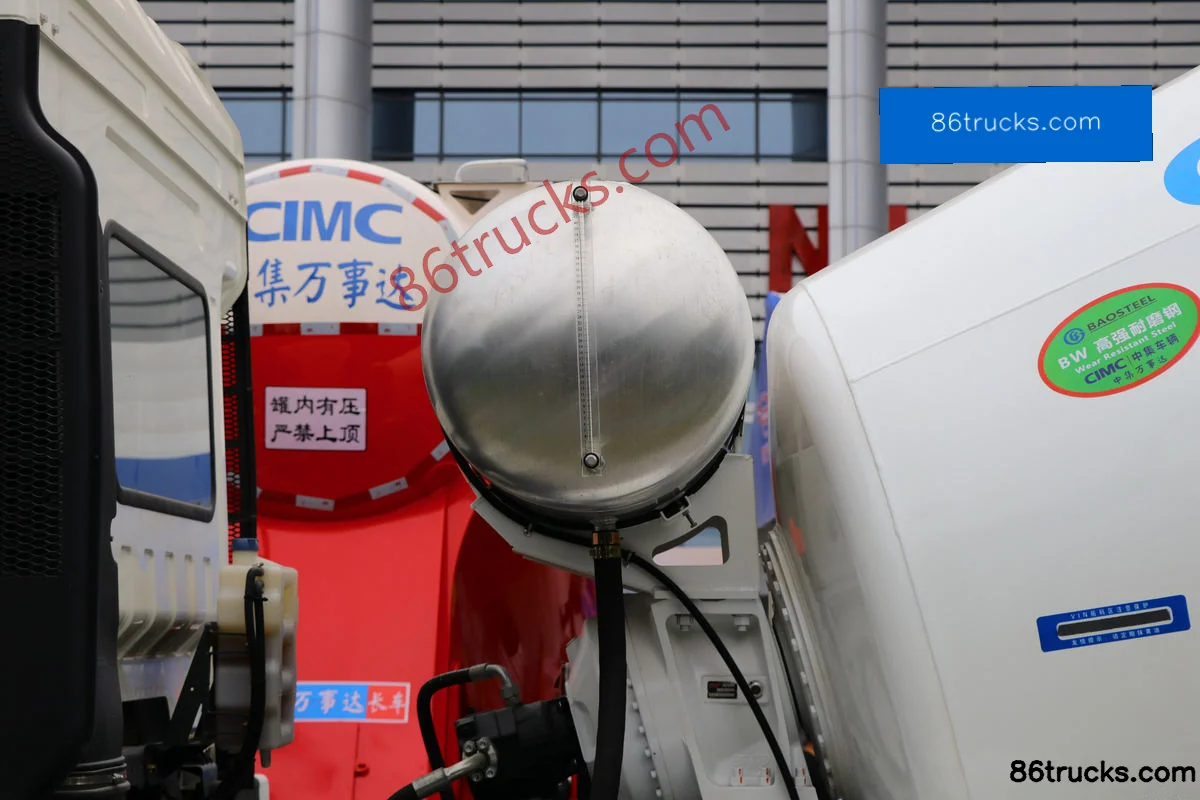

Photos

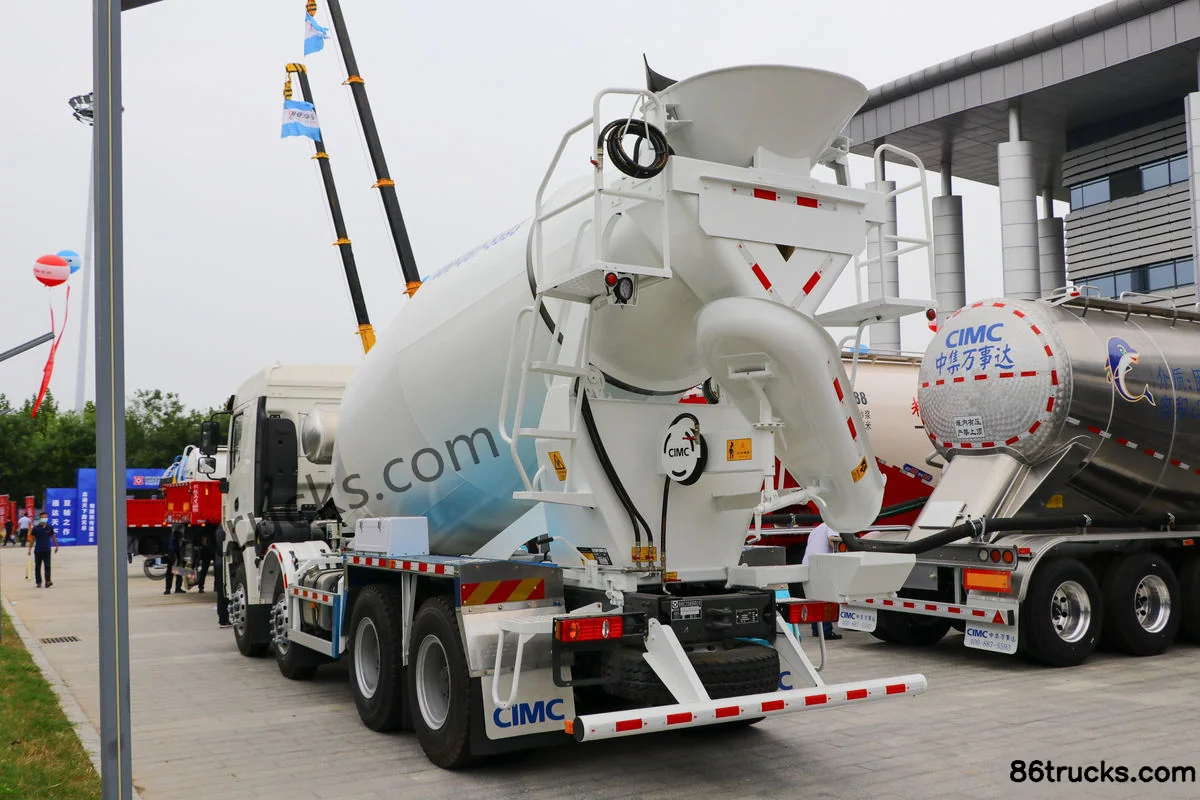

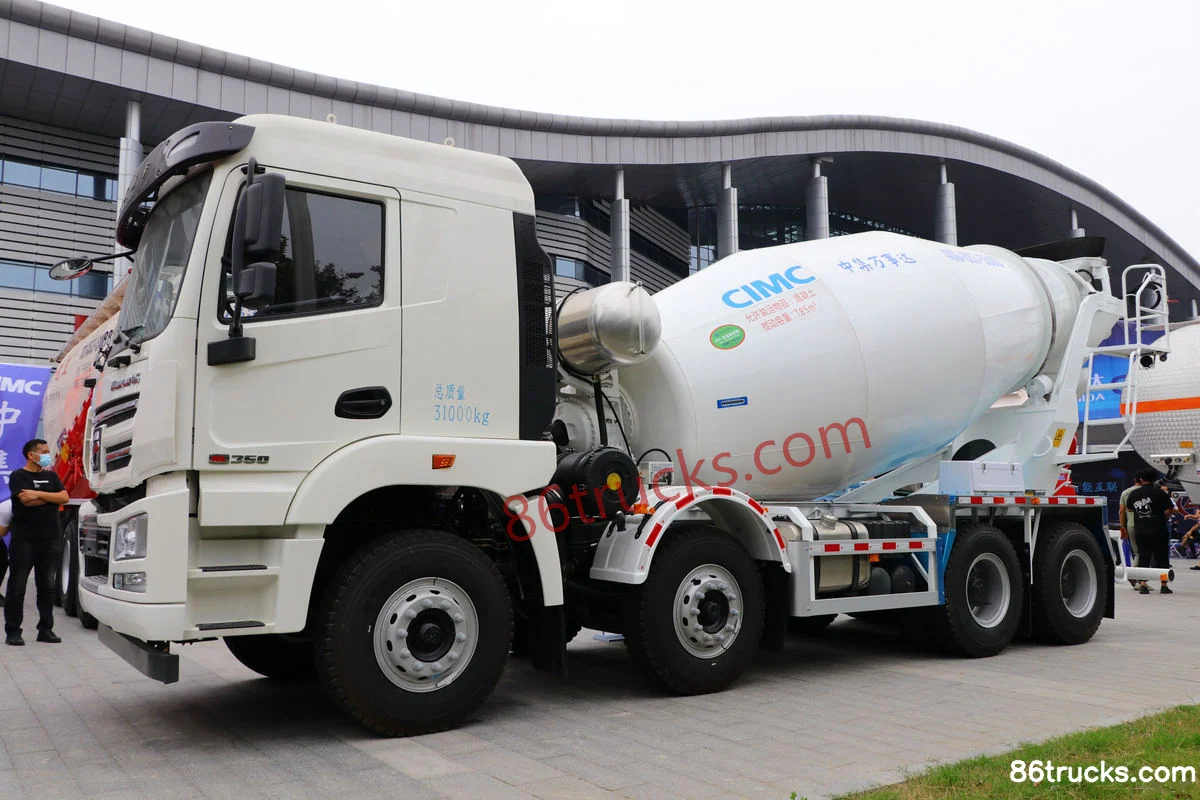

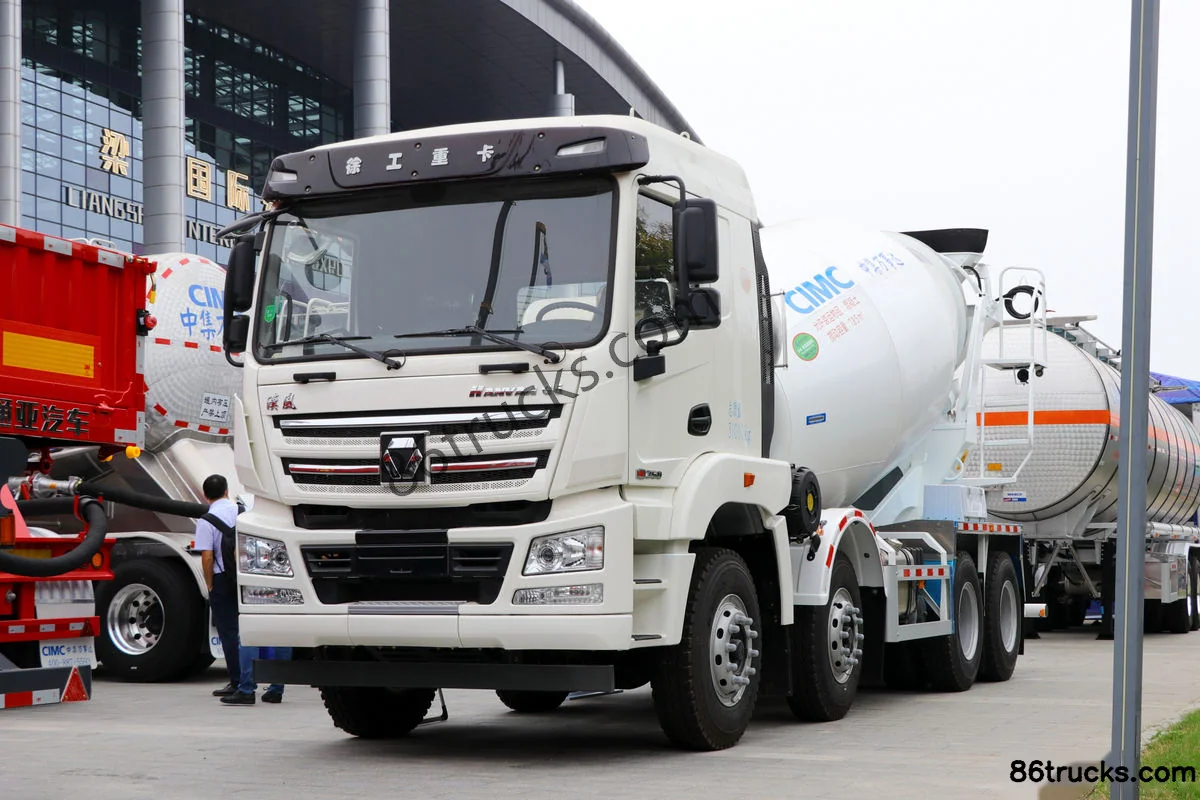

Exterior3

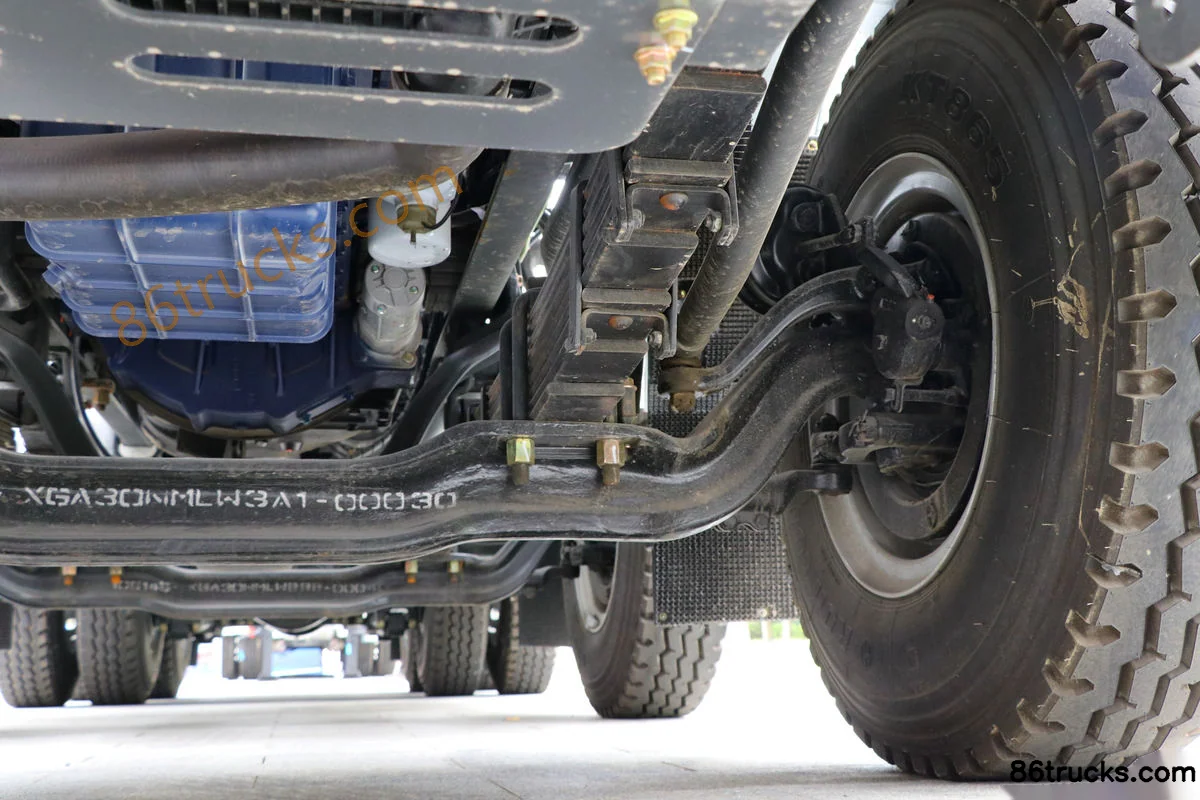

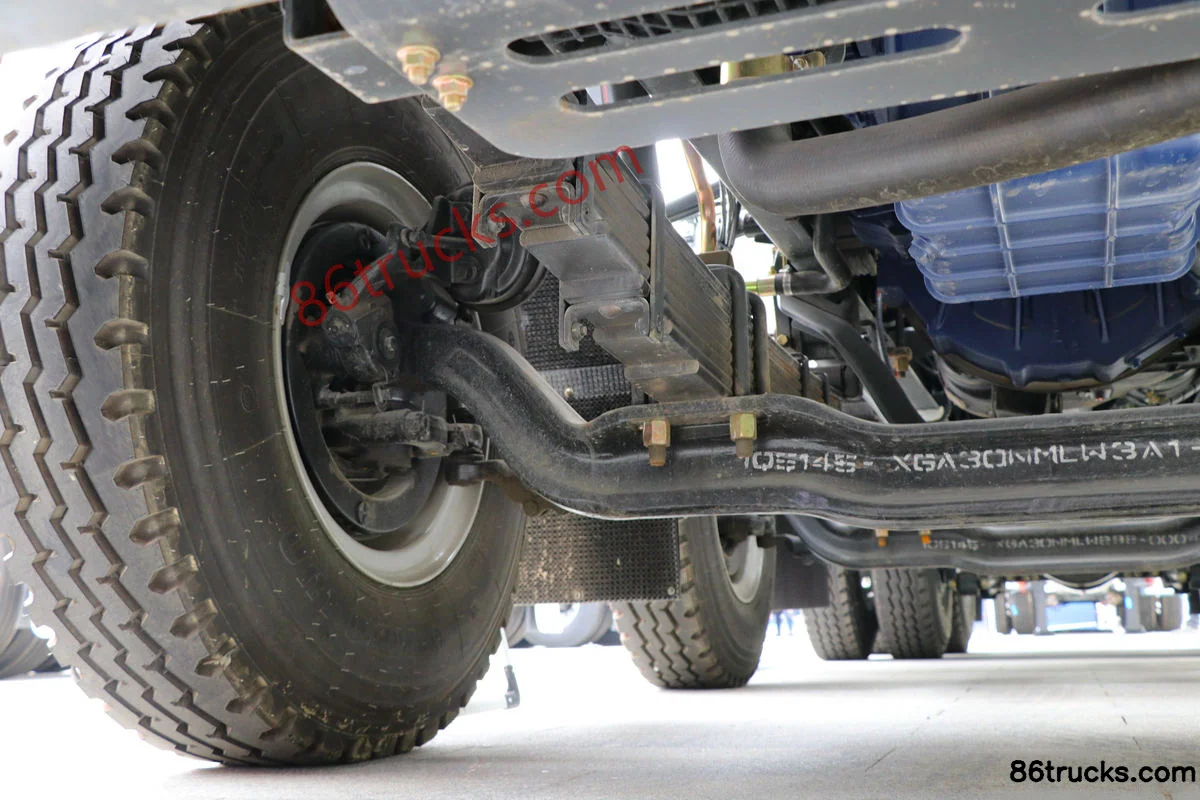

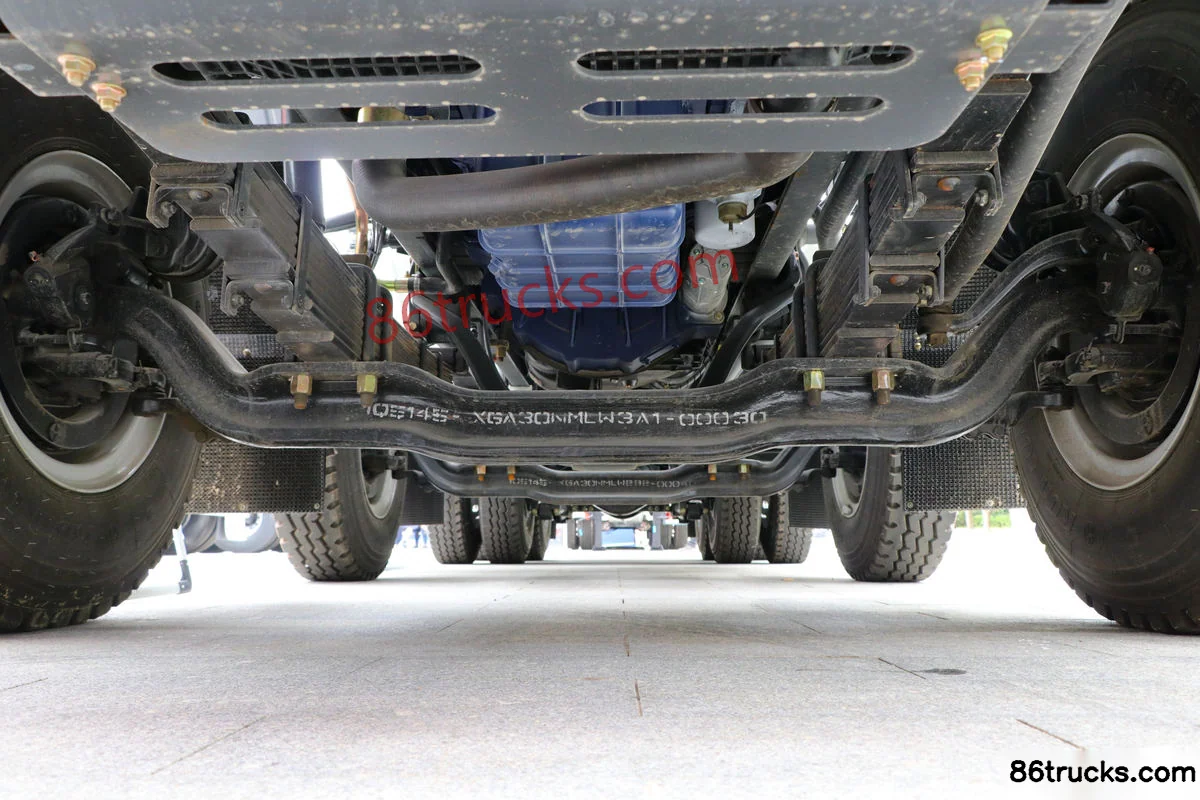

Chassis3

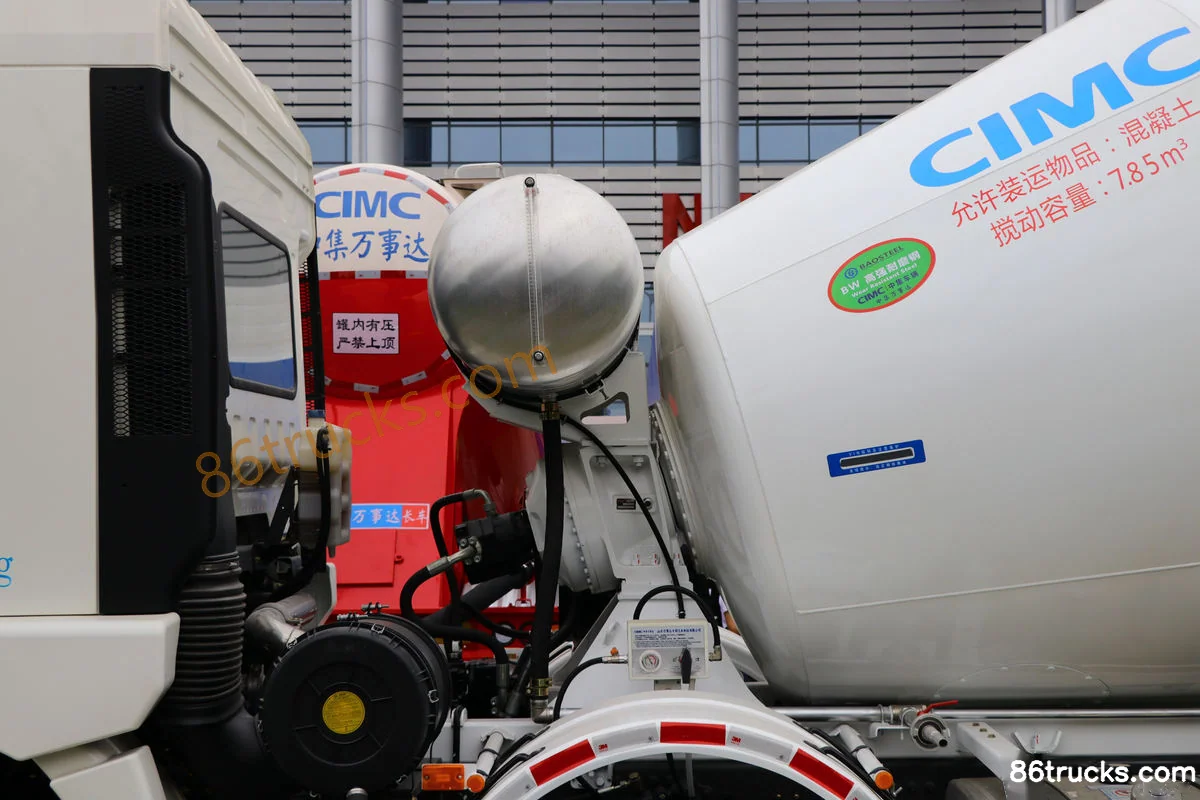

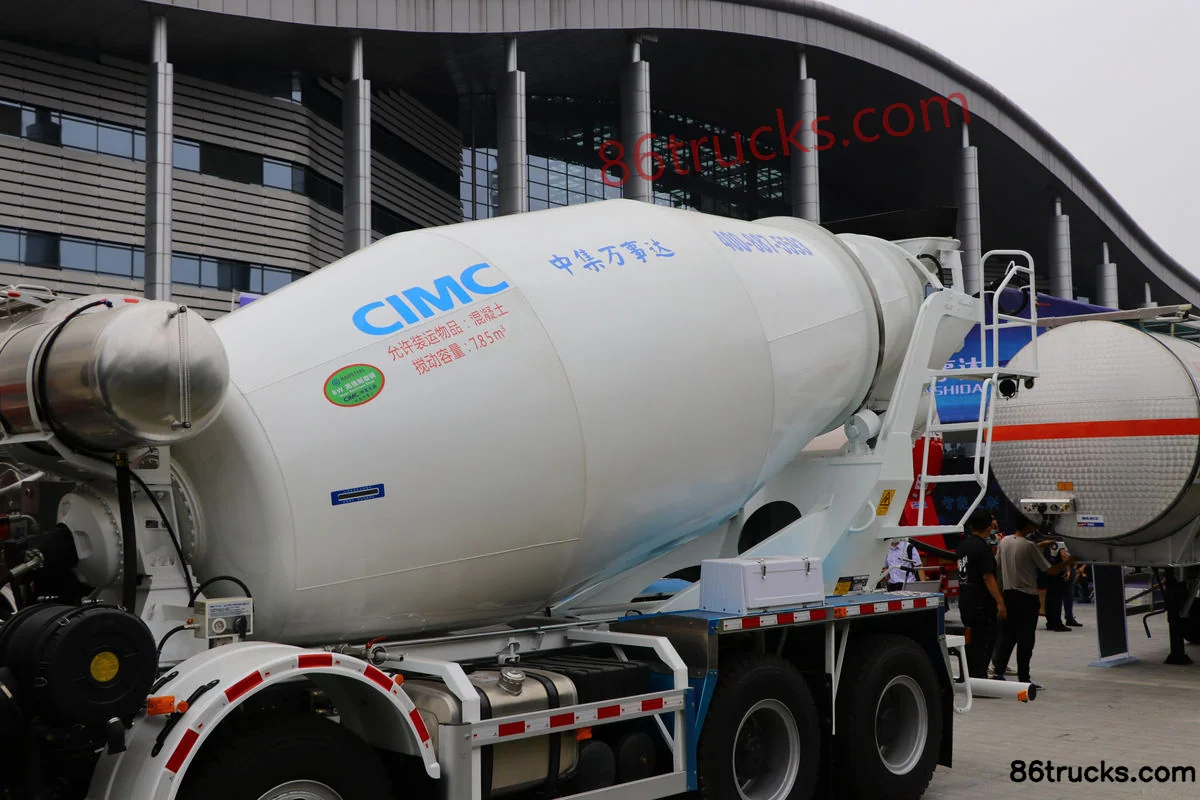

Body3

9 photos

FAQ

What emission standard does XCMG Hanfeng G5 N series 350hp 8X4(12 wheels) concrete mixer truck (China VI) (Wanshida brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of XCMG Hanfeng G5 N series 350hp 8X4(12 wheels) concrete mixer truck (China VI) (Wanshida brand)?

Key specs of XCMG Hanfeng G5 N series 350hp 8X4(12 wheels) concrete mixer truck (China VI) (Wanshida brand): Drive: 8x4; Horsepower: 350 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is XCMG Hanfeng G5 N series 350hp 8X4(12 wheels) concrete mixer truck (China VI) (Wanshida brand) suited for?

XCMG Hanfeng G5 N series 350hp 8X4(12 wheels) concrete mixer truck (China VI) (Wanshida brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does XCMG Hanfeng G5 N series 350hp 8X4(12 wheels) concrete mixer truck (China VI) (Wanshida brand) differ from other variants in the same series?

XCMG Hanfeng G5 N series 350hp 8X4(12 wheels) concrete mixer truck (China VI) (Wanshida brand) belongs to Wanshida XCMG Hanfeng chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for XCMG Hanfeng G5 N series 350hp 8X4(12 wheels) concrete mixer truck (China VI) (Wanshida brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export XCMG Hanfeng G5 N series 350hp 8X4(12 wheels) concrete mixer truck (China VI) (Wanshida brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
