SAIC Hongyan Genlyon Composite Edition 8X4(12 wheels) 6.2m Pure Electric Dump Truck CATL 400kWh

Export reference
MSRP N/A
Rated payload:: 12.98ton
Wheelbase:: 1800+3500+1400mm
Cargo box length:: 6.2m
Model code (announced):: CQ3311BEVHV56U
Cab length:: 9.685m
GVWR:: 31ton
Drive 8X4 (12 wheels)
Battery Brand: CATL
Motor 1 Brand: SAIC Hongyan
Curb Weight: 17.9ton

Overview

The SAIC Hongyan Genlyon Composite Edition 8X4(12 wheels) 6.2m Pure Electric Dump Truck CATL 400kWh is a Heavy truck featuring CATL battery/range, SAIC Hongyan motor, 8X4 (12 wheels) drive and 12.98t payload.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CQ3311BEVHV56U
Drive type: 8X4
Wheelbase: 1800+3500+1400mm
Cab length: 9.685m
Cab width: 2.55m
Cab height: 3.3m
Curb Weight: 17.9ton
Rated payload: 12.98ton
GVWR: 31ton
Max. speed: 85km/h
Origin: Chongqing
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: SAIC Hongyan
Motor 1 Model: TZ460XSHY600B
Motor Type: Permanent magnet synchronous motor
total rated power: 335kW
Peak power: 530kW
Motor 1 Peak Power: 530kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 400kWh
Transmission Parameters
Number of gears: 4Gear
shift type: AMT manual/auto
Transmission Model: 4AMT
Forward gears: 4Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box length: 6.2m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: Flat roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: HY300
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Electric
Power Windows:
Power Mirrors:
Reverse Camera:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

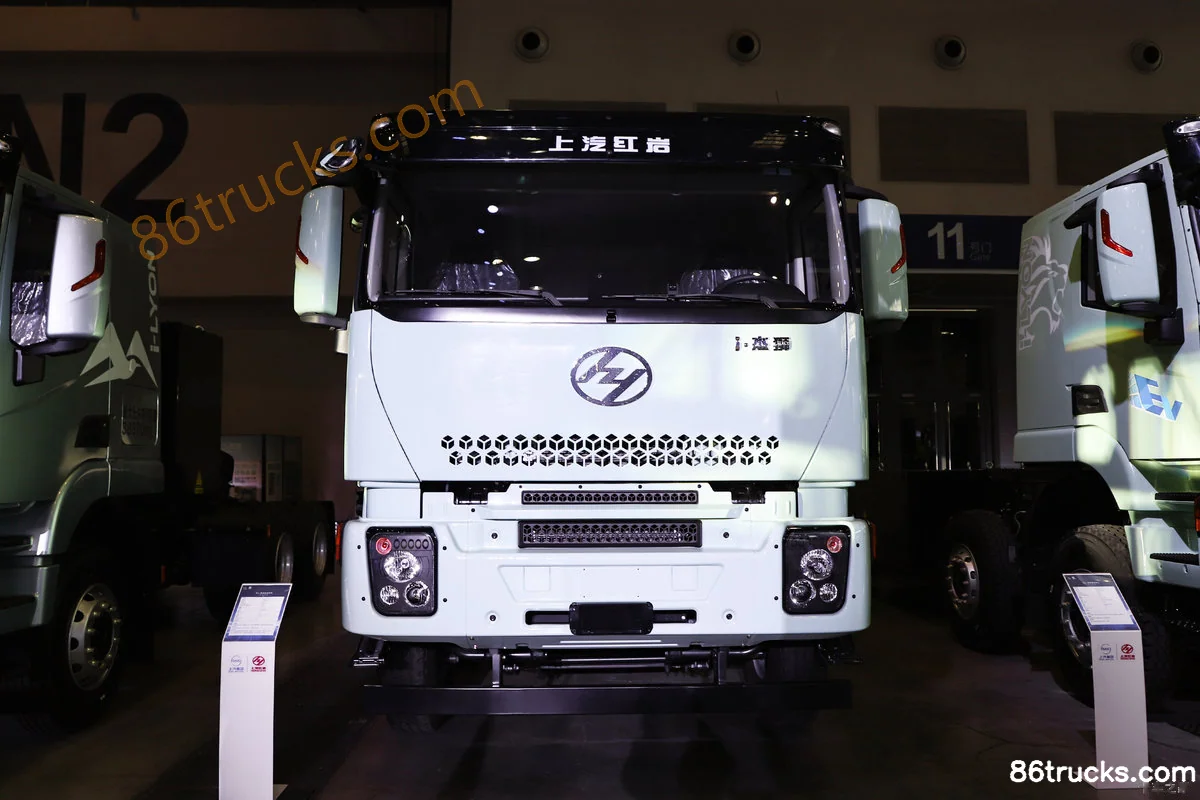

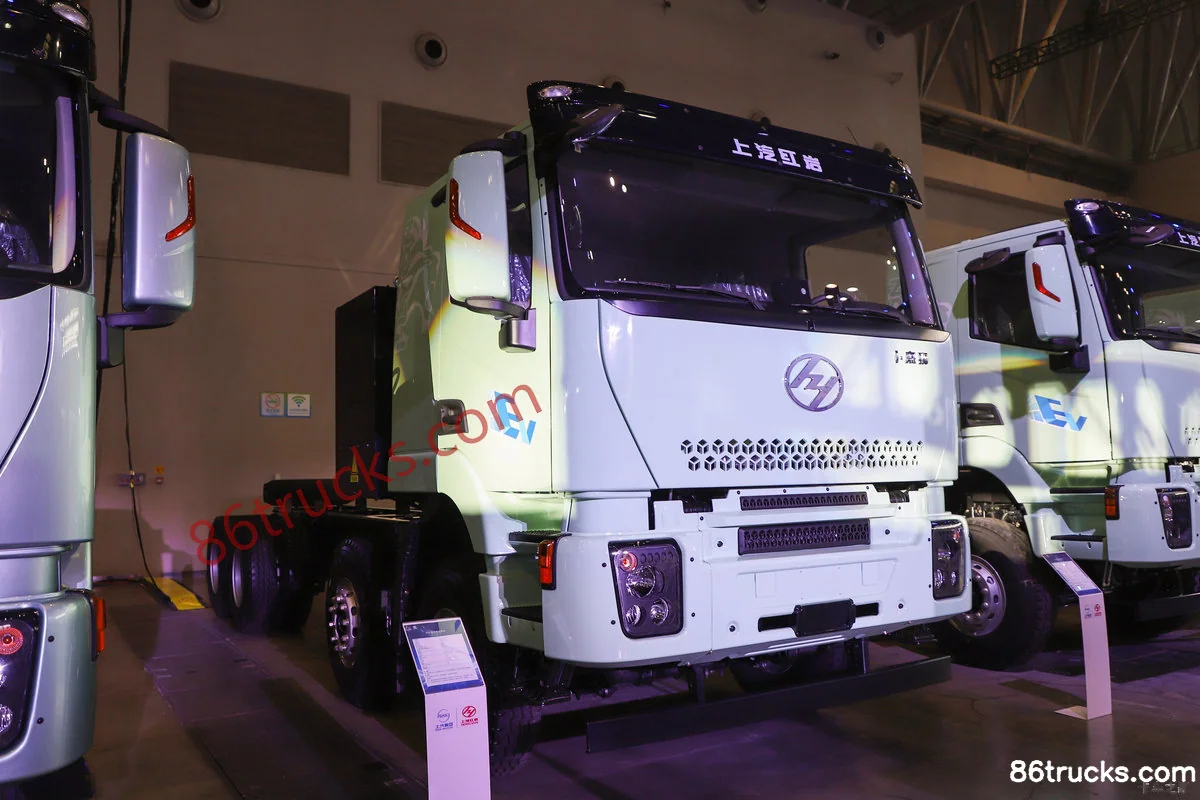

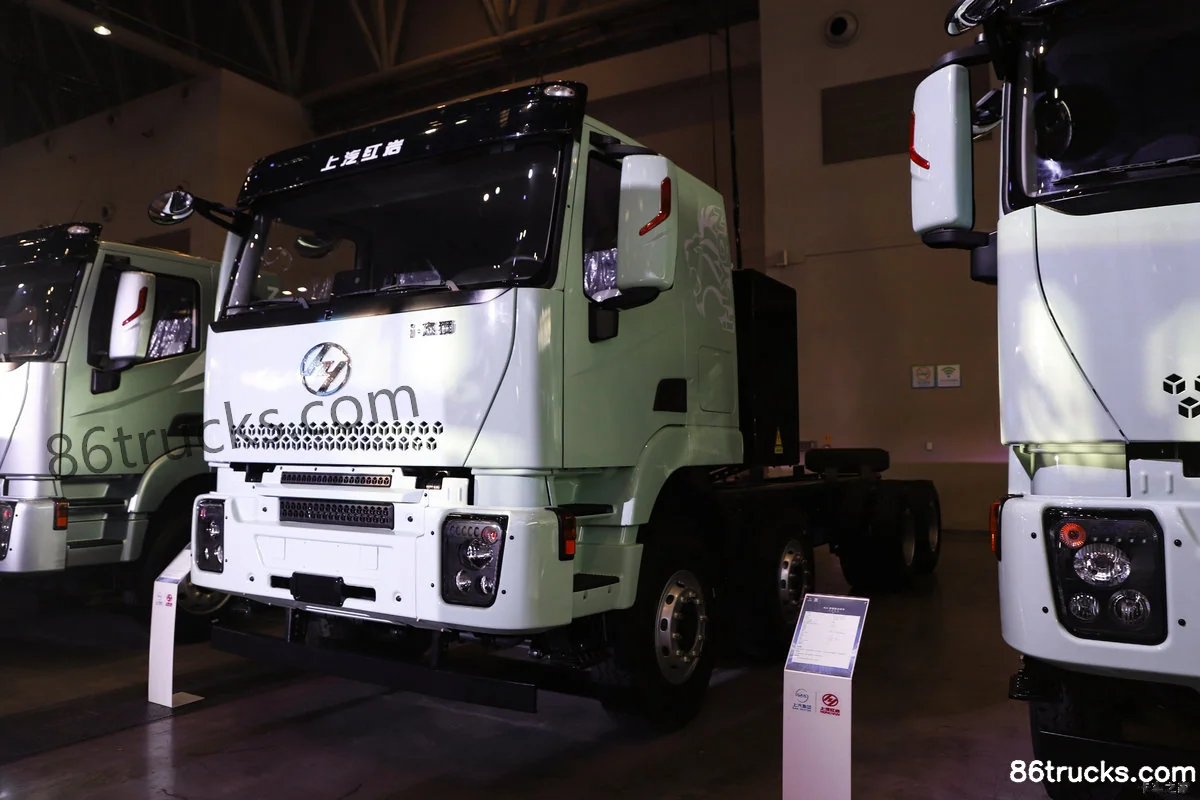

Exterior3

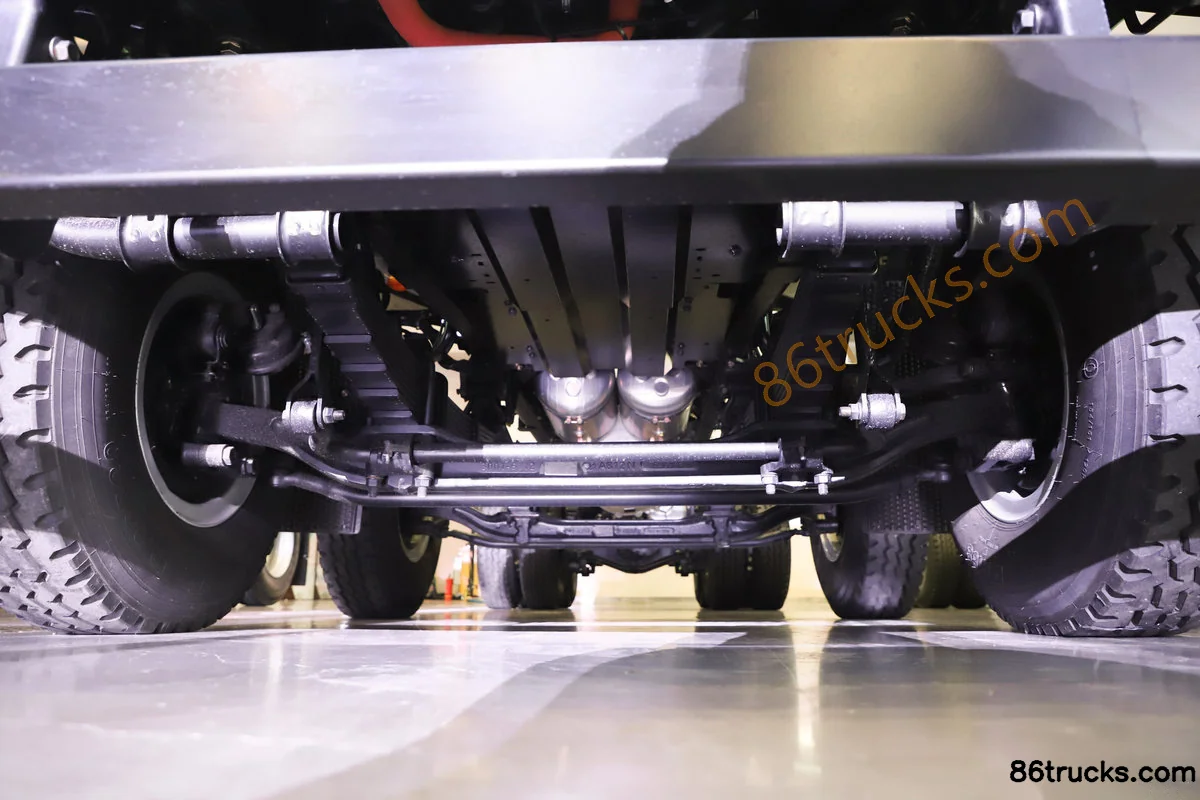

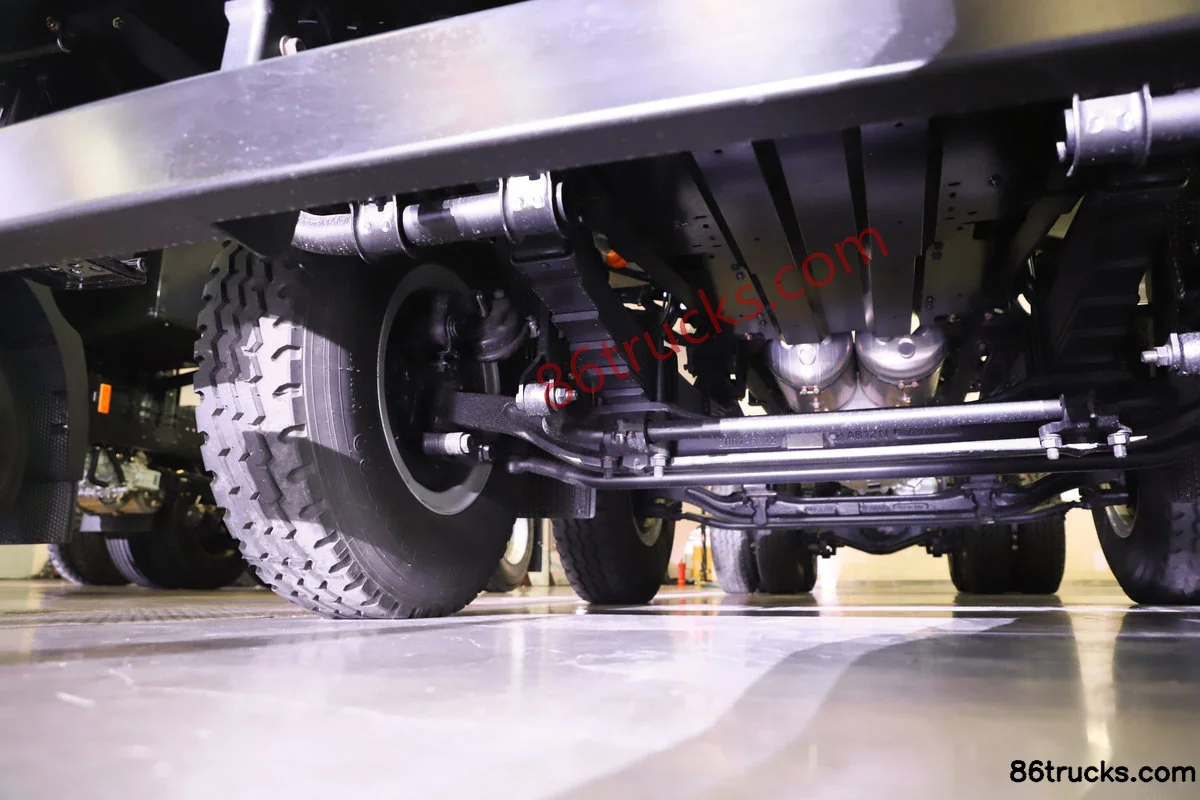

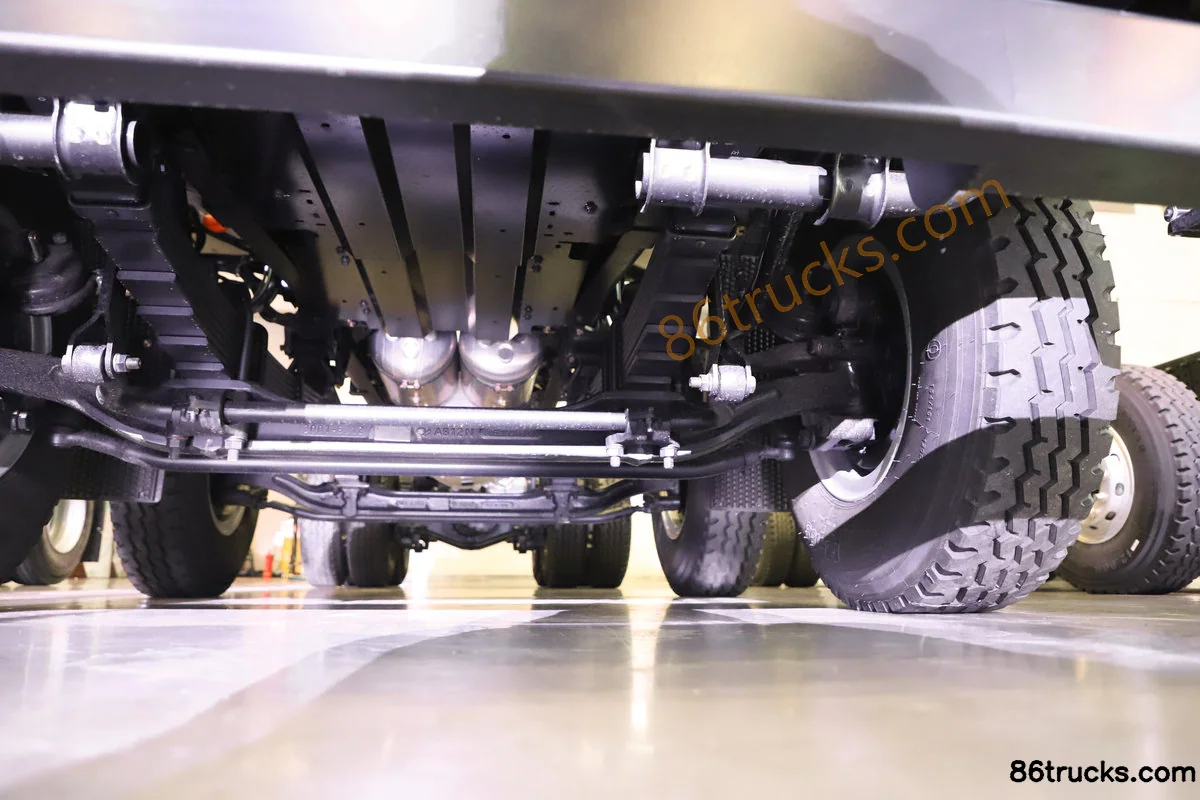

Chassis3

6 photos

FAQ

What are the key specs of SAIC Hongyan Genlyon Composite Edition 8X4(12 wheels) 6.2m Pure Electric Dump Truck CATL 400kWh?

Key specs of SAIC Hongyan Genlyon Composite Edition 8X4(12 wheels) 6.2m Pure Electric Dump Truck CATL 400kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan Genlyon Composite Edition 8X4(12 wheels) 6.2m Pure Electric Dump Truck CATL 400kWh suited for?

SAIC Hongyan Genlyon Composite Edition 8X4(12 wheels) 6.2m Pure Electric Dump Truck CATL 400kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SAIC Hongyan Genlyon Composite Edition 8X4(12 wheels) 6.2m Pure Electric Dump Truck CATL 400kWh differ from other variants in the same series?

SAIC Hongyan Genlyon Composite Edition 8X4(12 wheels) 6.2m Pure Electric Dump Truck CATL 400kWh belongs to SAIC Hongyan i Genlyon (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan Genlyon Composite Edition 8X4(12 wheels) 6.2m Pure Electric Dump Truck CATL 400kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan Genlyon Composite Edition 8X4(12 wheels) 6.2m Pure Electric Dump Truck CATL 400kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
