Huayuan Laidong 4L30F 102 hp 3L China IV Diesel Engine

Export reference
MSRP N/A
Intake type:: Naturally aspirated
Min. fuel consumption at full load:: ≤218g/kW.h
Bore × Stroke:: 96x105mm
Suitable Range: light truck, mini truck, SUV, MPV and other fields
Engine Model: 4L30F
Engine Series: L Series

Overview

The Huayuan Laidong 4L30F 102 hp 3L China IV Diesel Engine is a parts product with fit for light truck, mini truck, SUV, MPV and other fields and spec 4L30F.

China IV 102 Diesel

Model Specs

Legend: ● Standard ○ Optional - N/A

Engine parameters
Engine Series: L Series
Engine manufacturer: Shandong Huayuan Laidong Internal Combustion Engine Co., Ltd.
Suitable Range: light truck, mini truck, SUV, MPV and other fields
Intake type: Naturally aspirated
Min. fuel consumption at full load: ≤218g/kW.h
Engine net weight: 242kg
Engine Dimensions: 840x658x720mm
Bore × Stroke: 96x105mm
Engine Brand: Huayuan Laidong
Engine Model: 4L30F
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.04L
Emission standard: China IV
Max output power: 75kW
Max hp: 102Horsepower
Max torque: 264N·m
Max torque speed: 2200rpm
Rated speed: 3200rpm
Engine Type: Direct injection high-pressure common rail, turbocharged & intercooled, EGR (intercooled), aftertreatment (DOC)

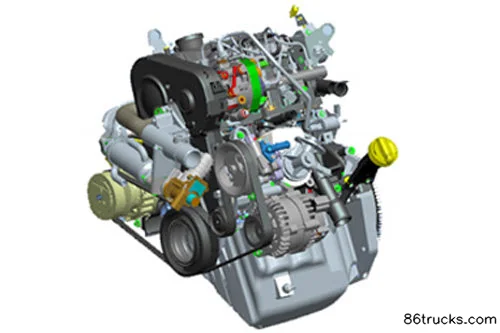

Photos

Exterior1

1 photos

FAQ

What emission standard does Huayuan Laidong 4L30F 102 hp 3L China IV Diesel Engine use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Huayuan Laidong 4L30F 102 hp 3L China IV Diesel Engine?

Key specs of Huayuan Laidong 4L30F 102 hp 3L China IV Diesel Engine: Horsepower: 102 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Huayuan Laidong 4L30F 102 hp 3L China IV Diesel Engine suited for?

Match Huayuan Laidong 4L30F 102 hp 3L China IV Diesel Engine to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Huayuan Laidong 4L30F 102 hp 3L China IV Diesel Engine differ from other variants in the same series?

Huayuan Laidong 4L30F 102 hp 3L China IV Diesel Engine belongs to Huayuan Laidong L Series (engine). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Huayuan Laidong 4L30F 102 hp 3L China IV Diesel Engine?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Huayuan Laidong 4L30F 102 hp 3L China IV Diesel Engine?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
