Sinotruk Sitrak G7H 540hp 8X4(12 wheels) 9.45m AMT automatic refrigerated truck

Export reference
MSRP N/A
Horsepower: 540
Emission: China VI
Fuel: Diesel
Curb Weight:: 14.1ton
Wheelbase:: 1950+4600+1400mm
Tire Size:: 12R22.5 18PR
Fuel tank capacity: 900L
Rated payload: 17.77ton
Drive 8X4 (12 wheels)
Cargo box dimensions: 9.45×2.45×2.5m

Overview

The Sinotruk Sitrak G7H 540hp 8X4(12 wheels) 9.45m AMT automatic refrigerated truck is a Refrigerated Truck featuring 9.45×2.45×2.5m cargo body, 900L volume, 17.77t payload and wide high-roof flat floor cab. On the powertrain side, it comes with 540 hp, 8X4 (12 wheels) drive, China VI emissions and Diesel fuel.

China VI 540 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 12×2.6×3.98m
Truck Type: Refrigerated Truck
Drive type: 8X4
Wheelbase: 1950+4600+1400mm
Vehicle origin: Shandong Zhangqiu
Front track width: 2022/2022mm
rear track: 1830/1830mm
Curb Weight: 14.1ton
Rated payload: 17.77ton
GVWR: 32ton
Max. speed: 89km/h
Front/rear suspension: 1.492/2.558m
Energy Type: Diesel
Engine parameters
Engine Model: SinotrukMC13H.54-61
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 13.02L
Emission standard: China VI
Max output power: 400kW
Max hp: 540Horsepower
Max torque: 2500N·m
Rated speed: 1800rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Cargo box parameters
Cargo box dimensions: 9.45×2.45×2.5m
Cargo box width: 2.45m
Cargo box height: 2.5m
Body Parameters
Vehicle certification code: ZZ5326XLCV466HF1K
Body Brand: Sitrak
Chassis Specs
Chassis Brand: Sitrak
Chassis Series: SITRAK G7H
Chassis Model: ZZ1326V466HF1K
Front axle description: 5T front axle
Frame Dimensions: 8/280mm
rear axle description: 12T dual rear axle
Axle ratio: 2.85
Leaf spring count: 3/3/-/-
Transmission Parameters
Number of gears: 16Gear
Transmission Model: Sinotruk
Cab parameters
Cab: wide high-roof flat floor
fuel tank
Fuel tank capacity: 900L
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:
Stability control system:
Power steering:
Inter-axle Differential Lock:
clutch booster:

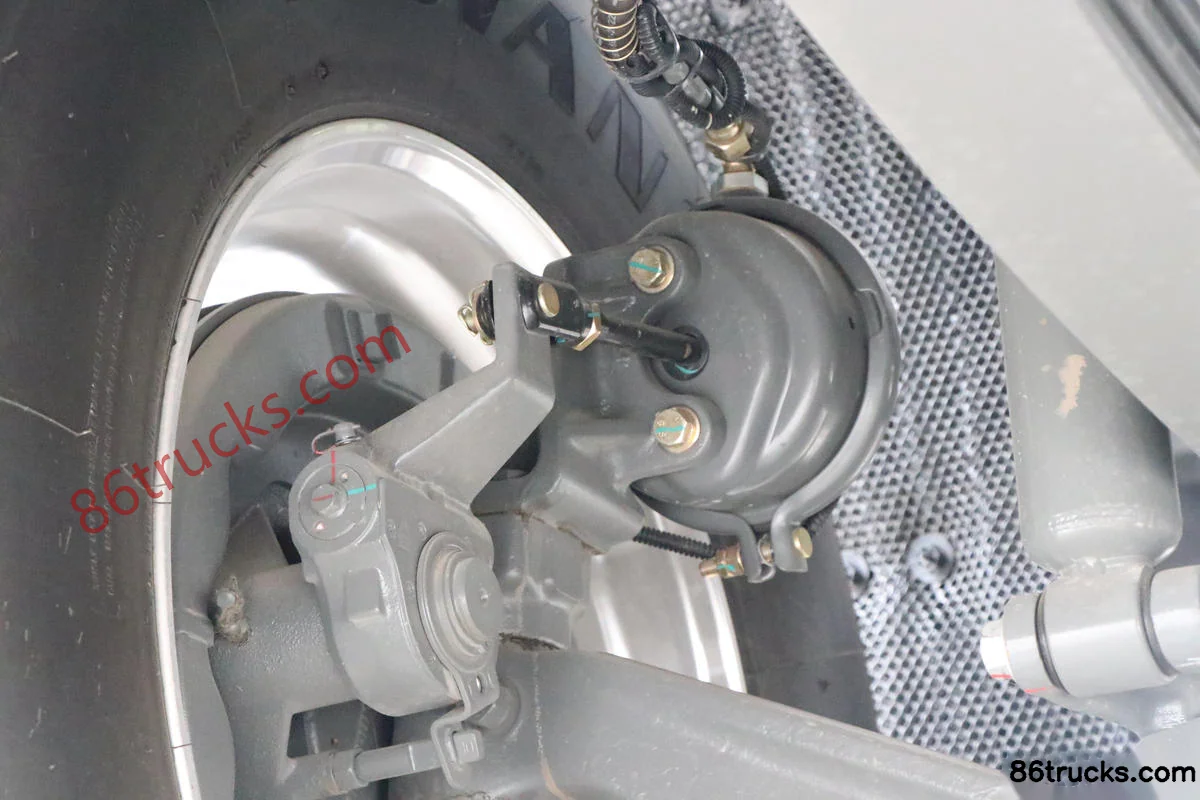

automatic slack adjuster:
interior configuration
Multifunction steering wheel:
AC control type: Automatic

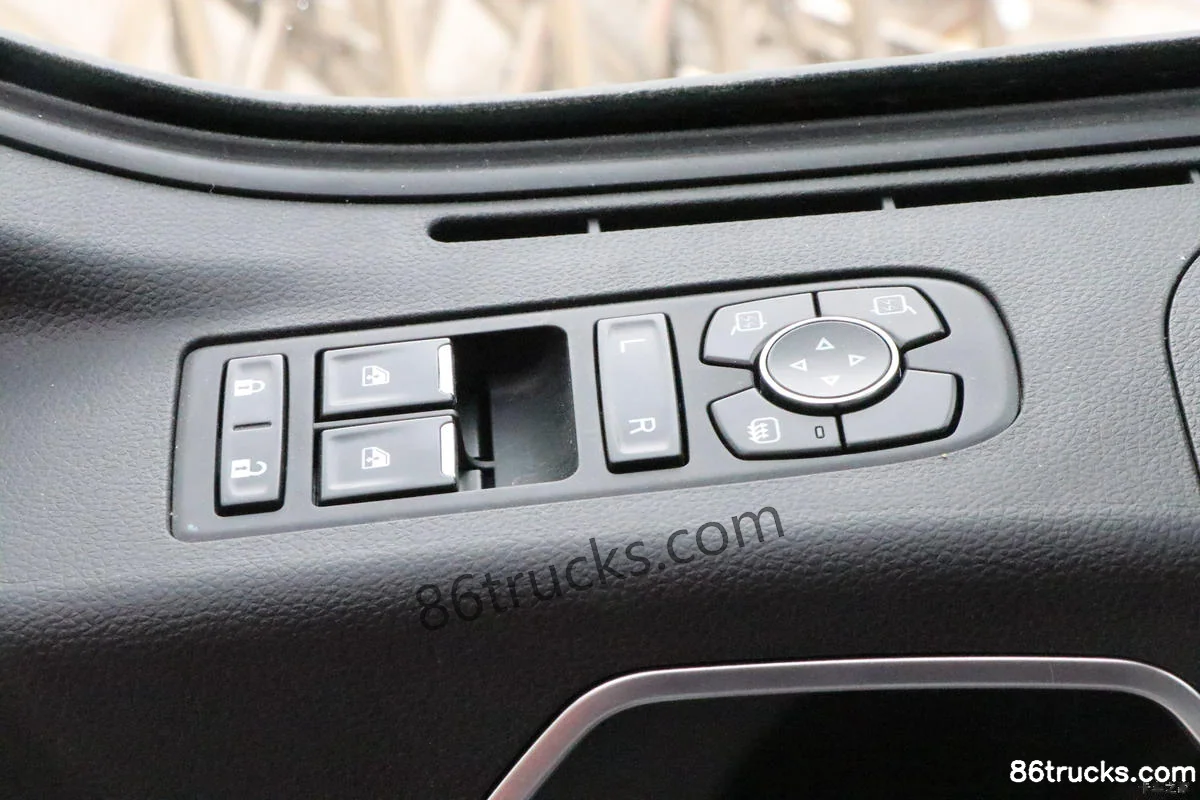

Power Windows:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:
Radio:
lighting configuration
Headlight height adjustment:

Photos

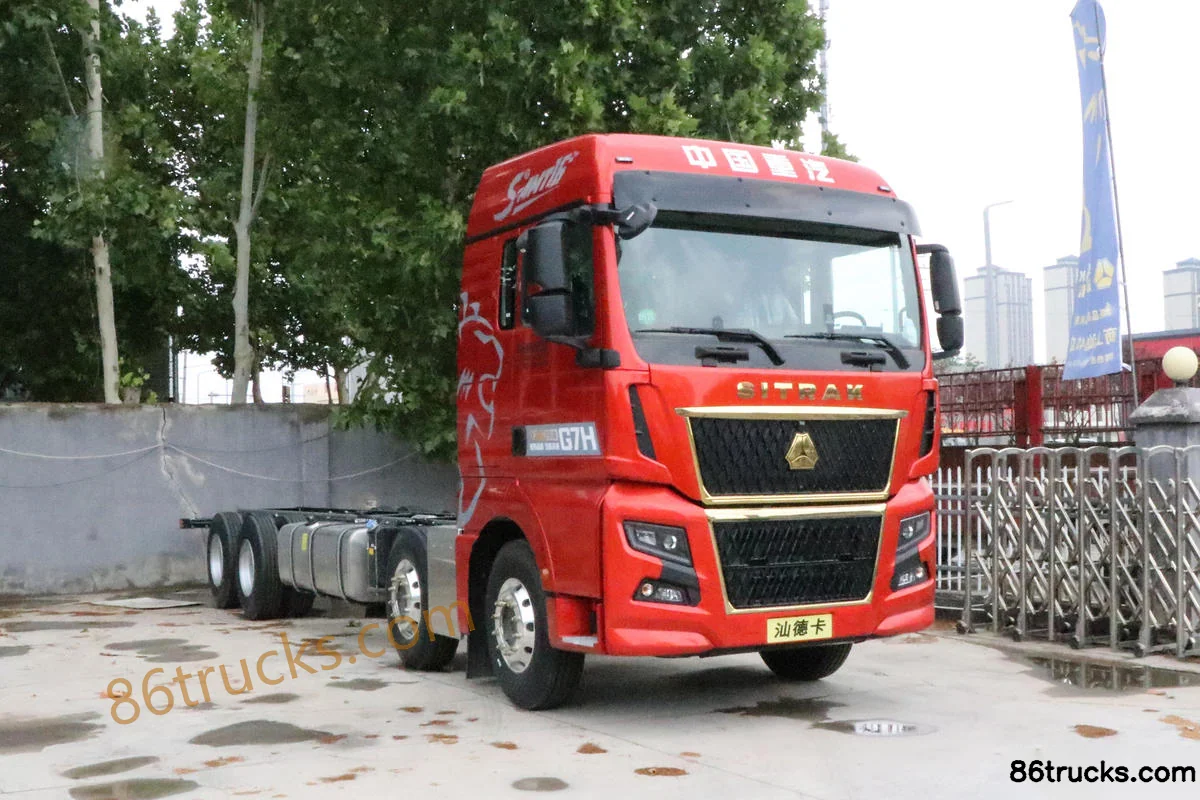

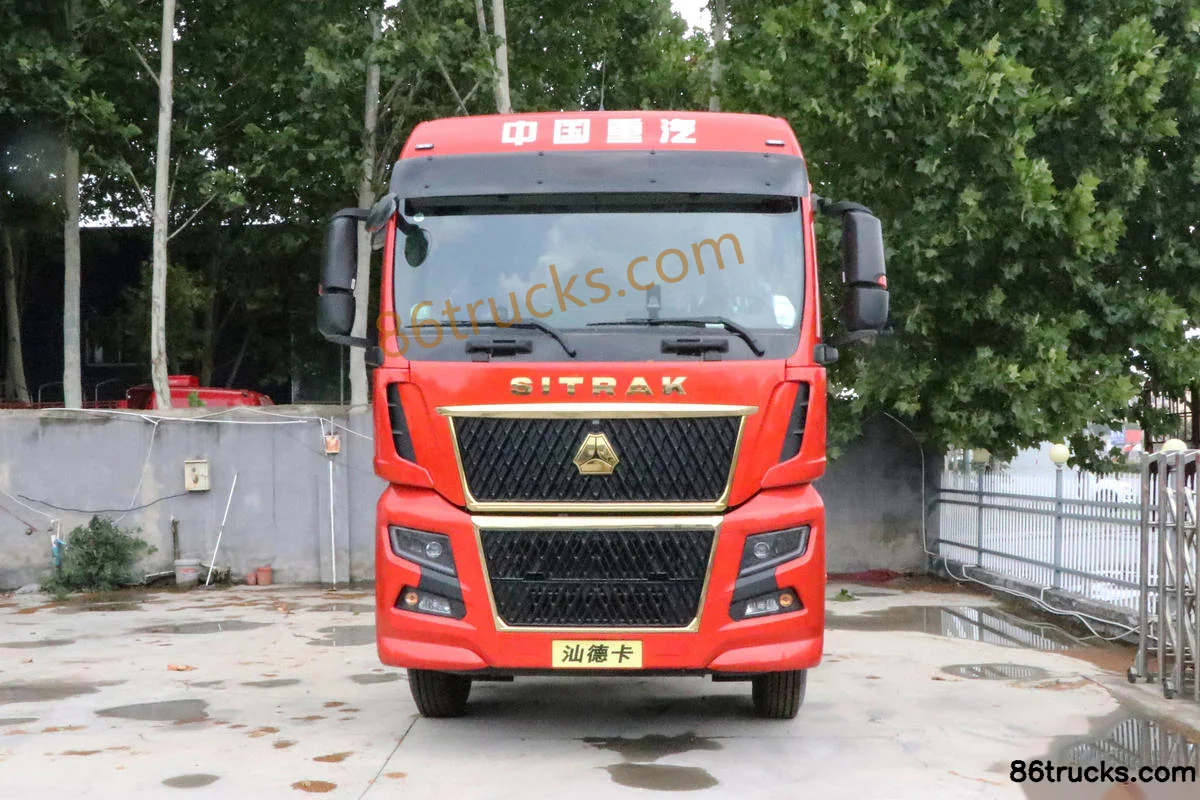

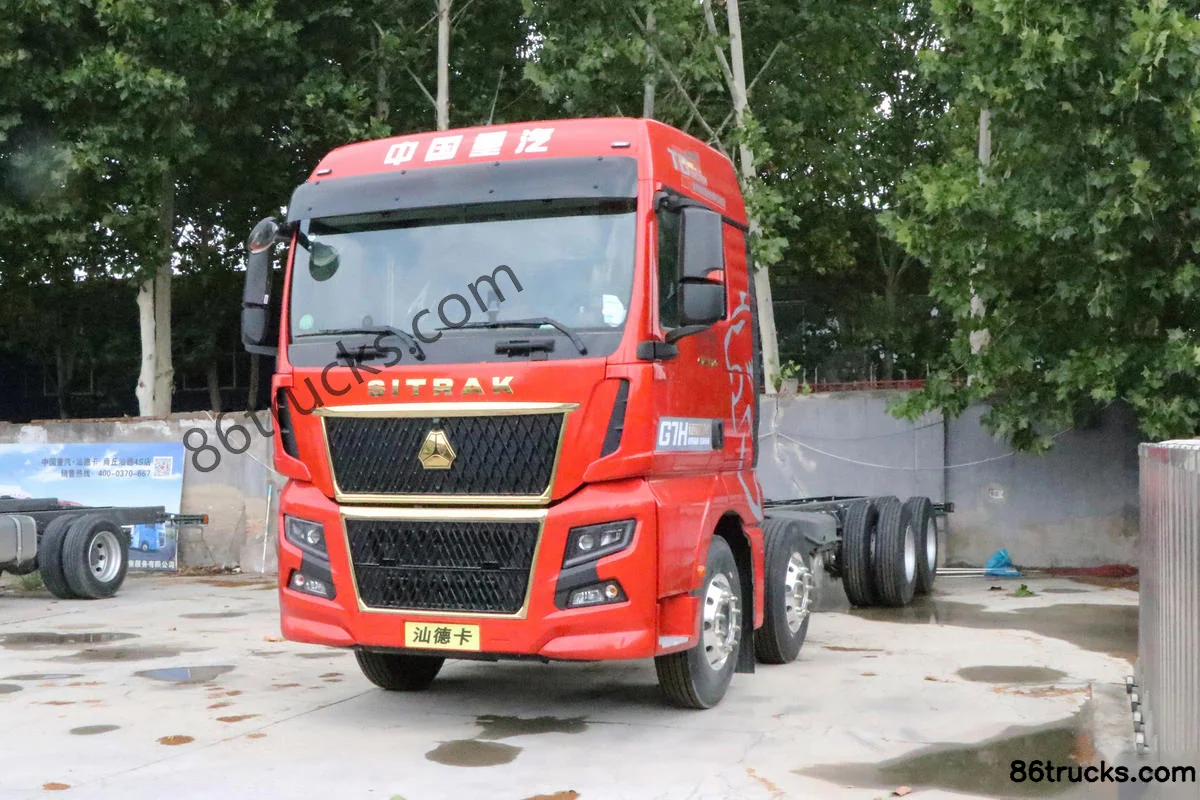

Exterior3

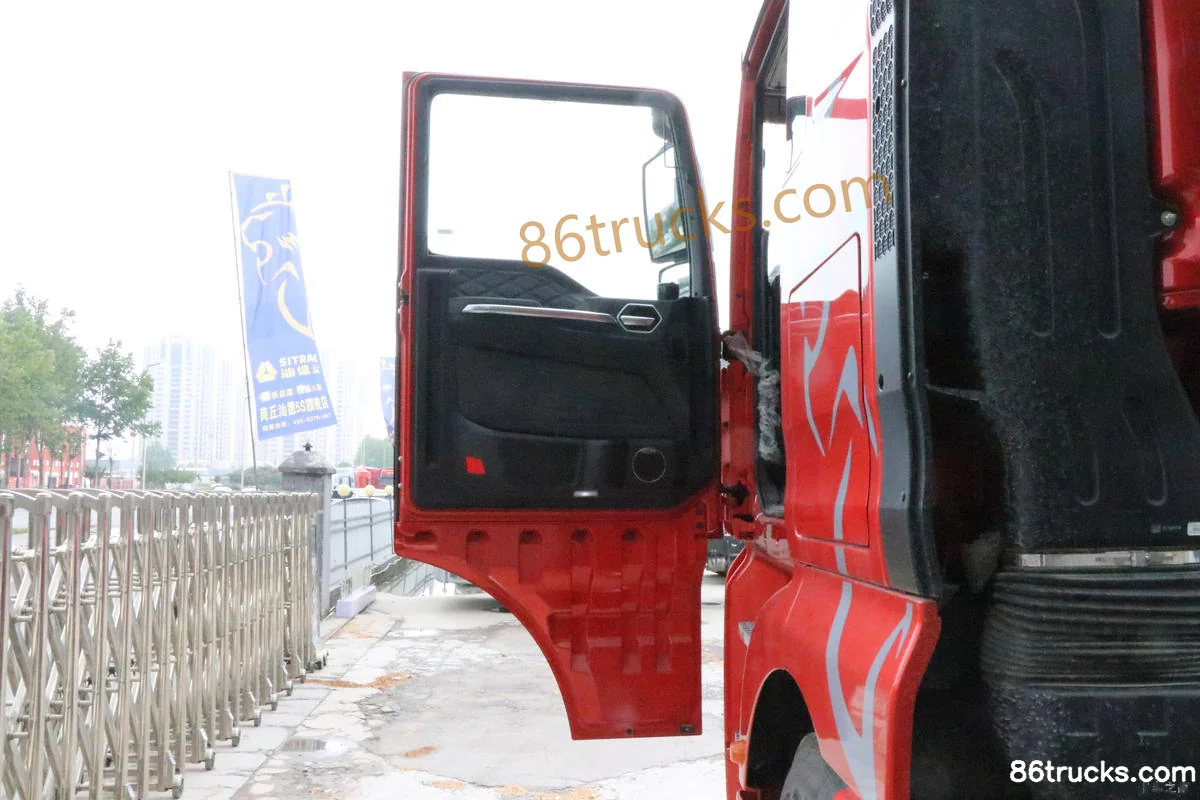

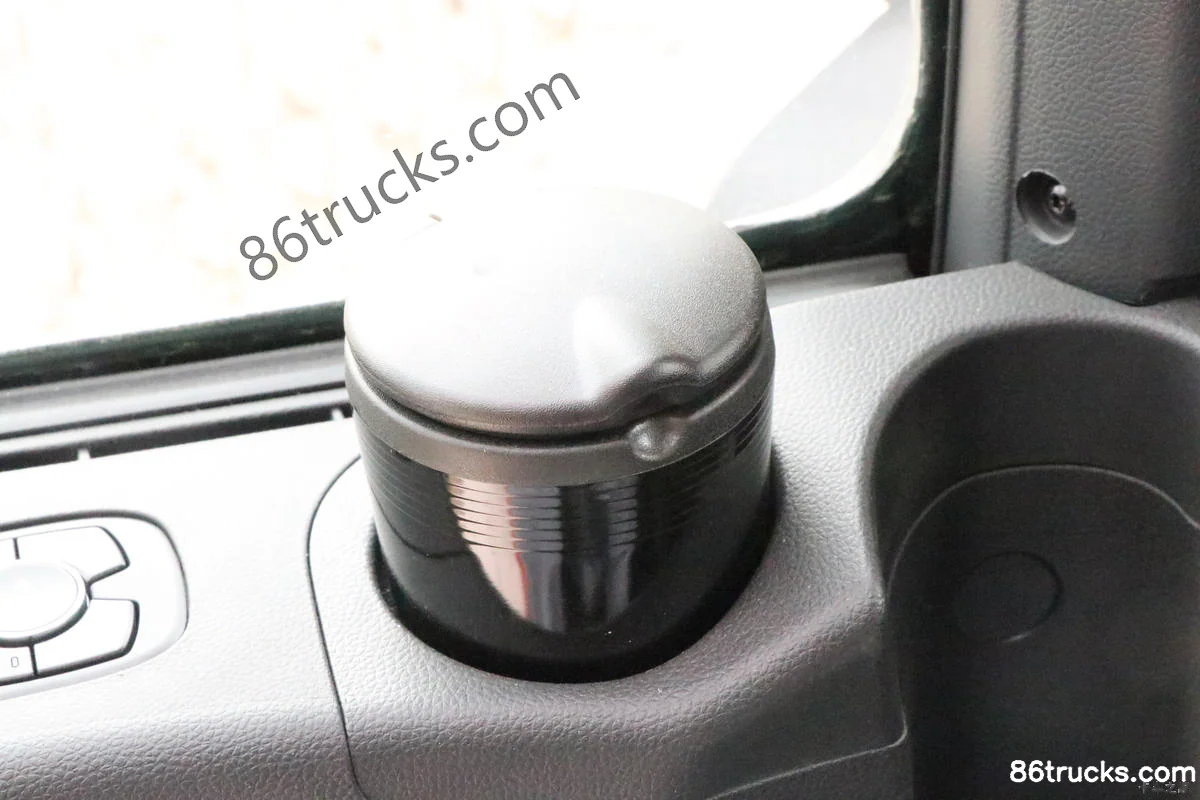

Cab3

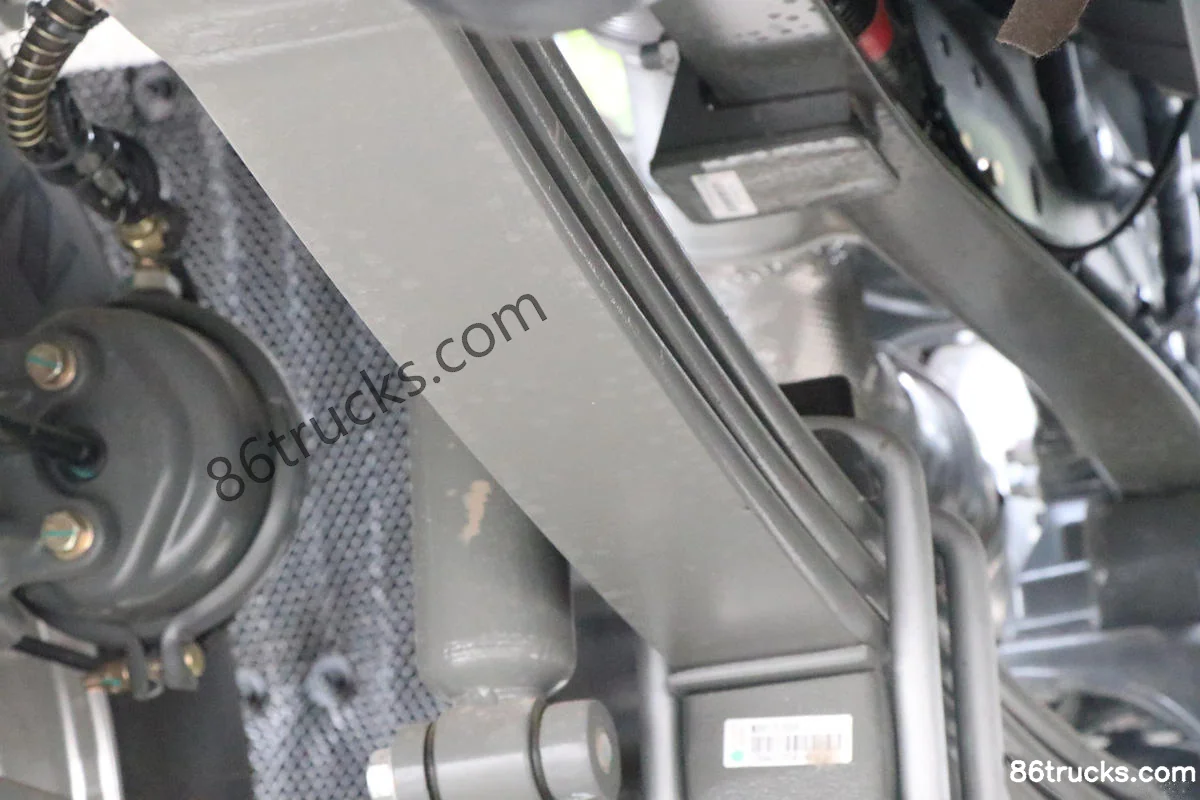

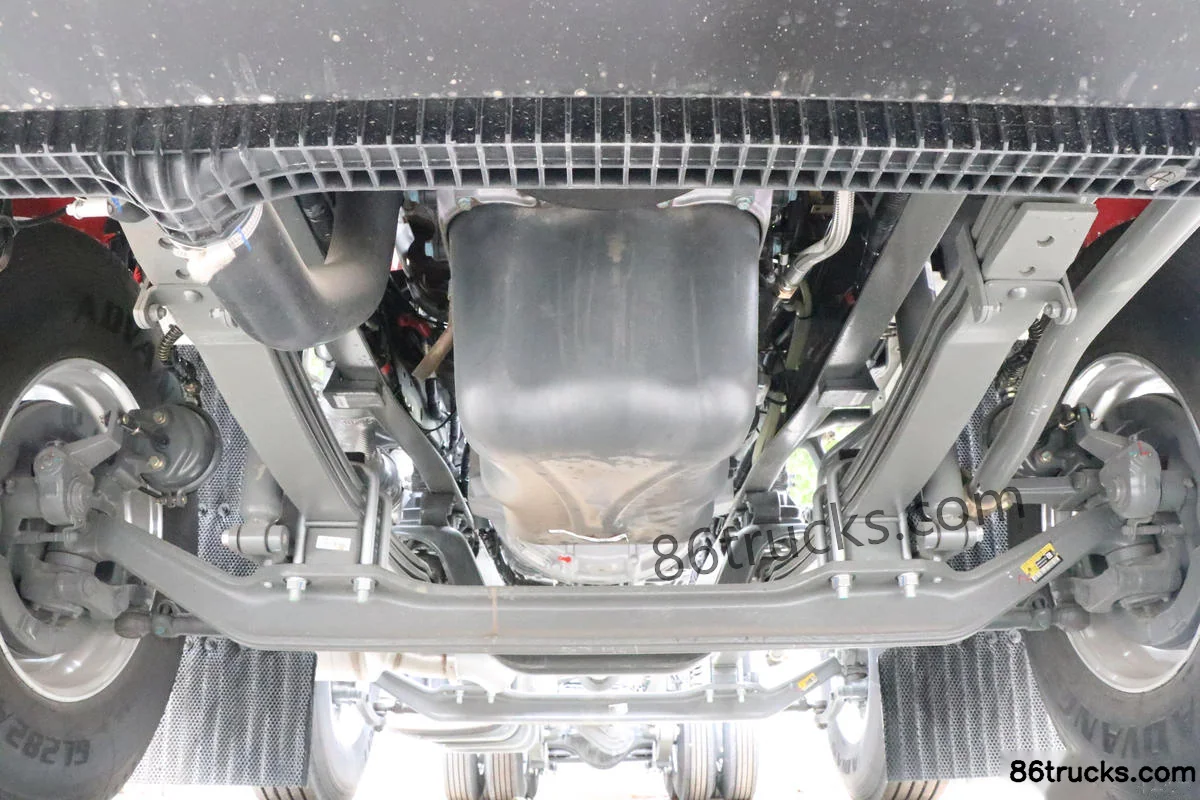

Chassis3

9 photos

FAQ

What emission standard does Sinotruk Sitrak G7H 540hp 8X4(12 wheels) 9.45m AMT automatic refrigerated truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak G7H 540hp 8X4(12 wheels) 9.45m AMT automatic refrigerated truck?

Key specs of Sinotruk Sitrak G7H 540hp 8X4(12 wheels) 9.45m AMT automatic refrigerated truck: Drive: 8x4; Horsepower: 540 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak G7H 540hp 8X4(12 wheels) 9.45m AMT automatic refrigerated truck suited for?

Sinotruk Sitrak G7H 540hp 8X4(12 wheels) 9.45m AMT automatic refrigerated truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Sitrak G7H 540hp 8X4(12 wheels) 9.45m AMT automatic refrigerated truck differ from other variants in the same series?

Sinotruk Sitrak G7H 540hp 8X4(12 wheels) 9.45m AMT automatic refrigerated truck belongs to Sitrak G7H heavy truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak G7H 540hp 8X4(12 wheels) 9.45m AMT automatic refrigerated truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak G7H 540hp 8X4(12 wheels) 9.45m AMT automatic refrigerated truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
