Hualing Hanma H6 375 hp 8X4(12 wheels) Refrigerated Truck
EXW
Export quote
Hualing Hanma H6 Heavy Truck Refrigerated Truck
Main model photos
299 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Hualing Hanma H6 375 hp 8X4(12 wheels) Refrigerated Truck | 8x4 / 375hp / China V | ||
| Hualing HanmaH6 180hp 4X2(6 wheels) Refrigerated Truck | 4x2 / 180hp / China V | ||
| Hualing HanmaH6 345hp 8X4(12 wheels) Refrigerated Truck | 8x4 / 345hp / China V | ||
| Hualing HanmaH6 180hp 4X2(6 wheels) Refrigerated Truck | 4x2 / 180hp / China V | ||
| Hualing HanmaH6 345hp 8X4(12 wheels) Refrigerated Truck | 8x4 / 345hp / China V |
Hualing HanmaH6 180hp 4X2(6 wheels) Refrigerated Truck
EXW
Export quote

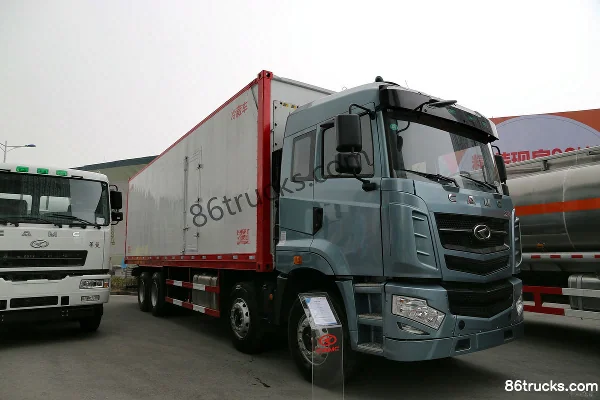

Hualing HanmaH6 345hp 8X4(12 wheels) Refrigerated Truck
EXW
Export quote
Hualing HanmaH6 180hp 4X2(6 wheels) Refrigerated Truck
EXW
Export quote
Hualing HanmaH6 345hp 8X4(12 wheels) Refrigerated Truck
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 11.98×2.55×3.95 / 9.05×2.55×4m
Truck Type: Refrigerated Truck
Drive type: 8X4 / 4X2
Vehicle origin: Ma'anshan, Anhui
Wheelbase: 1850+4605+1350 / 5600 / 5300mm
Front track width: 2065/2065 / 1908mm
rear track: 1860/1860 / 1860mm
Curb Weight: 12.87 / 6.87ton
Rated payload: 18 / 9ton
Max. speed: 98km/h
Front/rear suspension: 1.37/2.805 / 1.45/2.95m
Energy Type: Diesel
Engine parameters
Engine Model: Hanma engine CM6D18.375 50 / SDECSC4H180Q5 / Hanma CM6D18.345 50 / YuchaiYC6J180-50 / HualingCM6D18.345 50
Number of cylinders: 6 / 4cylinder
Displacement: 9.84 / 4.295 / 6.494L
Emission standard: China V
Max output power: 276 / 132 / 254kW
Max hp: 375 / 180 / 345Horsepower
Max torque: 1750 / 660 / 1660 / 650N·m
Rated speed: 1900 / 2300 / 2500rpm
Engine Type: Inline, high-pressure common rail / Inline, electronic control system / Vertical, inline 6-cylinder, water-cooled, 4-stroke, electronic direct injection
Cargo box parameters
Cargo box dimensions: 9.4×2.33×2.5 / 7.6×2.33×2.65m
Cargo box width: 2.33m
Cargo box height: 2.5 / 2.65m
Body Parameters
Vehicle certification code: HN5310XLCX34D6M5 / HN5160XLCH19E6M5
Chassis Specs
Chassis Brand: Hualing
Chassis Series: HanmaH6 / HualingHanma
Chassis Model: HN1310X34D6M5J / HN1160H19E6M5J
Front axle description: 6T / 145 / Hanma6T
Frame Dimensions: 290(10) / 250(7) / Single-layer beam 7 / 8+5mm
rear axle description: HL436 / HL145 / HL460
Axle ratio: 4.1 / 4.875
Leaf spring count: 9/9/12 / 10/9+6 / 9/9+6
Transmission Parameters
Number of gears: 12 / 8Gear
Transmission Model: Hanma12SOB2001 / Fast Gear8JS75C / Fast Gear8JS85E / SODA 12SDC1851
Cab parameters
Cab: Hanma H3 flat roof full steel cab / Hanma H3 flat roof / Hanma H6 high roof
Tire
Tire Size: 12R22.5 / 9.00R20 / 11R22.5
Number of tires: 12 / 6pcs
FAQ
What kind of truck is Hualing Hualing Hanma H6 Heavy Truck Refrigerated Truck?
Hualing Hualing Hanma H6 Heavy Truck is an export-oriented Refrigerated Truck lineup with about 5 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Hualing Hanma H6 Heavy Truck Refrigerated Truck cover?
Hualing Hanma H6 Heavy Truck Refrigerated Truck mainly covers: Drive: 4x2 / 8x4; Horsepower: 180 hp / 345 hp / 375 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Hualing Hanma H6 Heavy Truck Refrigerated Truck?
For Hualing Hanma H6 Heavy Truck Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Hualing Hanma H6 Heavy Truck Refrigerated Truck include?
Hualing Hanma H6 Heavy Truck Refrigerated Truck currently lists about 5 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Hualing Hanma H6 Heavy Truck Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
