Dongfeng Liuqi Balong 507 340 hp 8X4(12 wheels) Truck Mounted Crane (Shaoye Brand)

Export reference
MSRP N/A
Emission: China III / Euro III
Fuel: Diesel
Wheelbase:: 1800+4425+1350mm
Cab dimensions:: 11.98×2.495×3.76m
Type:: truck-mounted crane
GVWR:: 30.9ton
Lifting capacity: 6.3ton
Drive 8X4 (12 wheels)
Horsepower 340
Rated mass: 14.19ton

Overview

The Shaoqi (Shaoye Brand) Dongfeng Liuqi Balong 507 340 hp 8X4(12 wheels) Truck Mounted Crane (Shaoye Brand) is a truck-mounted crane featuring 6.3ton tank capacity, 30.9t GVW and 8X4 (12 wheels) drive. On the powertrain side, it comes with 340 hp, China III / Euro III emissions and Diesel fuel.

China III / Euro III 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.98×2.495×3.76m
Type: truck-mounted crane
Drive type: 8X4
Wheelbase: 1800+4425+1350mm
Rated mass: 14.19ton
GVWR: 30.9ton
Front/rear suspension: 1.56/2.845m
Energy Type: Diesel
Body Parameters
Other special notes: Left, right and rear underrun protection material: Q235-A. Left and right protection welded to chassis; rear protection bolted.
Crane model: SQ6.3Z
Lifting capacity: 6.3ton
crane self-weight: 2.35ton
Vehicle certification code: SGQ5313JSQLH
Body Brand: Shaoye Brand
Engine parameters
Engine Brand: Yuchai
Engine Model: Yuchai YC6M340-30
fuel type: Diesel
Displacement: 9.839L
Emission standard: China III / Euro III
Max output power: 250kW
Max hp: 340Horsepower
Max torque speed: 1600rpm
Rated speed: 2100rpm
Chassis Specs
Chassis Brand: DongfengLiuqi
Chassis Series: ChenglongM5
Chassis Model: LZ1310PELT
Leaf spring count: 11/11/13
Tire
Tire Size: 12.00-20
Number of tires: 12pcs

Photos

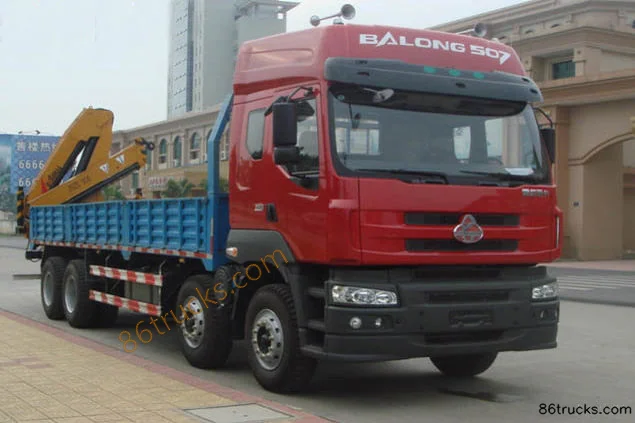

Exterior1

1 photos

FAQ

What emission standard does Dongfeng Liuqi Balong 507 340 hp 8X4(12 wheels) Truck Mounted Crane (Shaoye Brand) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Balong 507 340 hp 8X4(12 wheels) Truck Mounted Crane (Shaoye Brand)?

Key specs of Dongfeng Liuqi Balong 507 340 hp 8X4(12 wheels) Truck Mounted Crane (Shaoye Brand): Drive: 8x4; Horsepower: 340 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Balong 507 340 hp 8X4(12 wheels) Truck Mounted Crane (Shaoye Brand) suited for?

Dongfeng Liuqi Balong 507 340 hp 8X4(12 wheels) Truck Mounted Crane (Shaoye Brand) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dongfeng Liuqi Balong 507 340 hp 8X4(12 wheels) Truck Mounted Crane (Shaoye Brand) differ from other variants in the same series?

Dongfeng Liuqi Balong 507 340 hp 8X4(12 wheels) Truck Mounted Crane (Shaoye Brand) belongs to Shaoqi (Shaoye Brand) Dongfeng Liuqi Chassis (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Balong 507 340 hp 8X4(12 wheels) Truck Mounted Crane (Shaoye Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Balong 507 340 hp 8X4(12 wheels) Truck Mounted Crane (Shaoye Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
