Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) truck-mounted crane (153 rear axle) (Shaoye brand)
EXW
From $42,431
Export quote
Shaoqi (Shaoye Brand) Dongfeng Liuqi Chassis
Main model photos
6 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) truck-mounted crane (153 rear axle) (Shaoye brand) | 8x4 / 350hp / China V | From $42,431 | |
| Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) Truck Mounted Crane (Shaoye Brand) | 8x4 / 350hp / China V | From $43,514 | |
| Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 8.2m Truck-Mounted Crane (Shaoye Brand) | 6x2 / 220hp / China V | From $30,486 |
Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) Truck Mounted Crane (Shaoye Brand)
EXW
From $43,514
Export quote

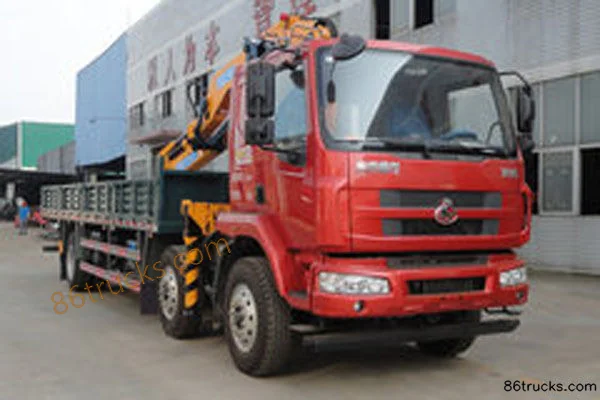

Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 8.2m Truck-Mounted Crane (Shaoye Brand)
EXW
From $30,486
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Liuqi Balong 245 hp 6X2(8 wheels) Truck Mounted Crane (Shaoye Brand) | 6x2 / 245hp / China III / Euro III | ||
| Dongfeng Liuqi Balong 245 hp 6X4(10 wheels) Truck Mounted Crane (Shaoye Brand) | 6x4 / 245hp / China III / Euro III | ||
| Dongfeng Liuqi Balong 507 340 hp 8X4(12 wheels) Truck Mounted Crane (Shaoye Brand) | 8x4 / 340hp / China III / Euro III |
Dongfeng Liuqi Balong 245 hp 6X2(8 wheels) Truck Mounted Crane (Shaoye Brand)
EXW
Export quote
Dongfeng Liuqi Balong 245 hp 6X4(10 wheels) Truck Mounted Crane (Shaoye Brand)
EXW
Export quote
Dongfeng Liuqi Balong 507 340 hp 8X4(12 wheels) Truck Mounted Crane (Shaoye Brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 11.99×2.55×3.75 / 12x2.55x3.75 / 1.198×2.495×3.72 / 11.98×2.495×3.76m
Type: truck-mounted crane / Truck with crane
Drive type: 8X4 / 6X2 / 6X4
Wheelbase: 2100+4350+1350 / 1950+4500+1350 / 2100+5300 / 1700+5700 / 6250+1300 / 1800+4425+1350mm
Rated mass: 9.87 / 9.305 / 8.57 / 10.34 / 14.19ton
GVWR: 31 / 25 / 20.08 / 24.99 / 30.9ton
Front/rear suspension: 1.512/2.658 / 1.445/3.155 / 1.56/3.02 / 1.512/2.918 / 1.56/2.845m
Energy Type: Diesel
Body Parameters
Other special notes: Semi-floating cab suspension, manual hydraulic tilt, mechanical suspension driver seat, electric glass regulator, remote central locking, A/C, onboard terminal (tachograph + compatible with BeiDou/GPS), external sun visor, multi-state switch, right-turn warning function, overspeed alarm function. Domestic valves, ABS (WABCO), automatic slack adjuster, maintenance-free battery, direct-drive fan, knob-type FARIZON accelerator, start/stop function from outside cab, cab power master switch, color-matched bumper + fender, front axle step ring. / Left, right and rear underrun protection material: Q235-A. Left and right protection welded to chassis; rear protection bolted. / Left and right guards bolted to the chassis, rear guard bolted
Crane model: SQ600 / SQ200,SQ240,SQ280,SQ320 / SQ6.3Z / SQ8Z
Lifting capacity: 11.1 / 11.6 / 6.3 / 8ton
crane self-weight: 6.5 / 4.1 / 2.8 / 3.5 / 2.35ton
Vehicle certification code: SGQ5310JSQLG5 / SGQ5250JSQLG5 / SGQ5203JSQL / SGQ5253JSQ / SGQ5313JSQLH
Body Brand: Shaoye Brand
Engine parameters
Engine Brand: Yuchai / Dongfeng
Engine Model: YuchaiYC6L350-50 / YuchaiYC6JA220-50 / Dongfeng ISDe24530 / Dongfeng C24533 / Yuchai YC6M340-30
Displacement: 8.424 / 6.87 / 6.7 / 8.3 / 9.839L
Emission standard: China V / China III / Euro III
Max output power: 257 / 162 / 180 / 250kW
Max hp: 350 / 220 / 245 / 340Horsepower
Max torque: 1400 / 860 / 925N·m
Max torque speed: 1200-1700 / 1200-1800 / 1400 / 1600rpm
Rated speed: 2200 / 2300 / 2500 / 2100rpm
Chassis Specs
Chassis Brand: DongfengLiuqi
Chassis Series: ChenglongH5 / New Chenglong M3 / ChenglongM5
Chassis Model: LZ1310M5FBT / LZ1250M3CBT / LZ1200PCST / LZ1250QDUT / LZ1310PELT
Frame Dimensions: 300×(8+4) / 300(8+4) double-layer frame / 282 (8+4) partial triple-layermm
rear axle description: 2*153 / 457 dual rear axle / 440/Oil-lubricated wheel end
Steering gear: Domestic
Axle ratio: 4.1 / 5.286 / 4.44
Leaf spring count: 11/11/13 / 10/10/12+9 / 11/13
clutch: Φ395
Transmission Parameters
Number of gears: 10 / 8Gear
Transmission Model: Fast Gear10JSD140T / Fast Gear10JSD140B / Fast Gear8JS85E
Cab parameters
Cab: H51S / M31BS
Tire
Tire Size: 11.00-20 / 11.00R20 / 12.00-20
Number of tires: 12 / 8 / 10pcs
FAQ
What kind of truck is Shaoqi (Shaoye Brand) Shaoqi (Shaoye Brand) Dongfeng Liuqi Chassis truck-mounted crane?
Shaoqi (Shaoye Brand) Shaoqi (Shaoye Brand) Dongfeng Liuqi Chassis is an export-oriented truck-mounted crane lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Shaoqi (Shaoye Brand) Dongfeng Liuqi Chassis?
Shaoqi (Shaoye Brand) Dongfeng Liuqi Chassis export reference is about $30,486 – $43,514. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Shaoqi (Shaoye Brand) Dongfeng Liuqi Chassis cover?
Shaoqi (Shaoye Brand) Dongfeng Liuqi Chassis mainly covers: Drive: 6x2 / 6x4 / 8x4; Horsepower: 220 hp / 245 hp / 340 hp / 350 hp; Emission: China III / Euro III / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Shaoqi (Shaoye Brand) Dongfeng Liuqi Chassis?
For Shaoqi (Shaoye Brand) Dongfeng Liuqi Chassis: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Shaoqi (Shaoye Brand) Dongfeng Liuqi Chassis include?
Shaoqi (Shaoye Brand) Dongfeng Liuqi Chassis currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Shaoqi (Shaoye Brand) Dongfeng Liuqi Chassis?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
