Dongfeng F5 270hp 6X4(10 wheels) 8.5m Truck-mounted Crane
EXW
From $64,444
Export quote
Dongfeng F5 heavy truck truck-mounted crane
Main model photos
61 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng F5 270hp 6X4(10 wheels) 8.5m Truck-mounted Crane | 6x4 / 270hp / China VI | From $64,444 | |
| Dongfeng F5 270 hp 6X4(10 wheels) Truck-Mounted Crane | 6x4 / 270hp / China VI | From $30,694 | |
| Dongfeng F5 240hp 6X4(10 wheels) Truck-Mounted Crane | 6x4 / 240hp / China V | From $53,028 | |
| Dongfeng F5 270 hp 6X4(10 wheels) Truck-Mounted Crane | 6x4 / 270hp / China V | From $64,167 | |
| Dongfeng F5 180hp 4X2(6 wheels) Truck-mounted Crane | 4x2 / 180hp / China V | From $34,722 |

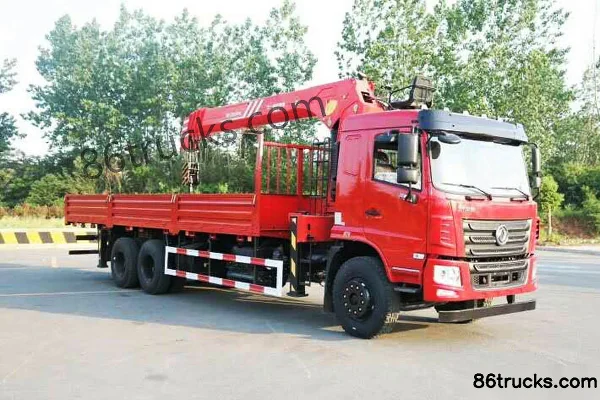

Dongfeng F5 270 hp 6X4(10 wheels) Truck-Mounted Crane
EXW
From $30,694
Export quote
Dongfeng F5 240hp 6X4(10 wheels) Truck-Mounted Crane
EXW
From $53,028
Export quote
Dongfeng F5 270 hp 6X4(10 wheels) Truck-Mounted Crane
EXW
From $64,167
Export quote

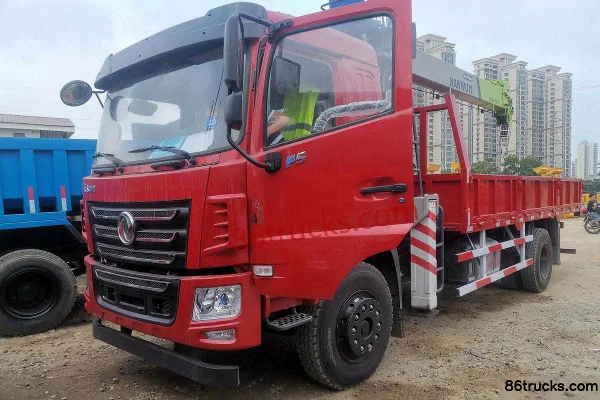

Dongfeng F5 180hp 4X2(6 wheels) Truck-mounted Crane
EXW
From $34,722
Export quote
Series Specs
Basic Info
Cab dimensions: 12×2.55×3.92 / 12×2.55×3.865 / 12×2.49×3.85 / 10.55×2.49×3.85 / 9×2.5×3.85m
Type: Truck with crane
Drive type: 6X4 / 4X2
Wheelbase: 5850+1350 / 4750+1300 / 5100mm
Rated mass: 7.505 / 8.575 / 9.835 / 4.225ton
Front track width: 1960mm
rear track: 1860/1860mm
GVWR: 25 / 15.8ton
Front/rear suspension: 1.25/3.2 / 1.25/3.25 / 1.45/2.45m
Energy Type: Diesel
Body Parameters
Crane model: QYS-10,SQS250,URV1004,SPS25000,KS2305,nicoleV1004 / SPS15800,SQ114,QYS-6.3III,SQS-6.3III,URV630,nicoleV630
Lifting capacity: 10 / 4.5ton
crane self-weight: 4.95 / 2.102ton
Vehicle certification code: EQ5250JSQL6D / EQ5250JSQL / EQ5168JSQLV1
Body Brand: Dongfeng
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS06270-60 / YuchaiYC6JA240-50 / YuchaiYC6A270-50 / YuchaiYC6JA180-50
Displacement: 6.23 / 6.87 / 7.52L
Emission standard: China VI / China V
Max output power: 199 / 177 / 132kW
Max hp: 270 / 240 / 180Horsepower
Max torque: 1050 / 950 / 1100 / 700N·m
Max torque speed: 1200-1700 / 1200-1800rpm
Rated speed: 2300rpm
Chassis Specs
Chassis Brand: Dongfeng
Chassis Series: Huashen F5
Chassis Model: EQ1259GL6DJ / EQ1250GLJ / EQ1168GLJ4
rear axle description: 10T / 153
Leaf spring count: 9/13 / 9/10,9/13 / 9/11+8,8/10+8,8/11+8,9/10+8,3/4+3
Transmission Parameters
Number of gears: 9 / 8Gear
Transmission Model: Fast Gear9JS119TA / Fast Gear 8-speed / Fast Gear 9-speed / Fast Gear8JS85E
Tire
Tire Size: 11.00R20 18PR / 11.00-20 18PR,11.00R20 18PR
Number of tires: 10 / 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
Remote key:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
smart configuration
Cruise control (CCS):
FAQ
What kind of truck is Dongfeng Dongfeng F5 heavy truck truck-mounted crane?
Dongfeng Dongfeng F5 heavy truck is an export-oriented truck-mounted crane lineup with about 5 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Dongfeng F5 heavy truck truck-mounted crane?
Dongfeng F5 heavy truck truck-mounted crane export reference is about $30,694 – $64,444. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Dongfeng F5 heavy truck truck-mounted crane cover?
Dongfeng F5 heavy truck truck-mounted crane mainly covers: Drive: 4x2 / 6x4; Horsepower: 180 hp / 240 hp / 270 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongfeng F5 heavy truck truck-mounted crane?
For Dongfeng F5 heavy truck truck-mounted crane: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Dongfeng F5 heavy truck truck-mounted crane include?
Dongfeng F5 heavy truck truck-mounted crane currently lists about 5 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongfeng F5 heavy truck truck-mounted crane?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
