Dongfeng Commercial Vehicle Tianjin VR 225 hp 4X2(6 wheels) Truck-mounted Crane (Chengliwei brand)
EXW
Export quote
Chengliwei Dongfeng Commercial Vehicle Chassis
Main model photos
256 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Commercial Vehicle Tianjin VR 225 hp 4X2(6 wheels) Truck-mounted Crane (Chengliwei brand) | 4x2 / 225hp / China VI | ||
| Dongfeng Commercial Vehicle Tianjin VR 245 hp 4X2(6 wheels) truck-mounted crane (Chengliwei brand) | 4x2 / 245hp / China VI | ||
| Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) Truck Mounted Crane (Chengliwei Brand) | 4x2 / 180hp / China V | From $22,222 | |
| Dongfeng Commercial Vehicle Tianlong 315 hp 8X4(12 wheels) Truck-mounted Crane (Chengliwei Brand) | 8x4 / 315hp / China V | From $40,278 |

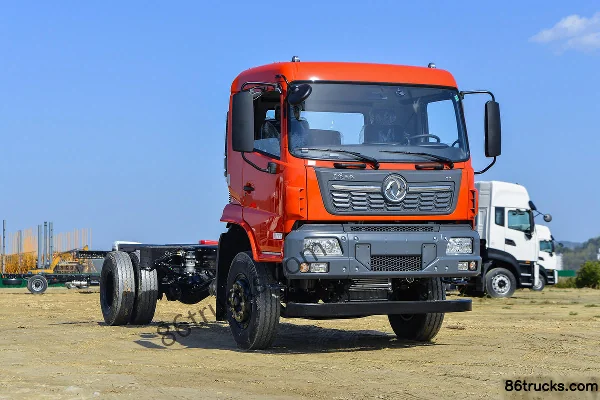

Dongfeng Commercial Vehicle Tianjin VR 245 hp 4X2(6 wheels) truck-mounted crane (Chengliwei brand)
EXW
Export quote

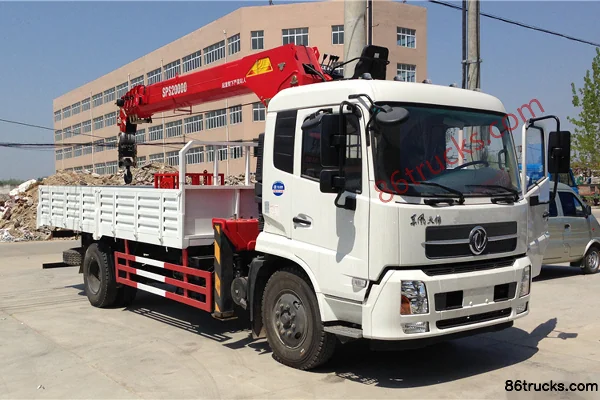

Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) Truck Mounted Crane (Chengliwei Brand)
EXW
From $22,222
Export quote
Dongfeng Commercial Vehicle Tianlong 315 hp 8X4(12 wheels) Truck-mounted Crane (Chengliwei Brand)
EXW
From $40,278
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng 145 Series 180hp 4X2(6 wheels) Truck-mounted Crane (Chengliwei brand) | 4x2 / 180hp / China III / Euro III | ||
| Dongfeng 153 Series 210 hp 6X4(10 wheels) Truck-mounted Crane (Chengliwei Brand) | 6x4 / 210hp / China III / Euro III |
Series Specs
Basic Info
Cab dimensions: 9×2.55×3.75 / 8.71×2.5×3.85 / 11.4×2.5×3.86 / 9.0×2.49×3.6 / 11.9×2.5×3.7m
Type: Truck with crane / truck-mounted crane
Drive type: 4X2 / 8X4 / 6X4
Wheelbase: 5000 / 4700 / 1850+4600+1350 / 5850+1300mm
Rated mass: 6.505 / 6.025 / 12.52 / 7.5 / 8.1ton
Front track width: 1915mm
rear track: 1860mm
GVWR: 18 / 15.8 / 31 / 20.05ton
Front/rear suspension: 1.43/2.57 / 1.43/2.3 / 1.5/2.1 / 1.25/2.65 / 1.25/3.2m
Energy Type: Diesel
Body Parameters
Other special notes: Power steering, ABS, A/C, spring brake, tachograph. / Optional Shimei or XCMG crane / This vehicle can be equipped with a folding-arm crane; crane model
Crane model: WL200 / SQ8S / SQ10S
Lifting capacity: 8 / 10ton
crane self-weight: 3.85 / 3.5 / 2820ton
Vehicle certification code: CLW5181JSQA6SZ / EQ5160JSQZMV / DFC5310JSQA1 / CLW5161JSQT3 / CLW5201JSQT3
Body Brand: Chengliwei / Dongfeng Commercial Vehicle
Engine parameters
Injection System: Common Rail
Engine Brand: Dongfeng / Yuchai
Engine Model: DongfengDDi47E225-60 / DongfengB6.2NS6B245 / DongfengISD180 50 / DongfengISL9.5-315E51A / Yuchai YC6J180-31 / Dongfeng SDe210 30
Displacement: 4.75 / 6.2 / 4.5 / 9.46 / 6.5 / 6.7L
Emission standard: China VI / China V / China III / Euro III
Max output power: 166 / 180 / 132 / 232 / 155kW
Max hp: 225 / 245 / 180 / 315 / 210Horsepower
Max torque: 700 / 1250 / 590N·m
Max torque speed: 1200-1600 / 1100-1700 / 1200-1700rpm
Rated speed: 2300 / 2500 / 1900rpm
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Dongfeng Tianjin VR / Dongfeng Tianjin / Dongfeng Tianlong / Dongfeng 145 / Dongfeng 153
Chassis Model: DFH1180B5 / DFL1160BX1V / DFH1310A1 / EQ5160GKJ1 / EQ5201GFJ6
Frame Dimensions: 280mm
rear axle description: 9-ton rear axle / Rear axle 10-ton / 5.5T/10T / 5 front axles, 10 rear tandem axles
Leaf spring count: 8/10+8 / 7/9+6 / 9/9/10 / 9/10+8 / 8/13
Transmission Parameters
Number of gears: 8 / 6 / 12 / 9Gear
Transmission Model: Fast Gear 8-speed / Dongfeng 6-speed / Fast Gear12JSD160TA / Fast Gear 8JS85E / Fast Gear
Cargo box parameters
Cargo box length: 5.6m
Cargo box width: 2.45m
Cargo box height: 0.55m
Cab parameters
Cab: Dongfeng Tianlong cab
Tire
Tire Size: 10.00R20 18PR / 10.00-20 / 11.00R20 / 10.00-20,10.00R20,11.00-20,11.00R20
Number of tires: 6 / 12 / 10pcs
FAQ
What kind of truck is Chengliwei Chengliwei Dongfeng Commercial Vehicle Chassis truck-mounted crane?
Chengliwei Chengliwei Dongfeng Commercial Vehicle Chassis is an export-oriented truck-mounted crane lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Chengliwei Dongfeng Commercial Vehicle Chassis?
Chengliwei Dongfeng Commercial Vehicle Chassis export reference is about $22,222 – $40,278. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Chengliwei Dongfeng Commercial Vehicle Chassis cover?
Chengliwei Dongfeng Commercial Vehicle Chassis mainly covers: Drive: 4x2 / 6x4 / 8x4; Horsepower: 180 hp / 210 hp / 225 hp / 245 hp / 315 hp; Emission: China III / Euro III / China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chengliwei Dongfeng Commercial Vehicle Chassis?
For Chengliwei Dongfeng Commercial Vehicle Chassis: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Chengliwei Dongfeng Commercial Vehicle Chassis include?
Chengliwei Dongfeng Commercial Vehicle Chassis currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chengliwei Dongfeng Commercial Vehicle Chassis?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
