Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) Truck Mounted Crane (Chengliwei Brand)

Export reference
From $22,222
MSRP ¥16M CNY
Fuel: Diesel
Wheelbase:: 4700mm
Cab dimensions:: 8.71×2.5×3.85m
Type:: Truck with crane
GVWR:: 15.8ton
Front/rear suspension:: 1.43/2.3m
Drive 4X2 (6 wheels)
Horsepower 180
Rated mass: 6.025ton
Emission China V

Overview

The Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) Truck Mounted Crane (Chengliwei Brand) is a truck-mounted crane featuring 15.8t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 180 hp, China V emissions and Diesel fuel.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.71×2.5×3.85m
Type: Truck with crane
Drive type: 4X2
Wheelbase: 4700mm
Rated mass: 6.025ton
GVWR: 15.8ton
Front/rear suspension: 1.43/2.3m
Energy Type: Diesel
Body Parameters
Other special notes: Power steering, ABS, A/C, spring brake, tachograph.
Vehicle certification code: EQ5160JSQZMV
Body Brand: Chengliwei
Engine parameters
Injection System: Common Rail
Engine Brand: Dongfeng
Engine Model: DongfengISD180 50
fuel type: Diesel
Displacement: 4.5L
Emission standard: China V
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 700N·m
Max torque speed: 1200-1600rpm
Rated speed: 2500rpm
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Dongfeng Tianjin
Chassis Model: DFL1160BX1V
Frame Dimensions: 280mm
rear axle description: 9-ton rear axle
Leaf spring count: 7/9+6
Transmission Parameters
Number of gears: 6Gear
Transmission Model: Dongfeng 6-speed
Tire
Tire Size: 10.00-20
Number of tires: 6pcs

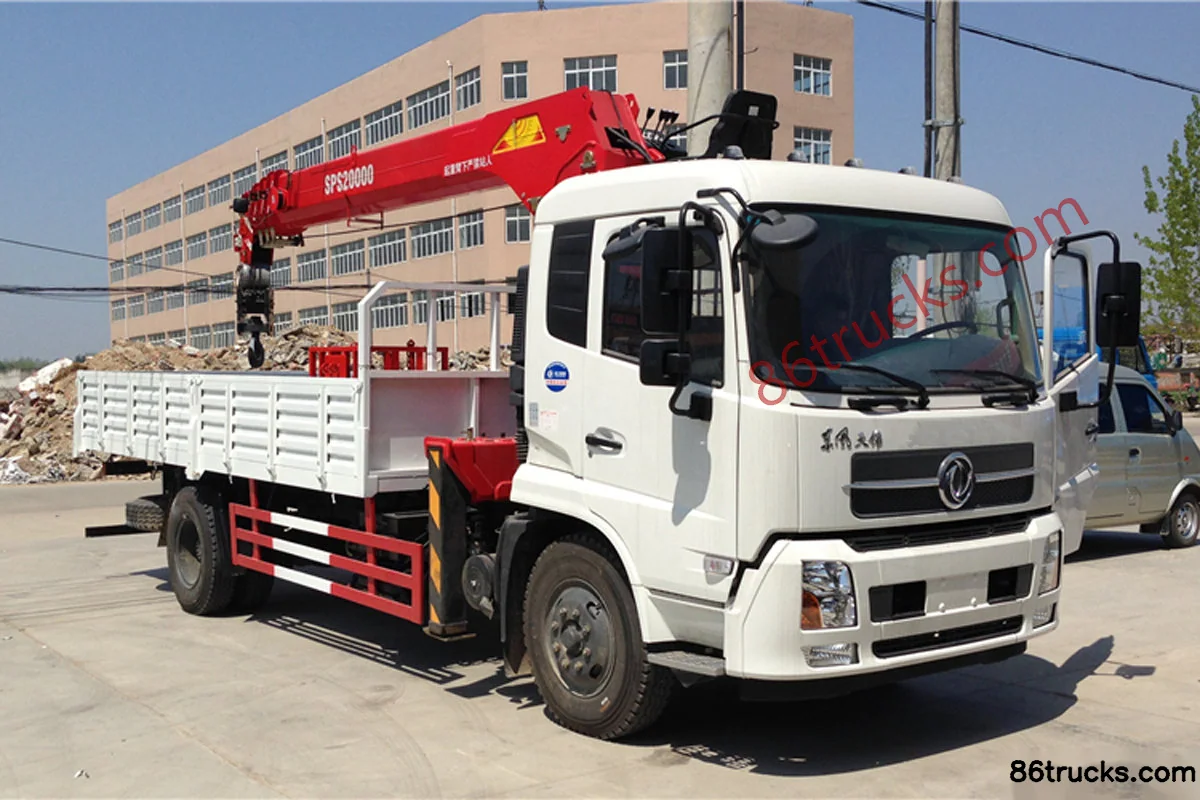

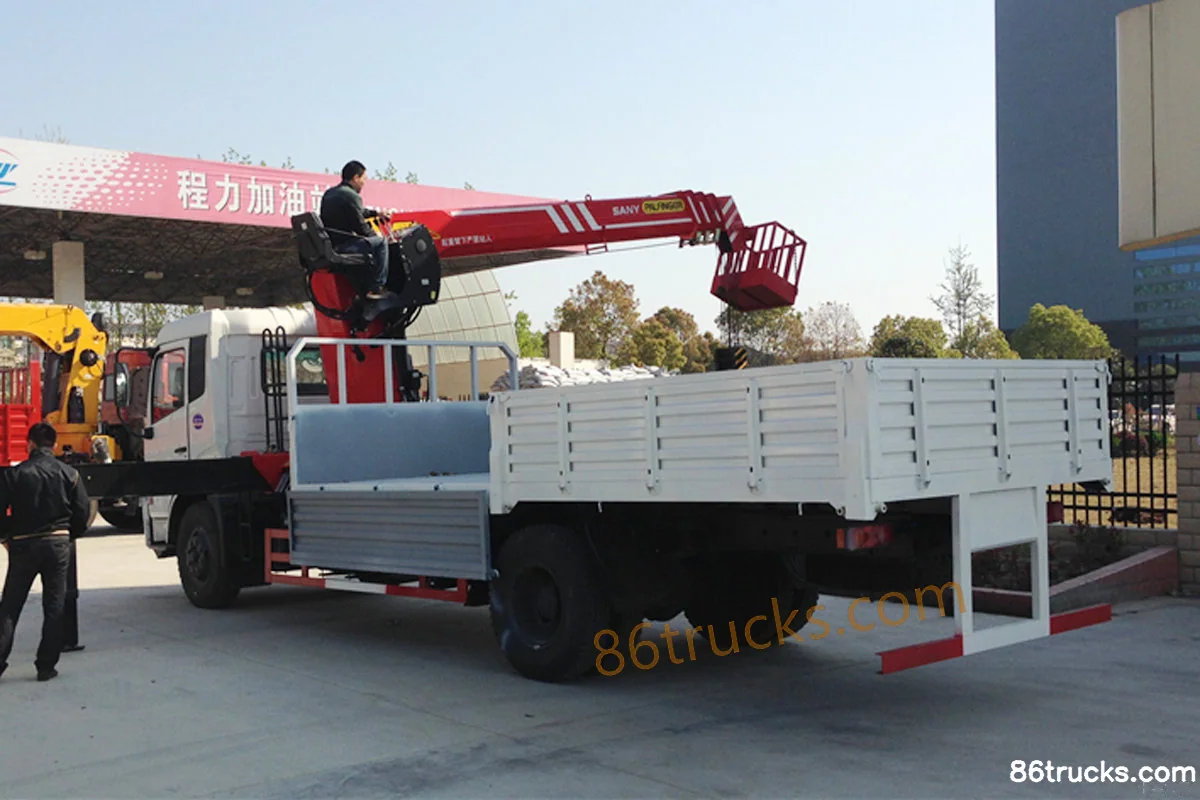

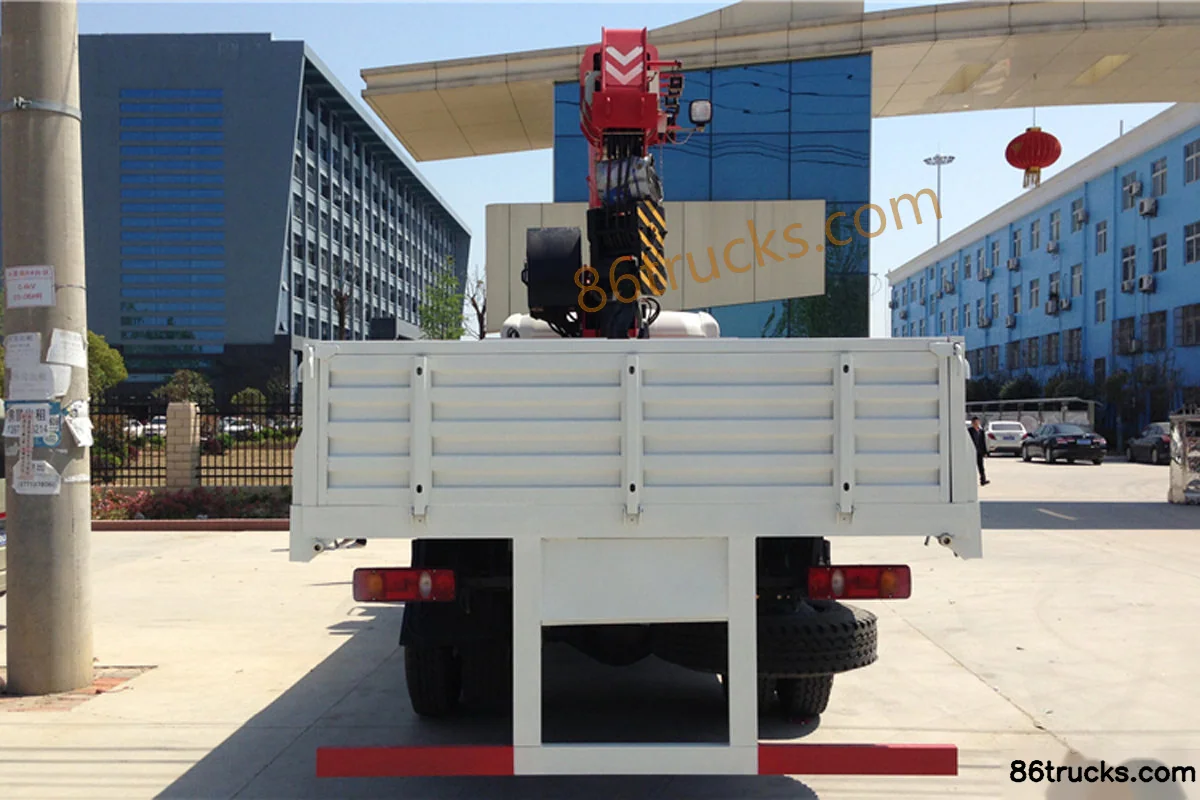

Photos

Exterior3

3 photos

FAQ

What is the export price of Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) Truck Mounted Crane (Chengliwei Brand), and what does it include?

Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) Truck Mounted Crane (Chengliwei Brand) export reference is about From $22,222; MSRP is ¥16M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) Truck Mounted Crane (Chengliwei Brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) Truck Mounted Crane (Chengliwei Brand)?

Key specs of Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) Truck Mounted Crane (Chengliwei Brand): Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) Truck Mounted Crane (Chengliwei Brand) suited for?

Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) Truck Mounted Crane (Chengliwei Brand) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) Truck Mounted Crane (Chengliwei Brand) differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) Truck Mounted Crane (Chengliwei Brand) belongs to Chengliwei Dongfeng Commercial Vehicle Chassis (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) Truck Mounted Crane (Chengliwei Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) Truck Mounted Crane (Chengliwei Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
