JAC Gallop K3 200hp 6X2(8 wheels) Truck Mounted Crane
EXW
Export quote
JAC Gallop K3 Heavy Truck truck-mounted crane
Main model photos
903 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Gallop K3 200hp 6X2(8 wheels) Truck Mounted Crane | 6x2 / 200hp / China III / Euro III | ||
| JAC Gallop K3 180hp 4X2(6 wheels) Truck Mounted Crane | 4x2 / 180hp / China III / Euro III | ||
| JAC Gallop K3 290 hp 8X4(12 wheels) Truck-mounted Crane | 8x4 / 290hp / China III / Euro III |

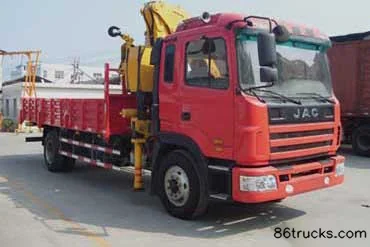

JAC Gallop K3 180hp 4X2(6 wheels) Truck Mounted Crane
EXW
Export quote

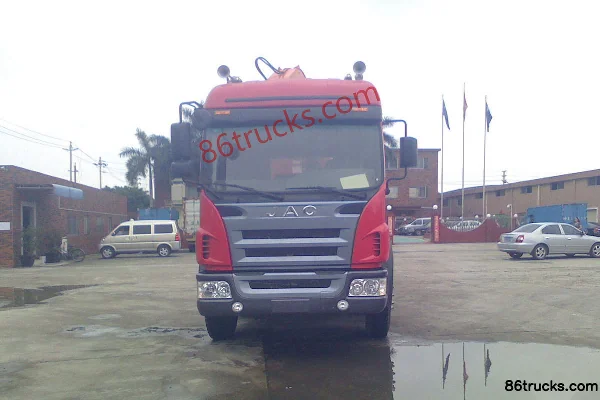

JAC Gallop K3 290 hp 8X4(12 wheels) Truck-mounted Crane
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 11.99×2.495×3.73 / 8.98×2.495×3.42 / 11.99×2.495×3.8m
Type: truck-mounted crane / Truck with crane
Drive type: 6X2 / 4X2 / 8X4
Wheelbase: 1900+5400 / 5300 / 1900+4500+1350mm
Rated mass: 15.755 / 6.205 / 16.56ton
GVWR: 24.95 / 15.95 / 30.95ton
Front/rear suspension: 1.585/3.105 / 1.53/2.15 / 1.495/2.72m
Energy Type: Diesel
Body Parameters
Other special notes: Box length 8.8m 1. Crane type: telescopic boom crane; model, rated lifting capacity and weight (Kg): SQ12: 12000, 7100; SQ10: 10000, 6300; 3. With SQ12 crane, curb weight 15755kg, payload 9000kg (3 persons) / 9065kg (2 persons); with SQ10 crane, curb weight 14955kg, payload 9800kg (3 persons) / 9865kg (2 persons); 2. Optional new semi-high roof and high roof cab; 3. Side and rear underrun protection: bolted connection, material Q235, rear guard ground clearance 490mm, section dimensions 150mm×75mm. / Optional straight-arm and folding-arm crane. This vehicle uses chassis wheelbase 5300mm; 2. Optional front grille mask; 3. This vehicle is equipped with folding-arm QHSQ4Z crane, weight 1800kg, 4000kg, optional straight-arm telescopic crane SQ4SK2Q, weight 1400kg, max lifting capacity 4000kg. When equipped with folding-arm QHSQ4Z crane, curb weight is 9550kg, payload 6205kg; when equipped with straight-arm telescopic crane SQ4SK2Q, curb weight is 9150kg, payload 6605kg. 4. Weight variation from optional cargo body is within 3%, negligible. Cab selection follows chassis; 5. Optional new semi-high roof cab. / Optional M-series semi-high roof, high roof cab and H-series semi-high roof cab
Crane model: SQ12 / QHSQ4Z SQ4SK2Q / SQ6.3Z
Lifting capacity: 12 / 1.8 / 25ton
crane self-weight: 7.1 / 6.3ton
Vehicle certification code: HFC5255JSQK2R1LT / HFC5160JSQK2R1T / HFC5314JSQK1R1LT
Body Brand: JAC Gallop
Engine parameters
Engine Brand: Yuchai / Xichai / Weichai
Engine Model: Yuchai YC6J200-33 / Xichai CA6DF3-18E3F / Weichai WP10.290
Displacement: 6.494 / 7.12 / 9.726L
Emission standard: China III / Euro III
Max output power: 147 / 135 / 214kW
Max hp: 200 / 180 / 290Horsepower
Max torque: 730 / 660 / 1160N·m
Max torque speed: 1200-1700 / 1300-1500 / 1200-1600rpm
Rated speed: 2500 / 2300 / 2200rpm
Chassis Specs
Chassis Brand: JAC Gallop
Chassis Series: GallopK3
Chassis Model: HFC1255K2R1LT / HFC1162K2R1T / HFC1314K1R1L
rear axle description: 153 rear / 5.5T / 153 rear axle 5.5T / 7.5T/13T
Leaf spring count: 9/9/9+7 / 9/9+7 / 9/9/12
Transmission Parameters
Number of gears: 8 / 6 / 9Gear
Transmission Model: Fast Gear 8JS105 / FAWEaton CA6T138 / Fast Gear 9JS150T
Tire
Tire Size: 11.00R20 / 9.00R20
Number of tires: 8 / 6 / 12pcs
FAQ
What kind of truck is JAC Gallop JAC Gallop K3 Heavy Truck truck-mounted crane?
JAC Gallop JAC Gallop K3 Heavy Truck is an export-oriented truck-mounted crane lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does JAC Gallop K3 Heavy Truck truck-mounted crane cover?
JAC Gallop K3 Heavy Truck truck-mounted crane mainly covers: Drive: 4x2 / 6x2 / 8x4; Horsepower: 180 hp / 200 hp / 290 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC Gallop K3 Heavy Truck truck-mounted crane?
For JAC Gallop K3 Heavy Truck truck-mounted crane: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does JAC Gallop K3 Heavy Truck truck-mounted crane include?
JAC Gallop K3 Heavy Truck truck-mounted crane currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC Gallop K3 Heavy Truck truck-mounted crane?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
