JAC Gallop K3 200hp 6X2(8 wheels) Truck Mounted Crane

Export reference
MSRP N/A
Emission: China III / Euro III
Fuel: Diesel
Wheelbase:: 1900+5400mm
Cab dimensions:: 11.99×2.495×3.73m
Type:: truck-mounted crane
GVWR:: 24.95ton

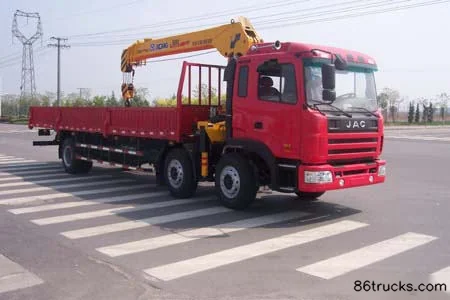

JAC Gallop K3 200hp 6X2(8 wheels) Truck Mounted Crane exterior
View more photos (1)
Lifting capacity: 12ton
Drive 6X2 (8 wheels)
Horsepower 200
Rated mass: 15.755ton

Overview

The JAC Gallop K3 200hp 6X2(8 wheels) Truck Mounted Crane is a truck-mounted crane featuring 12ton tank capacity, 24.95t GVW and 6X2 (8 wheels) drive. On the powertrain side, it comes with 200 hp, China III / Euro III emissions and Diesel fuel.

China III / Euro III 200 Diesel 6X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 11.99×2.495×3.73m
Type: truck-mounted crane
Drive type: 6X2
Wheelbase: 1900+5400mm
Rated mass: 15.755ton
GVWR: 24.95ton
Front/rear suspension: 1.585/3.105m
Energy Type: Diesel
Body Parameters
Other special notes: Box length 8.8m 1. Crane type: telescopic boom crane; model, rated lifting capacity and weight (Kg): SQ12: 12000, 7100; SQ10: 10000, 6300; 3. With SQ12 crane, curb weight 15755kg, payload 9000kg (3 persons) / 9065kg (2 persons); with SQ10 crane, curb weight 14955kg, payload 9800kg (3 persons) / 9865kg (2 persons); 2. Optional new semi-high roof and high roof cab; 3. Side and rear underrun protection: bolted connection, material Q235, rear guard ground clearance 490mm, section dimensions 150mm×75mm.
Crane model: SQ12
Lifting capacity: 12ton
crane self-weight: 7.1ton
Vehicle certification code: HFC5255JSQK2R1LT
Body Brand: JAC Gallop
Engine parameters
Engine Brand: Yuchai
Engine Model: Yuchai YC6J200-33
fuel type: Diesel
Displacement: 6.494L
Emission standard: China III / Euro III
Max output power: 147kW
Max hp: 200Horsepower
Max torque: 730N·m
Max torque speed: 1200-1700rpm
Rated speed: 2500rpm
Chassis Specs
Chassis Brand: JAC Gallop
Chassis Series: GallopK3
Chassis Model: HFC1255K2R1LT
rear axle description: 153 rear / 5.5T
Leaf spring count: 9/9/9+7
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear 8JS105
Tire
Tire Size: 11.00R20
Number of tires: 8pcs

Photos

Exterior1

JAC Gallop K3 200hp 6X2(8 wheels) Truck Mounted Crane Exterior (1) | 86Trucks

1 photos

FAQ

What emission standard does JAC Gallop K3 200hp 6X2(8 wheels) Truck Mounted Crane use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K3 200hp 6X2(8 wheels) Truck Mounted Crane?

Key specs of JAC Gallop K3 200hp 6X2(8 wheels) Truck Mounted Crane: Drive: 6x2; Horsepower: 200 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K3 200hp 6X2(8 wheels) Truck Mounted Crane suited for?

JAC Gallop K3 200hp 6X2(8 wheels) Truck Mounted Crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does JAC Gallop K3 200hp 6X2(8 wheels) Truck Mounted Crane differ from other variants in the same series?

JAC Gallop K3 200hp 6X2(8 wheels) Truck Mounted Crane belongs to JAC Gallop K3 Heavy Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K3 200hp 6X2(8 wheels) Truck Mounted Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K3 200hp 6X2(8 wheels) Truck Mounted Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
