JAC Gallop K3 290 hp 8X4(12 wheels) Truck-mounted Crane

Export reference
MSRP N/A
Emission: China III / Euro III
Fuel: Diesel
Wheelbase:: 1900+4500+1350mm
Cab dimensions:: 11.99×2.495×3.8m
Type:: truck-mounted crane
GVWR:: 30.95ton
Lifting capacity: 25ton
Drive 8X4 (12 wheels)
Horsepower 290
Rated mass: 16.56ton

Overview

The JAC Gallop K3 290 hp 8X4(12 wheels) Truck-mounted Crane is a truck-mounted crane featuring 25ton tank capacity, 30.95t GVW and 8X4 (12 wheels) drive. On the powertrain side, it comes with 290 hp, China III / Euro III emissions and Diesel fuel.

China III / Euro III 290 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.99×2.495×3.8m
Type: truck-mounted crane
Drive type: 8X4
Wheelbase: 1900+4500+1350mm
Rated mass: 16.56ton
GVWR: 30.95ton
Front/rear suspension: 1.495/2.72m
Energy Type: Diesel
Body Parameters
Other special notes: Optional M-series semi-high roof, high roof cab and H-series semi-high roof cab
Crane model: SQ6.3Z
Lifting capacity: 25ton
crane self-weight: 6.3ton
Vehicle certification code: HFC5314JSQK1R1LT
Body Brand: JAC Gallop
Engine parameters
Engine Brand: Weichai
Engine Model: Weichai WP10.290
fuel type: Diesel
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 214kW
Max hp: 290Horsepower
Max torque: 1160N·m
Max torque speed: 1200-1600rpm
Rated speed: 2200rpm
Chassis Specs
Chassis Brand: JAC Gallop
Chassis Series: GallopK3
Chassis Model: HFC1314K1R1L
rear axle description: 7.5T/13T
Leaf spring count: 9/9/12
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear 9JS150T
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

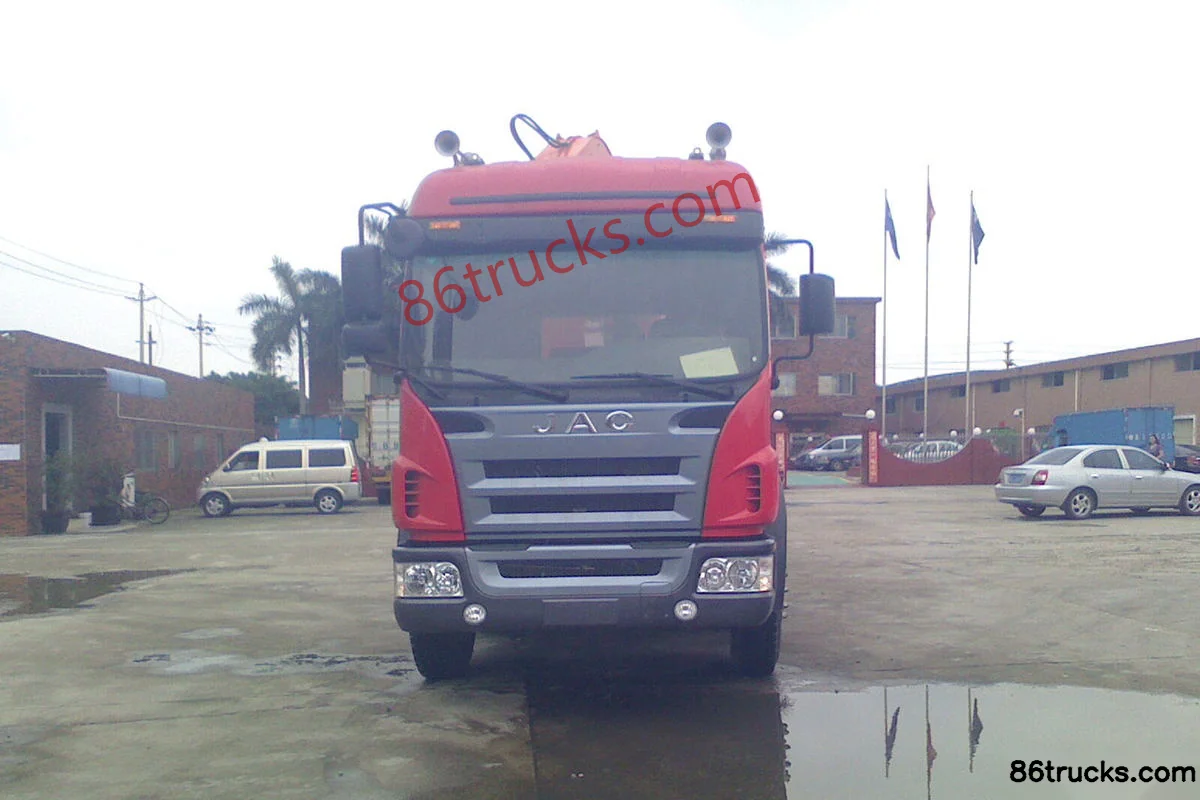

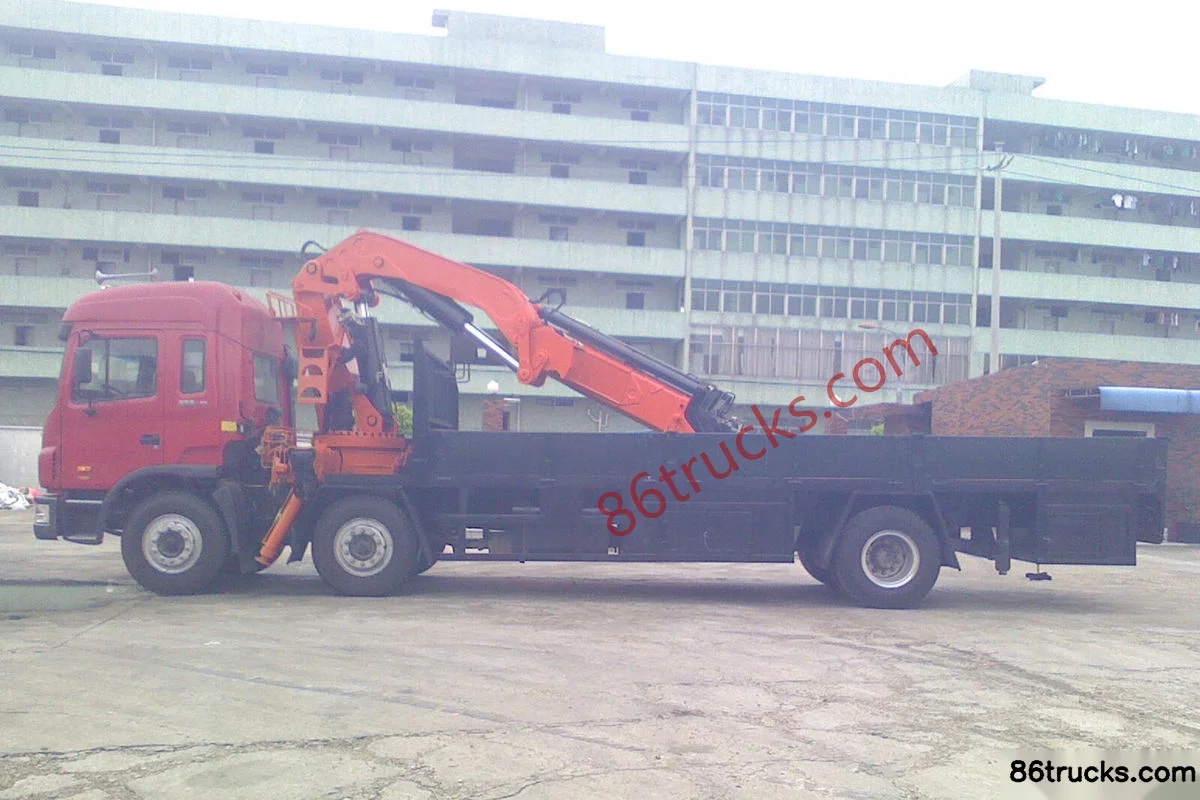

Photos

Exterior2

2 photos

FAQ

What emission standard does JAC Gallop K3 290 hp 8X4(12 wheels) Truck-mounted Crane use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K3 290 hp 8X4(12 wheels) Truck-mounted Crane?

Key specs of JAC Gallop K3 290 hp 8X4(12 wheels) Truck-mounted Crane: Drive: 8x4; Horsepower: 290 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K3 290 hp 8X4(12 wheels) Truck-mounted Crane suited for?

JAC Gallop K3 290 hp 8X4(12 wheels) Truck-mounted Crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does JAC Gallop K3 290 hp 8X4(12 wheels) Truck-mounted Crane differ from other variants in the same series?

JAC Gallop K3 290 hp 8X4(12 wheels) Truck-mounted Crane belongs to JAC Gallop K3 Heavy Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K3 290 hp 8X4(12 wheels) Truck-mounted Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K3 290 hp 8X4(12 wheels) Truck-mounted Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
