JAC Gallop K3 180hp 4X2(6 wheels) Truck Mounted Crane

Export reference
MSRP N/A
Emission: China III / Euro III
Fuel: Diesel
Wheelbase:: 5300mm
Cab dimensions:: 8.98×2.495×3.42m
Type:: Truck with crane
GVWR:: 15.95ton

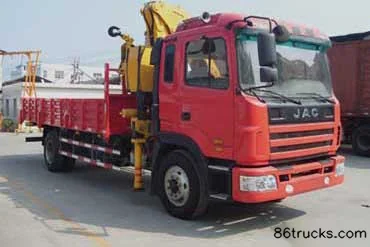

JAC Gallop K3 180hp 4X2(6 wheels) Truck Mounted Crane exterior
View more photos (1)
Lifting capacity: 1.8ton
Drive 4X2 (6 wheels)
Horsepower 180
Rated mass: 6.205ton

Overview

The JAC Gallop K3 180hp 4X2(6 wheels) Truck Mounted Crane is a truck-mounted crane featuring 1.8ton tank capacity, 15.95t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 180 hp, China III / Euro III emissions and Diesel fuel.

China III / Euro III 180 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 8.98×2.495×3.42m
Type: Truck with crane
Drive type: 4X2
Wheelbase: 5300mm
Rated mass: 6.205ton
GVWR: 15.95ton
Front/rear suspension: 1.53/2.15m
Energy Type: Diesel
Body Parameters
Other special notes: Optional straight-arm and folding-arm crane. This vehicle uses chassis wheelbase 5300mm; 2. Optional front grille mask; 3. This vehicle is equipped with folding-arm QHSQ4Z crane, weight 1800kg, 4000kg, optional straight-arm telescopic crane SQ4SK2Q, weight 1400kg, max lifting capacity 4000kg. When equipped with folding-arm QHSQ4Z crane, curb weight is 9550kg, payload 6205kg; when equipped with straight-arm telescopic crane SQ4SK2Q, curb weight is 9150kg, payload 6605kg. 4. Weight variation from optional cargo body is within 3%, negligible. Cab selection follows chassis; 5. Optional new semi-high roof cab.
Crane model: QHSQ4Z SQ4SK2Q
Lifting capacity: 1.8ton
Vehicle certification code: HFC5160JSQK2R1T
Body Brand: JAC Gallop
Engine parameters
Engine Brand: Xichai
Engine Model: Xichai CA6DF3-18E3F
fuel type: Diesel
Displacement: 7.12L
Emission standard: China III / Euro III
Max output power: 135kW
Max hp: 180Horsepower
Max torque: 660N·m
Max torque speed: 1300-1500rpm
Rated speed: 2300rpm
Chassis Specs
Chassis Brand: JAC Gallop
Chassis Series: GallopK3
Chassis Model: HFC1162K2R1T
rear axle description: 153 rear axle 5.5T
Leaf spring count: 9/9+7
Transmission Parameters
Number of gears: 6Gear
Transmission Model: FAWEaton CA6T138
Tire
Tire Size: 9.00R20
Number of tires: 6pcs

Photos

Exterior1

JAC Gallop K3 180hp 4X2(6 wheels) Truck Mounted Crane Exterior (1) | 86Trucks

1 photos

FAQ

What emission standard does JAC Gallop K3 180hp 4X2(6 wheels) Truck Mounted Crane use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K3 180hp 4X2(6 wheels) Truck Mounted Crane?

Key specs of JAC Gallop K3 180hp 4X2(6 wheels) Truck Mounted Crane: Drive: 4x2; Horsepower: 180 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K3 180hp 4X2(6 wheels) Truck Mounted Crane suited for?

JAC Gallop K3 180hp 4X2(6 wheels) Truck Mounted Crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does JAC Gallop K3 180hp 4X2(6 wheels) Truck Mounted Crane differ from other variants in the same series?

JAC Gallop K3 180hp 4X2(6 wheels) Truck Mounted Crane belongs to JAC Gallop K3 Heavy Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K3 180hp 4X2(6 wheels) Truck Mounted Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K3 180hp 4X2(6 wheels) Truck Mounted Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
