Dongfeng Furui Ka R5 150hp 4X2(6 wheels) 5.2m truck-mounted crane (Chengliwei brand)
EXW
From $27,264
Export quote
Chengliwei Dongfeng Chassis truck-mounted crane
Main model photos
111 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Furui Ka R5 150hp 4X2(6 wheels) 5.2m truck-mounted crane (Chengliwei brand) | 4x2 / 150hp / China V | From $27,264 | |
| Dongfeng Furui Ka 143hp 4X2(6 wheels) 4.3m Truck-Mounted Crane (Chengliwei Brand) | 4x2 / 143hp / China V | From $15,278 |

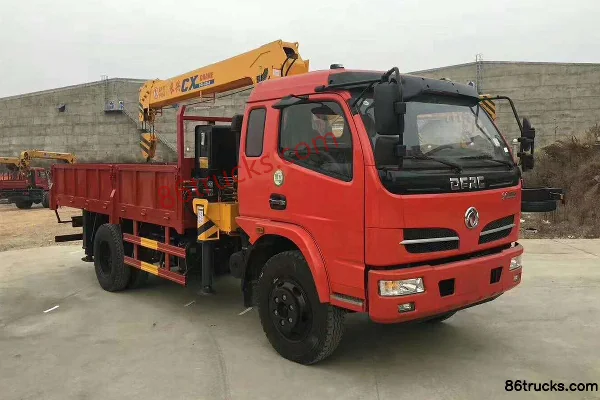

Dongfeng Furui Ka 143hp 4X2(6 wheels) 4.3m Truck-Mounted Crane (Chengliwei Brand)
EXW
From $15,278
Export quote
Series Specs
Basic Info
Cab dimensions: 7.995×2.32×3.25 / 7.1×2.35×3.3m
Type: Truck with crane
Drive type: 4X2
Wheelbase: 4400 / 3800mm
Rated mass: 3.705 / 5.955ton
GVWR: 9.4 / 11.45ton
Front/rear suspension: 1.18/2.415 / 1.15/2.15m
Energy Type: Diesel
Body Parameters
Crane model: SQ4S
Lifting capacity: 1.5ton
crane self-weight: 4ton
Vehicle certification code: CLW5090JSQE5 / CLW5110JSQE5
Body Brand: Chengliwei
Engine parameters
Injection System: Common Rail
Engine Brand: Yuchai / Xichai
Engine Model: YuchaiYC4S150-50 / Xichai4DX23-140E5
Displacement: 3.767 / 3.857L
Emission standard: China V
Max output power: 110 / 105kW
Max hp: 150 / 143Horsepower
Max torque: 500 / 450N·m
Max torque speed: 1300-1800 / 1600-2000rpm
Rated speed: 2600 / 2800rpm
Chassis Specs
Chassis Brand: Dongfeng
Chassis Series: Forica R5
Chassis Model: EQ1090SJ8BDE / EQ1110SJ8BDC
Frame Dimensions: 188×6 partial double-layermm
rear axle description: 6.8T / 4.5-ton rear axle
Leaf spring count: 8/10+7
Transmission Parameters
Number of gears: 6Gear
Transmission Model: WLY 6-speed
Tire
Tire Size: 8.25R16 14PR / 8.25R20 steel radial tire
Number of tires: 6pcs
FAQ
What kind of truck is Chengliwei Chengliwei Dongfeng Chassis truck-mounted crane?
Chengliwei Chengliwei Dongfeng Chassis is an export-oriented truck-mounted crane lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Chengliwei Dongfeng Chassis truck-mounted crane?
Chengliwei Dongfeng Chassis truck-mounted crane export reference is about $15,278 – $27,264. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Chengliwei Dongfeng Chassis truck-mounted crane cover?
Chengliwei Dongfeng Chassis truck-mounted crane mainly covers: Drive: 4x2; Horsepower: 143 hp / 150 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chengliwei Dongfeng Chassis truck-mounted crane?
For Chengliwei Dongfeng Chassis truck-mounted crane: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Chengliwei Dongfeng Chassis truck-mounted crane include?
Chengliwei Dongfeng Chassis truck-mounted crane currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chengliwei Dongfeng Chassis truck-mounted crane?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
