Sinotruk HW80508STCL 8-speed manual transmission

Export reference
MSRP N/A
Max input torque:: 925N·m
1st gear ratio:: 9.1
synchronizer:: Full synchronizer
Sinotruk HW80508STCL 8-speed manual transmission exterior
View more photos (3)
Transmission Model: HW80508STCL
Transmission Brand: Sinotruk
Features: Manual transmission with pneumatic auxiliary box; both main and auxiliary boxes twin countershaft; fine-module high-contact-ratio gears for low noise and long life; short-stroke synchronizer in main box for compact design and better shifting; mechanical interlock prevents main box shift until auxiliary box fully engaged, protecting auxiliary synchronizer

Overview

The Sinotruk HW80508STCL 8-speed manual transmission is a parts product with spec HW80508STCL.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: Sinotruk
Transmission series: HW8-speed series
Features: Manual transmission with pneumatic auxiliary box; both main and auxiliary boxes twin countershaft; fine-module high-contact-ratio gears for low noise and long life; short-stroke synchronizer in main box for compact design and better shifting; mechanical interlock prevents main box shift until auxiliary box fully engaged, protecting auxiliary synchronizer
Max input torque: 925N·m
1st gear ratio: 9.1
synchronizer: Full synchronizer
2nd gear ratio: 6.05
3rd gear ratio: 4.2
4th gear ratio: 3.18
5th gear ratio: 2.167
6th gear ratio: 1.44
7th gear ratio:
8th gear ratio: 0.757
Reverse Gear 1 Ratio: 8.342
Transmission weight: 135kg
Transmission oil capacity: 6L
Number of gears: 8Gear
Transmission Model: HW80508STCL
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs

Photos

Exterior3

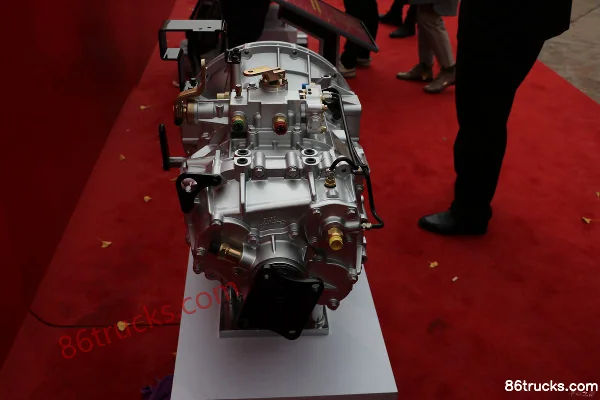

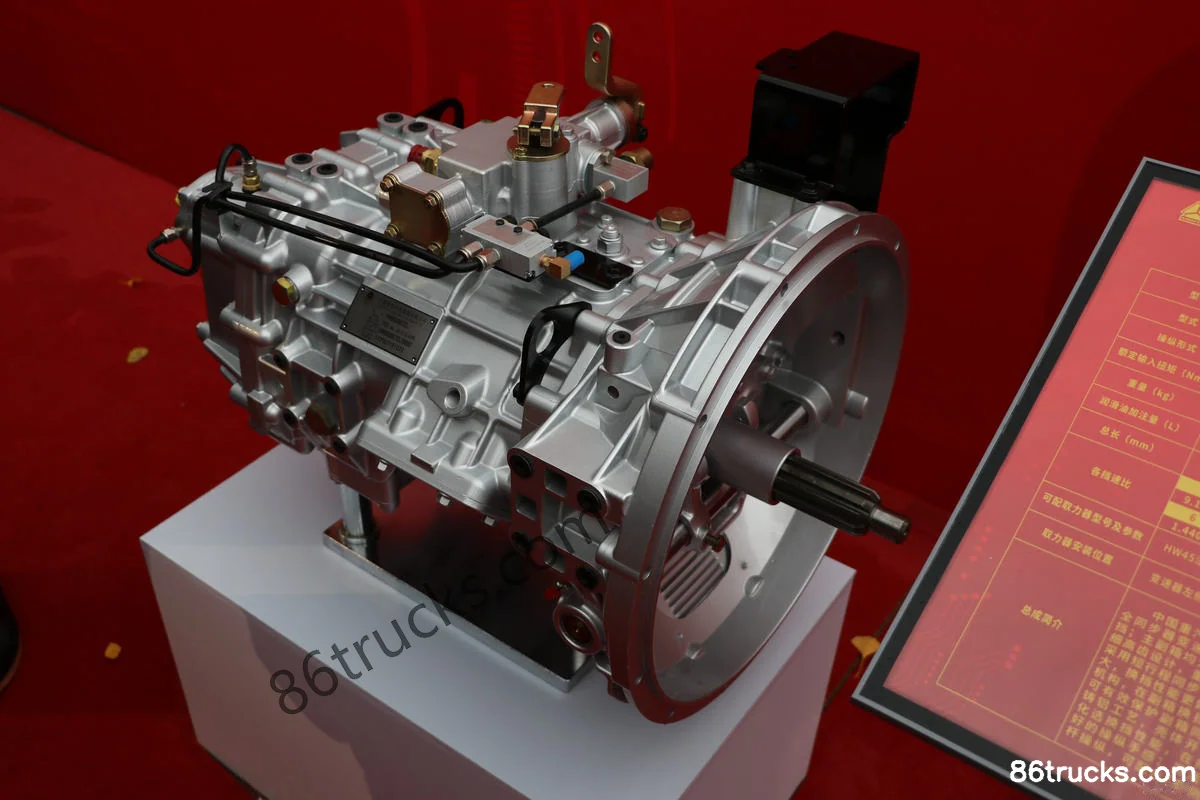

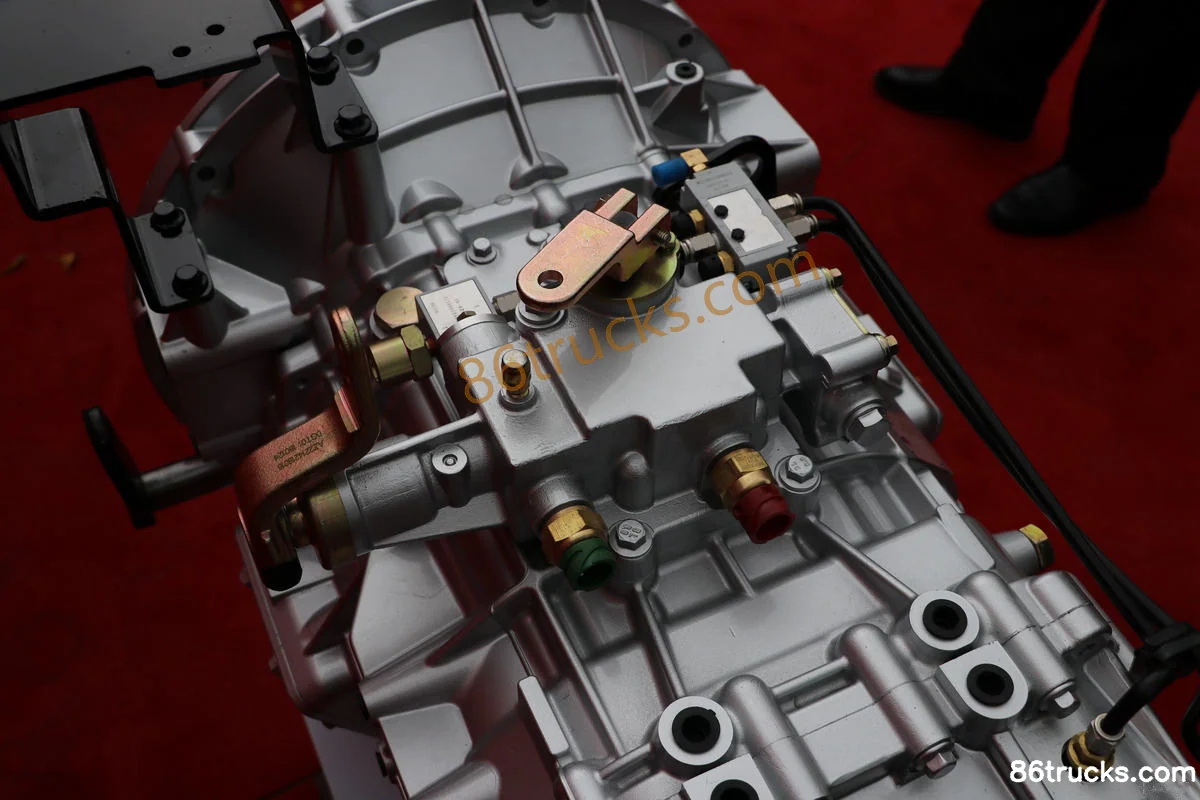

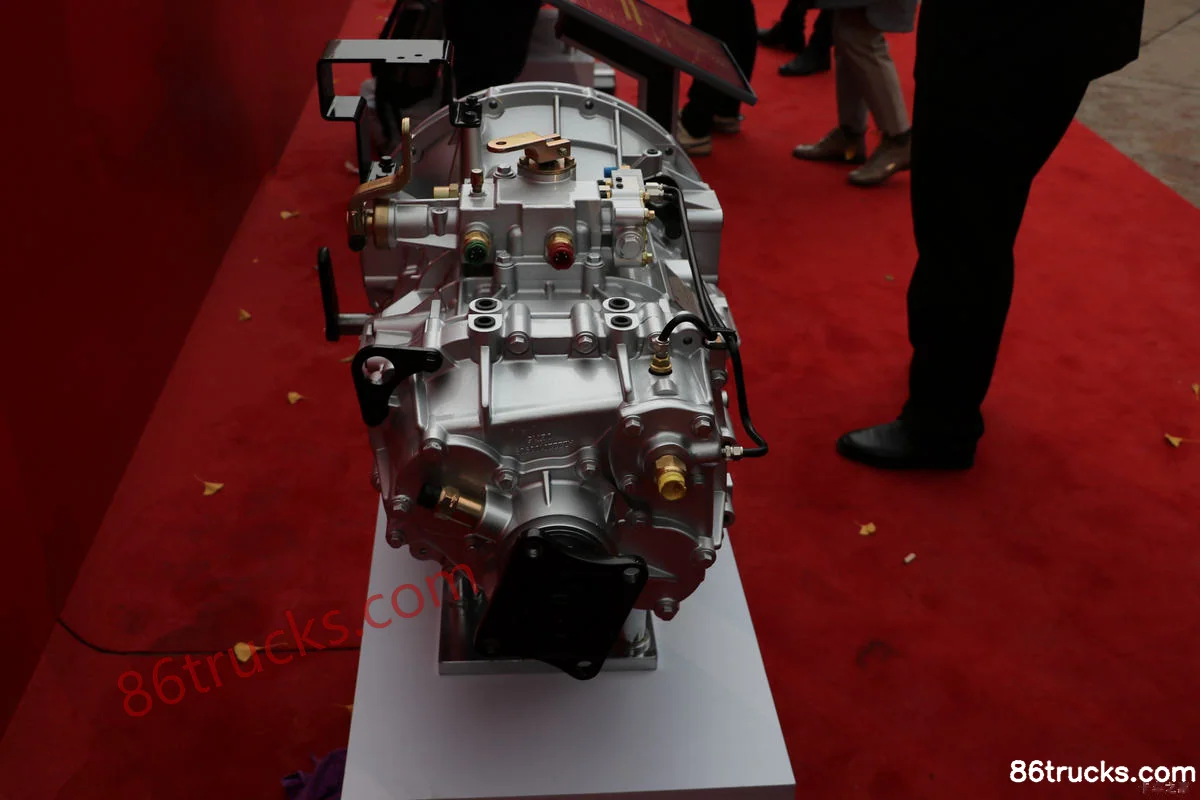

Sinotruk HW80508STCL 8-speed manual transmission Exterior (1) | 86Trucks Sinotruk HW80508STCL 8-speed manual transmission Exterior (2) | 86Trucks Sinotruk HW80508STCL 8-speed manual transmission Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Sinotruk HW80508STCL 8-speed manual transmission suited for?

Match Sinotruk HW80508STCL 8-speed manual transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Sinotruk HW80508STCL 8-speed manual transmission differ from other variants in the same series?

Sinotruk HW80508STCL 8-speed manual transmission belongs to Sinotruk HW8-Speed Series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HW80508STCL 8-speed manual transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HW80508STCL 8-speed manual transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
