FAW Jiefang CA9TBX180M 9-Speed Manual Transmission
EXW
Export quote
FAW Jiefang CA9TB(X) Series transmission
Main model photos
7 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang CA9TBX180M 9-Speed Manual Transmission | — | ||
| FAW Jiefang CA9TBX160M Overdrive 9-Speed Manual Transmission | — | ||
| FAW Jiefang CA9TB160M 9-speed manual transmission | — |

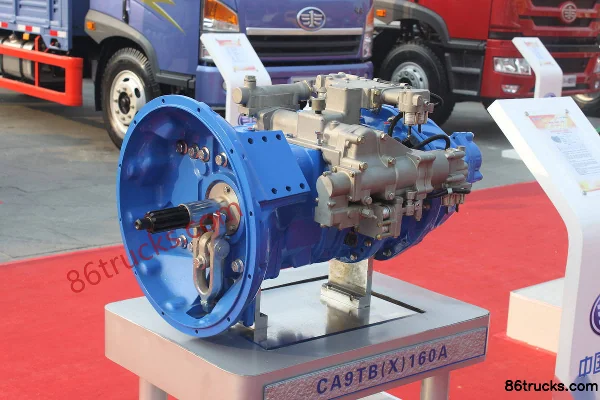

FAW Jiefang CA9TBX160M Overdrive 9-Speed Manual Transmission
EXW
Export quote

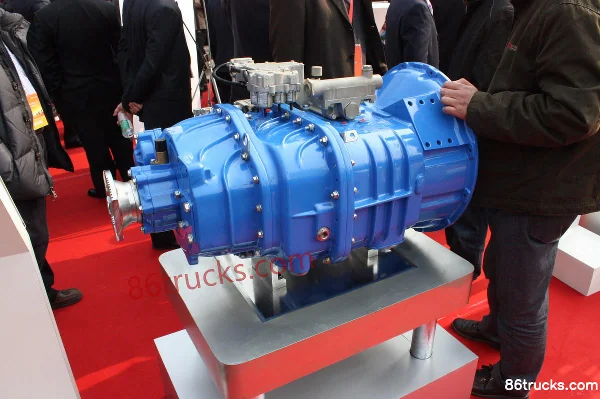

FAW Jiefang CA9TB160M 9-speed manual transmission
EXW
Export quote
Series Specs
Transmission Parameters
Transmission Brand: FAW Jiefang
Transmission series: CA9TB(X) Series
Matching Range: For various on-road cargo trucks, dump trucks, off-road vehicles, tractor trucks, premium coaches, truck cranes, mining trucks, and heavy fire trucks with rated input torque of 1600-1800 Nm / This series of transmissions is suitable for various highway cargo trucks, dump trucks, off-road vehicles, tractor trucks, premium coaches, truck cranes, mining trucks, and heavy fire trucks with a rated input torque of 1500-1750 N·m.
Features: FAW CA9TB(X)160(180)M series mechanical synchromesh transmission is a single countershaft transmission designed with the latest 21st century technology and produced using foreign patented technology. It has 9 forward gears and 2 reverse gears, stable performance, high reliability, and can be optionally equipped with aluminum or cast iron housing. / Main box uses unique single-fork-shaft shift mechanism, simple and compact structure, accurate gear selection and shifting; auxiliary box uses pneumatic shift, reliable shifting. / FAW CA9TB(X)160(180)M series mechanical synchromesh transmission is a single countershaft transmission designed with the latest 21st century technology and produced using foreign patented technology. It has 9 forward gears and 2 reverse gears, stable performance, high reliability, and can be optionally equipped with aluminum or cast iron housing. Main and auxiliary box structure, full synchronizer, main box single countershaft, auxiliary box planetary mechanism.
Max input torque: 1800 / 1750 / 1600N·m
1st gear ratio: 10.580 / 10.58 / 14.393
synchronizer: Yes
Main box center distance: 148mm
2nd gear ratio: 7.378 / 10.037
3rd gear ratio: 5.224 / 7.106
4th gear ratio: 3.710 / 3.71 / 5.047
5th gear ratio: 2.727 / 3.71
6th gear ratio: 1.989 / 2.705
7th gear ratio: 1.408 / 1.915
8th gear ratio: 1 / 1.36
Reverse Gear 1 Ratio: 10.595 / 14.414
Transmission weight: 252 / 332kg
9th gear ratio: 0.735 / 1
Transmission oil capacity: 10.3/10.8 / 10.3/10.8 (with PTO)L
Control type: Remote Single/Dual Lever Control
Number of gears: 9Gear
shift type: Manual
Transmission Model: CA9TBX180M / CA9TBX160M / CA9TB160M
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
