FAW Jiefang CA9TBX160M Overdrive 9-Speed Manual Transmission

Export reference
MSRP N/A
Features:: Main box uses unique single-fork-shaft shift mechanism, simple and compact structure, accurate gear selection and shifting; auxiliary box uses pneumatic shift, reliable shifting.
Max input torque:: 1750N·m
1st gear ratio:: 10.58
FAW Jiefang CA9TBX160M Overdrive 9-Speed Manual Transmission exterior
View more photos (3)
Transmission Model: CA9TBX160M
Transmission Brand: FAW Jiefang
Matching Range: This series of transmissions is suitable for various highway cargo trucks, dump trucks, off-road vehicles, tractor trucks, premium coaches, truck cranes, mining trucks, and heavy fire trucks with a rated input torque of 1500-1750 N·m.

Overview

The FAW Jiefang CA9TBX160M Overdrive 9-Speed Manual Transmission is a parts product with spec CA9TBX160M.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: FAW Jiefang
Transmission series: CA9TB(X) Series
Matching Range: This series of transmissions is suitable for various highway cargo trucks, dump trucks, off-road vehicles, tractor trucks, premium coaches, truck cranes, mining trucks, and heavy fire trucks with a rated input torque of 1500-1750 N·m.
Features: Main box uses unique single-fork-shaft shift mechanism, simple and compact structure, accurate gear selection and shifting; auxiliary box uses pneumatic shift, reliable shifting.
Max input torque: 1750N·m
1st gear ratio: 10.58
2nd gear ratio: 7.378
synchronizer: Yes
3rd gear ratio: 5.224
4th gear ratio: 3.71
5th gear ratio: 2.727
6th gear ratio: 1.989
7th gear ratio: 1.408
8th gear ratio:
Reverse Gear 1 Ratio: 10.595
Transmission weight: 332kg
9th gear ratio: 0.735
Transmission oil capacity: 10.3/10.8 (with PTO)L
Control type: Remote Single/Dual Lever Control
Number of gears: 9Gear
shift type: Manual
Transmission Model: CA9TBX160M
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:

Photos

Exterior3

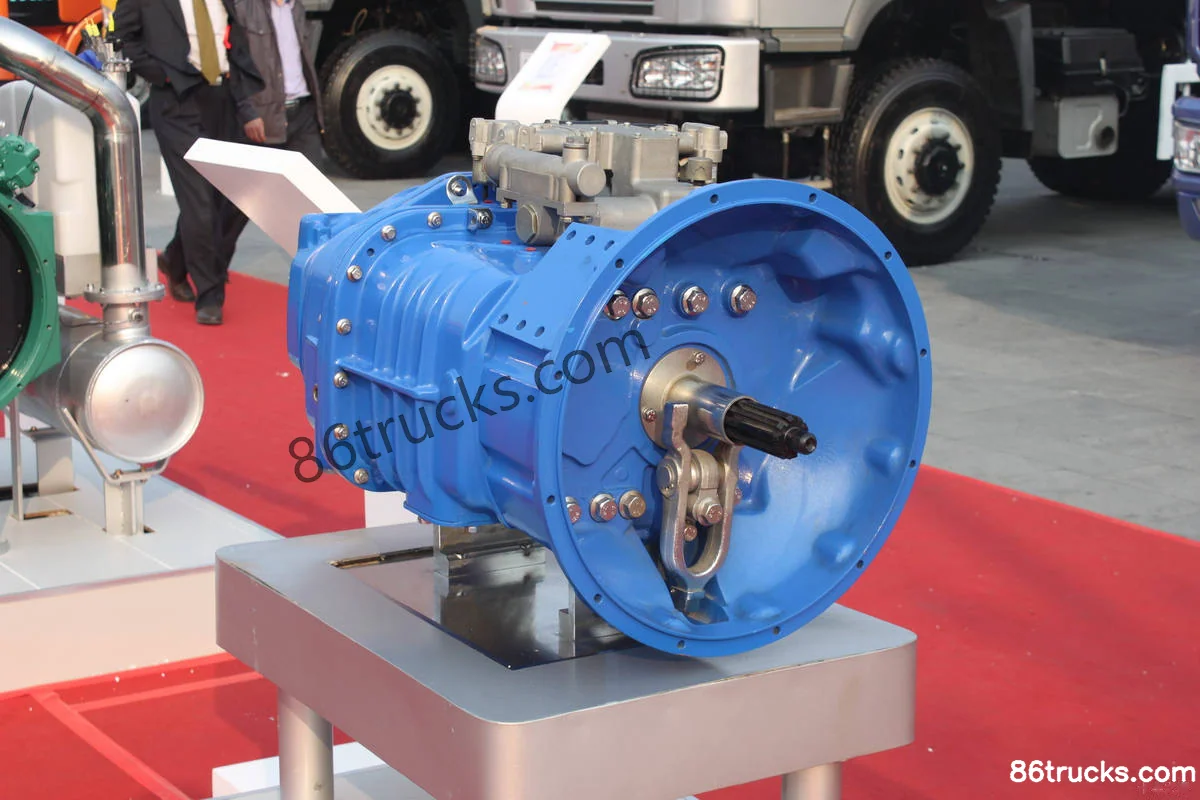

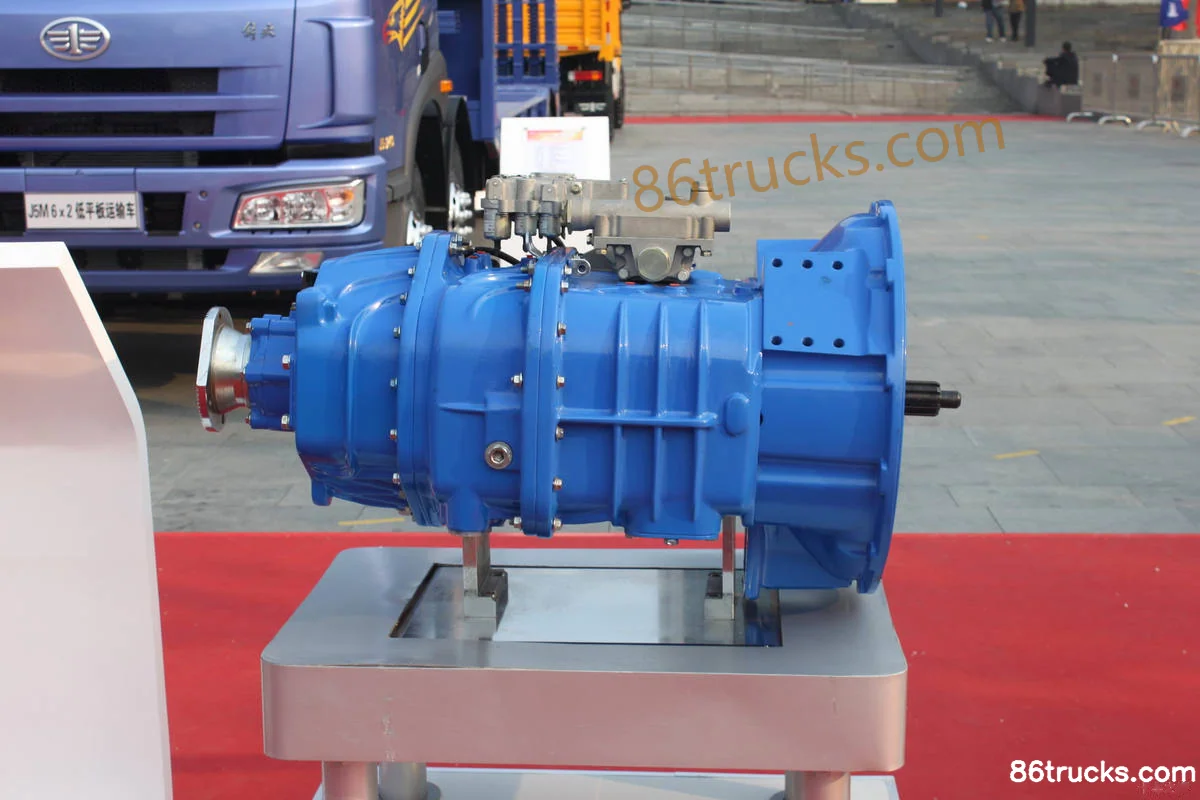

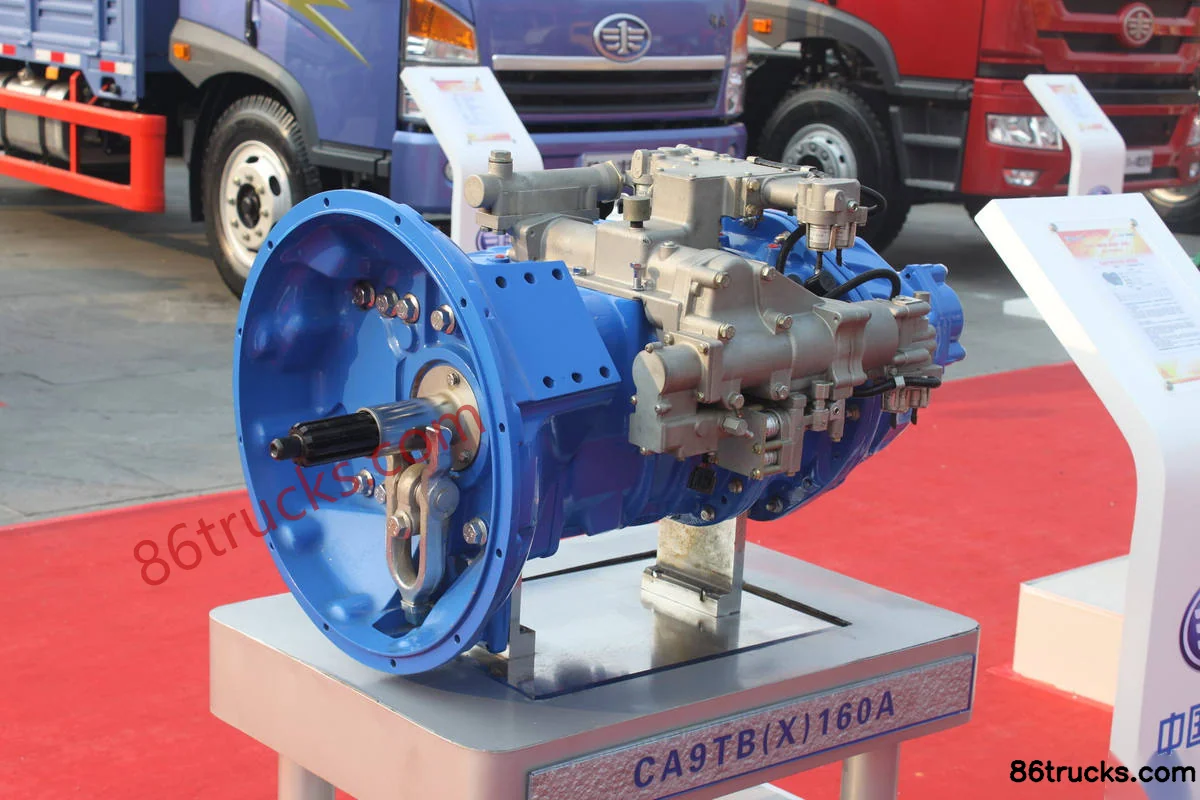

FAW Jiefang CA9TBX160M Overdrive 9-Speed Manual Transmission Exterior (1) | 86Trucks FAW Jiefang CA9TBX160M Overdrive 9-Speed Manual Transmission Exterior (2) | 86Trucks FAW Jiefang CA9TBX160M Overdrive 9-Speed Manual Transmission Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is FAW Jiefang CA9TBX160M Overdrive 9-Speed Manual Transmission suited for?

Match FAW Jiefang CA9TBX160M Overdrive 9-Speed Manual Transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does FAW Jiefang CA9TBX160M Overdrive 9-Speed Manual Transmission differ from other variants in the same series?

FAW Jiefang CA9TBX160M Overdrive 9-Speed Manual Transmission belongs to FAW Jiefang CA9TB(X) Series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang CA9TBX160M Overdrive 9-Speed Manual Transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang CA9TBX160M Overdrive 9-Speed Manual Transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
