WLY WLY7TS60 7-Speed Manual Transmission
EXW
Export quote
WLY 7-Speed Series transmission
Main model photos
4 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| WLY WLY7TS60 7-Speed Manual Transmission | — | ||
| WLY WLY7TS80 7-Speed Manual Transmission | — | ||
| WLY WLY7TS40 7-Speed Manual Transmission | — | ||
| WLY 7S150 7-Speed Manual Transmission | — |

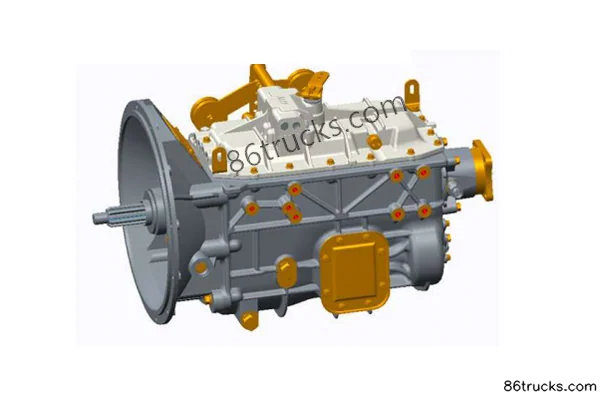

WLY WLY7TS80 7-Speed Manual Transmission
EXW
Export quote

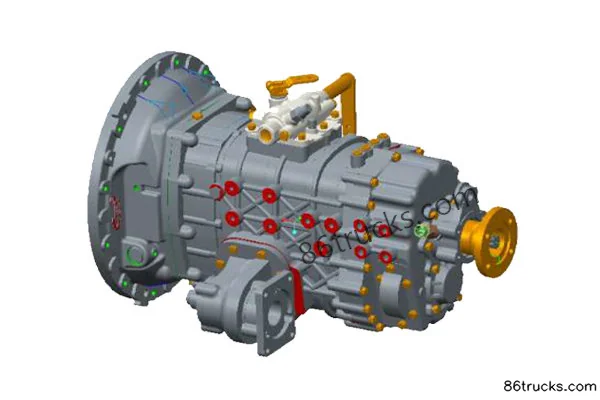

WLY WLY7TS40 7-Speed Manual Transmission
EXW
Export quote
WLY 7S150 7-Speed Manual Transmission
EXW
Export quote
Series Specs
Transmission Parameters
Transmission Brand: WLY
Transmission series: WLY 7-speed series
Features: Wide ratio range, strong climbing ability, ideal for heavy-duty light trucks and flatbed work trucks; gears 1-6 with synchronizer, crawler gear and reverse with sliding dog clutch; equipped with shift positioning mechanism for clear gear selection and light shifting / Forward gears designed with synchronizer, one-pedal clutch for easy shifting, efficient and fuel-saving. / 1st, 2nd, 3rd, 4th, 5th, 6th gear with synchronizer; crawler gear and reverse gear with sliding gear sleeve; equipped with gear selection/shift positioning mechanism for clear gear selection and light shifting; compatible with side PTO. / Twin countershaft, auxiliary box synchronizer
Matching Range: Engine: YC4S150, ISF3.8, etc. (up to 550 Nm); Application: heavy-duty light truck, construction truck, special vehicle, etc. / Engine: up to 750 N·m; Application: medium-duty trucks, special-purpose vehicles, etc. / Engine: Yunnei D25, Quanchai 4H1/4K1, Weichai WP2.3, etc. (up to 360 Nm); Application: heavy-duty light truck, construction truck, special vehicle, etc.
Max input torque: 600 / 800 / 430 / 1180N·m
1st gear ratio: 5.48 / 5.99 / 9.1
synchronizer: Yes
Main box center distance: 148.2mm
2nd gear ratio: 3.37 / 3.53 / 4.83
Low Gear 1: 9.17
3rd gear ratio: 2.16 / 2.21 / 3.15
4th gear ratio: 1.43 / 1.41 / 2.1
5th gear ratio: 1 / 1.45
6th gear ratio: 0.83 / 0.78 / 1
7th gear ratio: 0.83
Reverse Gear 1 Ratio: 7.8 / 8.19 / 8.03
Transmission weight: 150 / 190 / 140 / 235kg
Transmission oil capacity: 6 / 8 / 5 / 12L
Number of gears: 7Gear
shift type: Manual
Transmission Model: WLY7TS60 / WLY7TS80 / WLY7TS40 / WLY7S150
shift method: Manual
Forward gears: 7Gear
Number of Reverse Gears:
FAQ
What kind of truck is WLY WLY 7-Speed Series transmission?
WLY WLY 7-Speed Series is an export-oriented transmission lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is transmission typically used for?
For transmission, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does WLY 7-Speed Series transmission include?
WLY 7-Speed Series transmission currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for WLY 7-Speed Series transmission?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
