JMC E Fushun 2025 Blind Window Version 3T 2-Seat 5.185m Electric Medium Wheelbase Mid Roof Panel Van 41.5kWh

Export reference
From $14,139
MSRP ¥10.18M CNY
Wheelbase:: 3360mm
Cargo Box Height:: 1.69
Model code (announced):: JX5031XXYTGBEV
Cab length:: 5.185m
GVWR:: 3.05ton
Max. speed:: 95km/h

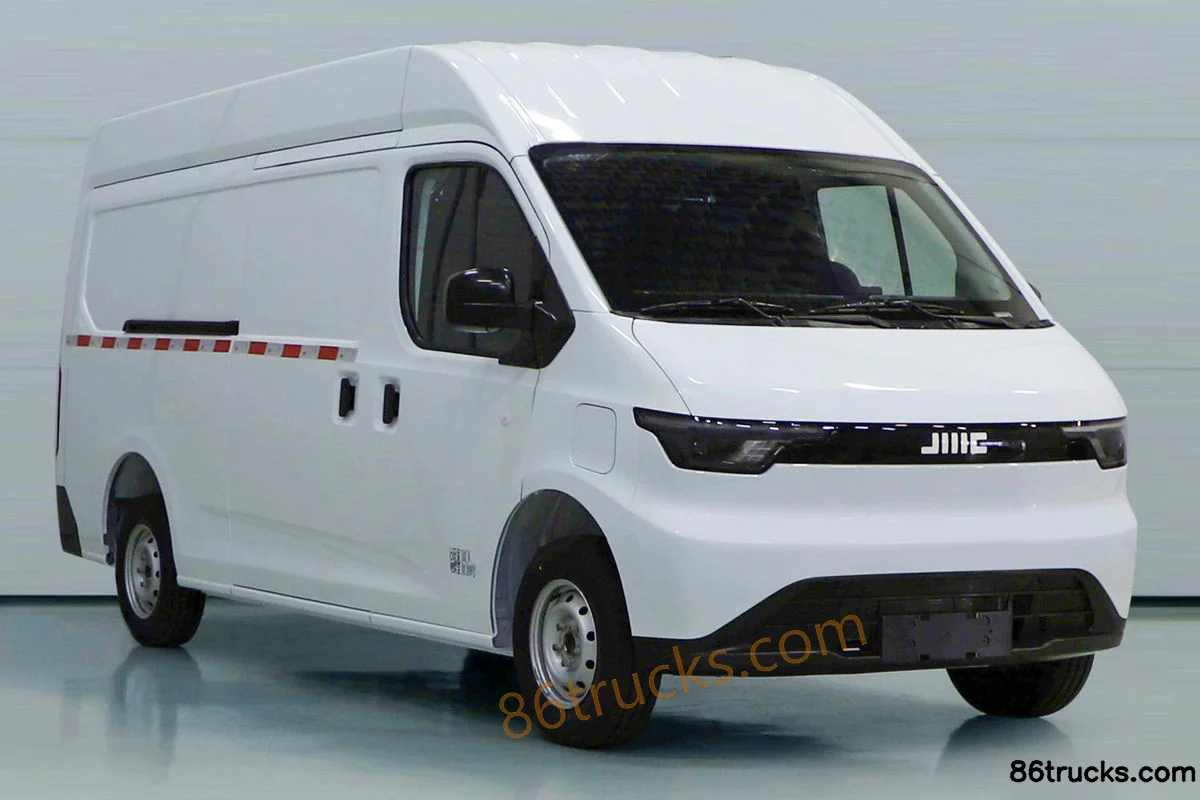

JMC E Fushun 2025 Blind Window Version 3T 2-Seat 5.185m Electric Medium Wheelbase Mid Roof Panel Van 41.5kWh exterior
View more photos (1)
CLTC range: 260km
Motor 1 Brand: Inovance
Curb Weight: 1.72ton
Rated payload: 1.17ton

Overview

The JMC E Fushun 2025 Blind Window Version 3T 2-Seat 5.185m Electric Medium Wheelbase Mid Roof Panel Van 41.5kWh is a Electric Panel Van featuring 260km battery/range, Inovance motor, 1.17t payload and 1.69 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): JX5031XXYTGBEV
Wheelbase: 3360mm
Cab length: 5.185m
Cab width: 1.89m
Cab height: 2.28m
CLTC range: 260km
Curb Weight: 1.72ton
Rated payload: 1.17ton
GVWR: 3.05ton
Max. speed: 95km/h
Remarks: Standard: Hill-start assist, Vehicle status query/diagnosis, Vehicle locating/vehicle finder; Optional: 3-seat configuration.
Front/rear suspension: 0.71/1.115m
Version: Blind window version
Energy Type: Electric
electric motor
Motor 1 Brand: Inovance
Motor 1 Model: TZ180XS000
Motor Type: Permanent magnet synchronous motor
total rated power: 32kW
Peak power: 60kW
total peak torque: 220N·m
Battery/Charging
Battery Brand: Ganfeng Lithium
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
fast charge time: 0.5h
Battery capacity: 41.5kWh
Chassis Specs
Front suspension type: MacPherson independent suspension
rear suspension type: Leaf spring non-independent suspension
Body Parameters
Cab structure: Unibody
Seat count: 2Seats
Body parameters
Max body depth: 3.13
Max body width: 1.775
Cargo Box Height: 1.69
Door Parameters
Number of Doors: 5
side door type: Sliding side door
Tailgate type: split doors
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 185R14LT
Rear Wheel Specification: 185R14LT
Cab parameters
Seat rows:
Safety features
Tire Pressure Monitoring:
Seat belt reminder:
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
Steering Wheel Material: Plastic
AC control type: Manual
Power Windows:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
lighting configuration
daytime running lights:
Headlight height adjustment:

Photos

Exterior1

JMC E Fushun 2025 Blind Window Version 3T 2-Seat 5.185m Electric Medium Wheelbase Mid Roof Panel Van 41.5kWh Exterior (1) | 86Trucks

1 photos

FAQ

What is the export price of JMC E Fushun 2025 Blind Window Version 3T 2-Seat 5.185m Electric Medium Wheelbase Mid Roof Panel Van 41.5kWh, and what does it include?

JMC E Fushun 2025 Blind Window Version 3T 2-Seat 5.185m Electric Medium Wheelbase Mid Roof Panel Van 41.5kWh export reference is about From $14,139; MSRP is ¥10.18M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is JMC E Fushun 2025 Blind Window Version 3T 2-Seat 5.185m Electric Medium Wheelbase Mid Roof Panel Van 41.5kWh suited for?

JMC E Fushun 2025 Blind Window Version 3T 2-Seat 5.185m Electric Medium Wheelbase Mid Roof Panel Van 41.5kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JMC E Fushun 2025 Blind Window Version 3T 2-Seat 5.185m Electric Medium Wheelbase Mid Roof Panel Van 41.5kWh differ from other variants in the same series?

JMC E Fushun 2025 Blind Window Version 3T 2-Seat 5.185m Electric Medium Wheelbase Mid Roof Panel Van 41.5kWh belongs to JMC E-Fushun (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC E Fushun 2025 Blind Window Version 3T 2-Seat 5.185m Electric Medium Wheelbase Mid Roof Panel Van 41.5kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC E Fushun 2025 Blind Window Version 3T 2-Seat 5.185m Electric Medium Wheelbase Mid Roof Panel Van 41.5kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
