Dongfeng Commercial Vehicle Tianjin 180hp 4X2(6 wheels) 4500mm Wheelbase Garbage Truck Chassis

Export reference
From $20,556
MSRP ¥14.8M CNY
Fuel: Diesel
Wheelbase:: 4500mm
Cab dimensions:: 8.29×2.5×2.84m
Type:: garbage truck
Front/rear track width:: Front track: 1880mm; Rear track: 1800
GVWR:: 16ton
Drive 4X2 (6 wheels)
Horsepower 180
Rated mass: 7.305ton
Emission China V

Overview

The Chengliwei Dongfeng Commercial Vehicle Tianjin 180hp 4X2(6 wheels) 4500mm Wheelbase Garbage Truck Chassis is a garbage truck featuring 16t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 180 hp, China V emissions and Diesel fuel.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.29×2.5×2.84m
Type: garbage truck
Drive type: 4X2
Front/rear track width: Front track: 1880mm; Rear track: 1800
Wheelbase: 4500mm
Rated mass: 7.305ton
GVWR: 16ton
Front/rear suspension: 1.43/1.87m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Model: YuchaiYC6J180-52
fuel type: Diesel
Displacement: 6.494L
Emission standard: China V
Max output power: 132kW
Max hp: 180Horsepower
Rated speed: 2300rpm
Body Parameters
Special Function Description: Semi-floating rear suspension with mechanical damping cab mount, hydraulic mechanical tilt, manual window regulator, manual front door lock, channel-type dashboard, with A/C
Vehicle certification code: CLW5163ZDJD5
Body Brand: Chengliwei
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Dongfeng Tianjin
Frame Dimensions: 250×80×(7+4)mm
rear axle description: 9T, single reduction
Axle ratio: 5.286
Leaf spring count: 9/10+8
clutch: Φ395
Transmission Parameters
Number of gears: 6Gear
Transmission Model: DongfengDF6S900
Cab parameters
Cab: D530 flat-front single-row sleeper standard-roof cab
Tire
Tire Size: 9.00R20
Number of tires: 6pcs

Photos

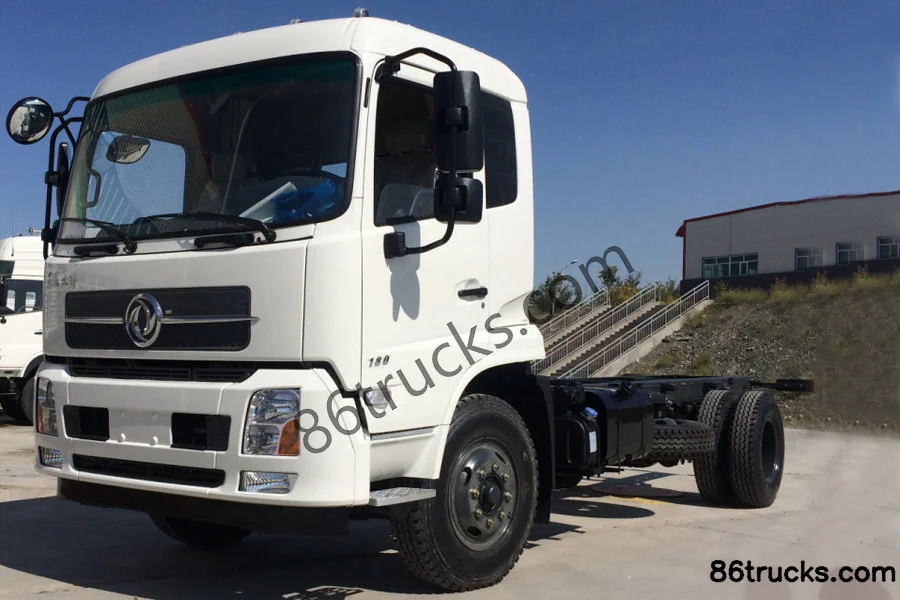

Exterior1

1 photos

FAQ

What is the export price of Dongfeng Commercial Vehicle Tianjin 180hp 4X2(6 wheels) 4500mm Wheelbase Garbage Truck Chassis, and what does it include?

Dongfeng Commercial Vehicle Tianjin 180hp 4X2(6 wheels) 4500mm Wheelbase Garbage Truck Chassis export reference is about From $20,556; MSRP is ¥14.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Commercial Vehicle Tianjin 180hp 4X2(6 wheels) 4500mm Wheelbase Garbage Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Commercial Vehicle Tianjin 180hp 4X2(6 wheels) 4500mm Wheelbase Garbage Truck Chassis?

Key specs of Dongfeng Commercial Vehicle Tianjin 180hp 4X2(6 wheels) 4500mm Wheelbase Garbage Truck Chassis: Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianjin 180hp 4X2(6 wheels) 4500mm Wheelbase Garbage Truck Chassis suited for?

Dongfeng Commercial Vehicle Tianjin 180hp 4X2(6 wheels) 4500mm Wheelbase Garbage Truck Chassis is a garbage truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dongfeng Commercial Vehicle Tianjin 180hp 4X2(6 wheels) 4500mm Wheelbase Garbage Truck Chassis differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianjin 180hp 4X2(6 wheels) 4500mm Wheelbase Garbage Truck Chassis belongs to Chengliwei Dongfeng Commercial Vehicle Chassis (garbage truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianjin 180hp 4X2(6 wheels) 4500mm Wheelbase Garbage Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianjin 180hp 4X2(6 wheels) 4500mm Wheelbase Garbage Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
