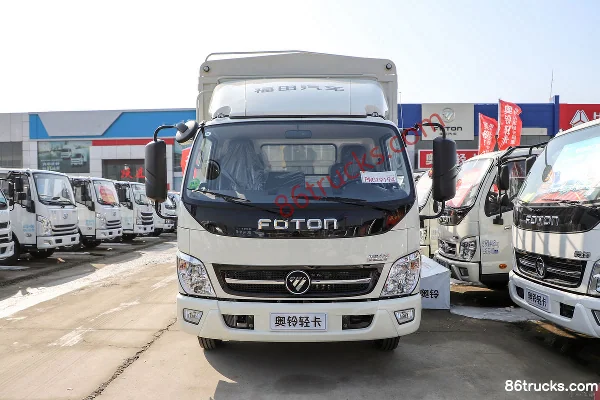

Foton Aoling Jieyun Classic Edition 132hp 4X2(6 wheels) 3.25m half-row stake-side light truck

Export reference
From $12,347
MSRP ¥8.89M CNY
Horsepower: 132
Emission: China VI
Fuel: Diesel
Engine: QuanchaiQ23
Transmission: WLY
Curb Weight:: 2.5ton
seating capacity: 3Personnel
Rated payload: 1.43ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Foton Aoling Jieyun Classic Edition 132hp 4X2(6 wheels) 3.25m half-row stake-side light truck is a Light Truck featuring 3.25m cargo length, Stake type cargo body, 3Personnel volume and 1.43t payload. On the powertrain side, it comes with a QuanchaiQ23 engine, 132 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 132 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5041CCY9JDA-AB1
Type: stake truck
Drive type: 4X2
Wheelbase: 2800mm
Box length class: 3.2m
engine: QuanchaiQ23-132E60
transmission: WLYWLY5G32
Cab length: 5.435m
Cab width: 2m
Cab height: 2.915m
Front track width: 1530mm
rear track: 1485mm
Curb Weight: 2.5ton
Rated payload: 1.43ton
GVWR: 4.125ton
Max. speed: 105km/h
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
Front/rear suspension: 1.11/1.525m
Version: Classic Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ23-132E60
Engine info: QuanchaiQ23
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.3L
Emission standard: China VI
Max output power: 97kW
Max hp: 132Horsepower
Transmission Parameters
Transmission Model: WLYWLY5G32
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.25m
Cargo box width: 1.9m
*Cargo box interior width: 1.9
Cab parameters
Cab width: 1800mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1445kg
rear axle allowable load: 2680kg
Leaf spring count: 3/6+7
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Optional manual.
Power Windows:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Radio:
standard instrument cluster:
lighting configuration
Front fog lamp:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):

Photos

0 photos

FAQ

What is the export price of Foton Aoling Jieyun Classic Edition 132hp 4X2(6 wheels) 3.25m half-row stake-side light truck, and what does it include?

Foton Aoling Jieyun Classic Edition 132hp 4X2(6 wheels) 3.25m half-row stake-side light truck export reference is about From $12,347; MSRP is ¥8.89M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Aoling Jieyun Classic Edition 132hp 4X2(6 wheels) 3.25m half-row stake-side light truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aoling Jieyun Classic Edition 132hp 4X2(6 wheels) 3.25m half-row stake-side light truck?

Key specs of Foton Aoling Jieyun Classic Edition 132hp 4X2(6 wheels) 3.25m half-row stake-side light truck: Drive: 4x2; Horsepower: 132 hp; Emission: China VI; Fuel: Diesel; Engine: QuanchaiQ23; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aoling Jieyun Classic Edition 132hp 4X2(6 wheels) 3.25m half-row stake-side light truck suited for?

Foton Aoling Jieyun Classic Edition 132hp 4X2(6 wheels) 3.25m half-row stake-side light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aoling Jieyun Classic Edition 132hp 4X2(6 wheels) 3.25m half-row stake-side light truck differ from other variants in the same series?

Foton Aoling Jieyun Classic Edition 132hp 4X2(6 wheels) 3.25m half-row stake-side light truck belongs to Foton Jieyun Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aoling Jieyun Classic Edition 132hp 4X2(6 wheels) 3.25m half-row stake-side light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aoling Jieyun Classic Edition 132hp 4X2(6 wheels) 3.25m half-row stake-side light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
