Hongchang Tianma Sinotruk Chassis 350 hp 8X4(12 wheels) 7.6m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 15.5ton
Wheelbase:: 1800+3800+1350mm
Tire Size:: 11.00R20 18PR,12.00R20 18PR
Rated payload: 15.37ton
Drive 8X4 (12 wheels)
Horsepower 350
Cargo box type: Dump type

Overview

The Hongchang Tianma Sinotruk Chassis 350 hp 8X4(12 wheels) 7.6m Dump Truck is a Heavy truck featuring 15.37t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a SinotrukMC07.35-50 engine, 350 hp, China V emissions and Sinotruk transmission.

China V 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HCL5315ZLJZZ387H5
Drive type: 8X4
Wheelbase: 1800+3800+1350mm
engine: SinotrukMC07.35-50
transmission: SinotrukHW12
Rear Axle Ratio: 5.45
Cab length: 10.5m
Cab width: 2.55m
Cab height: 3.5m
Front track width: 2022/2022mm
rear track: 1830/1830mm
Curb Weight: 15.5ton
Rated payload: 15.37ton
GVWR: 31ton
Origin: Sanhe, Hebei
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 20°
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.35-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 254kW
Max hp: 350Horsepower
Max torque: 1300N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke
Transmission Parameters
Transmission Model: SinotrukHW12
Transmission Brand: Sinotruk
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 7.6m
Cargo box width: 2.35m
Cargo box height: 1.5m
Chassis Specs
Front axle description: HF7 drum front axle
Front axle allowable load: 6500/7000kg
rear axle description: HC16 rear axle
rear axle allowable load: 17500 (two-axle group)kg
Axle ratio: 5.45
Leaf spring count: 4/4/-,4/4/5,4/4/12,11/11/-,11/11/12
Tire
Tire Size: 11.00R20 18PR,12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:

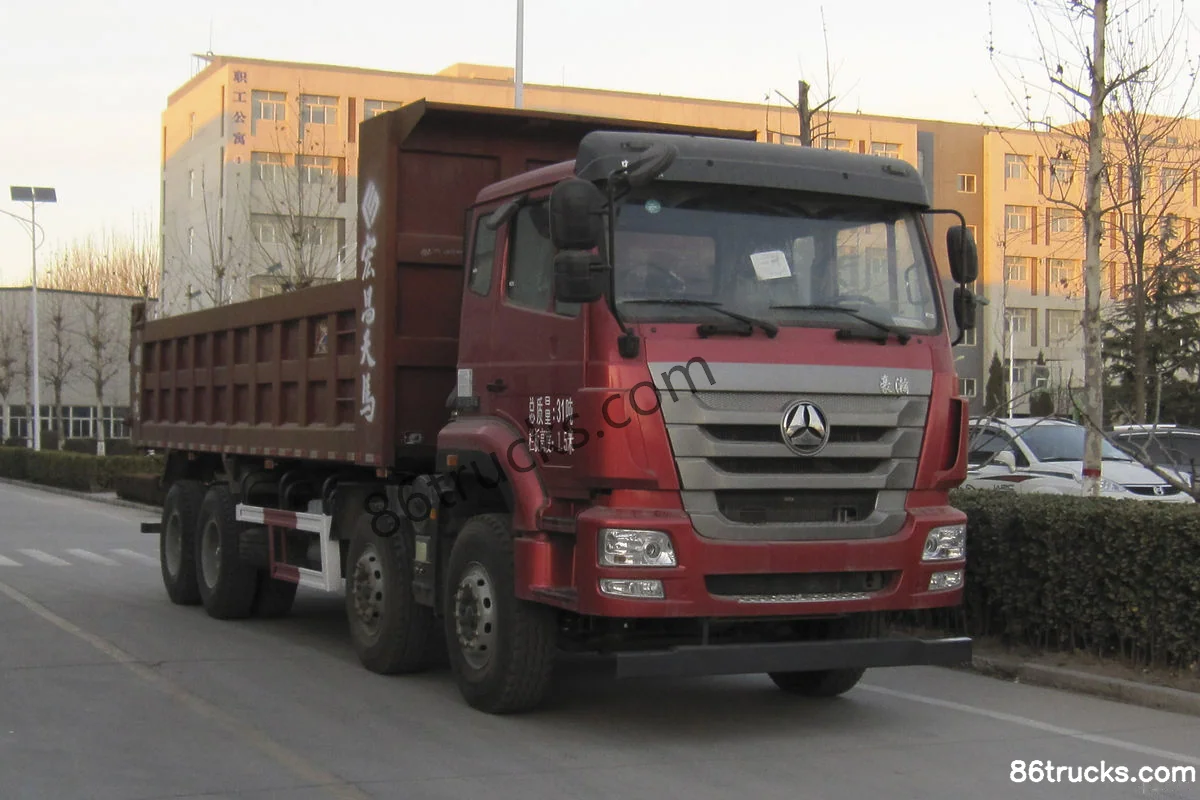

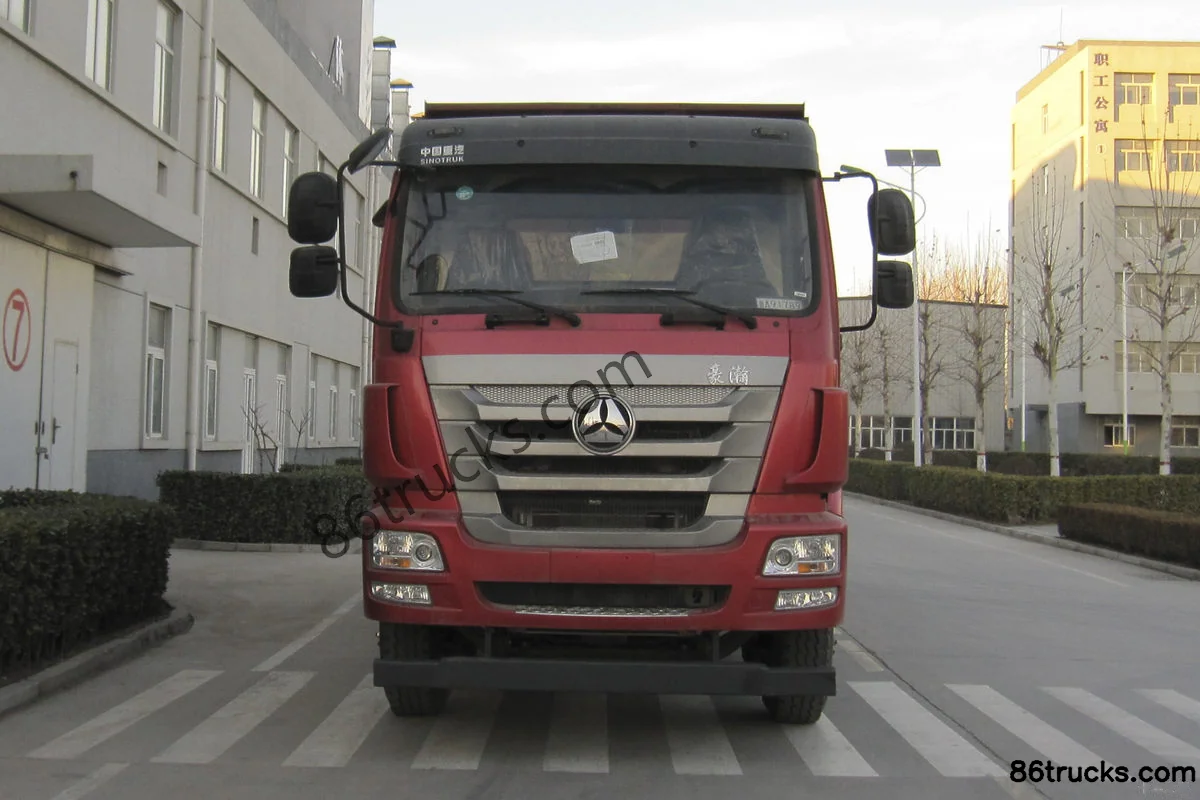

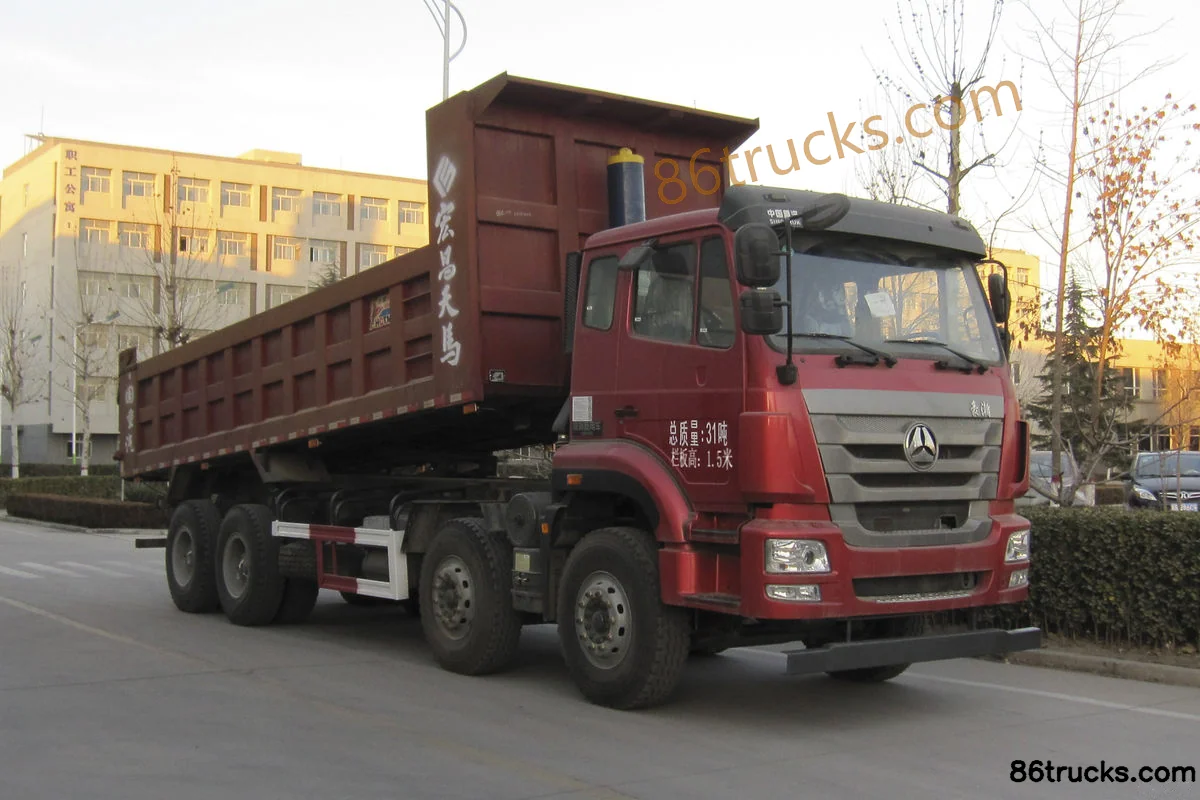

Photos

Exterior3

3 photos

FAQ

What emission standard does Hongchang Tianma Sinotruk Chassis 350 hp 8X4(12 wheels) 7.6m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hongchang Tianma Sinotruk Chassis 350 hp 8X4(12 wheels) 7.6m Dump Truck?

Key specs of Hongchang Tianma Sinotruk Chassis 350 hp 8X4(12 wheels) 7.6m Dump Truck: Drive: 8x4; Horsepower: 350 hp; Emission: China V; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hongchang Tianma Sinotruk Chassis 350 hp 8X4(12 wheels) 7.6m Dump Truck suited for?

Hongchang Tianma Sinotruk Chassis 350 hp 8X4(12 wheels) 7.6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Hongchang Tianma Sinotruk Chassis 350 hp 8X4(12 wheels) 7.6m Dump Truck differ from other variants in the same series?

Hongchang Tianma Sinotruk Chassis 350 hp 8X4(12 wheels) 7.6m Dump Truck belongs to Hongchang Tianma Sinotruk Chassis Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hongchang Tianma Sinotruk Chassis 350 hp 8X4(12 wheels) 7.6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hongchang Tianma Sinotruk Chassis 350 hp 8X4(12 wheels) 7.6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
