Kama GK8 Fuyunlai High-end version 116 hp 4X2(6 wheels) 3.45m dump truck

Export reference
From $15,694
MSRP ¥11.3M CNY
Emission: China V
Fuel: Diesel
Transmission: Rear auxiliary
Curb Weight:: 2.6ton
Wheelbase:: 3200mm
Tire Size:: 7.50R16LT 6PR
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 116
Cargo box type: square box

Overview

The Kama GK8 Fuyunlai High-end version 116 hp 4X2(6 wheels) 3.45m dump truck is a Light Truck featuring 1.495t payload, 4.29t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN33CRE1 engine, 116 hp, China V emissions and Rear auxiliary transmission.

China V 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC3042GC32P5
Drive type: 4X2
Wheelbase: 3200mm
engine: Yunnei PowerYN33CRE1
transmission: 1041 rear auxiliary
Cab length: 5.76m
Cab width: 2.08m
Cab height: 2.45m
Front track width: 1565mm
rear track: 1550mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.29ton
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 25°
departure angle: 30°
Version: High-spec version
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN33CRE1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.298L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 315N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: 1041 rear auxiliary
Transmission Brand: Rear auxiliary
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: square box
Cargo box type: Dump type
Cargo box length: 3.45m
Cargo box width: 1.9m
Cargo box height: 0.8m
Cab parameters
Cab width: 1820mm
Cab suspension: Rigid connection
Cab tilting: Manual
Driver seat type: Rigid connection seat
Sunroof: Manual sunroof
fuel tank
Fuel tank material: aluminum alloy
Chassis Specs
Front axle allowable load: 1560kg
Steering gear: Domestic
rear axle allowable load: 2730kg
Leaf spring count: 9/8+4
Tire
Tire Size: 7.50R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Power Windows:
Reverse Camera:

Photos

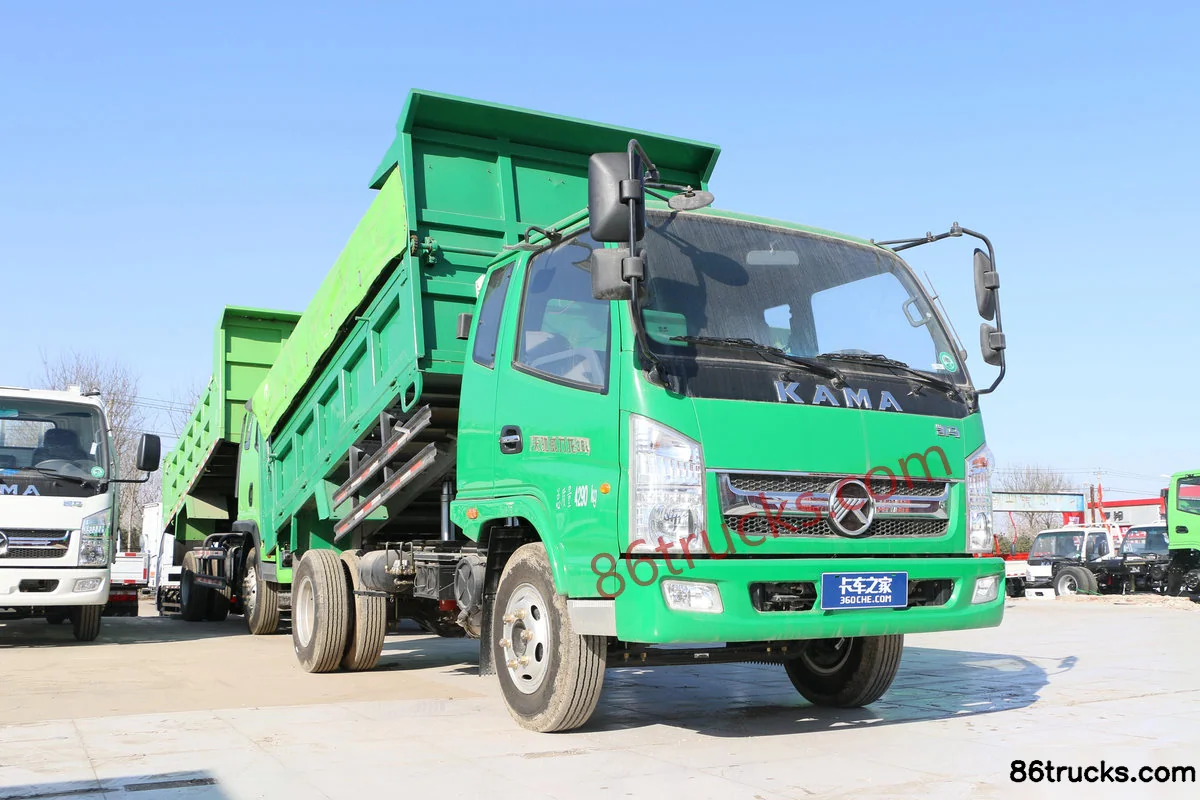

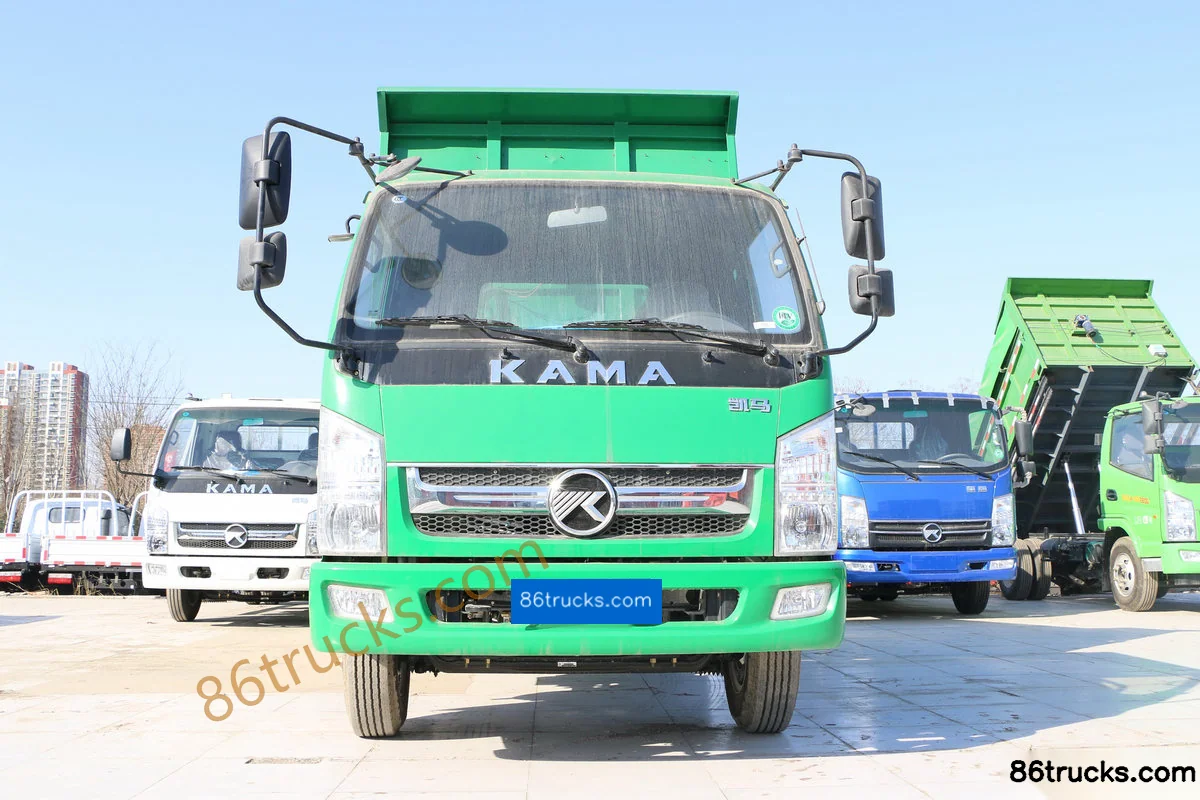

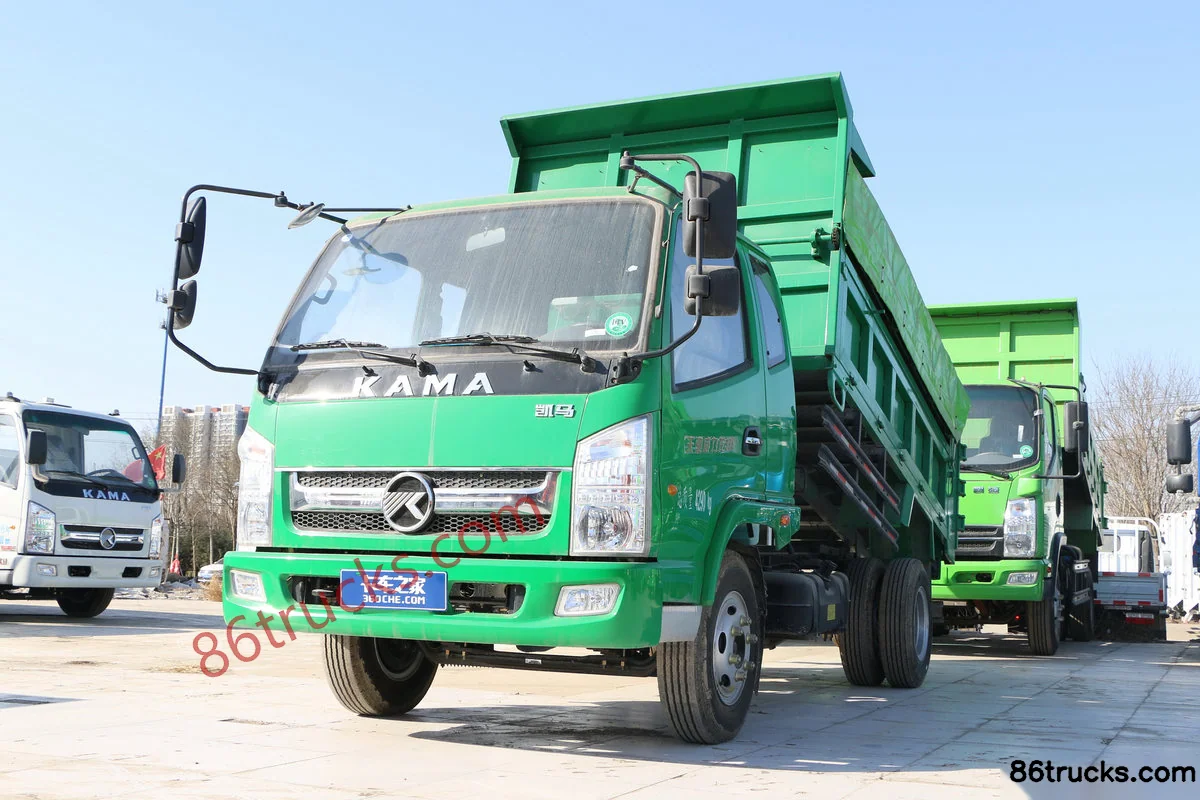

Exterior3

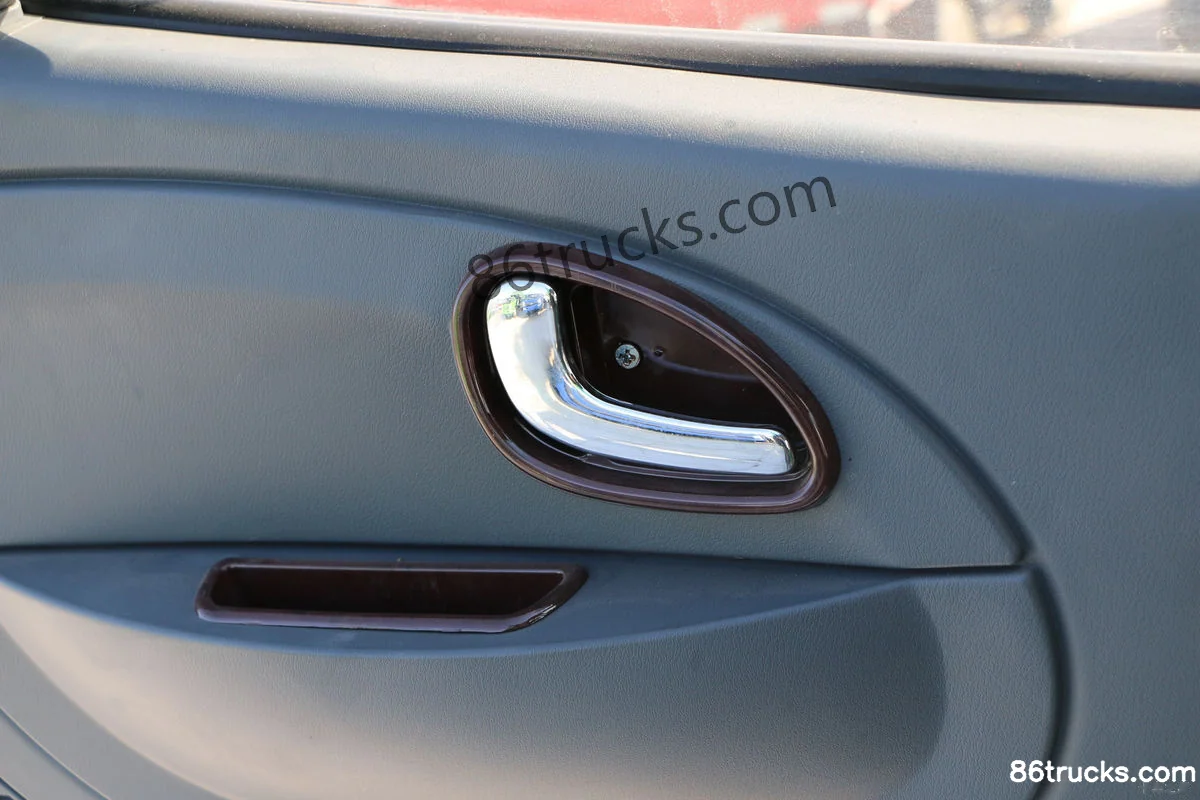

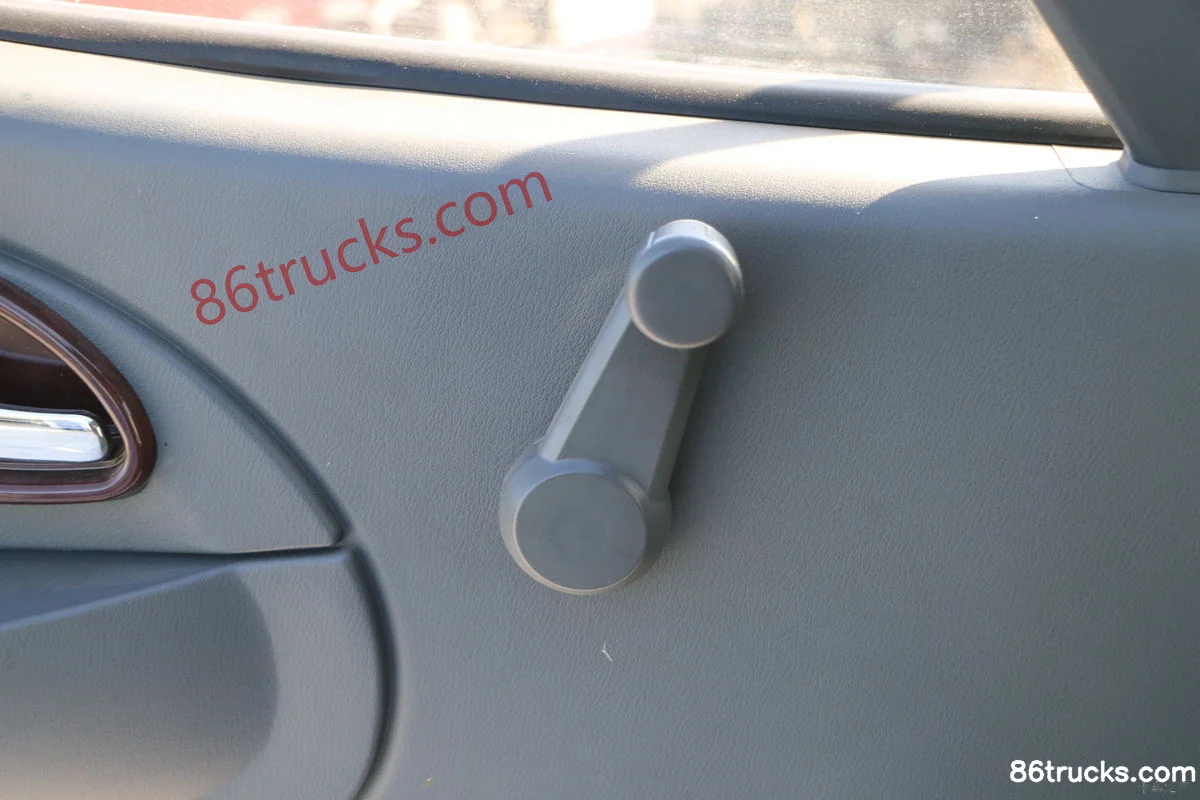

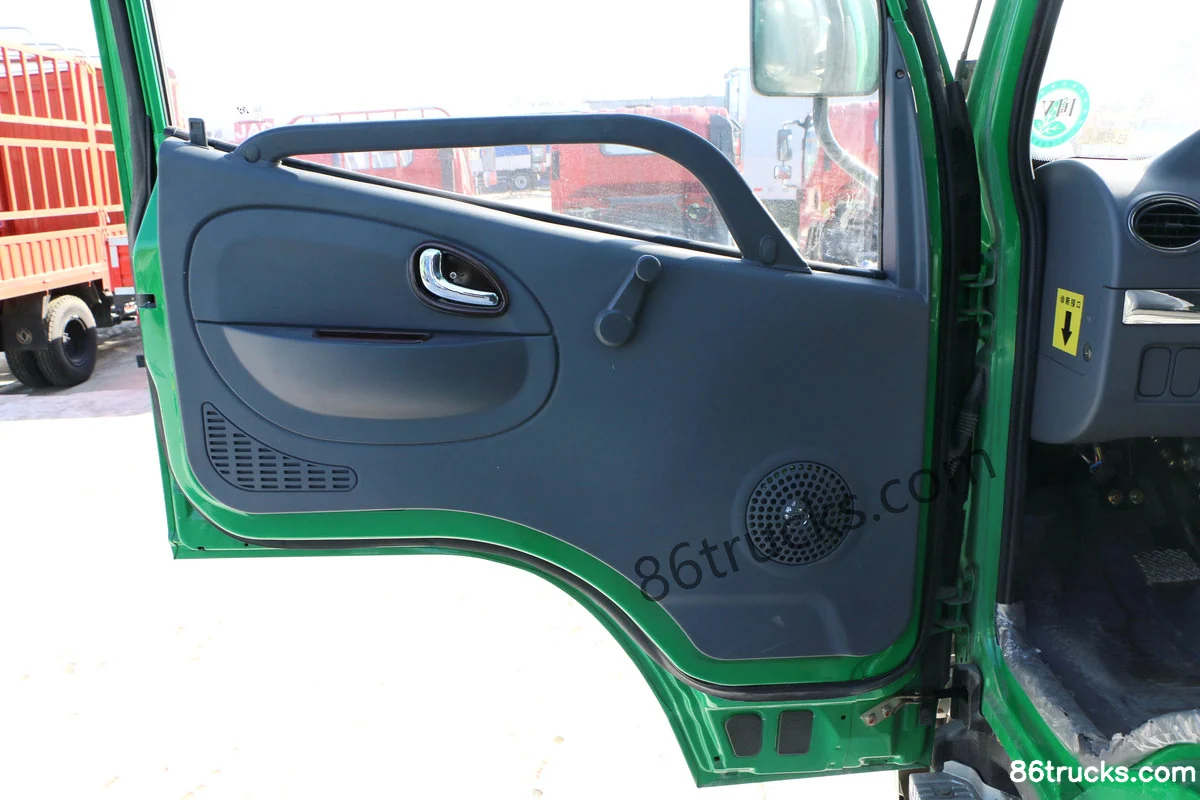

Cab3

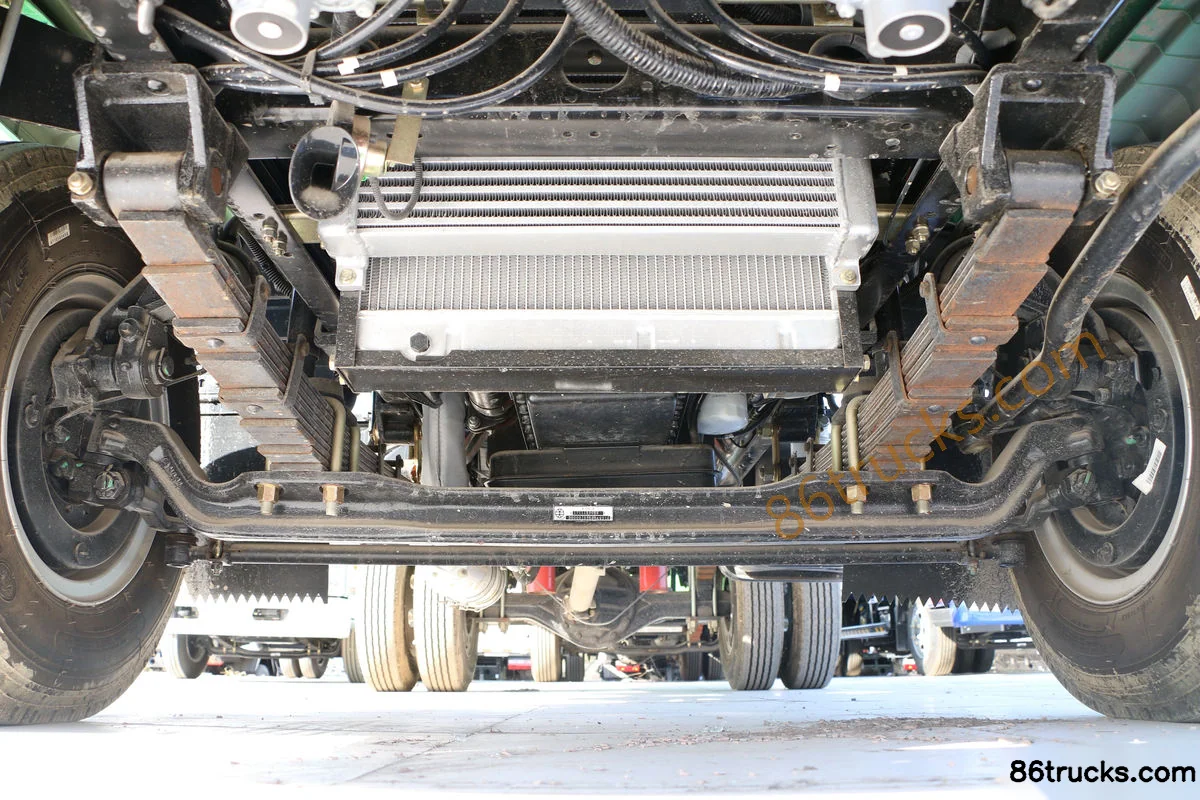

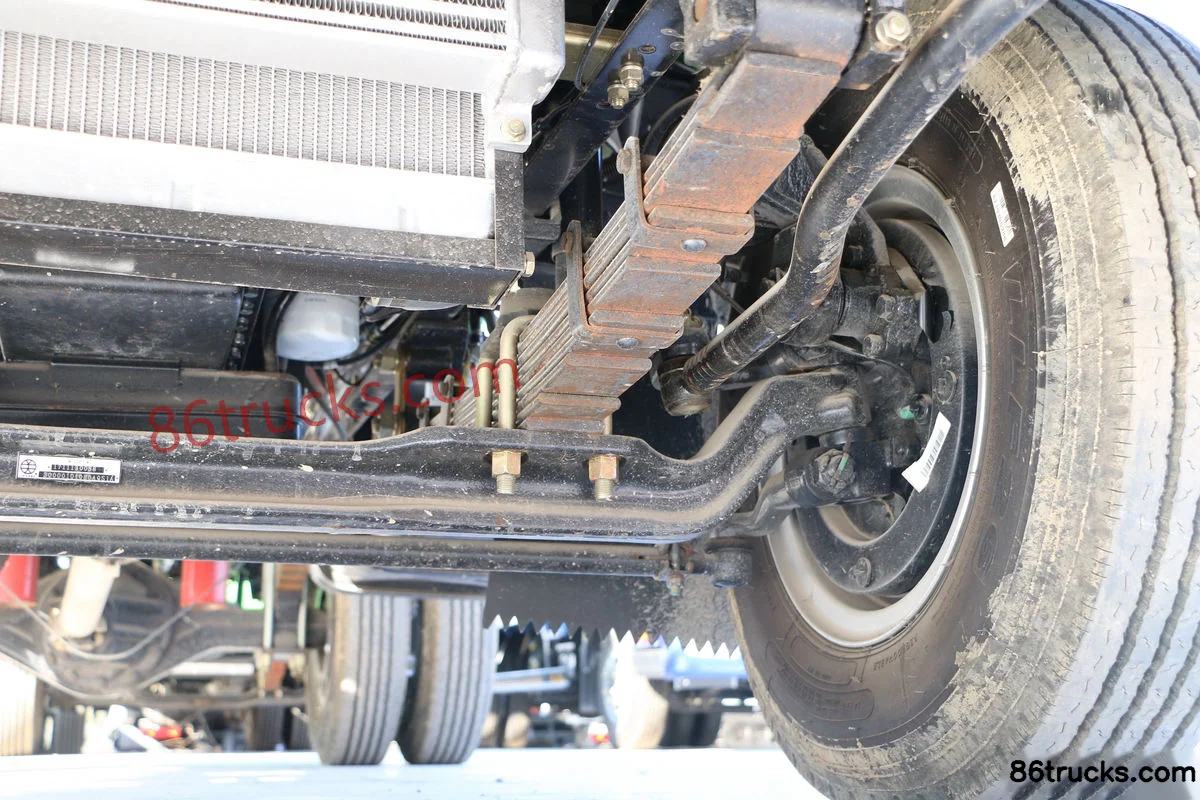

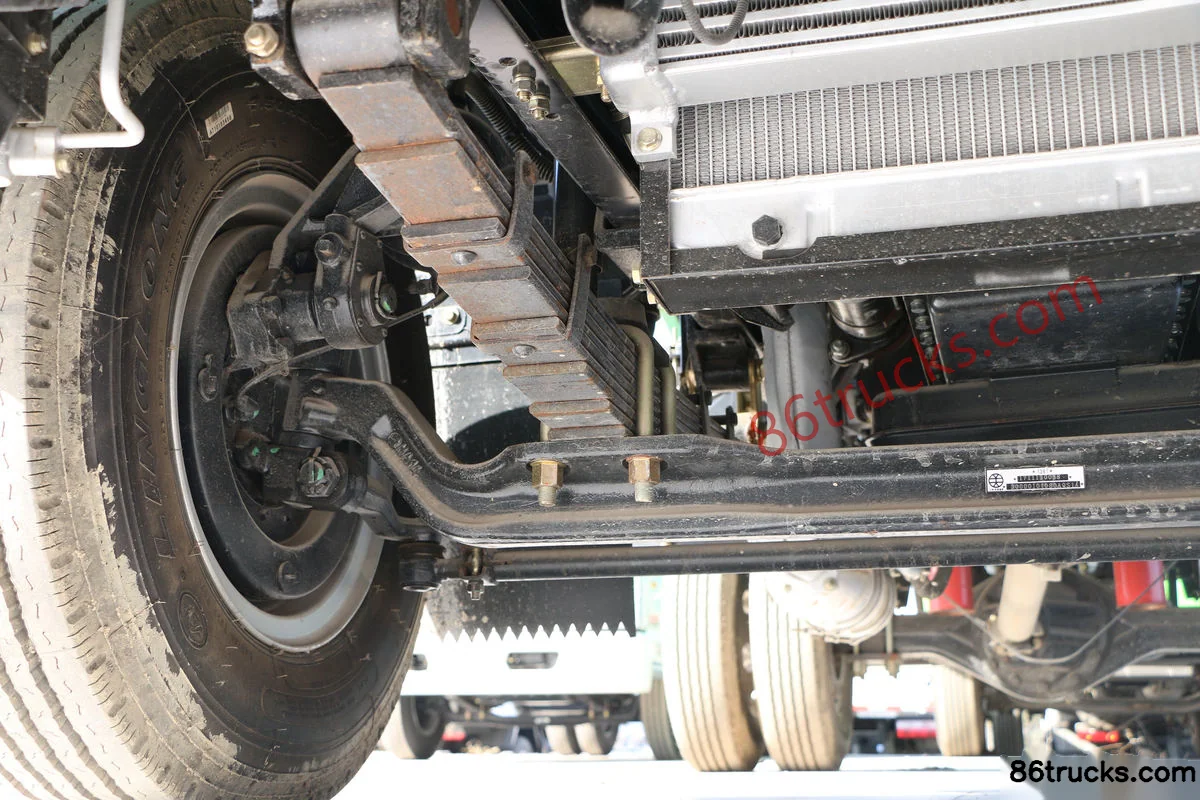

Chassis3

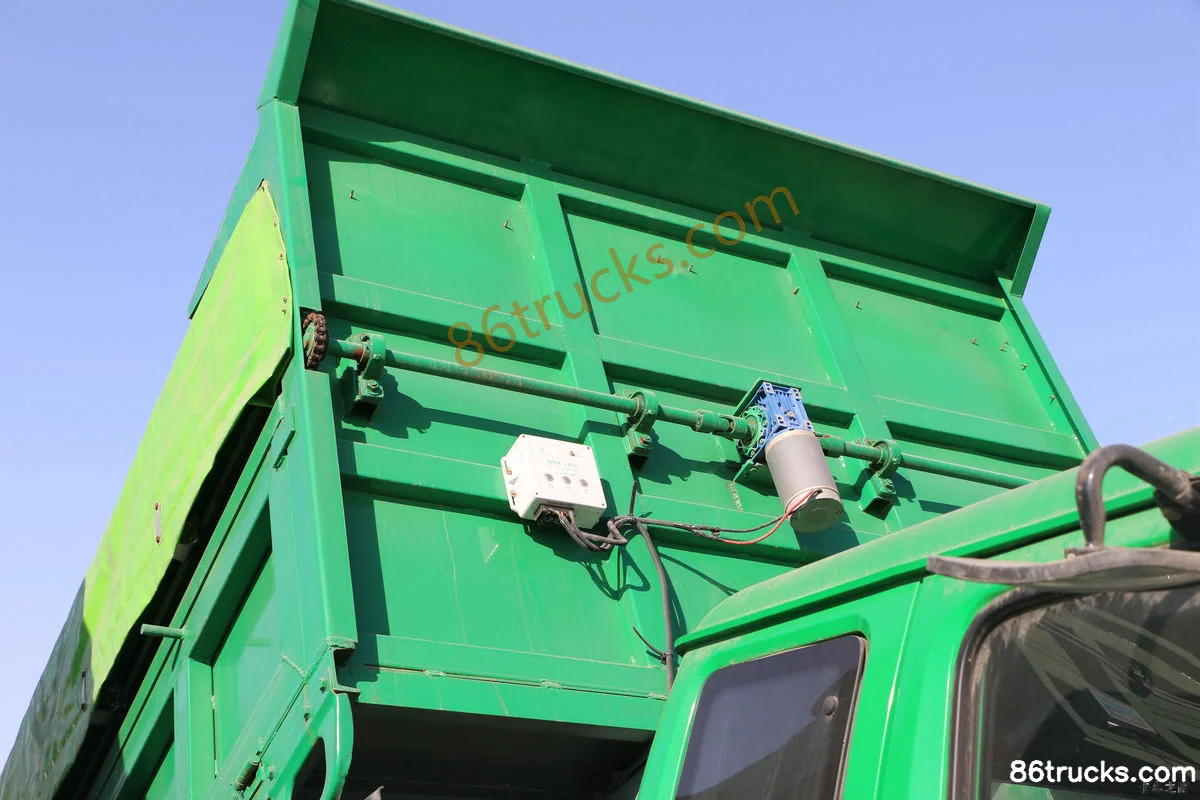

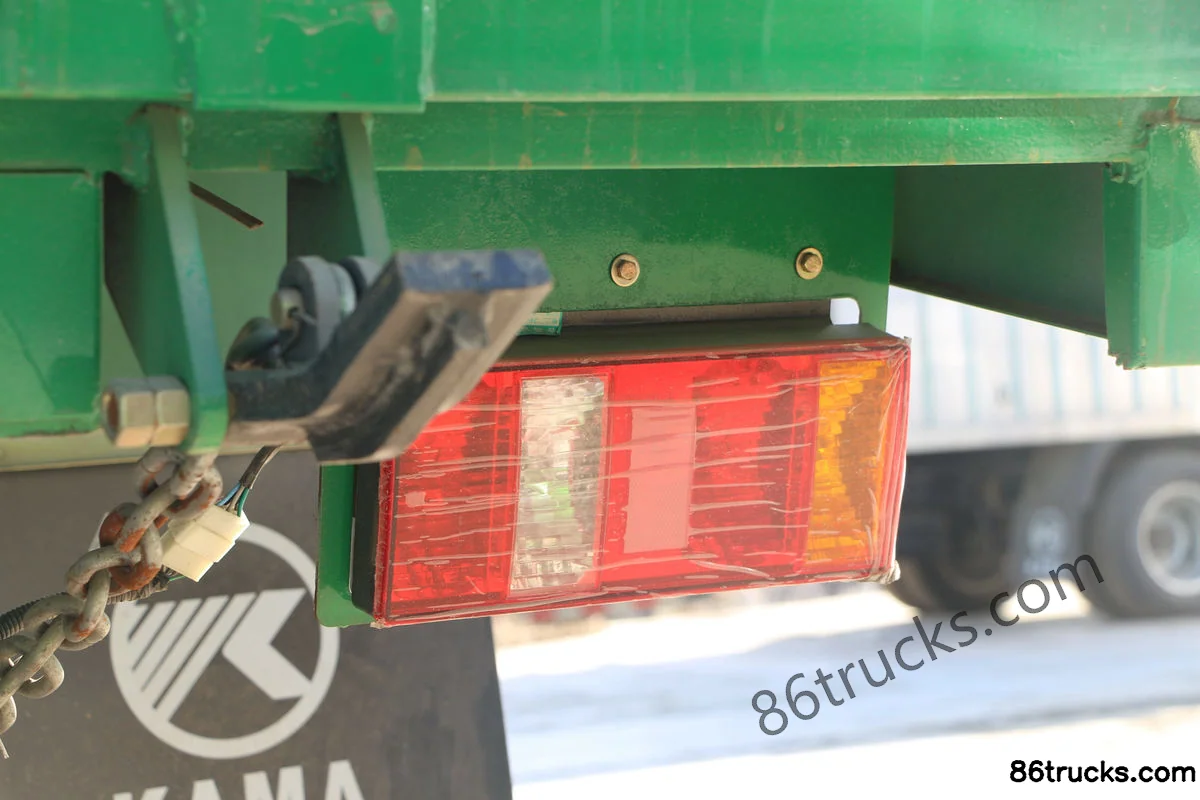

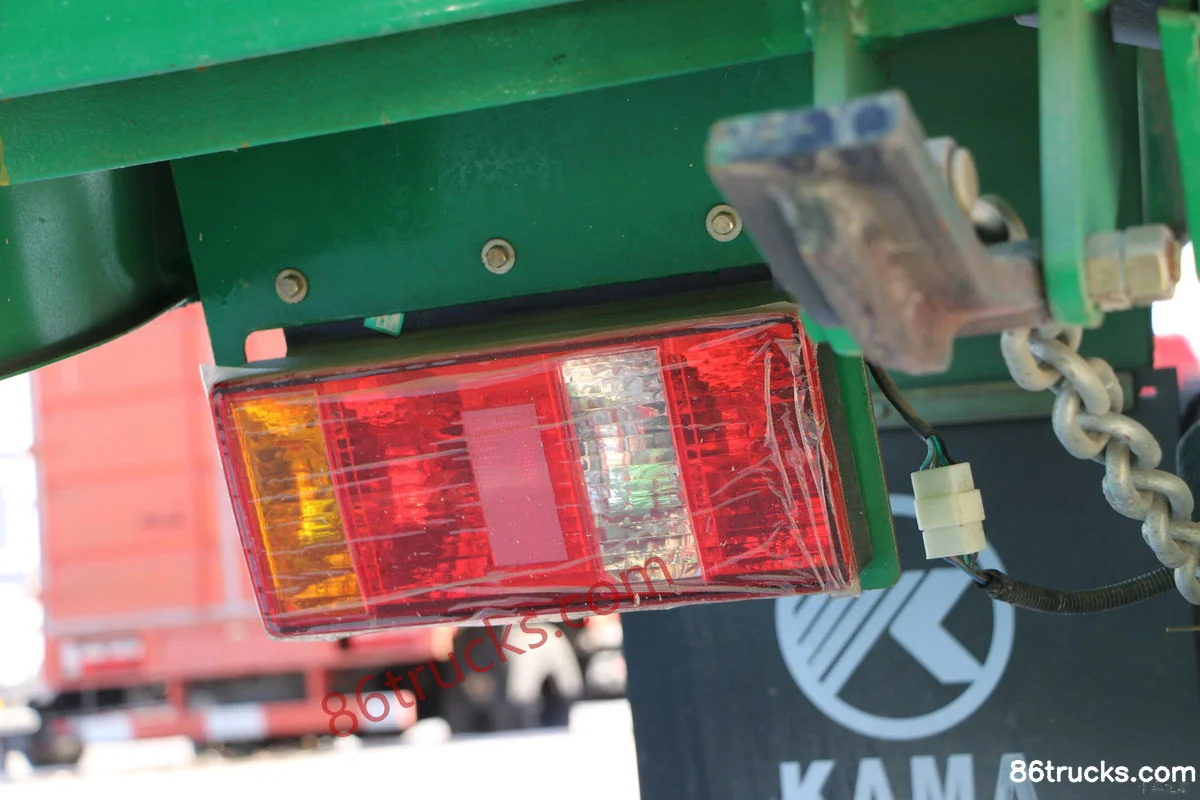

Body3

12 photos

FAQ

What is the export price of Kama GK8 Fuyunlai High-end version 116 hp 4X2(6 wheels) 3.45m dump truck, and what does it include?

Kama GK8 Fuyunlai High-end version 116 hp 4X2(6 wheels) 3.45m dump truck export reference is about From $15,694; MSRP is ¥11.3M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Kama GK8 Fuyunlai High-end version 116 hp 4X2(6 wheels) 3.45m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama GK8 Fuyunlai High-end version 116 hp 4X2(6 wheels) 3.45m dump truck?

Key specs of Kama GK8 Fuyunlai High-end version 116 hp 4X2(6 wheels) 3.45m dump truck: Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel; Transmission: Rear auxiliary. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama GK8 Fuyunlai High-end version 116 hp 4X2(6 wheels) 3.45m dump truck suited for?

Kama GK8 Fuyunlai High-end version 116 hp 4X2(6 wheels) 3.45m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Kama GK8 Fuyunlai High-end version 116 hp 4X2(6 wheels) 3.45m dump truck differ from other variants in the same series?

Kama GK8 Fuyunlai High-end version 116 hp 4X2(6 wheels) 3.45m dump truck belongs to Kama GK8 Dump Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama GK8 Fuyunlai High-end version 116 hp 4X2(6 wheels) 3.45m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama GK8 Fuyunlai High-end version 116 hp 4X2(6 wheels) 3.45m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
