Chaochai NGD3.0-CS5B 150hp 3L China V Diesel Engine

Export reference
MSRP N/A
Intake type:: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load:: ≤202g/kW.h
Compression ratio:: 17:1
Suitable Range: High-end midibus, high-end light truck, SUV, pickup, off-road vehicle
Engine Model: NGD3.0-CS5B
Engine Series: NGD3.0 Series

Overview

The Chaochai NGD3.0-CS5B 150hp 3L China V Diesel Engine is a parts product with fit for High-end midibus, high-end light truck, SUV, pickup, off-road vehicle and spec NGD3.0-CS5B.

China V 150 Diesel

Model Specs

Legend: ● Standard ○ Optional - N/A

Engine parameters
Engine Series: NGD3.0 Series
Engine manufacturer: Dongfeng Chaoyang Chaochai Power Co., Ltd.
Suitable Range: High-end midibus, high-end light truck, SUV, pickup, off-road vehicle
Intake type: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load: ≤202g/kW.h
Compression ratio: 17:1
Bore × Stroke: 96×102.5mm
Valves per cylinder: 4pcs
Engine Brand: Chaochai
Engine Model: NGD3.0-CS5B
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.968L
Emission standard: China V
Max output power: 110kW
Max hp: 150Horsepower
Max torque: 360N·m
Max torque speed: 1600-2600rpm
Rated speed: 3200rpm
Engine Type: Vertical water-cooled, four-stroke, turbocharged intercooled, electronic control high-pressure common rail, SCR

Photos

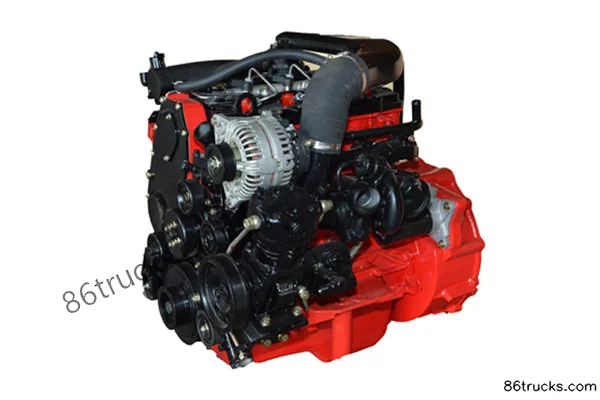

Exterior1

1 photos

FAQ

What emission standard does Chaochai NGD3.0-CS5B 150hp 3L China V Diesel Engine use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Chaochai NGD3.0-CS5B 150hp 3L China V Diesel Engine?

Key specs of Chaochai NGD3.0-CS5B 150hp 3L China V Diesel Engine: Horsepower: 150 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Chaochai NGD3.0-CS5B 150hp 3L China V Diesel Engine suited for?

Match Chaochai NGD3.0-CS5B 150hp 3L China V Diesel Engine to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Chaochai NGD3.0-CS5B 150hp 3L China V Diesel Engine differ from other variants in the same series?

Chaochai NGD3.0-CS5B 150hp 3L China V Diesel Engine belongs to Chaochai NGD3.0 Series (engine). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Chaochai NGD3.0-CS5B 150hp 3L China V Diesel Engine?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Chaochai NGD3.0-CS5B 150hp 3L China V Diesel Engine?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
