Dongfeng Special Chassis 270hp 6X4(10 wheels) Truck-mounted Crane (Chengliwei Brand)

Export reference
From $28,889
MSRP ¥20.8M CNY
Fuel: Diesel
Wheelbase:: 5900+1300mm
Cab dimensions:: 11.95×2.6×3.95m
Type:: truck-mounted crane
GVWR:: 25ton
Front/rear suspension:: 1.45/3.15m
Drive 6X4 (10 wheels)
Horsepower 270
Rated mass: 8.87ton
Emission China V

Overview

The Dongfeng Special Chassis 270hp 6X4(10 wheels) Truck-mounted Crane (Chengliwei Brand) is a truck-mounted crane featuring 25t GVW and 6X4 (10 wheels) drive. On the powertrain side, it comes with a Yuchai engine, 270 hp, China V emissions and Diesel fuel.

China V 270 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.95×2.6×3.95m
Type: truck-mounted crane
Drive type: 6X4
Wheelbase: 5900+1300mm
Rated mass: 8.87ton
GVWR: 25ton
Front/rear suspension: 1.45/3.15m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6A270-50
fuel type: Diesel
Displacement: 7.52L
Emission standard: China V
Max output power: 199kW
Max hp: 270Horsepower
Max torque: 1100N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Body Parameters
Body Brand: Chengliwei
Chassis Specs
Chassis Brand: Dongfeng
Chassis Series: Dongfeng Special Chassis
Chassis Model: EQ1250GZ5DJ1
Leaf spring count: 8/13,9/10,9/13
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear9JS118A
Tire
Tire Size: 10.00R20,11.00R20 16PR
Number of tires: 10pcs

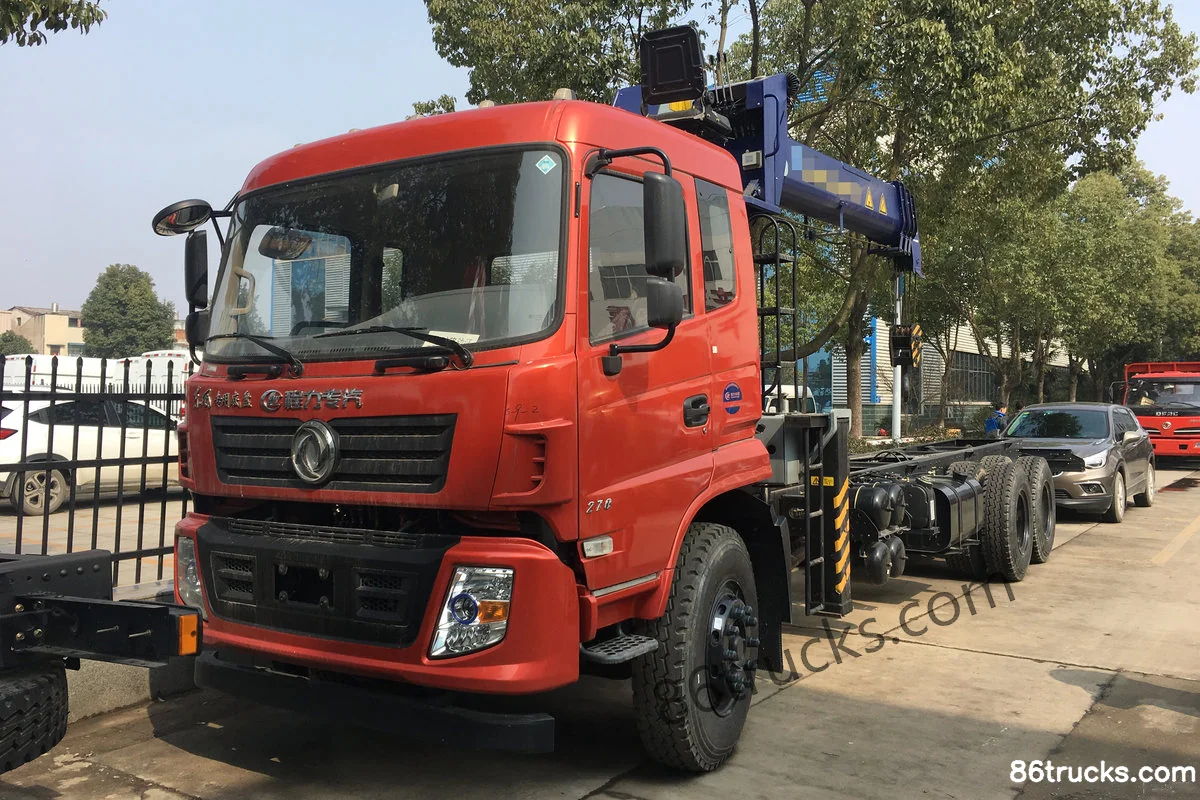

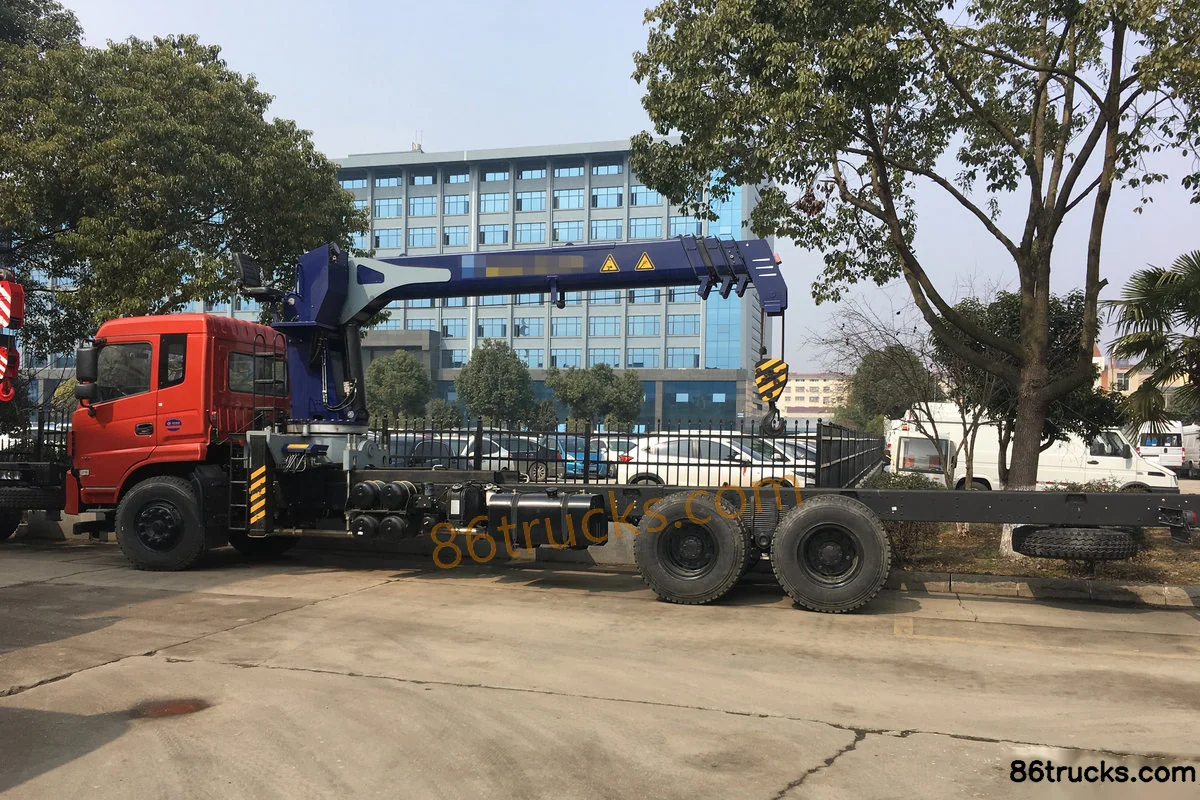

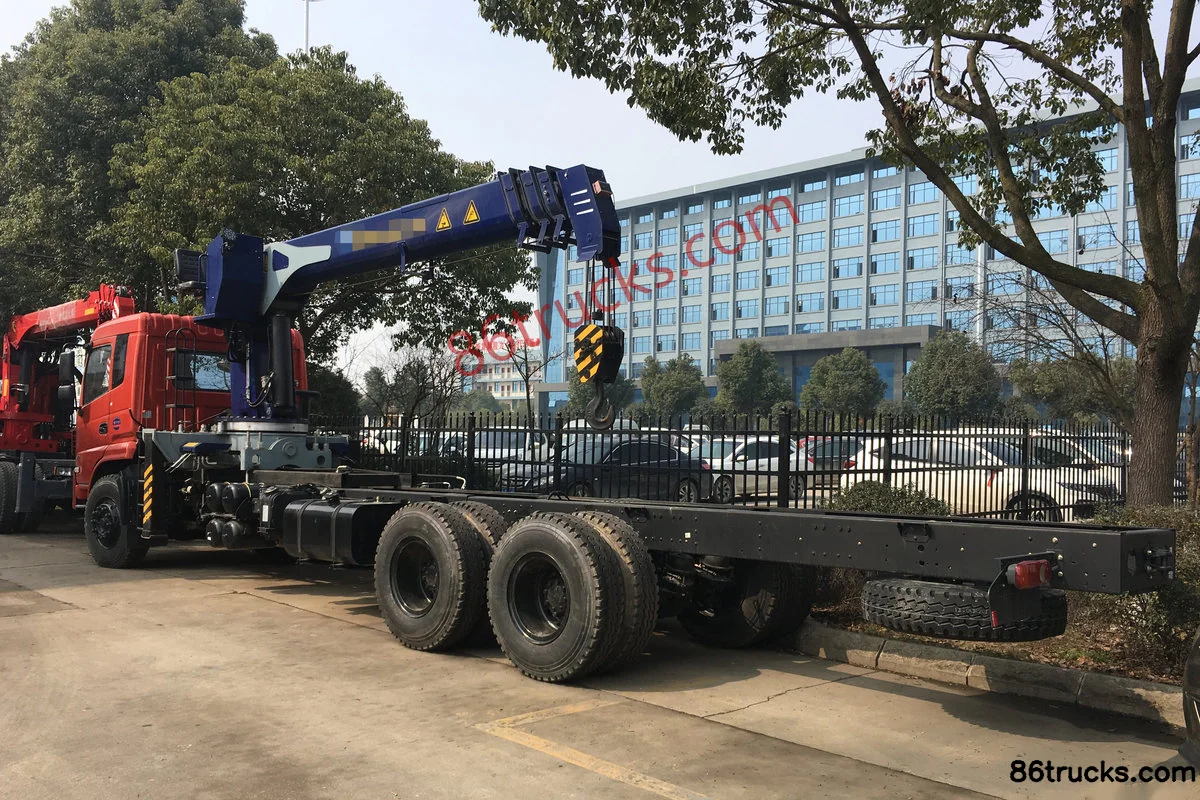

Photos

Exterior3

3 photos

FAQ

What is the export price of Dongfeng Special Chassis 270hp 6X4(10 wheels) Truck-mounted Crane (Chengliwei Brand), and what does it include?

Dongfeng Special Chassis 270hp 6X4(10 wheels) Truck-mounted Crane (Chengliwei Brand) export reference is about From $28,889; MSRP is ¥20.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Special Chassis 270hp 6X4(10 wheels) Truck-mounted Crane (Chengliwei Brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Special Chassis 270hp 6X4(10 wheels) Truck-mounted Crane (Chengliwei Brand)?

Key specs of Dongfeng Special Chassis 270hp 6X4(10 wheels) Truck-mounted Crane (Chengliwei Brand): Drive: 6x4; Horsepower: 270 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Special Chassis 270hp 6X4(10 wheels) Truck-mounted Crane (Chengliwei Brand) suited for?

Dongfeng Special Chassis 270hp 6X4(10 wheels) Truck-mounted Crane (Chengliwei Brand) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dongfeng Special Chassis 270hp 6X4(10 wheels) Truck-mounted Crane (Chengliwei Brand) differ from other variants in the same series?

Dongfeng Special Chassis 270hp 6X4(10 wheels) Truck-mounted Crane (Chengliwei Brand) belongs to Chengliwei Dongfeng Chassis (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Special Chassis 270hp 6X4(10 wheels) Truck-mounted Crane (Chengliwei Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Special Chassis 270hp 6X4(10 wheels) Truck-mounted Crane (Chengliwei Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
