JAC Micro Truck Duomi 2.84T 3.05m Single Row Pure Electric Flatbed Micro Truck 42kWh 4X2(6 wheels)

Export reference
From $21,639
MSRP ¥15.58M CNY
Rated payload:: 1.35ton
Wheelbase:: 2990mm
Cargo box type:: stake body
Model code (announced):: HFC1030EV5
Type:: Cargo Trucks
Box length class:: 3.1m
Drive 4X2 (6 wheels)
CLTC range: 260km
Motor 1 Brand: JAC Motors
Curb Weight: 1.36ton

Overview

The JAC Micro Truck Duomi 2.84T 3.05m Single Row Pure Electric Flatbed Micro Truck 42kWh 4X2(6 wheels) is a mini truck featuring 260km battery/range, JAC Motors motor, 4X2 (6 wheels) drive and 1.35t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1030EV5
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2990mm
Box length class: 3.1m
Cab length: 5.11m
Cab width: 1.6m
Cab height: 2.015m
CLTC range: 260km
Curb Weight: 1.36ton
Rated payload: 1.35ton
GVWR: 2.84ton
Max. speed: 80km/h
Origin: Hefei, Anhui
tonnage class: mini truck
Energy Type: Electric
electric motor
Motor 1 Brand: JAC Motors
Motor 1 Model: TZ180XS-SJ002
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 32kW
Peak power: 60kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 42kWh
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.05m
Cargo box width: 1.5m
Cargo box height: 0.36m
Cab parameters
Cab: Single Row
Cab width: 1580mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1290kg
rear axle description: 2.1T
rear axle allowable load: 1550kg
Tire
Tire Size: 175R14LT 8PR
Number of tires: 4pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
lighting configuration
Front fog lamp:

Photos

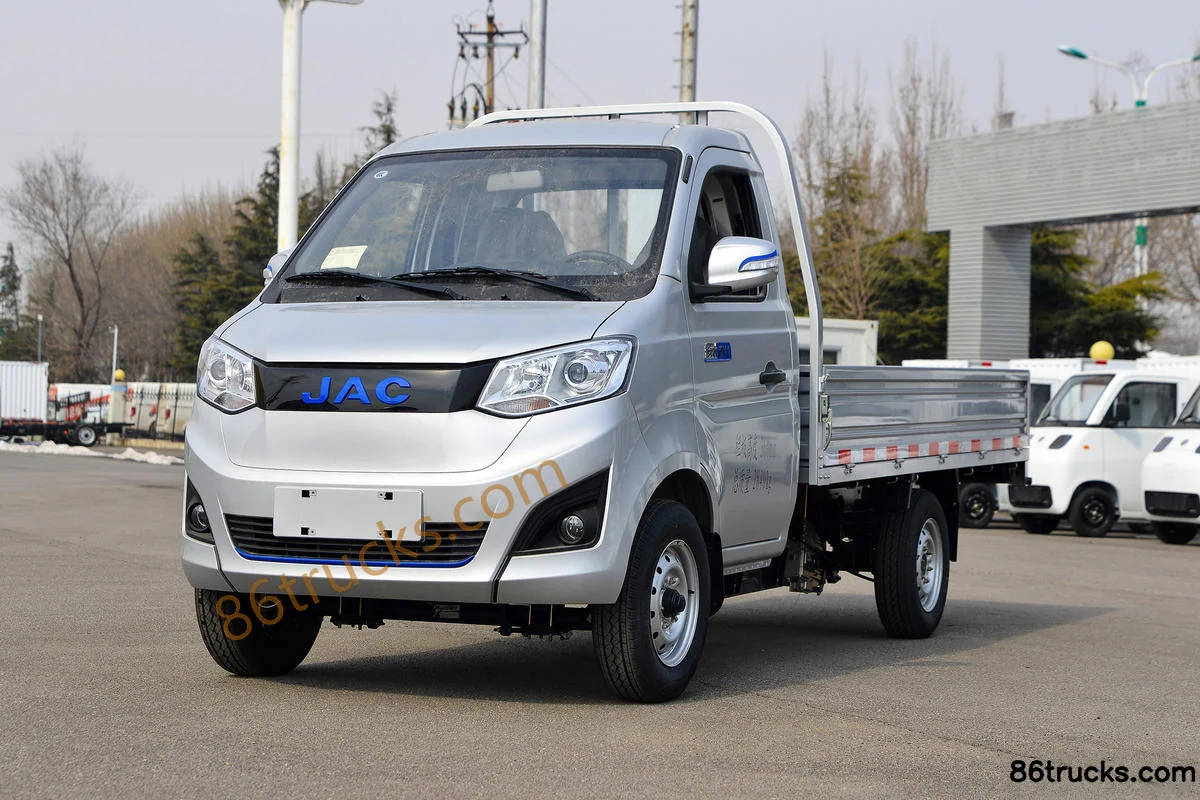

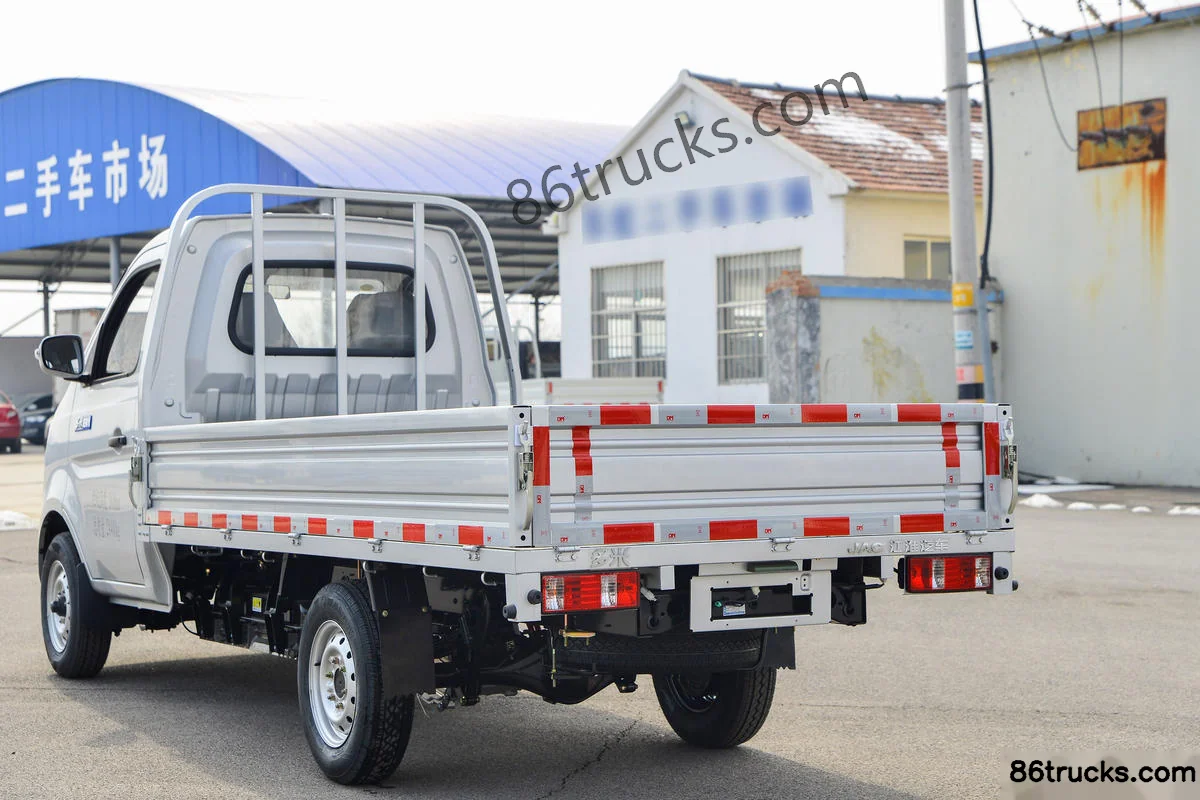

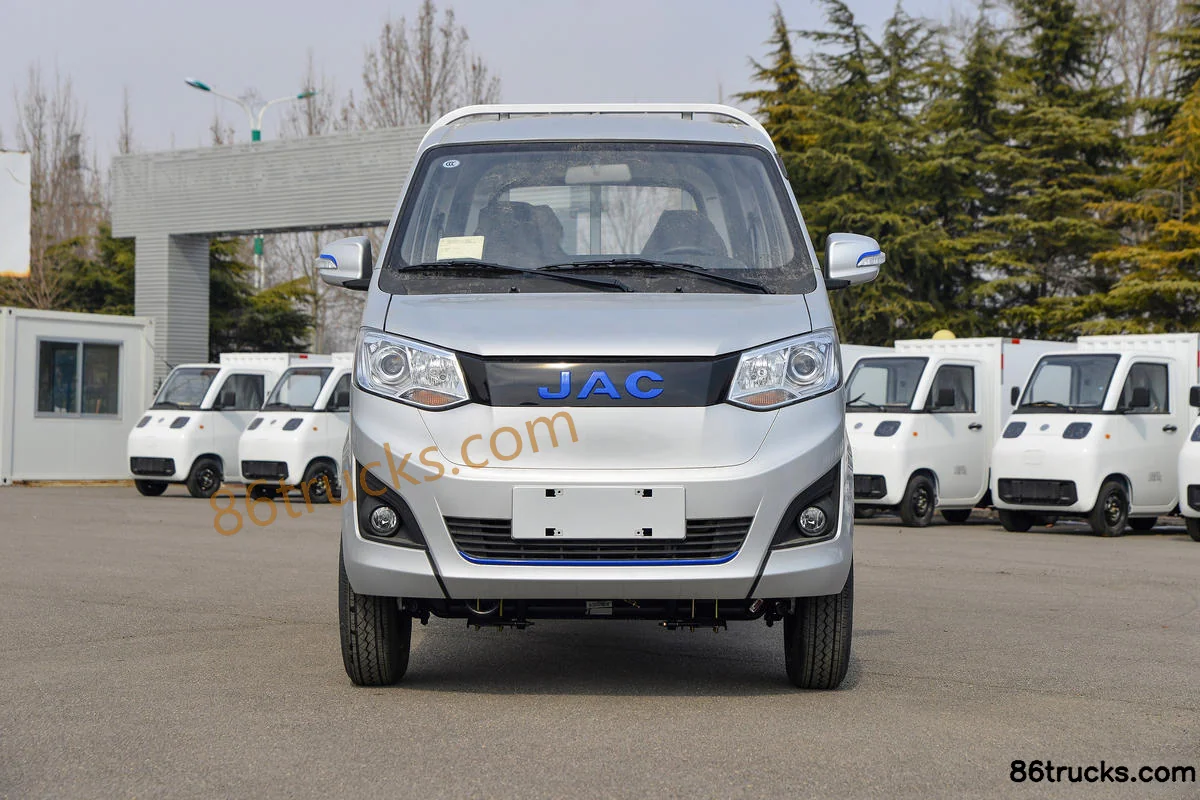

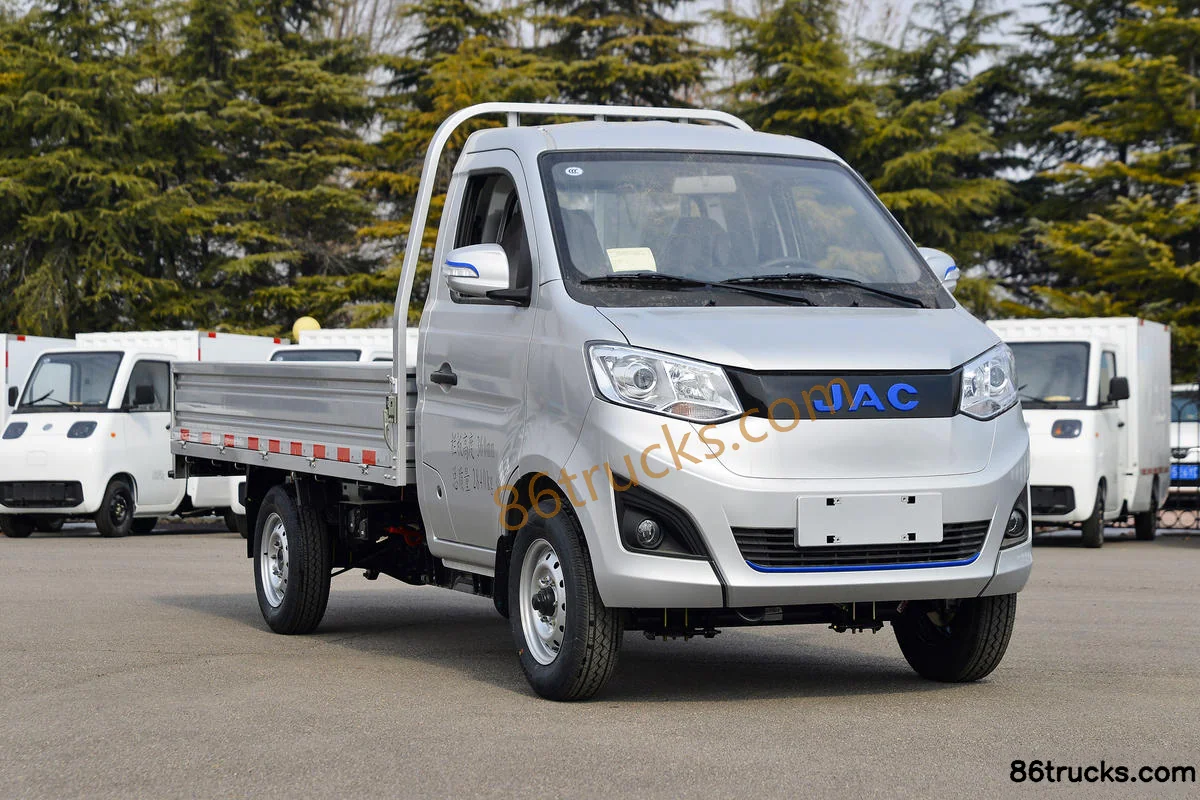

Exterior3

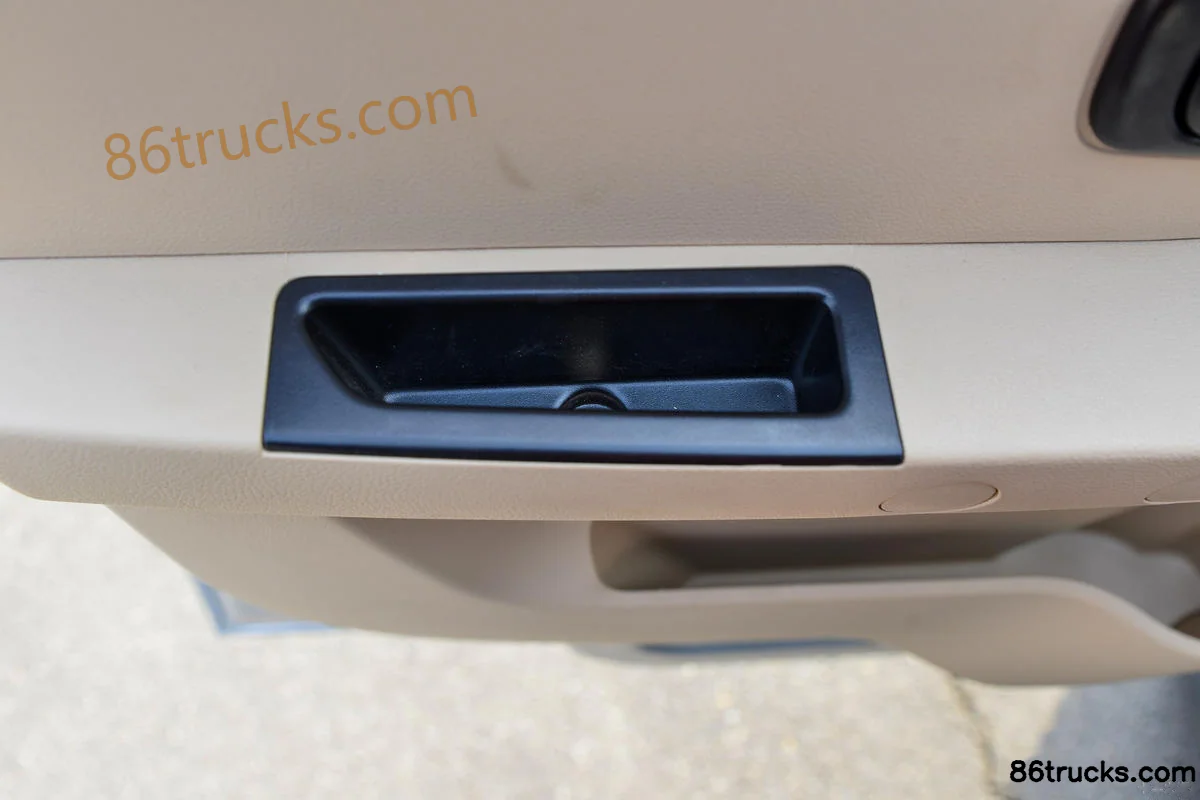

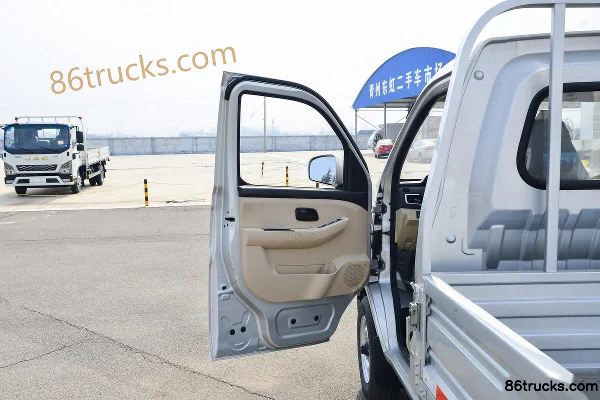

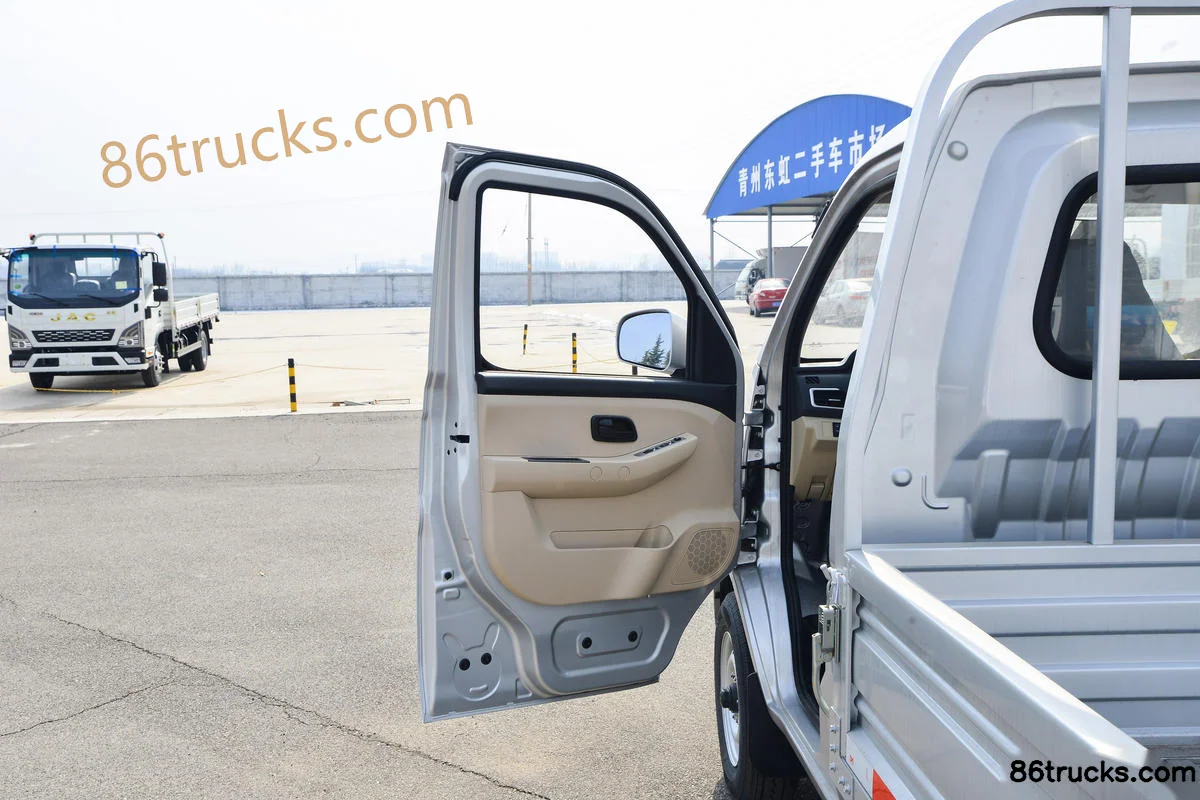

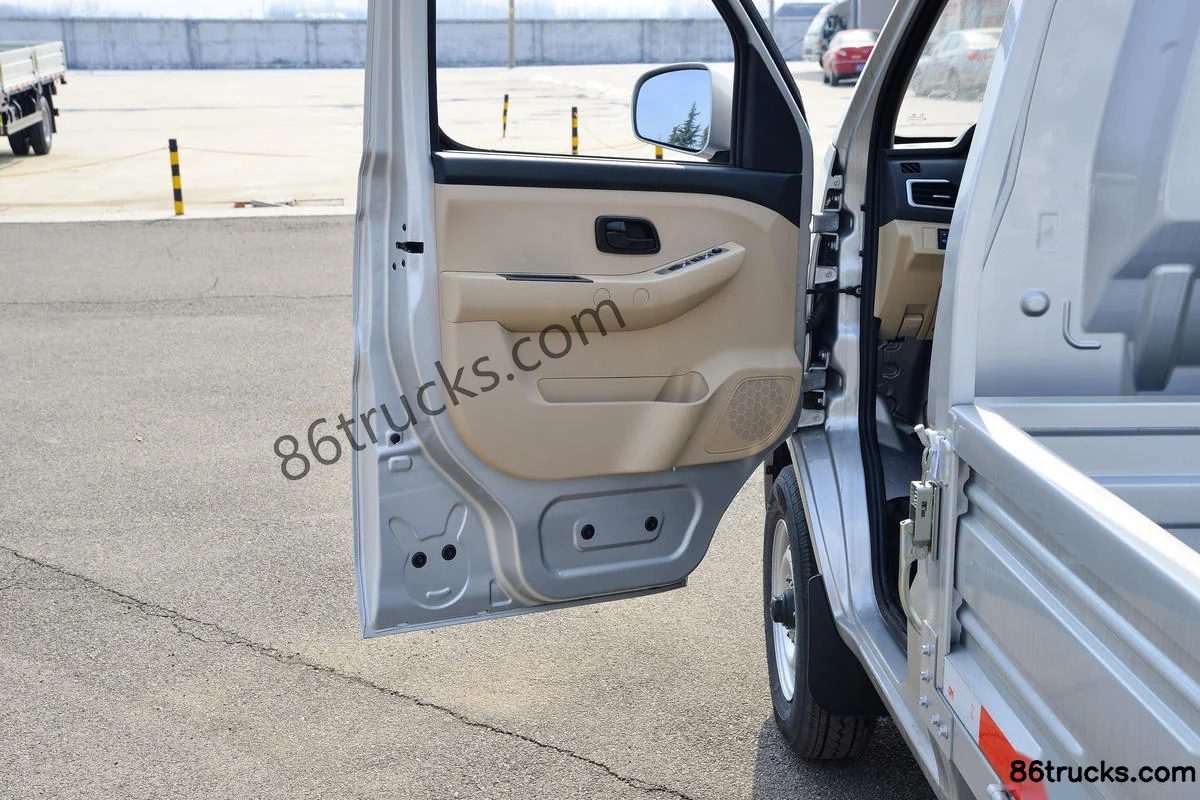

Interior3

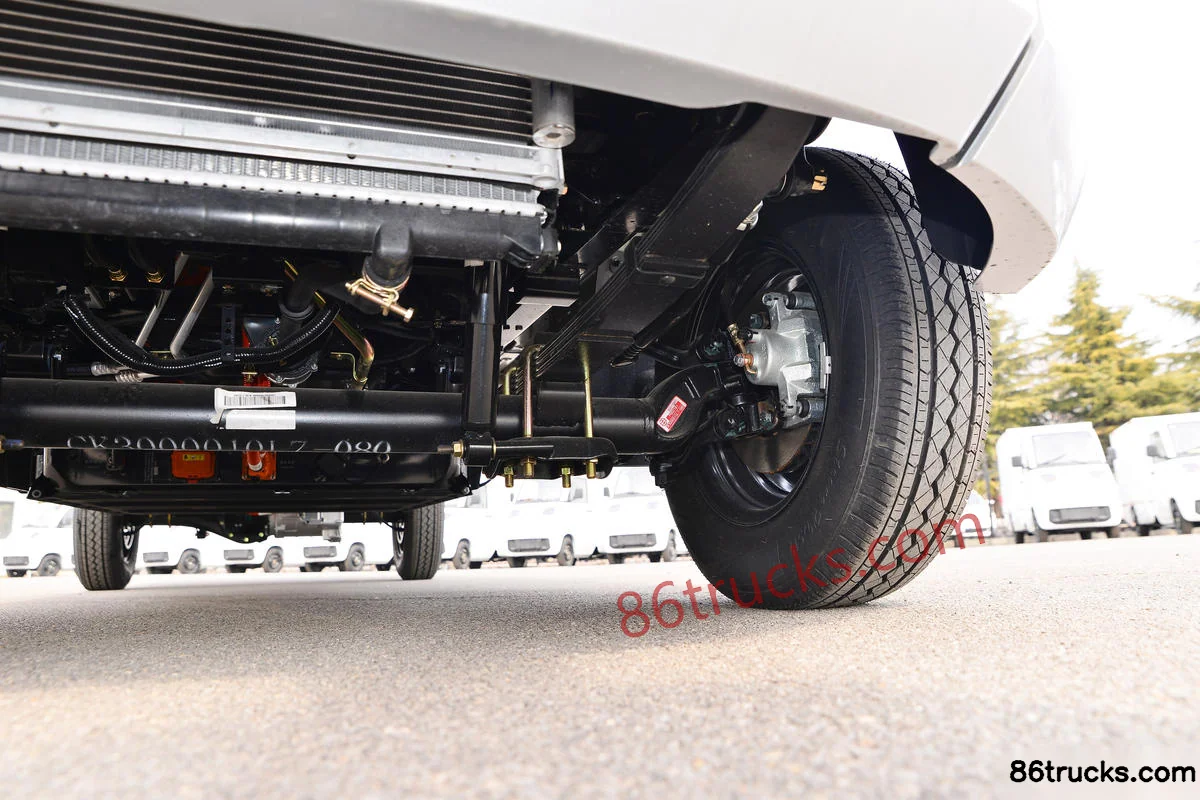

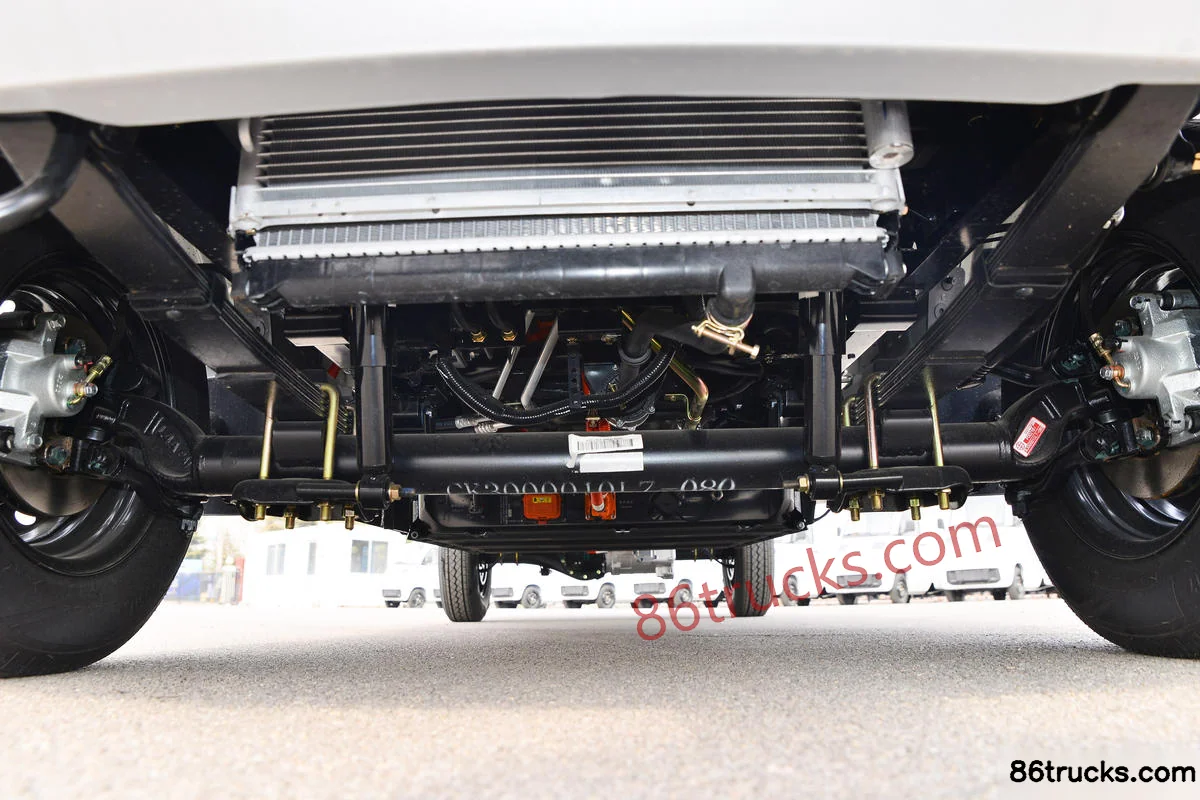

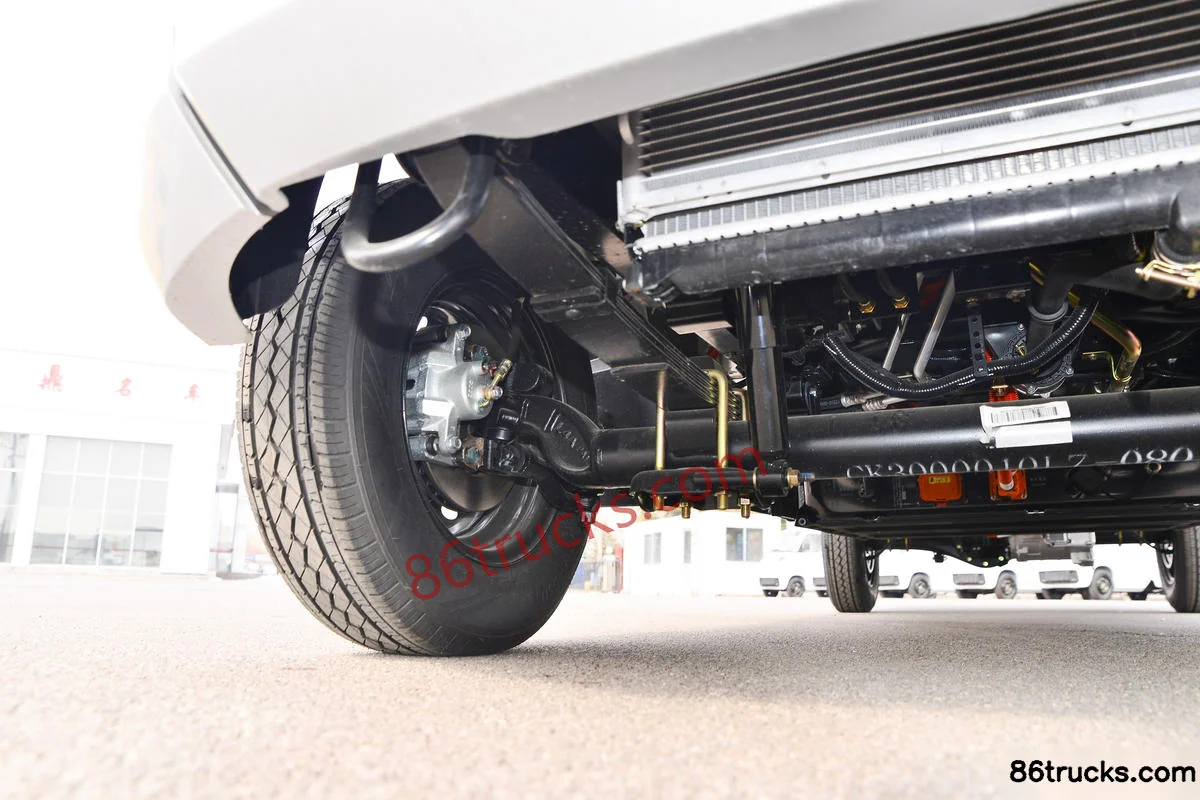

Chassis3

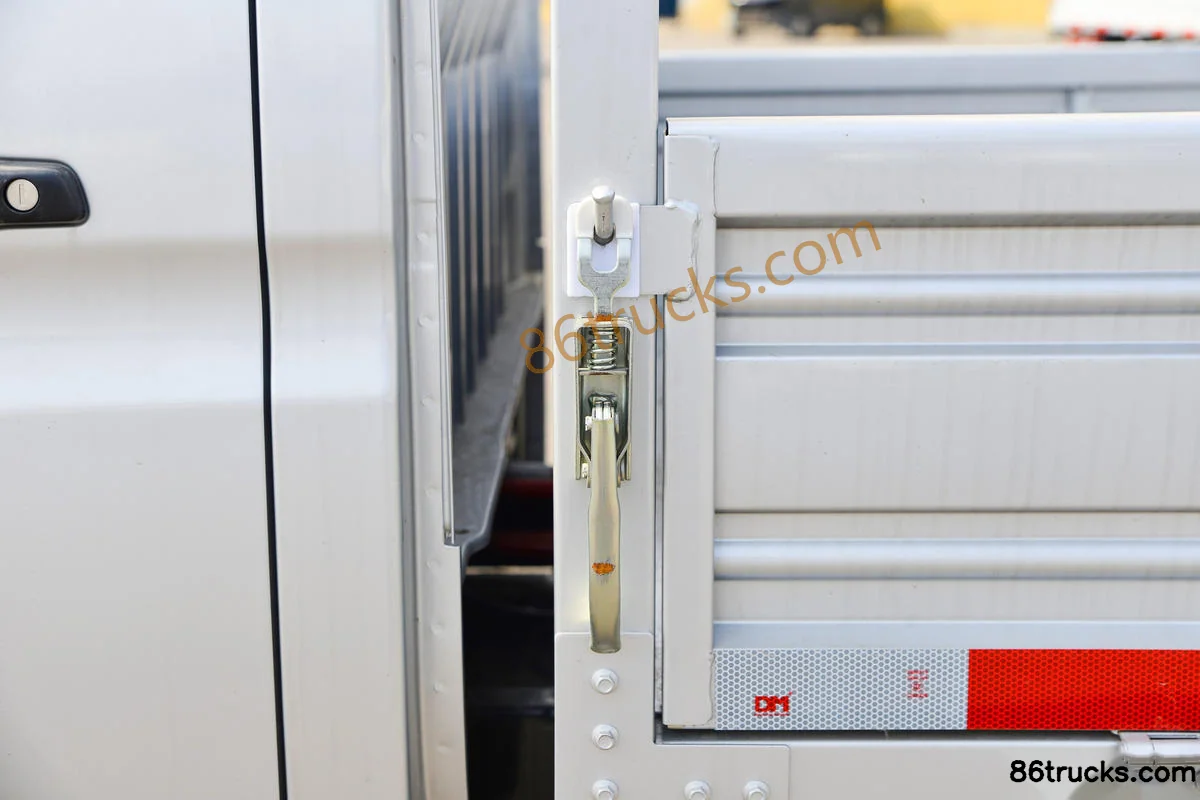

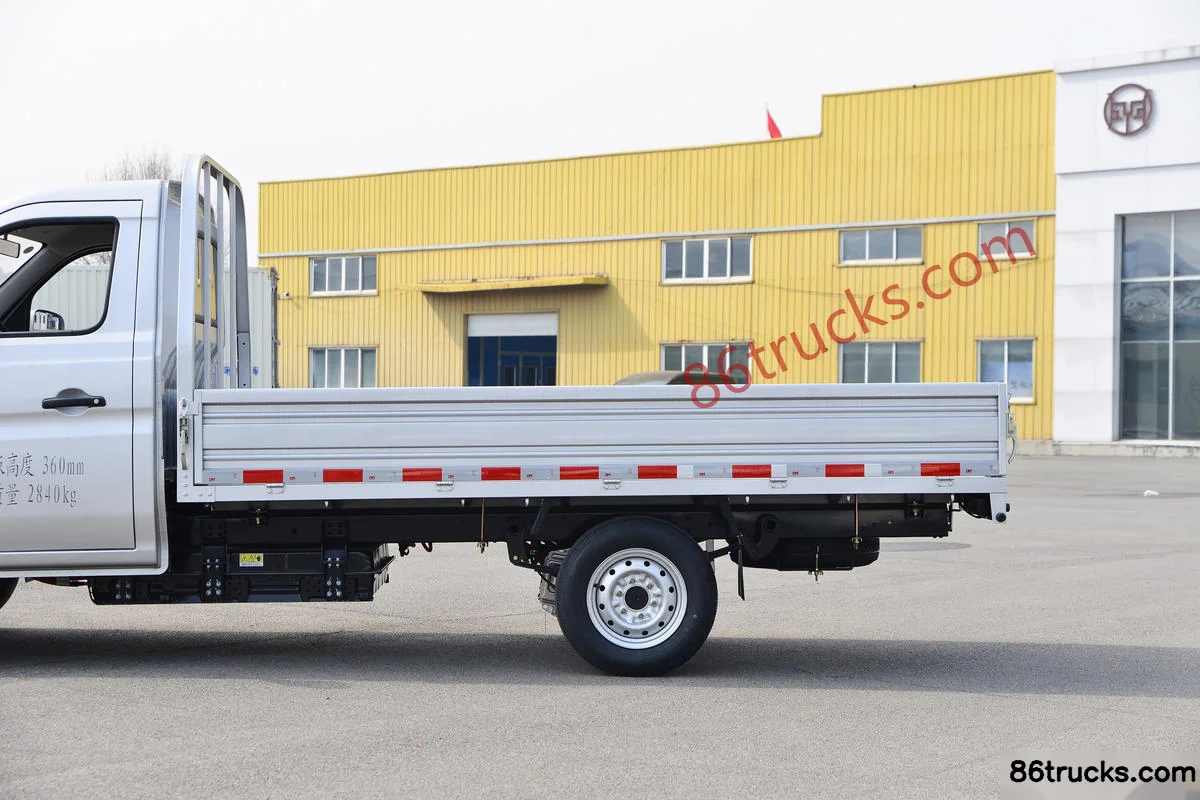

Body3

12 photos

FAQ

What is the export price of JAC Micro Truck Duomi 2.84T 3.05m Single Row Pure Electric Flatbed Micro Truck 42kWh 4X2(6 wheels), and what does it include?

JAC Micro Truck Duomi 2.84T 3.05m Single Row Pure Electric Flatbed Micro Truck 42kWh 4X2(6 wheels) export reference is about From $21,639; MSRP is ¥15.58M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of JAC Micro Truck Duomi 2.84T 3.05m Single Row Pure Electric Flatbed Micro Truck 42kWh 4X2(6 wheels)?

Key specs of JAC Micro Truck Duomi 2.84T 3.05m Single Row Pure Electric Flatbed Micro Truck 42kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Micro Truck Duomi 2.84T 3.05m Single Row Pure Electric Flatbed Micro Truck 42kWh 4X2(6 wheels) suited for?

JAC Micro Truck Duomi 2.84T 3.05m Single Row Pure Electric Flatbed Micro Truck 42kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JAC Micro Truck Duomi 2.84T 3.05m Single Row Pure Electric Flatbed Micro Truck 42kWh 4X2(6 wheels) differ from other variants in the same series?

JAC Micro Truck Duomi 2.84T 3.05m Single Row Pure Electric Flatbed Micro Truck 42kWh 4X2(6 wheels) belongs to JAC Duomi micro truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Micro Truck Duomi 2.84T 3.05m Single Row Pure Electric Flatbed Micro Truck 42kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Micro Truck Duomi 2.84T 3.05m Single Row Pure Electric Flatbed Micro Truck 42kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
