JAC micro truck Duomi EV1 2.8T 3.05m single-row pure electric flatbed micro truck 41.86kWh 4X2(6 wheels)
EXW
From $21,639
Export quote
JAC Duomi micro truck electric cargo truck
Main model photos
73 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC micro truck Duomi EV1 2.8T 3.05m single-row pure electric flatbed micro truck 41.86kWh 4X2(6 wheels) | 4x2 | From $21,639 | |
| JAC Micro Truck Duomi 2.84T 3.05m Single Row Pure Electric Flatbed Micro Truck 42kWh 4X2(6 wheels) | 4x2 | From $21,639 | |
| JAC Micro Truck Duomi 2.84T 3.035m Single Row Pure Electric Box Micro Truck 42kWh 4X2(6 wheels) | 4x2 | From $23,028 | |
| JAC Micro Truck Duomi 2.84T 3.05m Single Row Pure Electric Caged Micro Truck 42kWh 4X2(6 wheels) | 4x2 | From $22,250 |

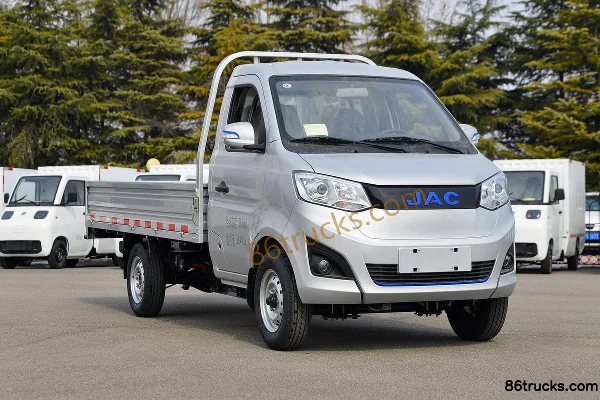

JAC Micro Truck Duomi 2.84T 3.05m Single Row Pure Electric Flatbed Micro Truck 42kWh 4X2(6 wheels)
EXW
From $21,639
Export quote

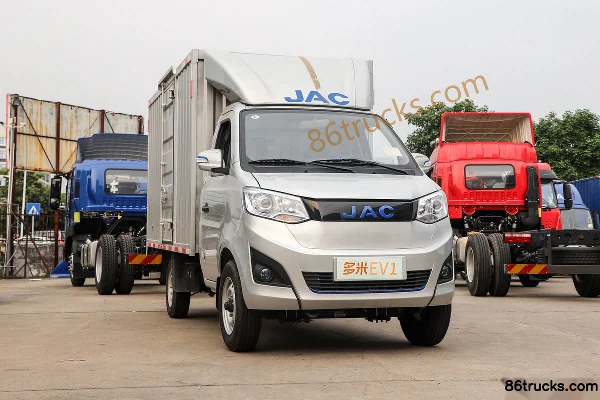

JAC Micro Truck Duomi 2.84T 3.035m Single Row Pure Electric Box Micro Truck 42kWh 4X2(6 wheels)
EXW
From $23,028
Export quote
JAC Micro Truck Duomi 2.84T 3.05m Single Row Pure Electric Caged Micro Truck 42kWh 4X2(6 wheels)
EXW
From $22,250
Export quote
Series Specs
Basic Info
Model code (announced): HFC1030EV5 / HFC5030XXYEV5 / HFC5030CCYEV5
Type: Cargo Trucks / enclosed cargo truck / stake truck
Drive type: 4X2
Wheelbase: 2990mm
Box length class: 3.1 / 3m
Cab length: 5.11m
Cab width: 1.6 / 1580m
Cab height: 2.015 / 2.51 / 2.44m
CLTC range: 260km
Curb Weight: 1.36 / 1.51 / 1.56ton
Rated payload: 1.35 / 1.2 / 1.15ton
GVWR: 2.84ton
Max. speed: 80km/h
Origin: Hefei, Anhui
tonnage class: mini truck
electric motor
Motor 1 Brand: Anhui JAC Automobile / JAC Motors
Motor 1 Model: TZ180XS-SJ002
Motor Type: Permanent magnet synchronous motor
Energy Type: Electric
total rated power: 30 / 32kW
Peak power: 60kW
total peak torque: 220N·m
total rated torque: 90N·m
Battery/Charging
Battery Brand: CATL
Charging method: AC slow charge, DC fast charge
Battery type: Lithium Iron Phosphate Battery
fast charge time: 1.2h
Battery capacity: 41.86 / 42kWh
Battery total voltage: 334V
Cargo box parameters
Cargo box volume: 7.76m³
Cargo box type: stake body / Van body / Stake type
Cargo box length: 3.05 / 3.035m
Cargo box width: 1.5 / 1.55m
Cargo box height: 0.36 / 1.65m
Cab parameters
Cab: Single Row
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1290kg
rear axle description: 2.1T
rear axle allowable load: 1550kg
FAQ
What kind of truck is JAC JAC Duomi micro truck electric cargo truck?
JAC JAC Duomi micro truck is an export-oriented electric cargo truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JAC Duomi micro truck electric cargo truck?
JAC Duomi micro truck electric cargo truck export reference is about $21,639 – $23,028. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JAC Duomi micro truck electric cargo truck cover?
JAC Duomi micro truck electric cargo truck mainly covers: Drive: 4x2. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC Duomi micro truck electric cargo truck?
For JAC Duomi micro truck electric cargo truck: confirm local charging and registration first, then filter by range/power and payload, and quote with your operating route.
What is electric cargo truck typically used for?
electric cargo truck focuses on lower-emission work where charging is available. Confirm local charging and registration before purchase.
How many models does JAC Duomi micro truck electric cargo truck include?
JAC Duomi micro truck electric cargo truck currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC Duomi micro truck electric cargo truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
