Jiangling Jingma E-Lu Fu 3.2T 2-Seat 4.865m Electric Panel Van 39.6kWh

Export reference
From $19,278
MSRP ¥13.88M CNY
Wheelbase:: 3050mm
Cargo Box Height:: 1.35
Model code (announced):: JMV5030XXYBEV
Cab length:: 4.865m
GVWR:: 3.15ton
Max. speed:: 90km/h
Jiangling Jingma E-Lu Fu 3.2T 2-Seat 4.865m Electric Panel Van 39.6kWh exterior
View more photos (12)
CLTC range: 230km
Motor 1 Brand: Inovance
Curb Weight: 1.54ton
Rated payload: 1.48ton

Overview

The Jiangling Jingma E-Lu Fu 3.2T 2-Seat 4.865m Electric Panel Van 39.6kWh is a Electric Panel Van featuring 230km battery/range, Inovance motor, 1.48t payload and 1.35 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): JMV5030XXYBEV
Wheelbase: 3050mm
Cab length: 4.865m
Cab width: 1.715m
Cab height: 2.065m
CLTC range: 230km
Curb Weight: 1.54ton
Rated payload: 1.48ton
GVWR: 3.15ton
Max. speed: 90km/h
Front/rear suspension: 0.75/1.065m
Energy Type: Electric
electric motor
Motor 1 Brand: Inovance
Motor 1 Model: TZ180XS128
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 35kW
Peak power: 70kW
Battery/Charging
Battery Brand: Guoxuan High-Tech
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 39.6kWh
Chassis Specs
steering assist type: Electric power steering
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Seat count: 2Seats
Door Parameters
Number of Doors: 5
Body parameters
Max body depth: 2.67
Max body width: 1.55
Cargo Box Height: 1.35
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 195R14C
Rear Wheel Specification: 195R14C
Cab parameters
Seat rows:
Safety features
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
Power-Adjustable Rearview Mirror:
Steering Wheel Material: Plastic
AC control type: Manual
Power Windows:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
lighting configuration
daytime running lights:
Headlight height adjustment:

Photos

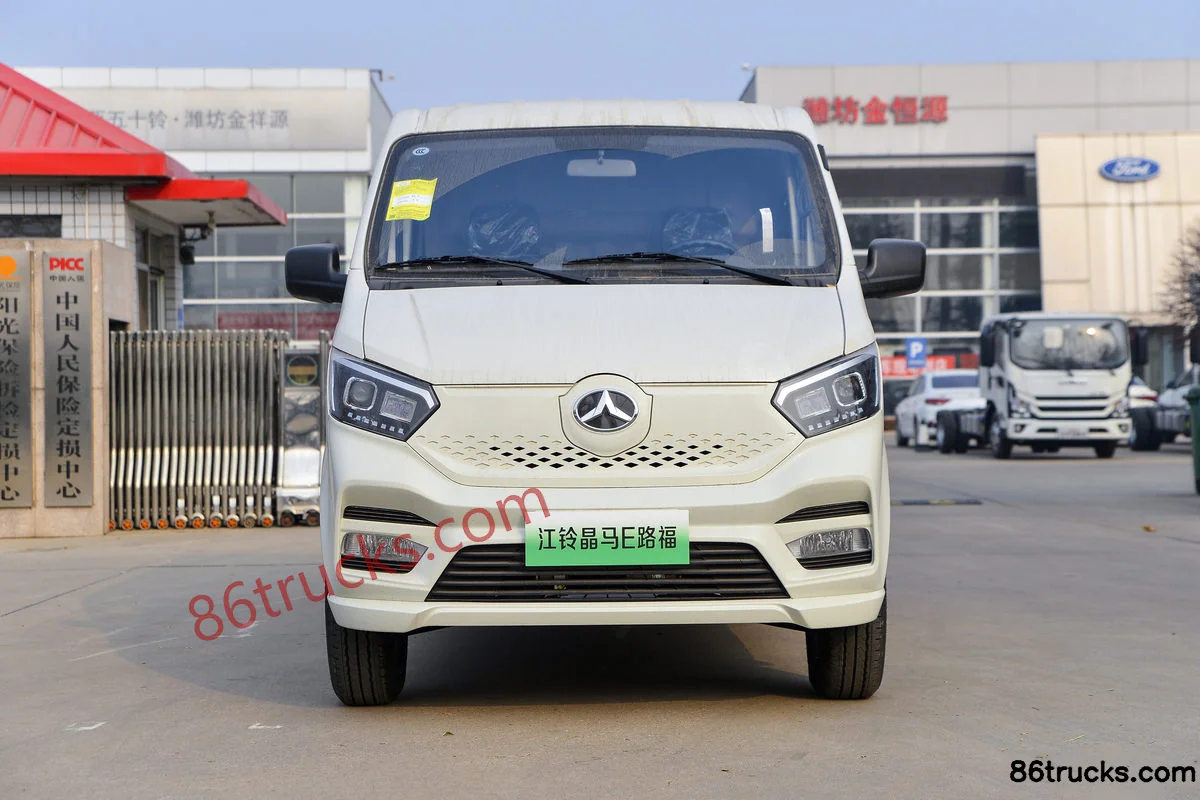

Exterior3

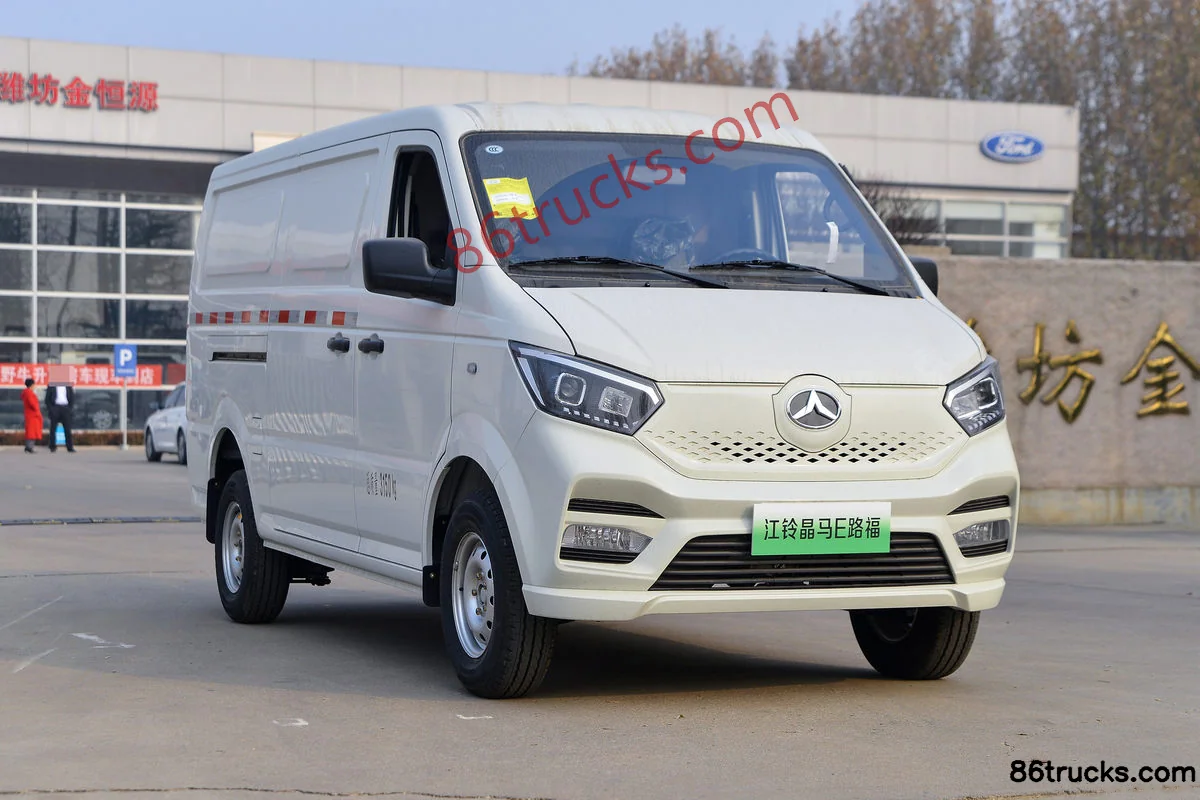

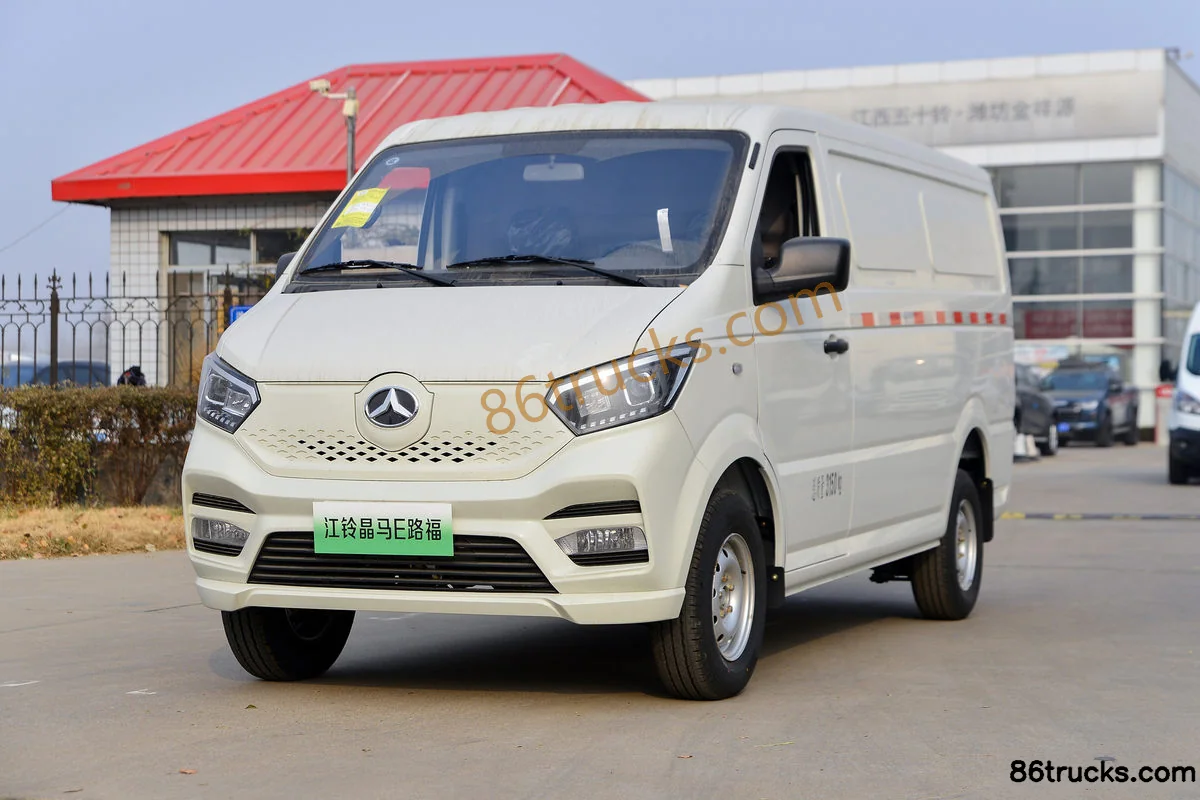

Jiangling Jingma E-Lu Fu 3.2T 2-Seat 4.865m Electric Panel Van 39.6kWh Exterior (1) | 86Trucks Jiangling Jingma E-Lu Fu 3.2T 2-Seat 4.865m Electric Panel Van 39.6kWh Exterior (2) | 86Trucks Jiangling Jingma E-Lu Fu 3.2T 2-Seat 4.865m Electric Panel Van 39.6kWh Exterior (3) | 86Trucks

Cab3

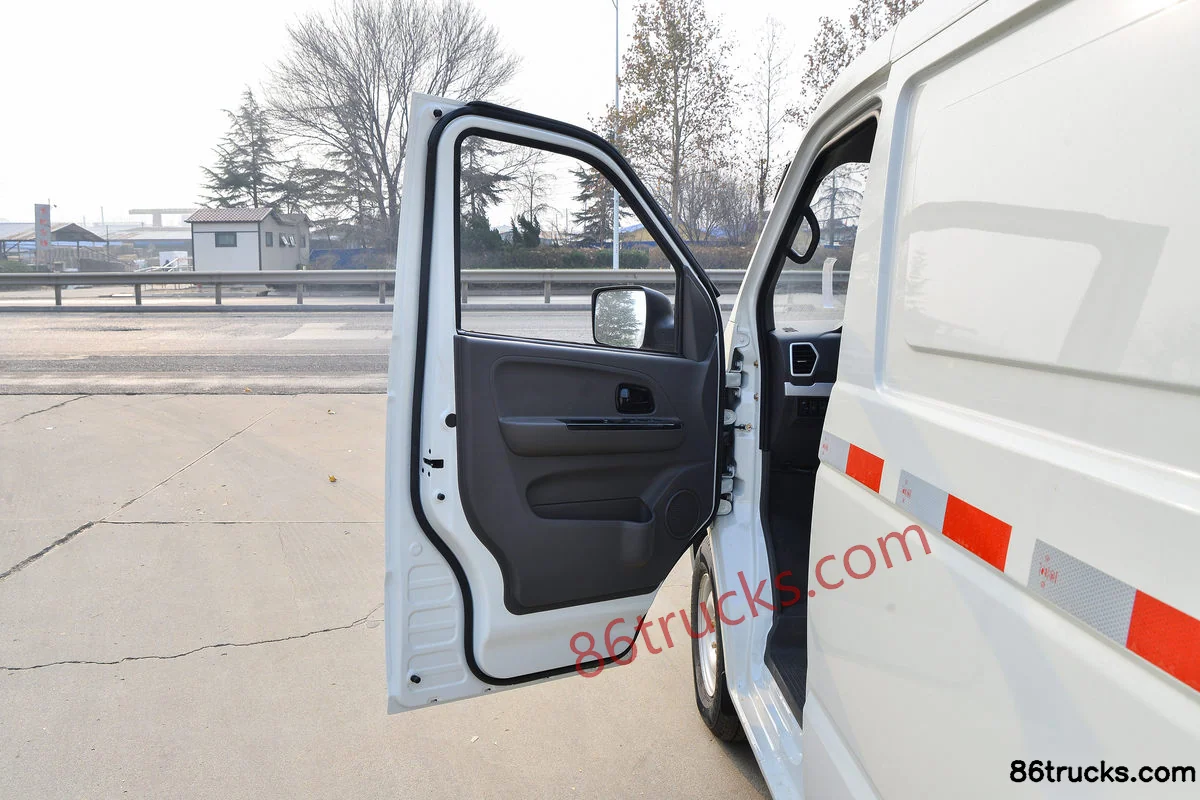

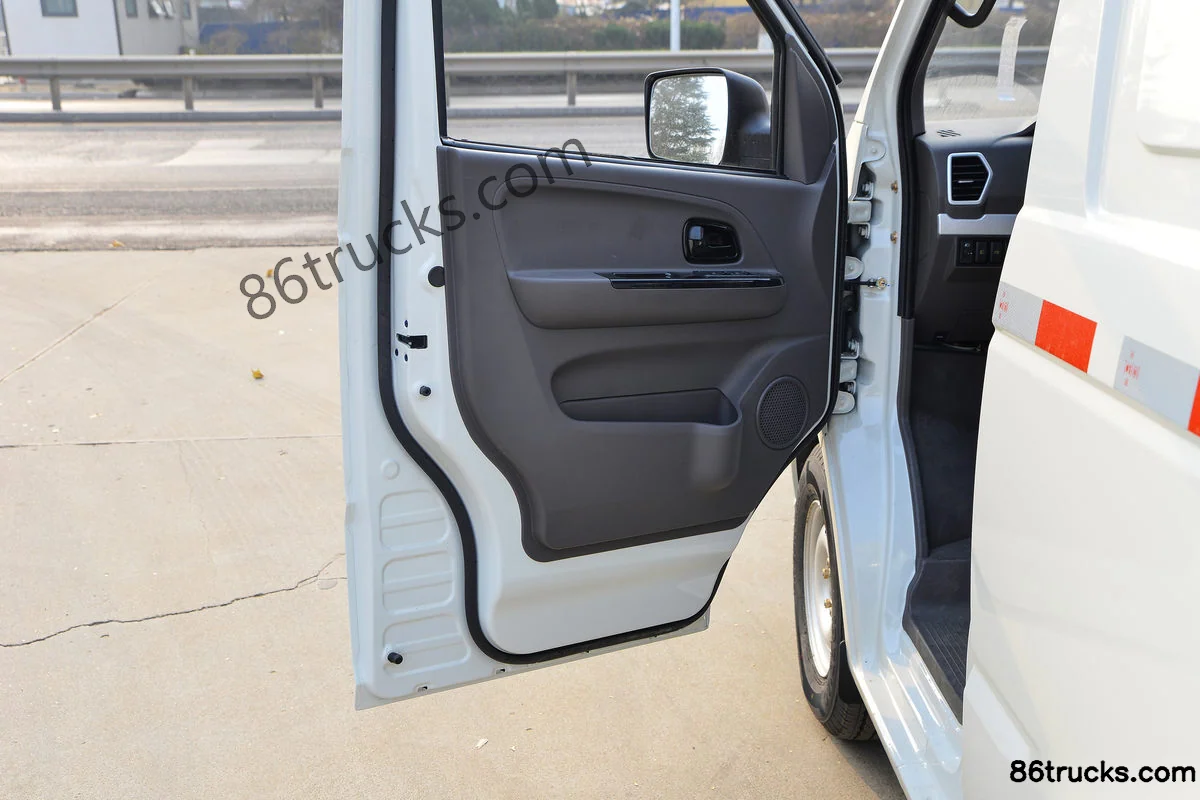

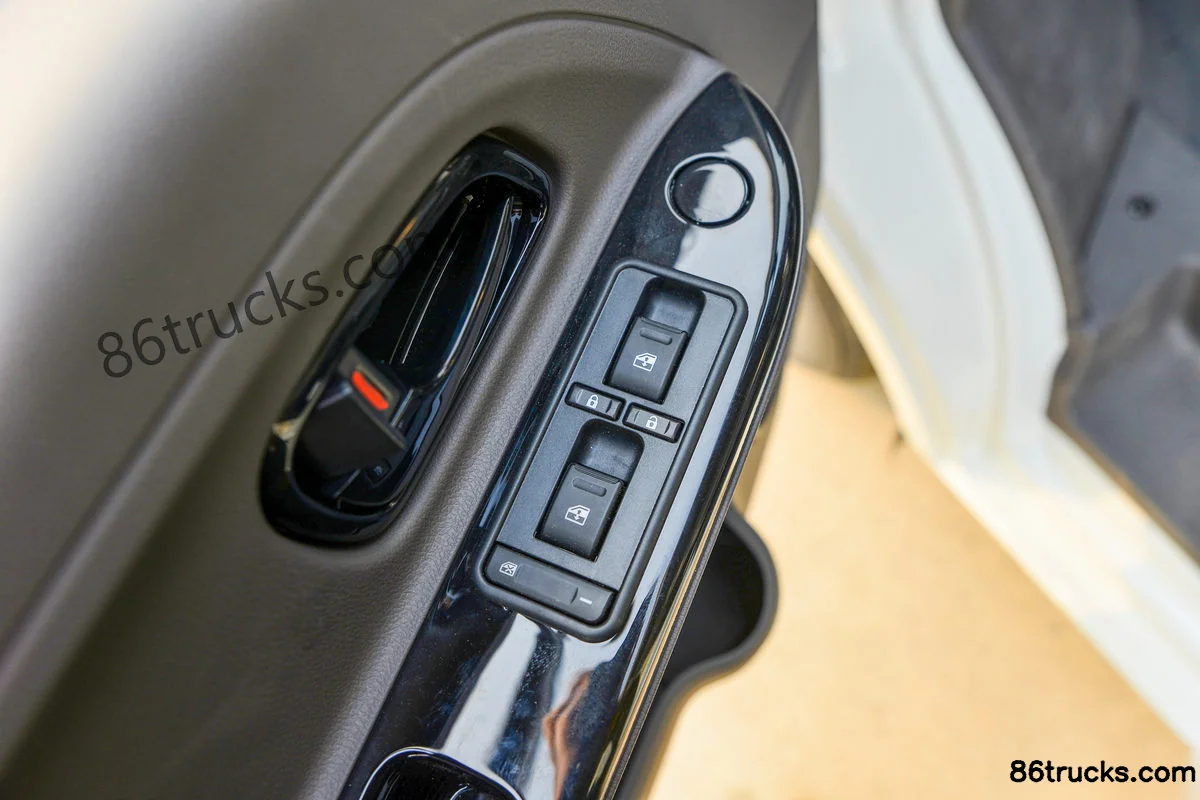

Jiangling Jingma E-Lu Fu 3.2T 2-Seat 4.865m Electric Panel Van 39.6kWh Cab (1) | 86Trucks Jiangling Jingma E-Lu Fu 3.2T 2-Seat 4.865m Electric Panel Van 39.6kWh Cab (2) | 86Trucks Jiangling Jingma E-Lu Fu 3.2T 2-Seat 4.865m Electric Panel Van 39.6kWh Cab (3) | 86Trucks

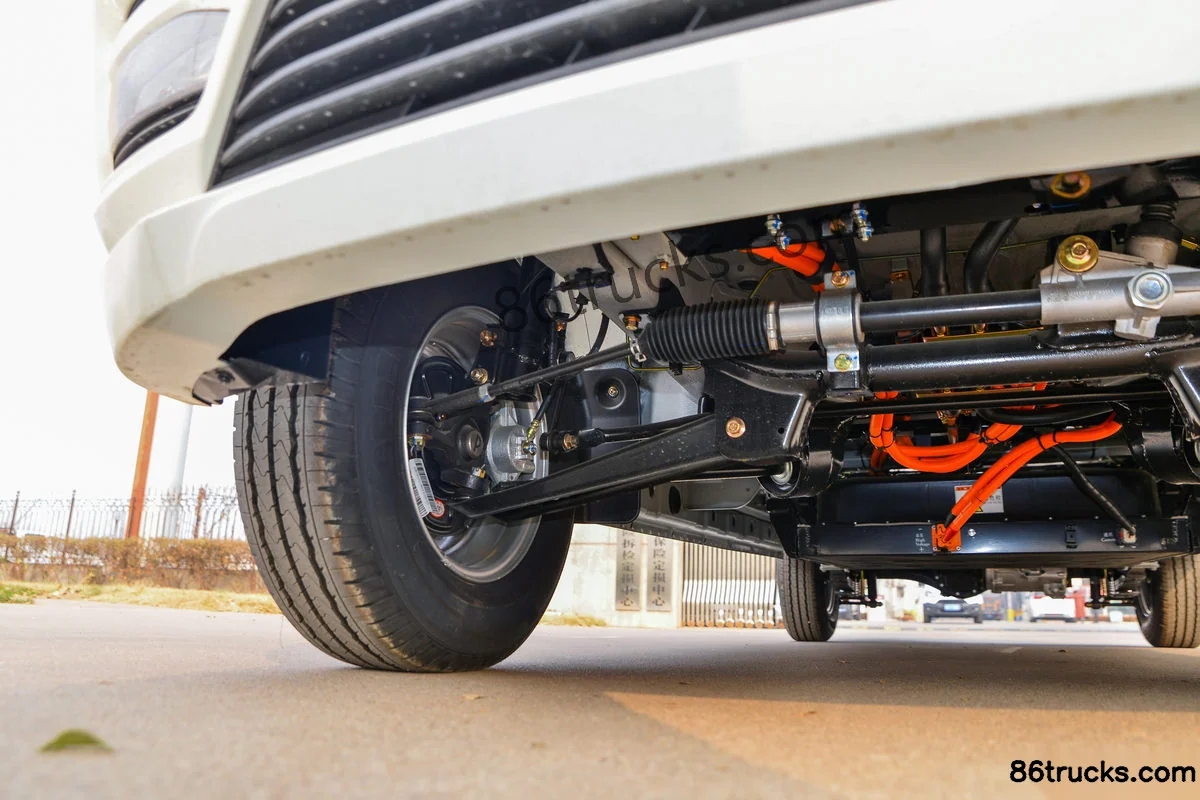

Chassis3

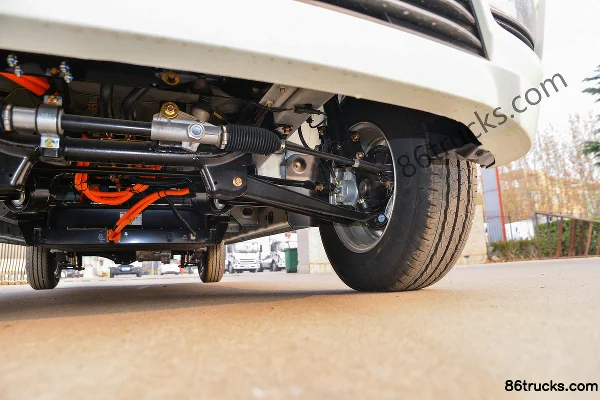

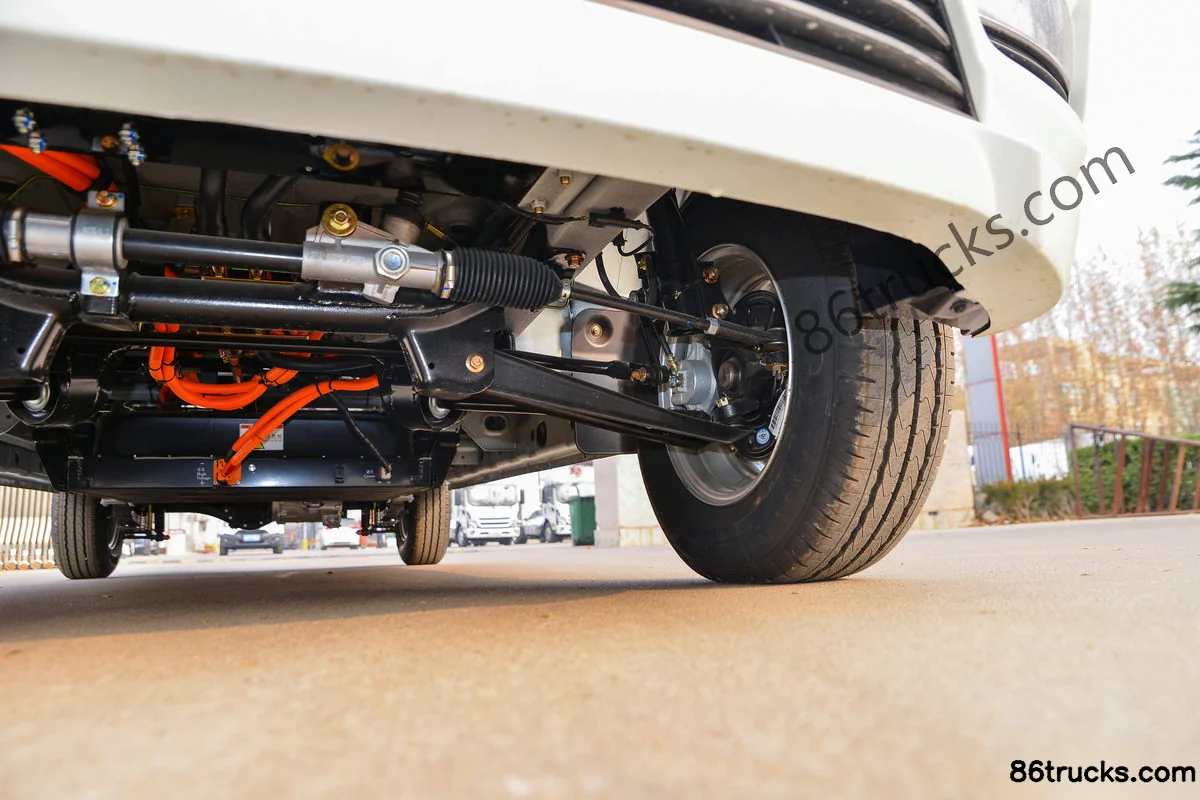

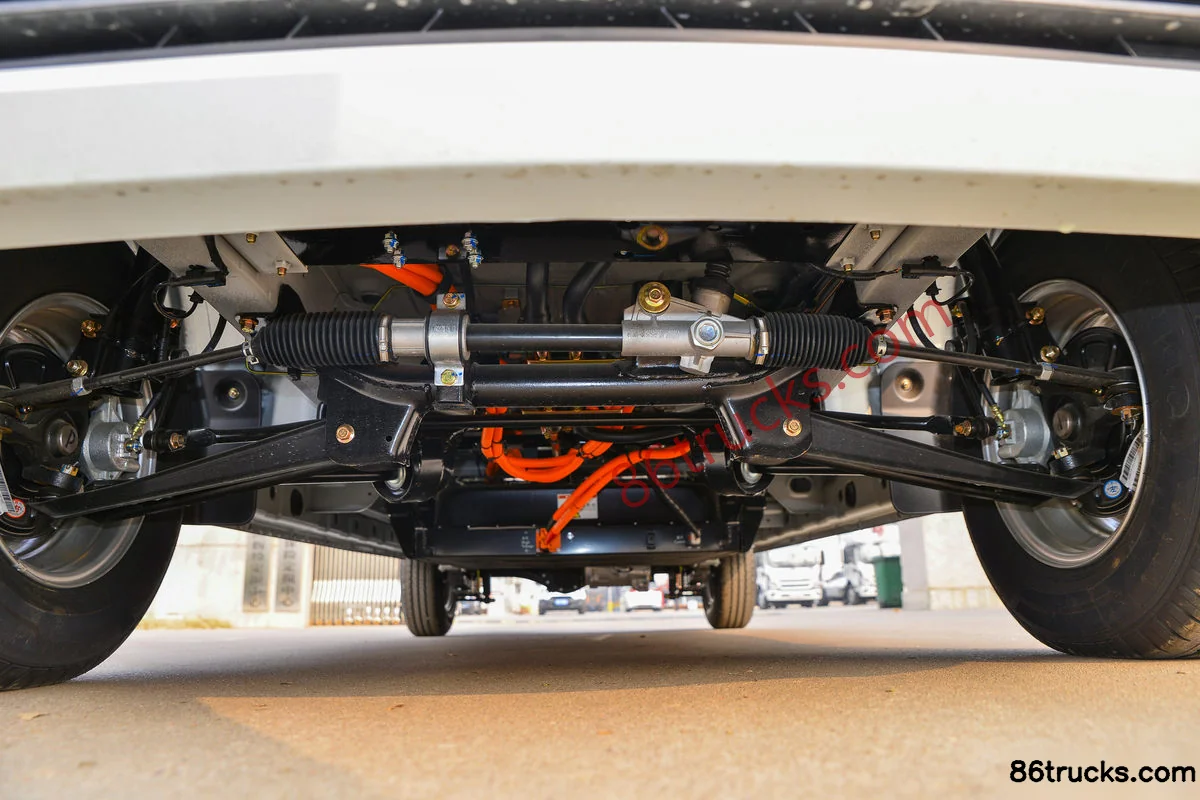

Jiangling Jingma E-Lu Fu 3.2T 2-Seat 4.865m Electric Panel Van 39.6kWh Chassis (1) | 86Trucks Jiangling Jingma E-Lu Fu 3.2T 2-Seat 4.865m Electric Panel Van 39.6kWh Chassis (2) | 86Trucks Jiangling Jingma E-Lu Fu 3.2T 2-Seat 4.865m Electric Panel Van 39.6kWh Chassis (3) | 86Trucks

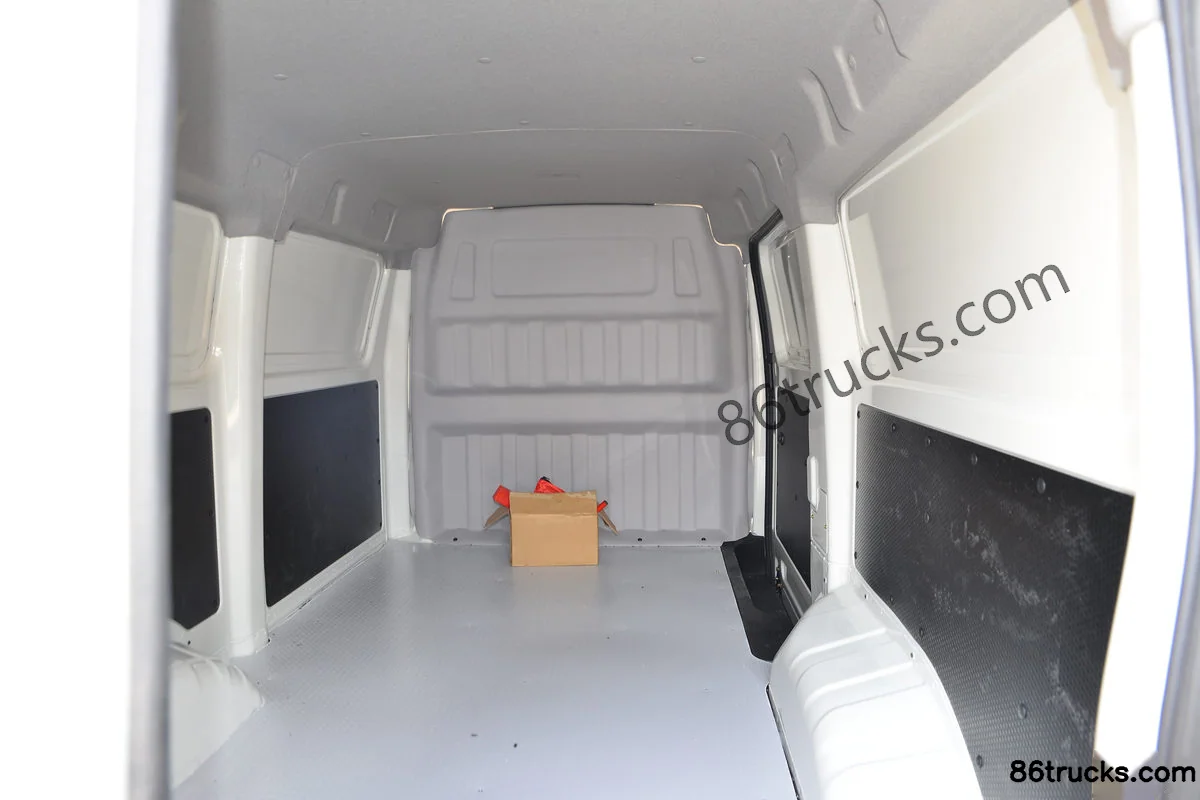

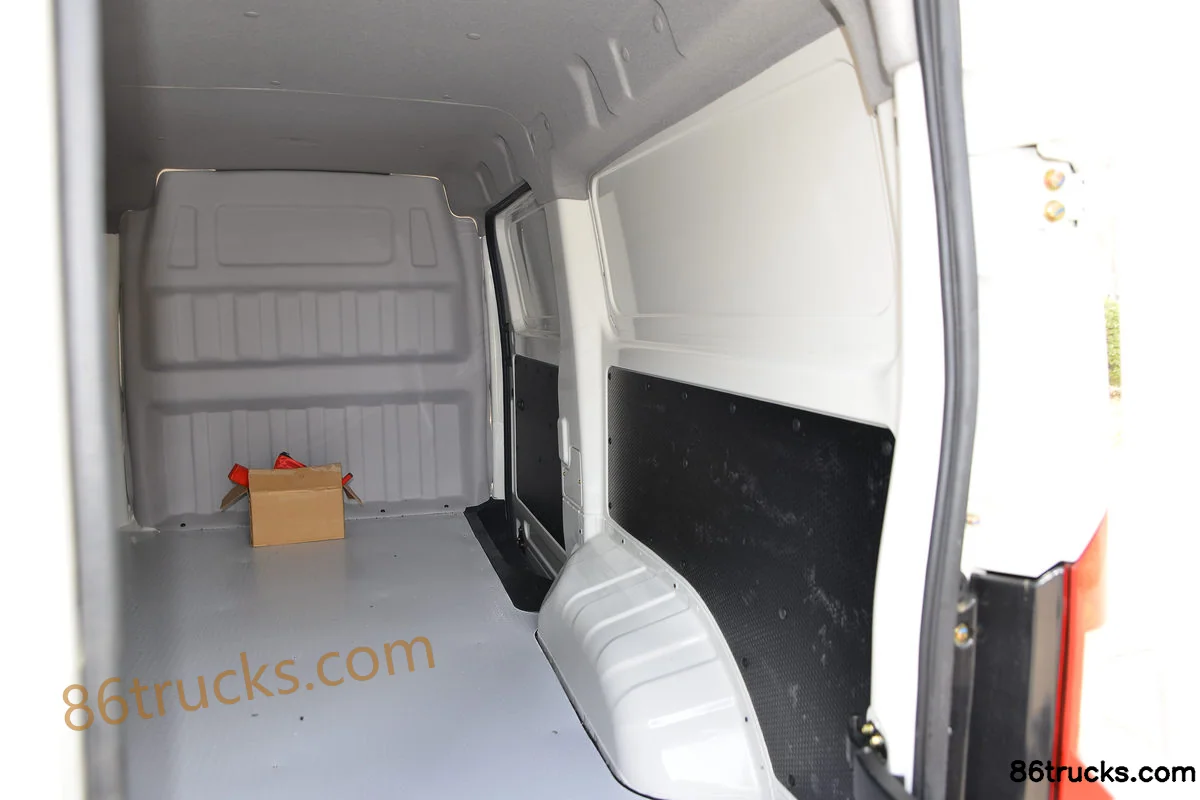

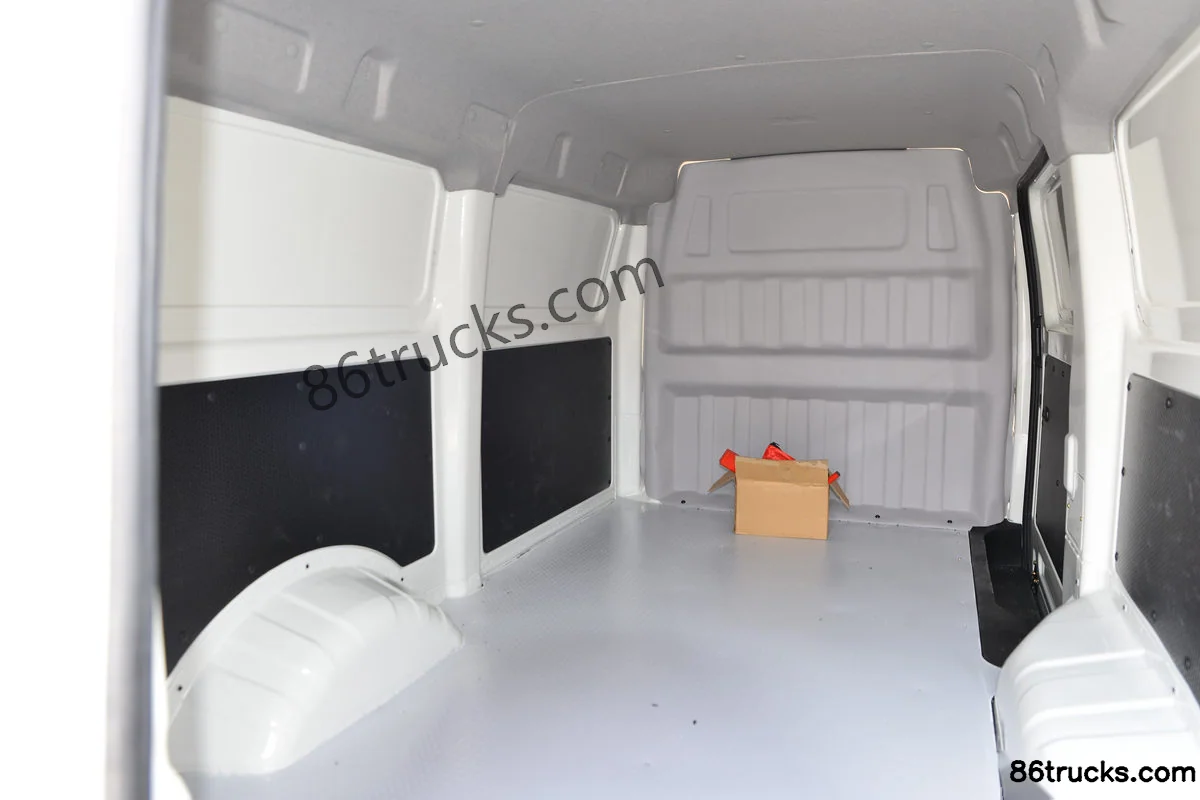

Body3

Jiangling Jingma E-Lu Fu 3.2T 2-Seat 4.865m Electric Panel Van 39.6kWh Body (1) | 86Trucks Jiangling Jingma E-Lu Fu 3.2T 2-Seat 4.865m Electric Panel Van 39.6kWh Body (2) | 86Trucks Jiangling Jingma E-Lu Fu 3.2T 2-Seat 4.865m Electric Panel Van 39.6kWh Body (3) | 86Trucks

12 photos

FAQ

What is the export price of Jiangling Jingma E-Lu Fu 3.2T 2-Seat 4.865m Electric Panel Van 39.6kWh, and what does it include?

Jiangling Jingma E-Lu Fu 3.2T 2-Seat 4.865m Electric Panel Van 39.6kWh export reference is about From $19,278; MSRP is ¥13.88M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Jiangling Jingma E-Lu Fu 3.2T 2-Seat 4.865m Electric Panel Van 39.6kWh suited for?

Jiangling Jingma E-Lu Fu 3.2T 2-Seat 4.865m Electric Panel Van 39.6kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Jiangling Jingma E-Lu Fu 3.2T 2-Seat 4.865m Electric Panel Van 39.6kWh differ from other variants in the same series?

Jiangling Jingma E-Lu Fu 3.2T 2-Seat 4.865m Electric Panel Van 39.6kWh belongs to Jiangling Jingma E-Lufu (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Jiangling Jingma E-Lu Fu 3.2T 2-Seat 4.865m Electric Panel Van 39.6kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Jiangling Jingma E-Lu Fu 3.2T 2-Seat 4.865m Electric Panel Van 39.6kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
