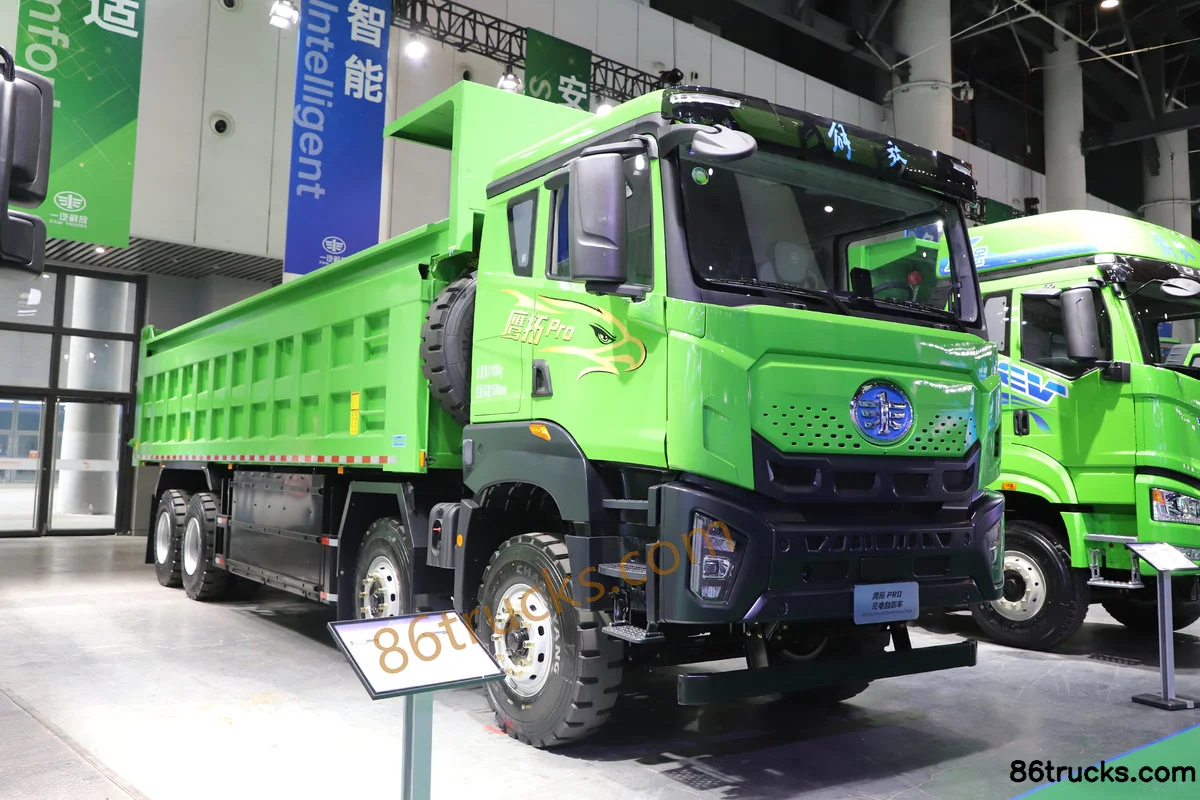

FAW Jiefang Yingtuo Pro 8X4(12 wheels) 8.8m Pure Electric Dump Truck CATL 600kWh

Export reference
MSRP N/A
Rated payload:: 5.87ton
Wheelbase:: 1900+4800+1350mm
Cargo box type:: Dump type
Model code (announced):: CA3313P27L7T4BEVA80
Cab length:: 11.37m
GVWR:: 31ton
Drive 8X4 (12 wheels)
Battery Brand: CATL
Motor 1 Brand: FAW
Curb Weight: 25ton

Overview

The FAW Jiefang Qingdao FAW Jiefang Yingtuo Pro 8X4(12 wheels) 8.8m Pure Electric Dump Truck CATL 600kWh is a Heavy truck featuring CATL battery/range, FAW motor, 8X4 (12 wheels) drive and 5.87t payload.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3313P27L7T4BEVA80
Drive type: 8X4
Wheelbase: 1900+4800+1350mm
Cab length: 11.37m
Cab width: 2.55m
Cab height: 3.325m
Curb Weight: 25ton
Rated payload: 5.87ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Qingdao, Shandong
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: FAW
Motor 1 Model: CAM400PT55
Motor Type: Permanent magnet synchronous motor
Peak power: 500kW
Motor 1 Peak Power: 500kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 600kWh
Cargo box parameters
Cargo box type: Dump type
Cargo box length: 8.8m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: low floor
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

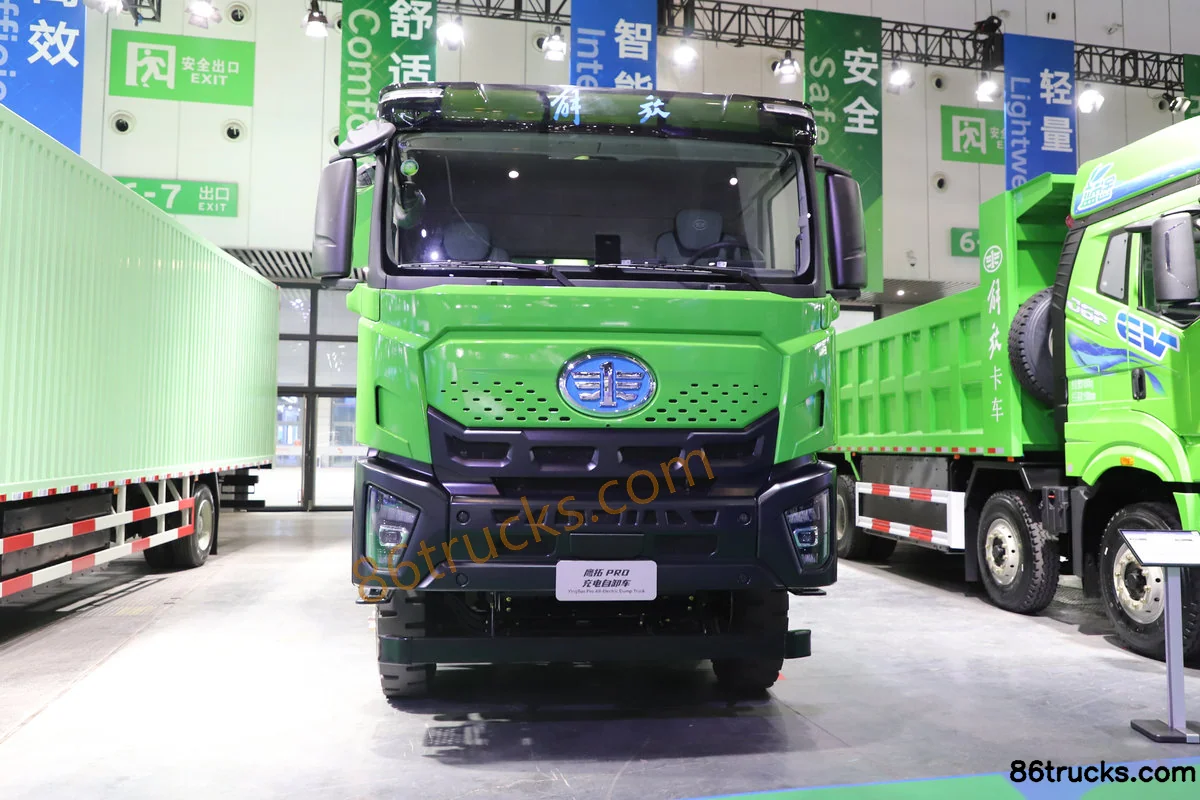

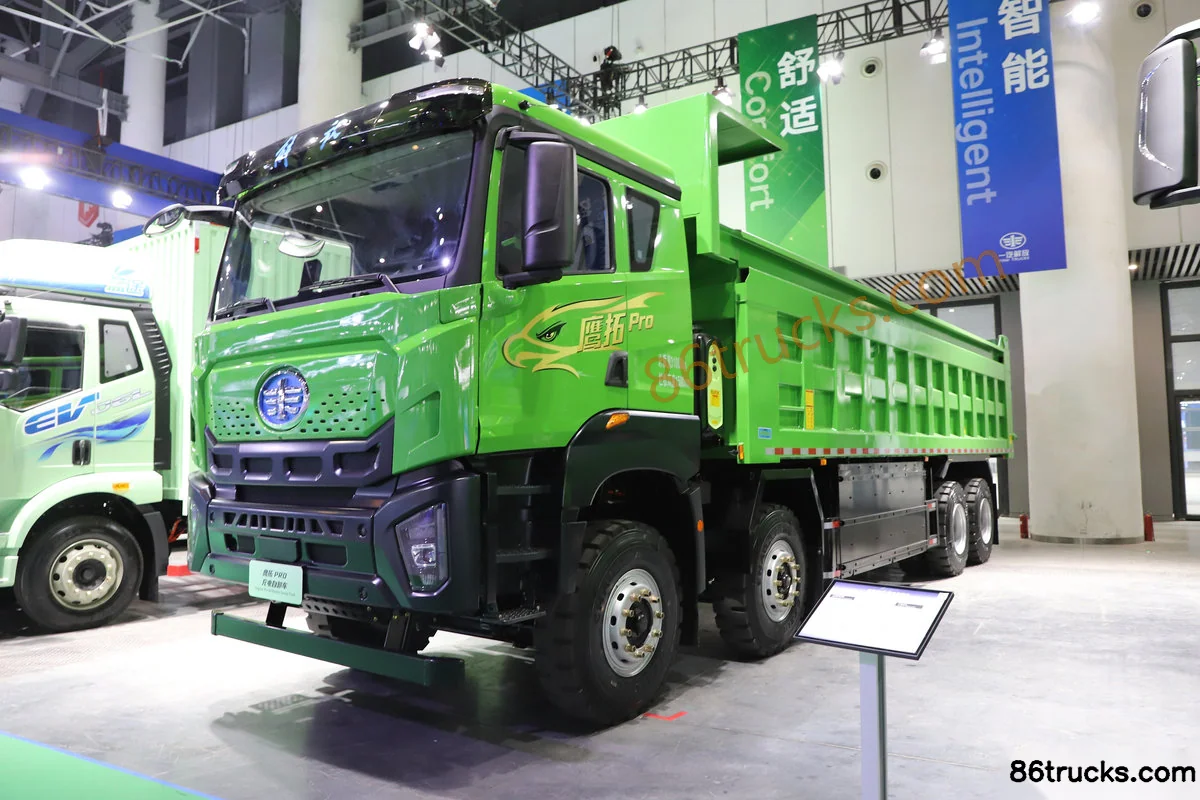

Exterior3

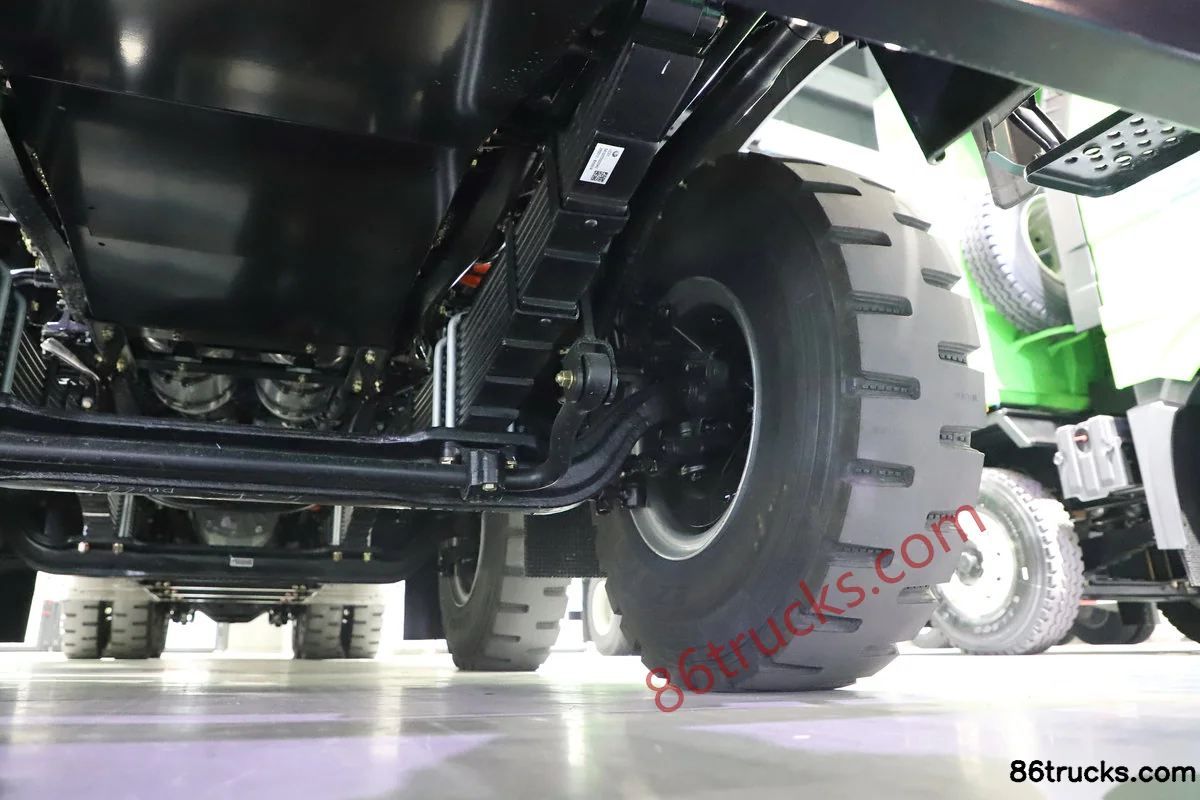

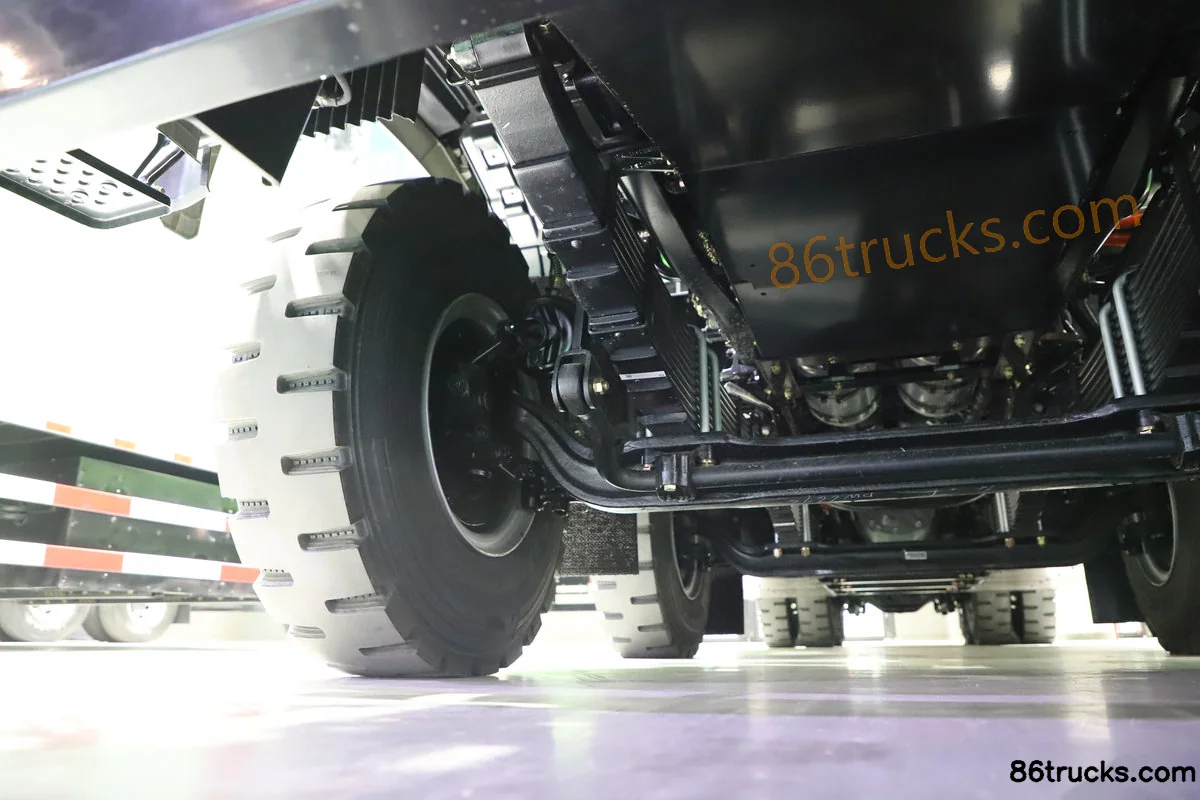

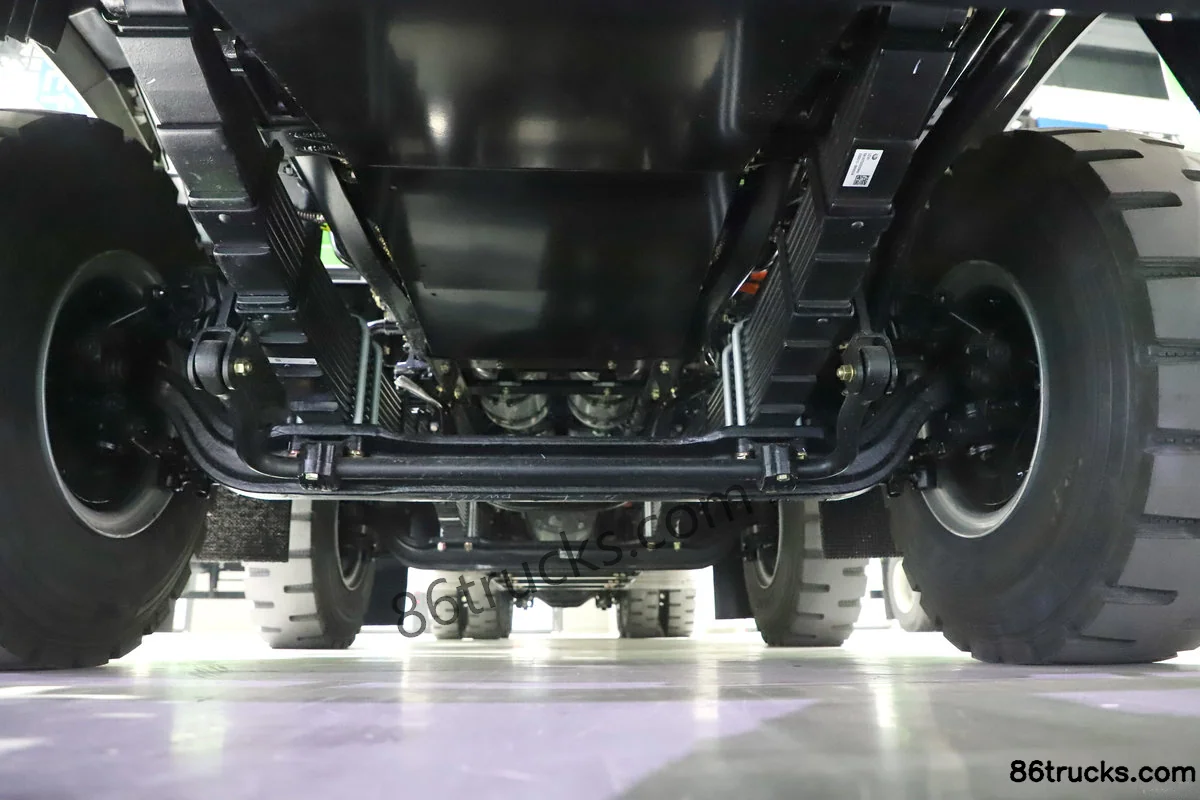

Chassis3

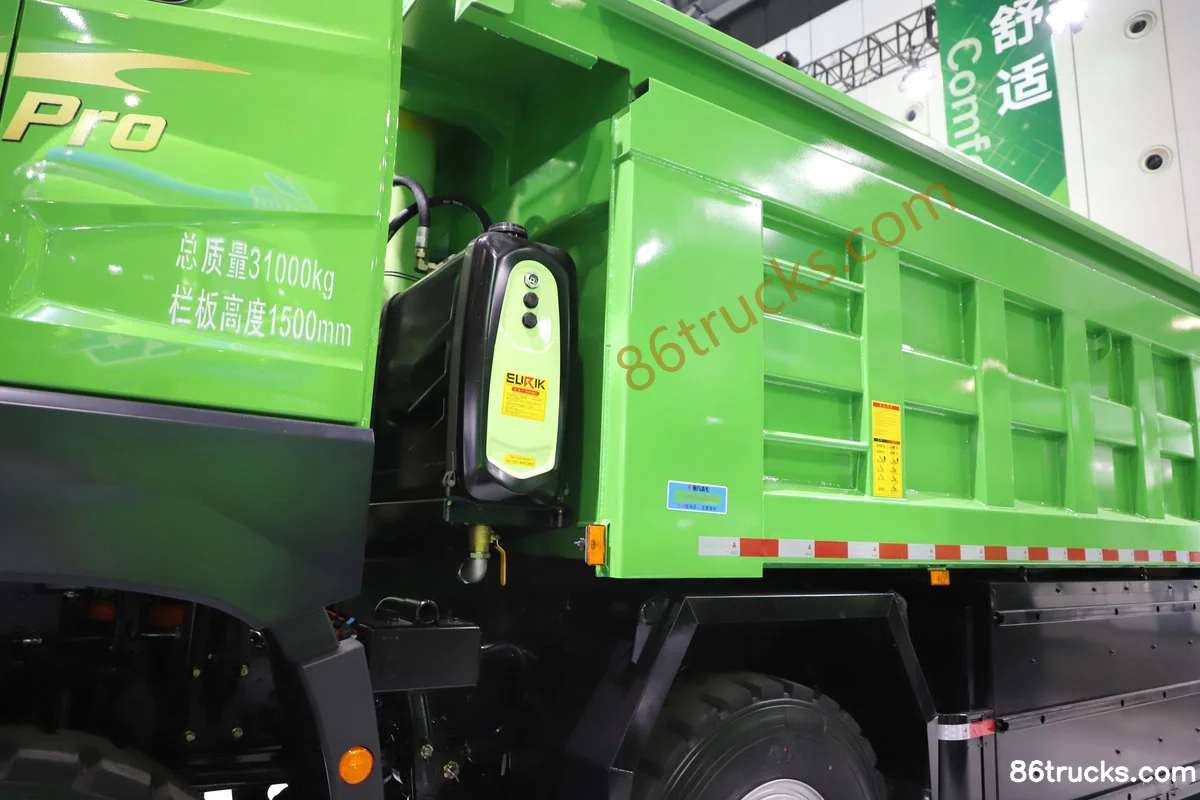

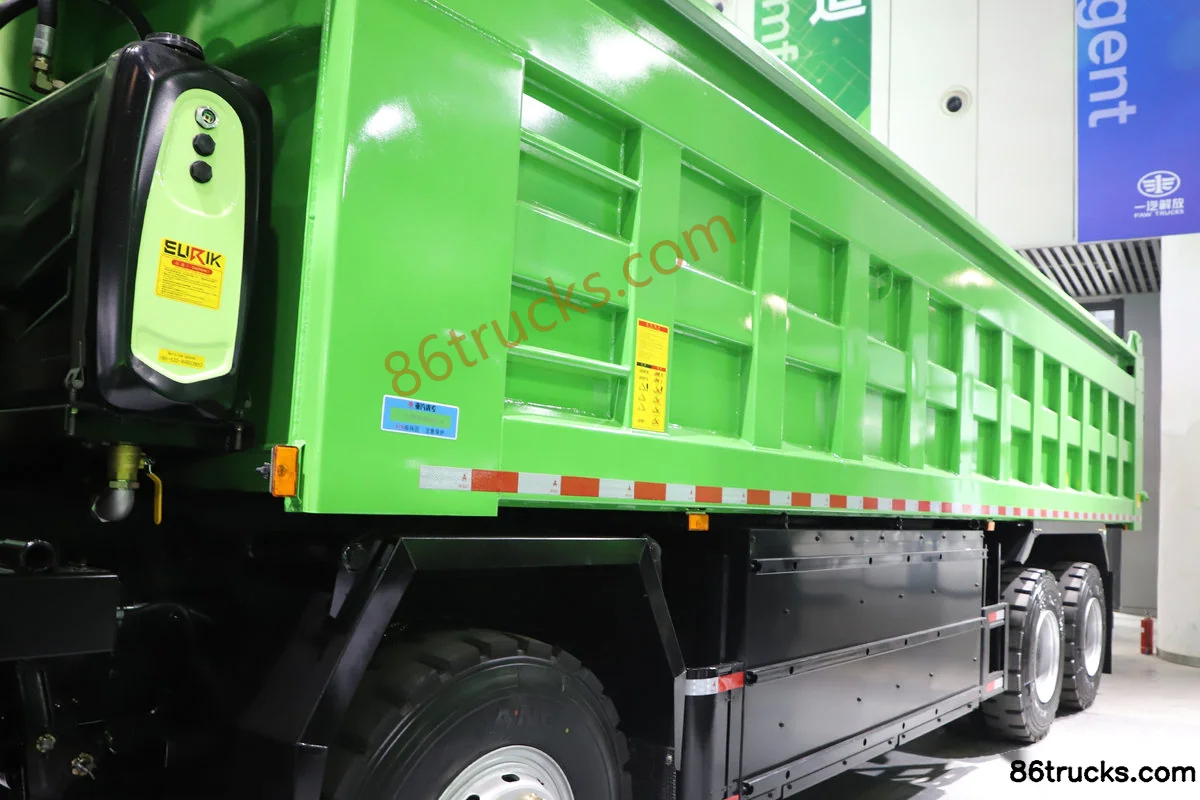

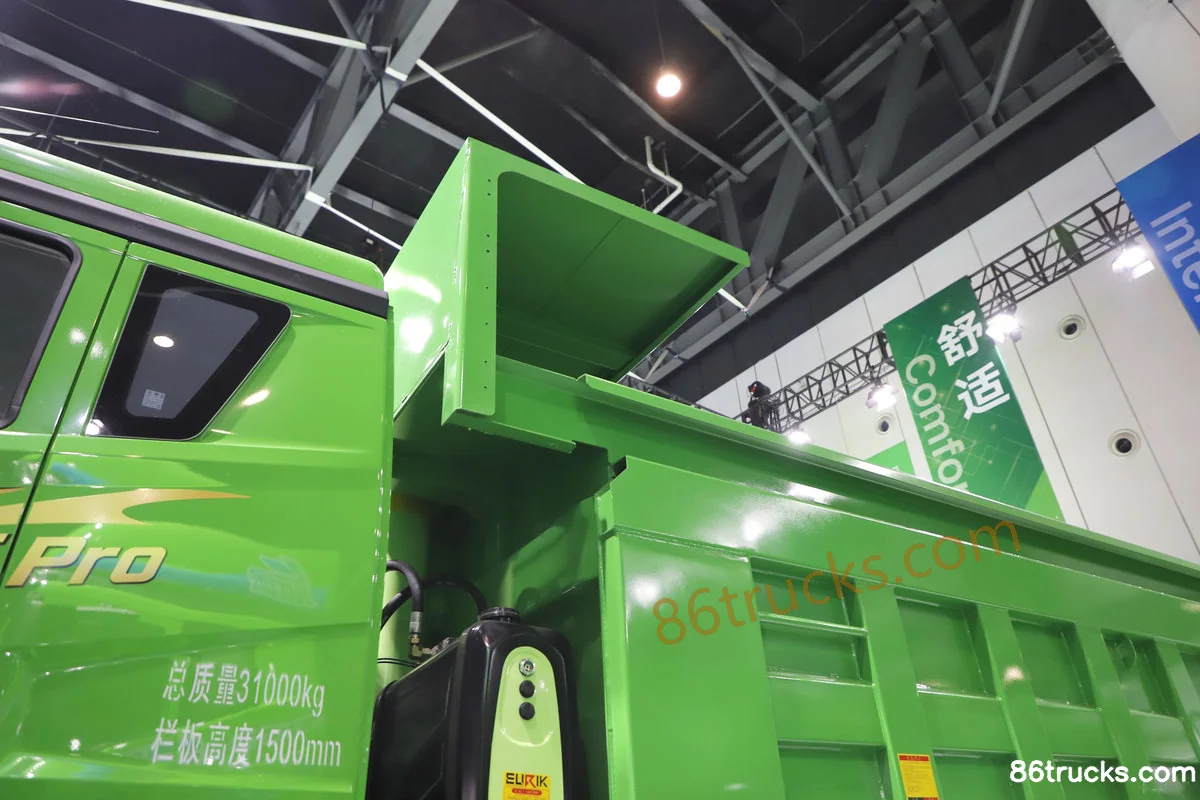

Body3

9 photos

FAQ

What are the key specs of FAW Jiefang Yingtuo Pro 8X4(12 wheels) 8.8m Pure Electric Dump Truck CATL 600kWh?

Key specs of FAW Jiefang Yingtuo Pro 8X4(12 wheels) 8.8m Pure Electric Dump Truck CATL 600kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Yingtuo Pro 8X4(12 wheels) 8.8m Pure Electric Dump Truck CATL 600kWh suited for?

FAW Jiefang Yingtuo Pro 8X4(12 wheels) 8.8m Pure Electric Dump Truck CATL 600kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Yingtuo Pro 8X4(12 wheels) 8.8m Pure Electric Dump Truck CATL 600kWh differ from other variants in the same series?

FAW Jiefang Yingtuo Pro 8X4(12 wheels) 8.8m Pure Electric Dump Truck CATL 600kWh belongs to FAW Jiefang Qingdao Yingtuo Heavy Truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Yingtuo Pro 8X4(12 wheels) 8.8m Pure Electric Dump Truck CATL 600kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Yingtuo Pro 8X4(12 wheels) 8.8m Pure Electric Dump Truck CATL 600kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
