NanJun Ruijie D20 127 hp 4X2(6 wheels) 3.1m Dump Truck

Export reference
From $20,556
MSRP ¥14.8M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 2.72ton
Wheelbase:: 2600mm
Tire Size:: 7.00R16LT 8PR/245/70R17.5 18PR
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 127
Cargo box type: Dump type

Overview

The NanJun Ruijie D20 127 hp 4X2(6 wheels) 3.1m Dump Truck is a Light Truck featuring 1.645t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD20TCIF11 engine, 127 hp, China VI emissions and Fast Gear transmission.

China VI 127 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJA3040EDM26A
Drive type: 4X2
Wheelbase: 2600mm
engine: Yunnei PowerD20TCIF11
transmission: Fast Gear 8-speed
Rear Axle Ratio: 4.875
Cab length: 4.995m
Cab width: 1.95m
Cab height: 2.13m
Front track width: 1520mm
rear track: 1524mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Approach angle: 19°
departure angle: 20°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD20TCIF11
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2L
Emission standard: China VI
Max output power: 93kW
Max hp: 127Horsepower
Transmission Parameters
Transmission Model: Fast Gear 8-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
hydraulic cylinder brand & model: 2TG/90×500
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.1m
Cargo box width: 1.8m
Cargo box height: 0.8m
Body Parameters
Lifting type: Mid-mounted dual roof
Cab parameters
Cab: Single Row
Cab width: 1735mm
seating capacity: 2Personnel
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 88L
Chassis Specs
Front axle allowable load: 1900kg
Frame Dimensions: 206mm
rear axle allowable load: 2595kg
Axle ratio: 4.875
Leaf spring count: 3/4+3
Tire
Tire Size: 7.00R16LT 8PR/245/70R17.5 18PR
Number of tires: 4pcs
Control configuration
ABS:

Photos

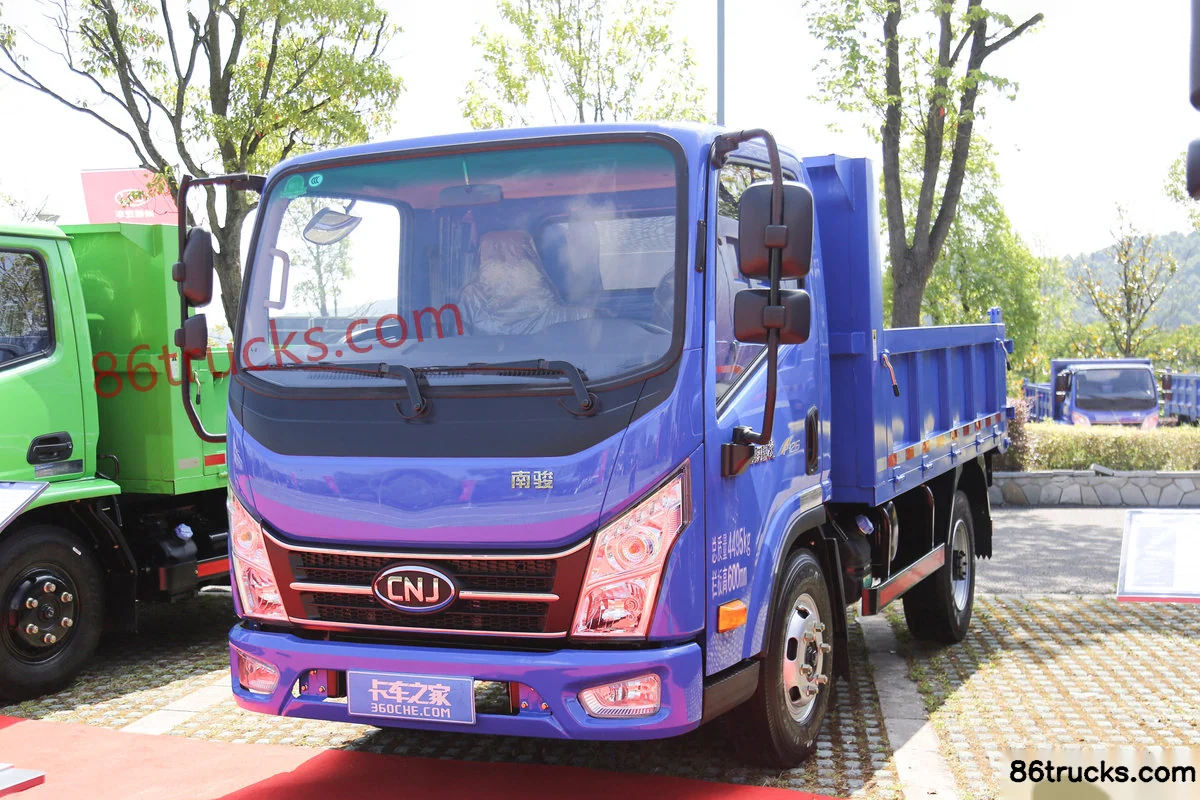

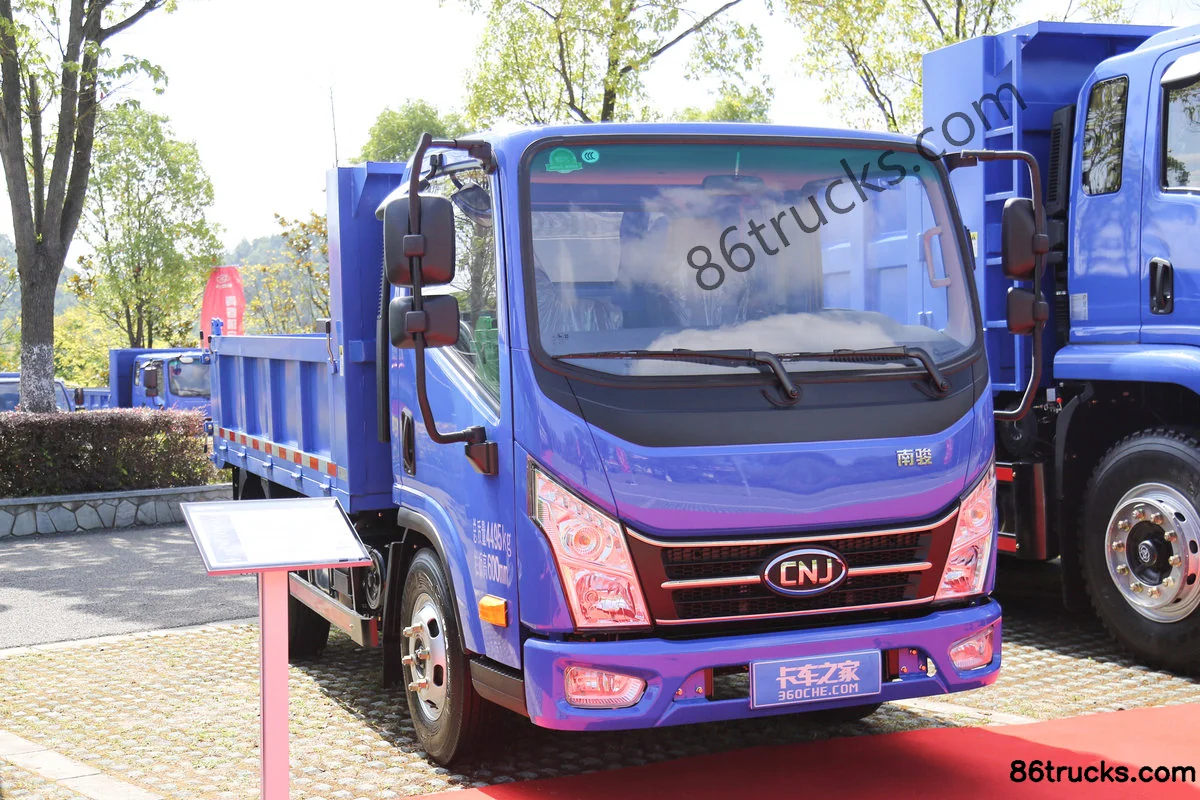

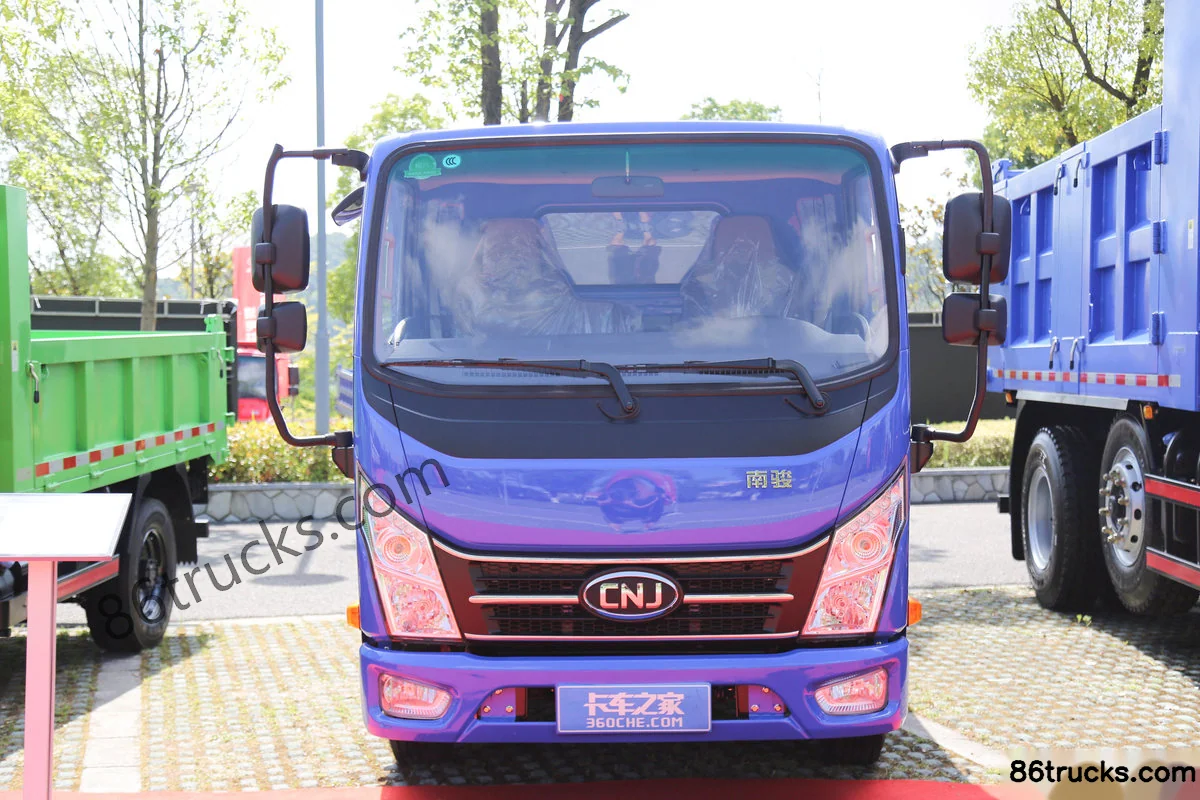

Exterior3

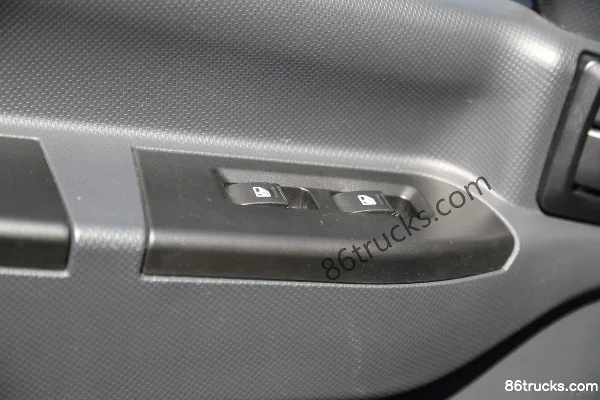

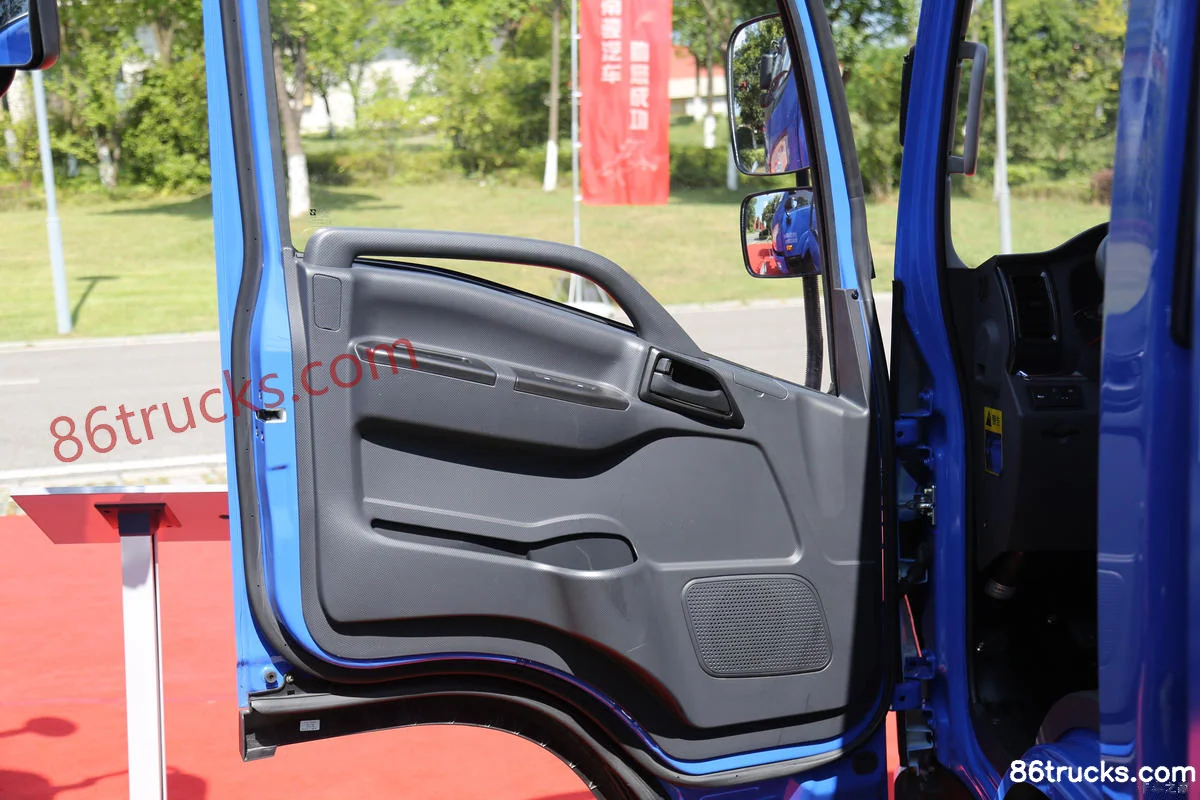

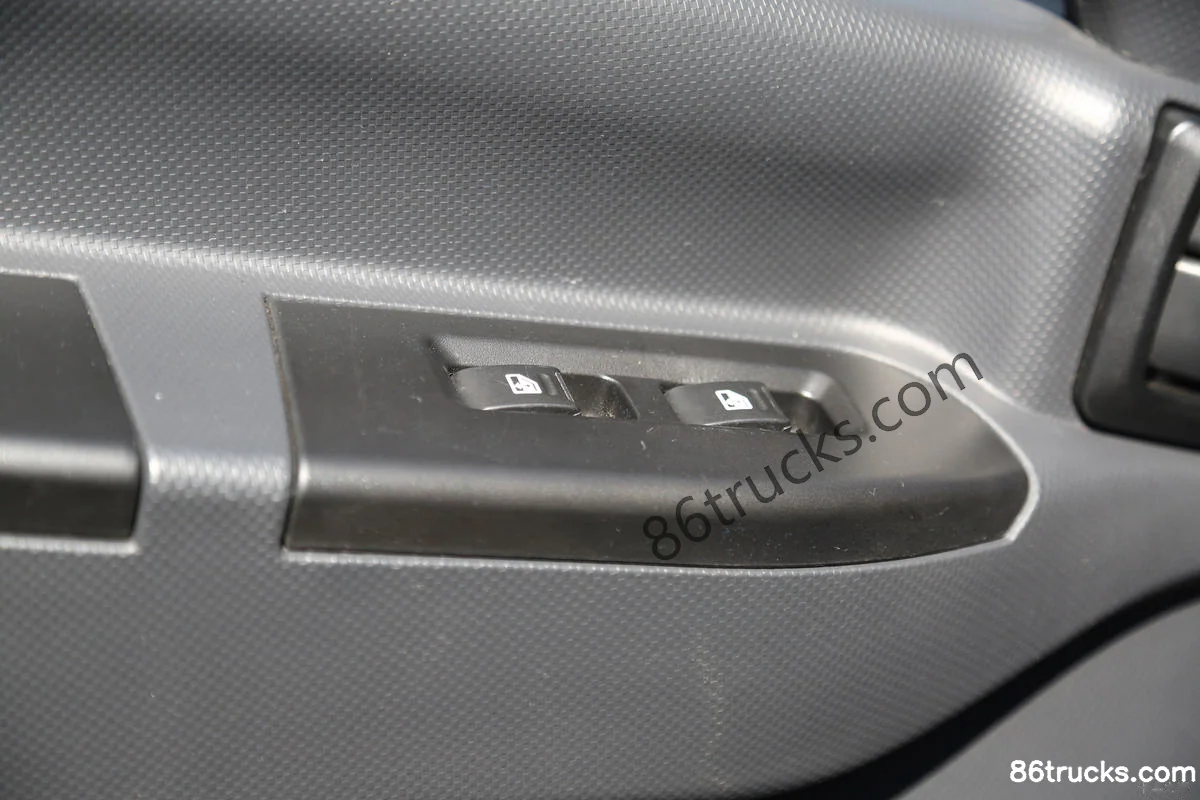

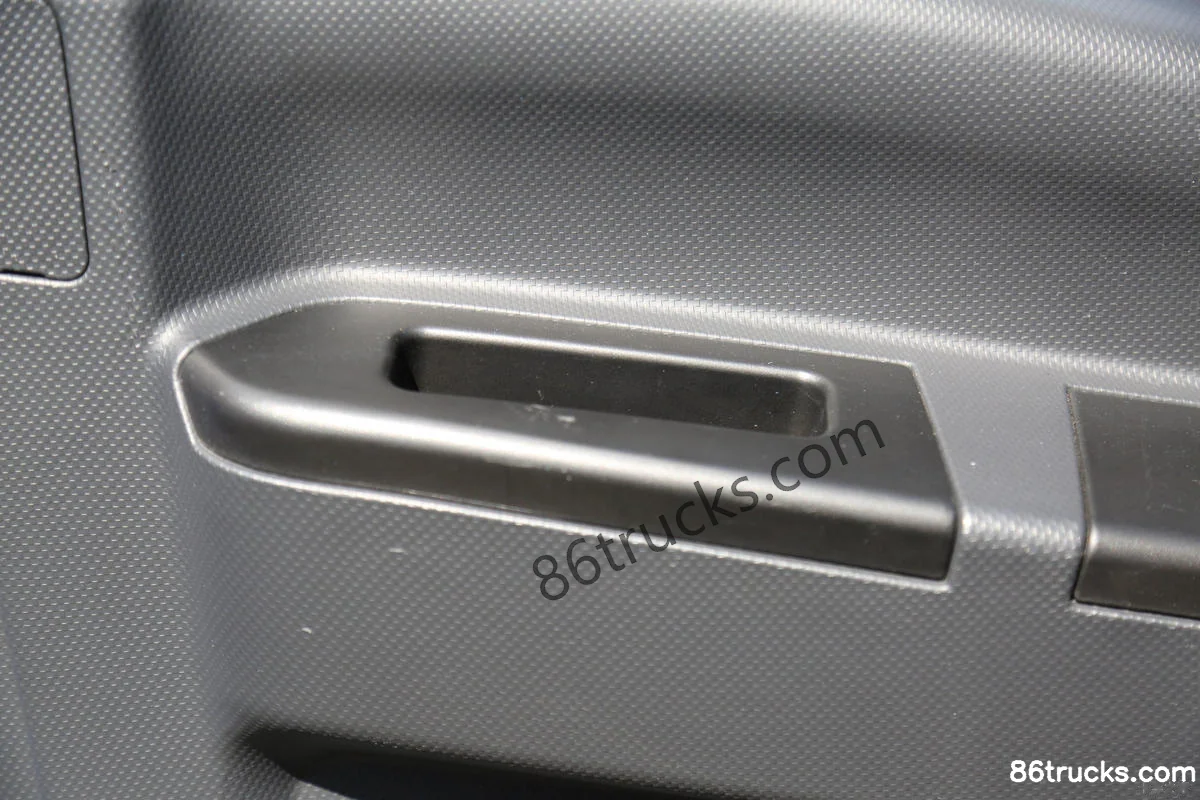

Cab3

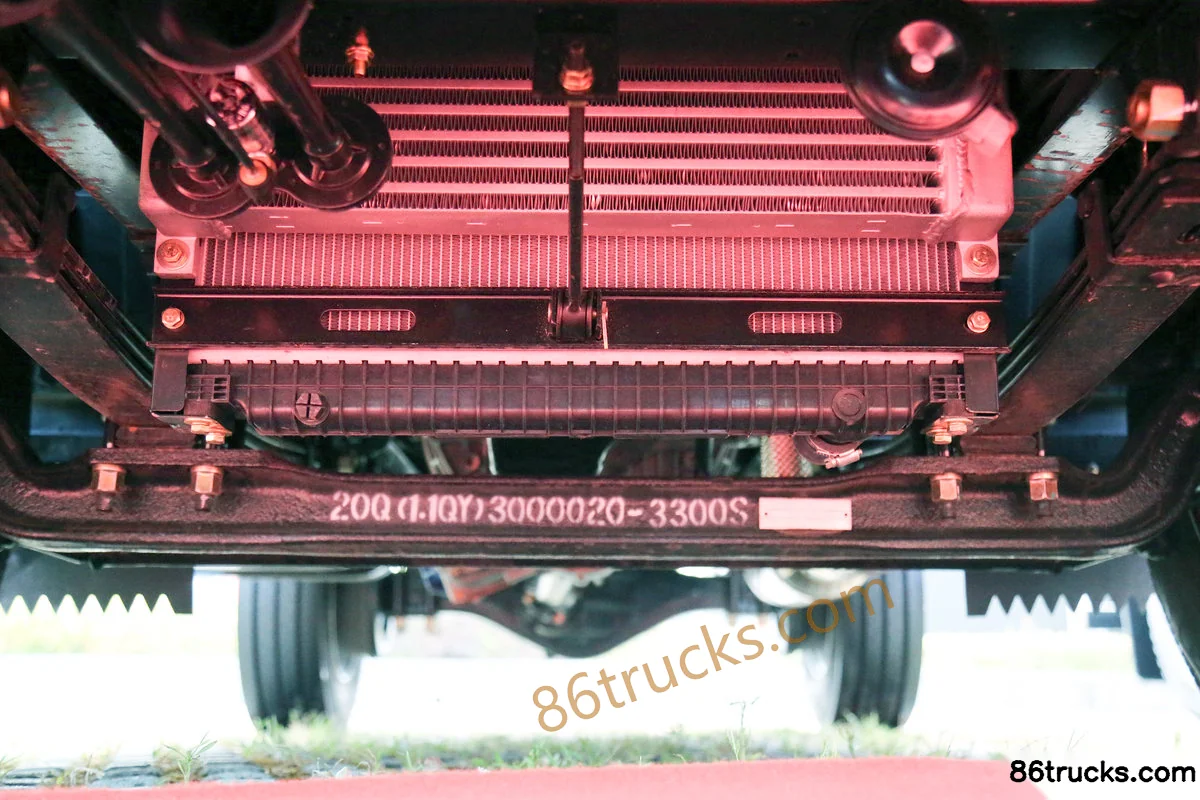

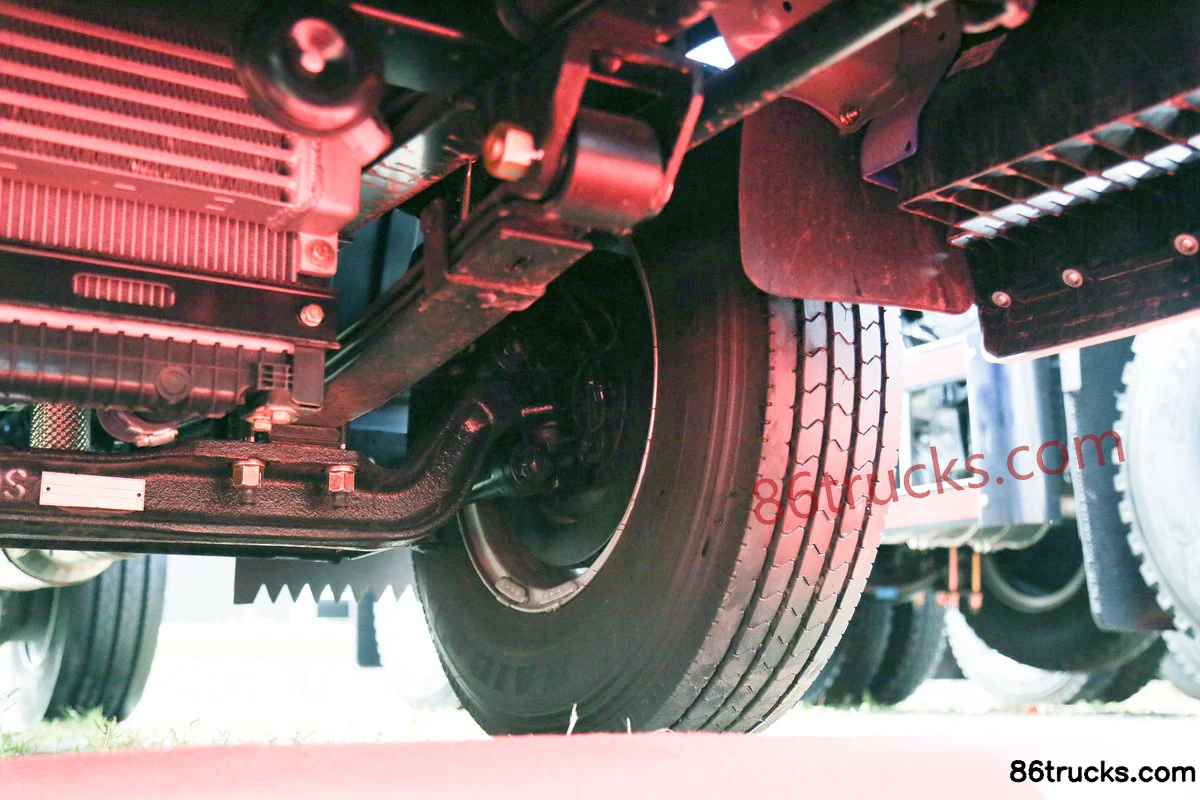

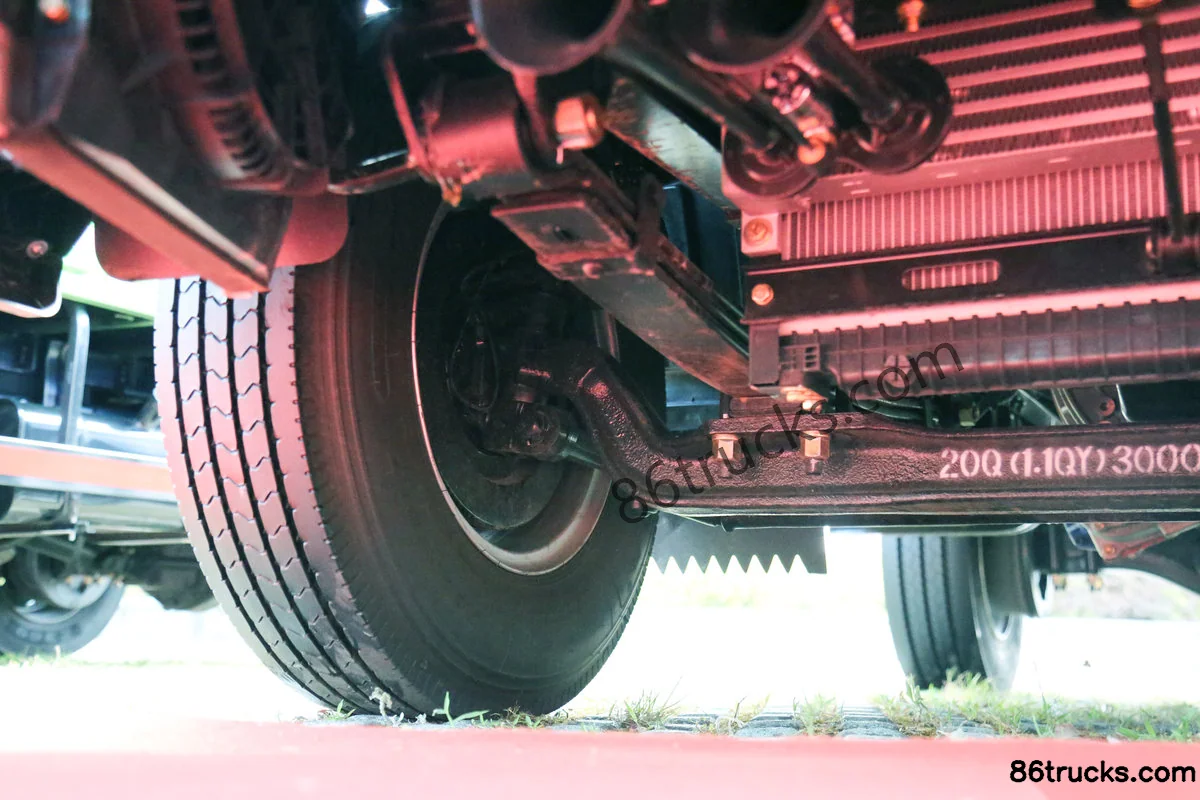

Chassis3

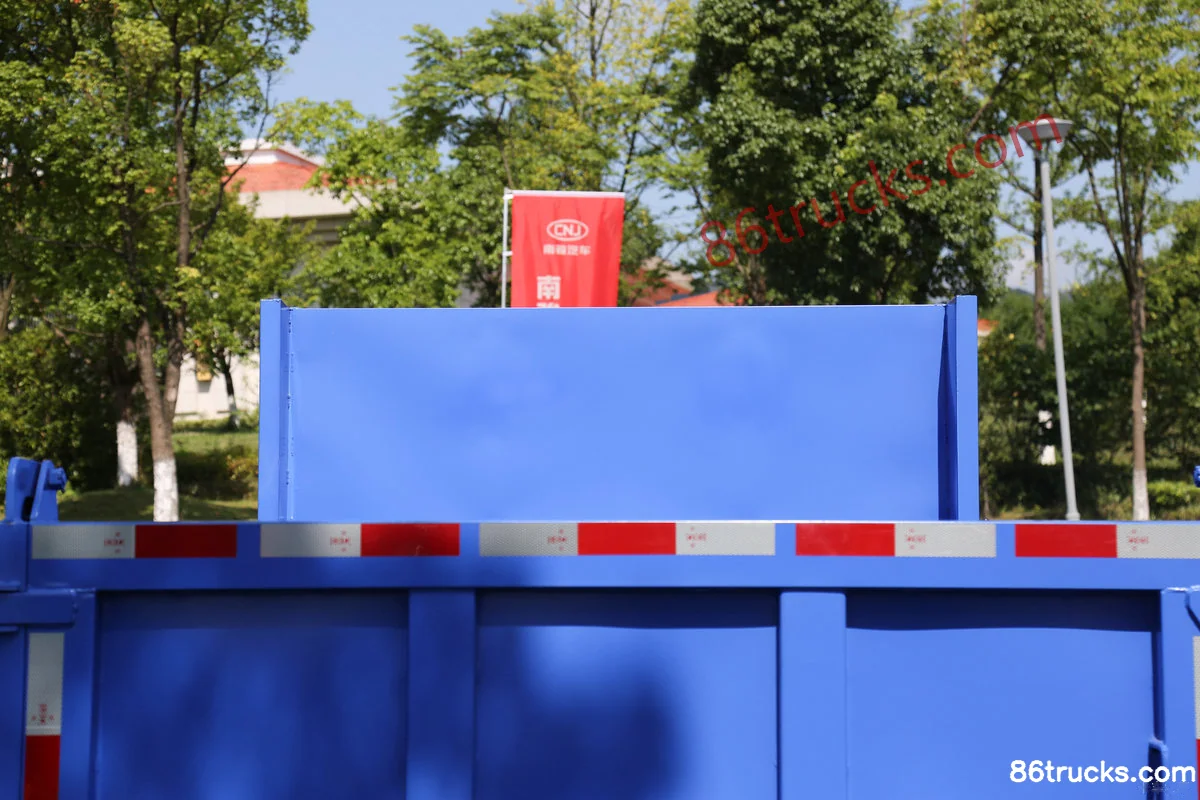

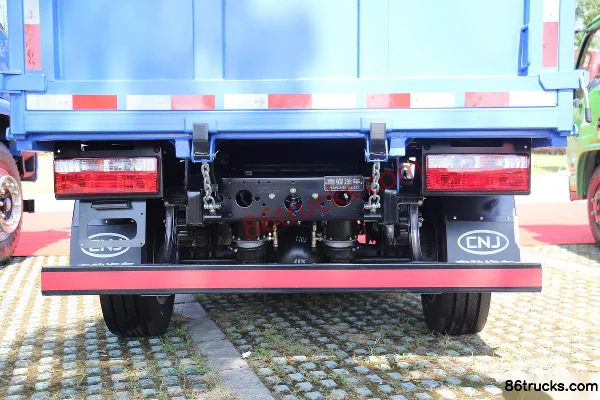

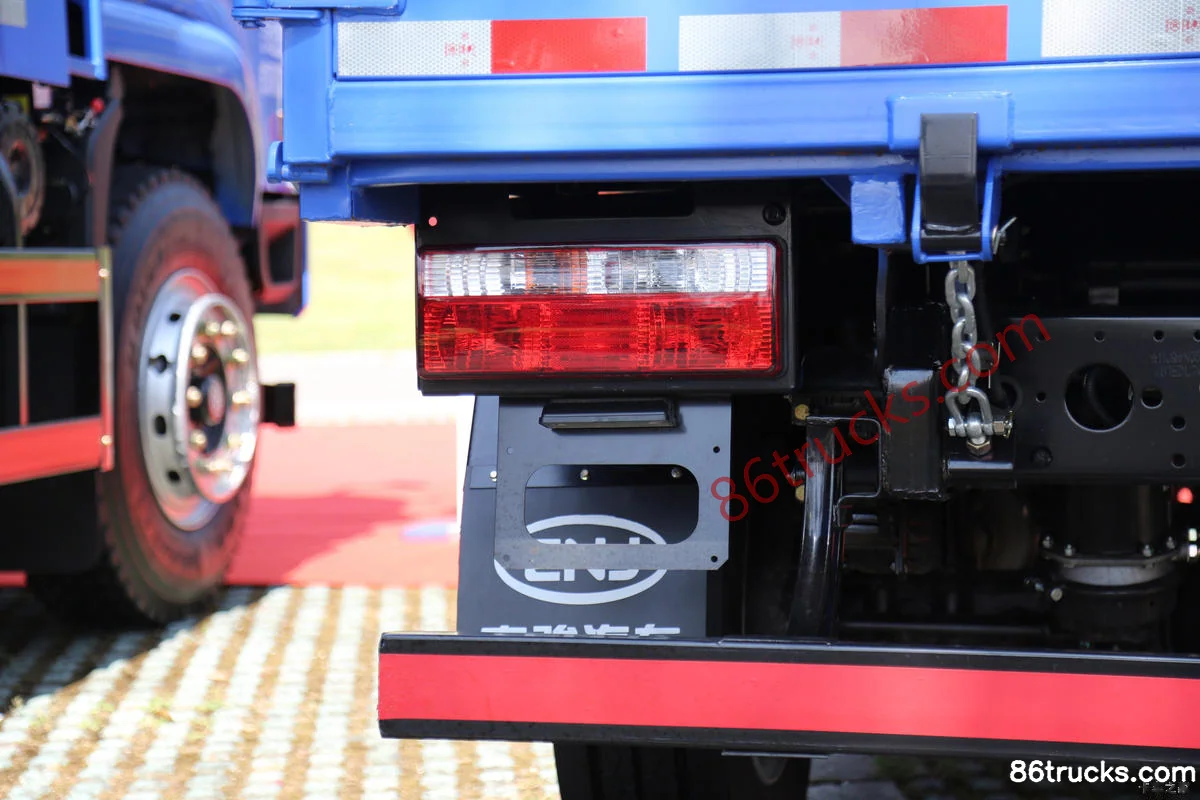

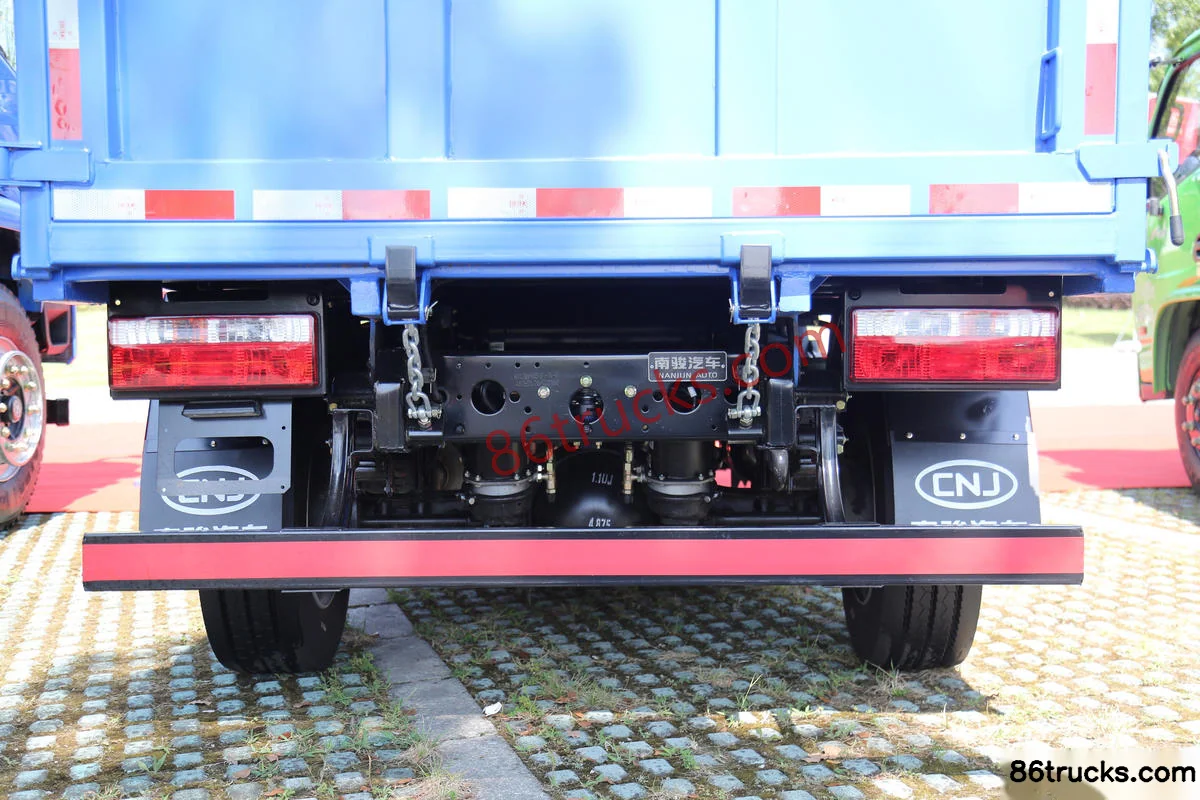

Body3

12 photos

FAQ

What is the export price of NanJun Ruijie D20 127 hp 4X2(6 wheels) 3.1m Dump Truck, and what does it include?

NanJun Ruijie D20 127 hp 4X2(6 wheels) 3.1m Dump Truck export reference is about From $20,556; MSRP is ¥14.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does NanJun Ruijie D20 127 hp 4X2(6 wheels) 3.1m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Ruijie D20 127 hp 4X2(6 wheels) 3.1m Dump Truck?

Key specs of NanJun Ruijie D20 127 hp 4X2(6 wheels) 3.1m Dump Truck: Drive: 4x2; Horsepower: 127 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Ruijie D20 127 hp 4X2(6 wheels) 3.1m Dump Truck suited for?

NanJun Ruijie D20 127 hp 4X2(6 wheels) 3.1m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does NanJun Ruijie D20 127 hp 4X2(6 wheels) 3.1m Dump Truck differ from other variants in the same series?

NanJun Ruijie D20 127 hp 4X2(6 wheels) 3.1m Dump Truck belongs to NanJun Ruijie D20 Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Ruijie D20 127 hp 4X2(6 wheels) 3.1m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Ruijie D20 127 hp 4X2(6 wheels) 3.1m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
