Foton Times Yuling VQ1 1.5L 112hp 4X2(6 wheels) Gasoline 2.55m Dump Truck

Export reference
From $6,167
MSRP ¥4.44M CNY
Emission: China V
Fuel: gasoline
Transmission: Qingshan
Curb Weight:: 1.57ton
Wheelbase:: 2700mm
Tire Size:: 175R14 8PR
Rated payload: 1.325ton
Drive 4X2 (6 wheels)
Horsepower 112
Cargo box type: Dump type

Overview

The Foton Times Yuling VQ1 1.5L 112hp 4X2(6 wheels) Gasoline 2.55m Dump Truck is a mini truck featuring 1.325t payload, 3.22t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a RuizhanTNN4G15B engine, 112 hp, China V emissions and Qingshan transmission.

China V 112 gasoline 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ3030D4AA4-FA
Drive type: 4X2
Wheelbase: 2700mm
engine: RuizhanTNN4G15B
transmission: QingshanMR70
Rear Axle Ratio: 4.875
Cab length: 5.01m
Cab width: 1.63m
Cab height: 2.07m
Front track width: 1260mm
rear track: 1195mm
Curb Weight: 1.57ton
Rated payload: 1.325ton
GVWR: 3.22ton
Origin: Shandong Zhucheng
tonnage class: mini truck
Approach angle: 24°
departure angle: 28°
Remarks: Optional ratio 5.375
Energy Type: gasoline
Engine parameters
Engine Brand: Ruizhan
Engine Model: RuizhanTNN4G15B
Number of cylinders: 4cylinder
fuel type: gasoline
Displacement: 1.499L
Emission standard: China V
Max output power: 82kW
Max hp: 112Horsepower
Max torque: 143N·m
Engine Type: DOHC, 16-valve, VVT-i, electronic multi-point sequential injection
Transmission Parameters
Transmission Model: QingshanMR70
Transmission Brand: Qingshan
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 2.55m
Cargo box width: 1.51m
Cargo box height: 0.36m
Body Parameters
Lifting type: 70 double lift
Chassis Specs
Front axle allowable load: 1095kg
Frame Dimensions: Riveted/welded 130+70 sub-frame ×50×4/720mm
rear axle description: 121 rear axle
rear axle allowable load: 2125kg
Axle ratio: 4.875
Leaf spring count: 3/5
Tire
Tire Size: 175R14 8PR
Number of tires: 6pcs

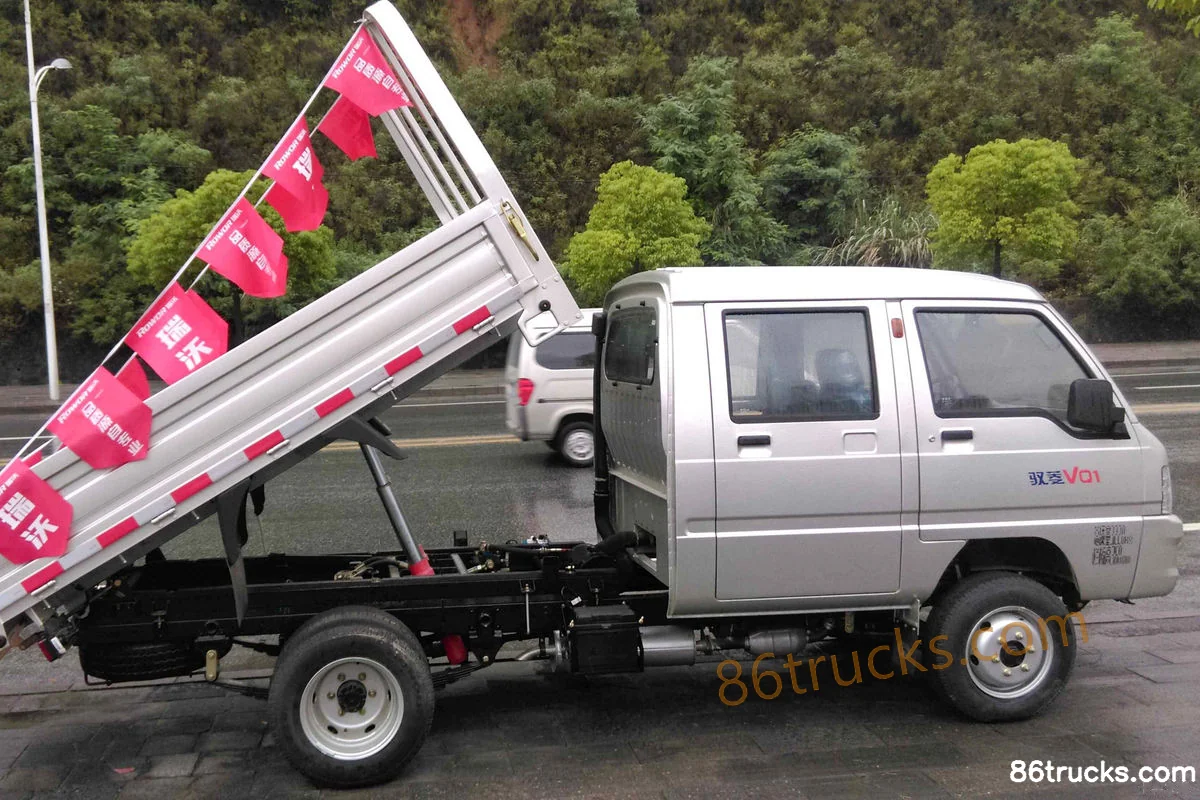

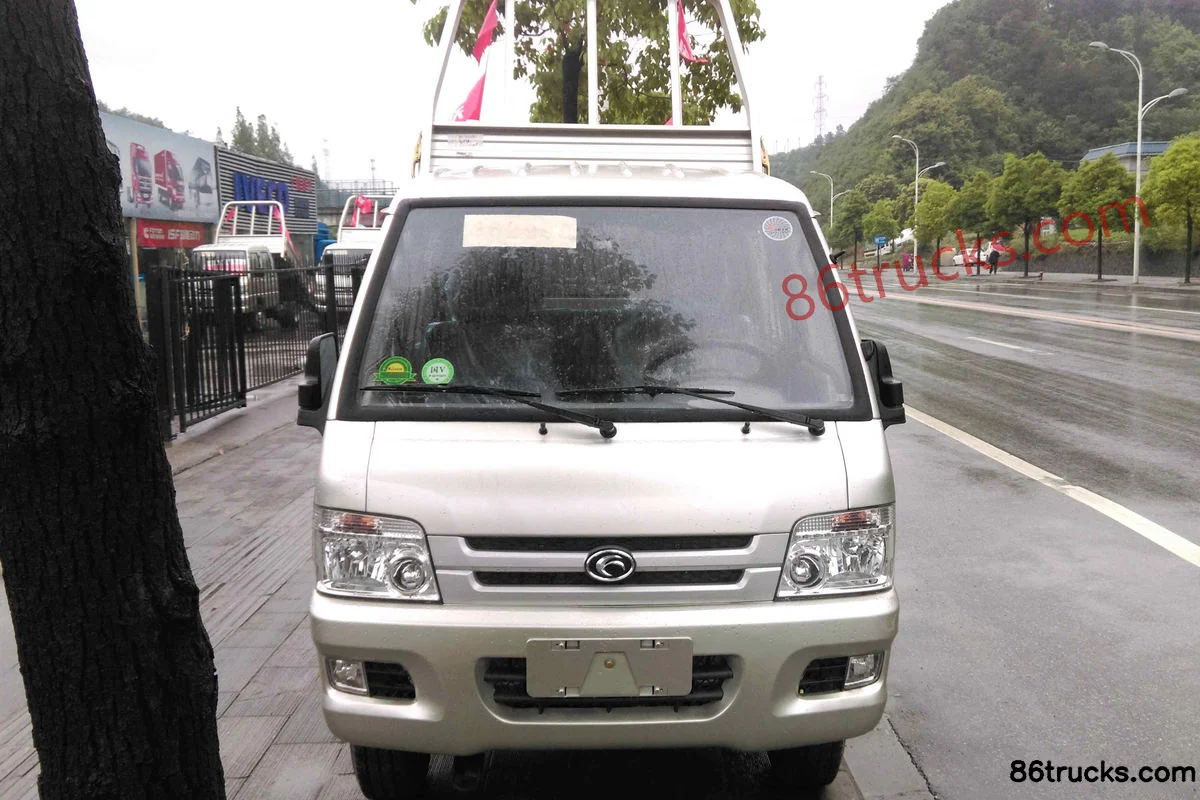

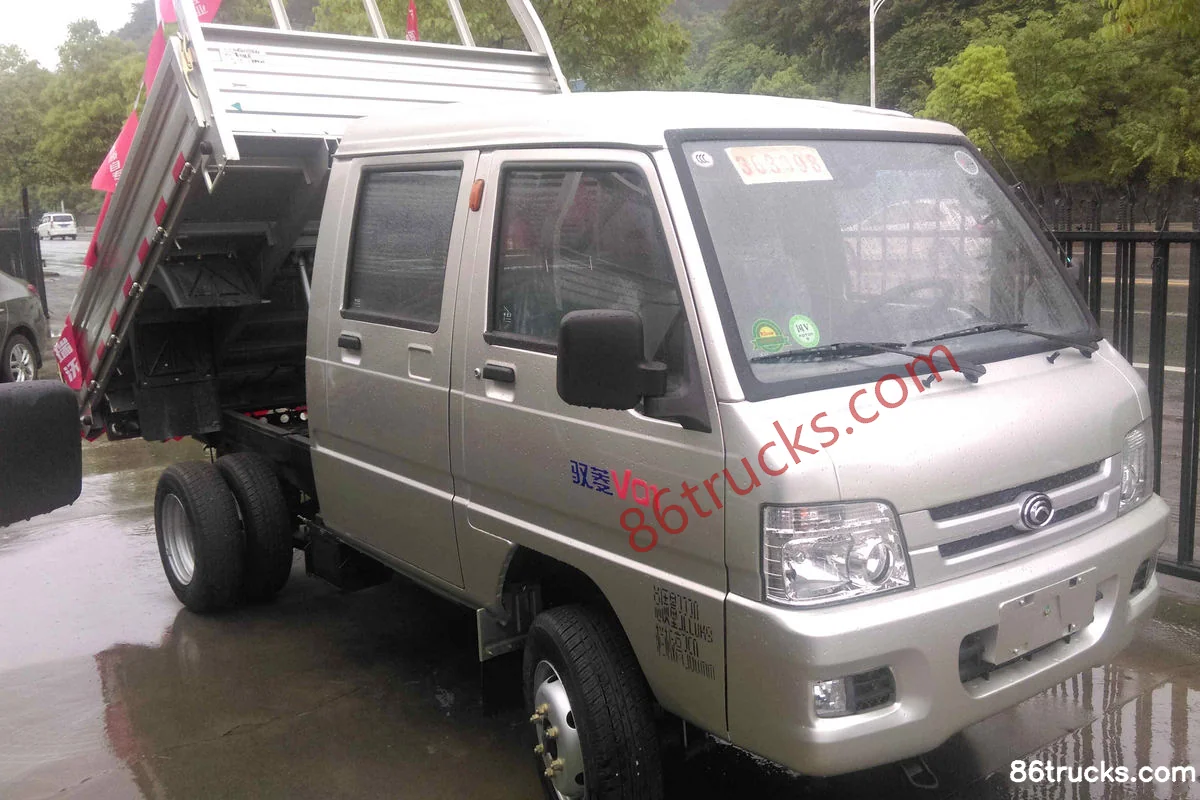

Photos

Exterior3

3 photos

FAQ

What is the export price of Foton Times Yuling VQ1 1.5L 112hp 4X2(6 wheels) Gasoline 2.55m Dump Truck, and what does it include?

Foton Times Yuling VQ1 1.5L 112hp 4X2(6 wheels) Gasoline 2.55m Dump Truck export reference is about From $6,167; MSRP is ¥4.44M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Times Yuling VQ1 1.5L 112hp 4X2(6 wheels) Gasoline 2.55m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Times Yuling VQ1 1.5L 112hp 4X2(6 wheels) Gasoline 2.55m Dump Truck?

Key specs of Foton Times Yuling VQ1 1.5L 112hp 4X2(6 wheels) Gasoline 2.55m Dump Truck: Drive: 4x2; Horsepower: 112 hp; Emission: China V; Fuel: gasoline; Transmission: Qingshan. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Times Yuling VQ1 1.5L 112hp 4X2(6 wheels) Gasoline 2.55m Dump Truck suited for?

Foton Times Yuling VQ1 1.5L 112hp 4X2(6 wheels) Gasoline 2.55m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton Times Yuling VQ1 1.5L 112hp 4X2(6 wheels) Gasoline 2.55m Dump Truck differ from other variants in the same series?

Foton Times Yuling VQ1 1.5L 112hp 4X2(6 wheels) Gasoline 2.55m Dump Truck belongs to Forland Yuling Mini Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Times Yuling VQ1 1.5L 112hp 4X2(6 wheels) Gasoline 2.55m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Times Yuling VQ1 1.5L 112hp 4X2(6 wheels) Gasoline 2.55m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
