Foton Times ES5 190hp 4X2(6 wheels) Power Supply Truck Chassis (China VI)

Export reference
From $20,819
MSRP ¥14.99M CNY
Wheelbase:: 3800mm
Cab dimensions:: 5.995×2.27×2.45m
Truck Type:: power supply truck
Vehicle origin:: Shandong Zhucheng
Front track width:: 1795mm
rear track:: 1800mm
Drive 4X2 (6 wheels)
Horsepower 190
Curb Weight: 3.7ton
Emission China VI

Overview

The Foton Forland Foton Times ES5 190hp 4X2(6 wheels) Power Supply Truck Chassis (China VI) is a power supply truck featuring 3.7ton GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 190 hp and China VI emissions.

China VI 190 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.995×2.27×2.45m
Truck Type: power supply truck
Drive type: 4X2
Vehicle origin: Shandong Zhucheng
Wheelbase: 3800mm
Front track width: 1795mm
rear track: 1800mm
Curb Weight: 3.7ton
Max. speed: 90km/h
Front/rear suspension: 1.175/1.36m
Engine parameters
Engine Model: WeichaiWP4.1NQ190E61
Number of cylinders: 4cylinder
Displacement: 4.088L
Emission standard: China VI
Max output power: 140kW
Max hp: 190Horsepower
Rated speed: 2600rpm
Engine Type: High-pressure common rail, EGR+DOC+DPF+SCR
Body Parameters
Body Brand: Foton Times
Chassis Specs
Chassis Brand: Foton Times
Chassis Series: Linghang ES5
Chassis Model: BJ1104VEJFA-02
Front axle description: 3T
rear axle description: 1092Z/7.2T
Axle ratio: 4.33
Leaf spring count: 8/10+6
Transmission Parameters
Number of gears: 6Gear
Transmission Model: WLYWLY6G70
Tire
Tire Size: 8.25R16LT 18PR
Number of tires: 6pcs

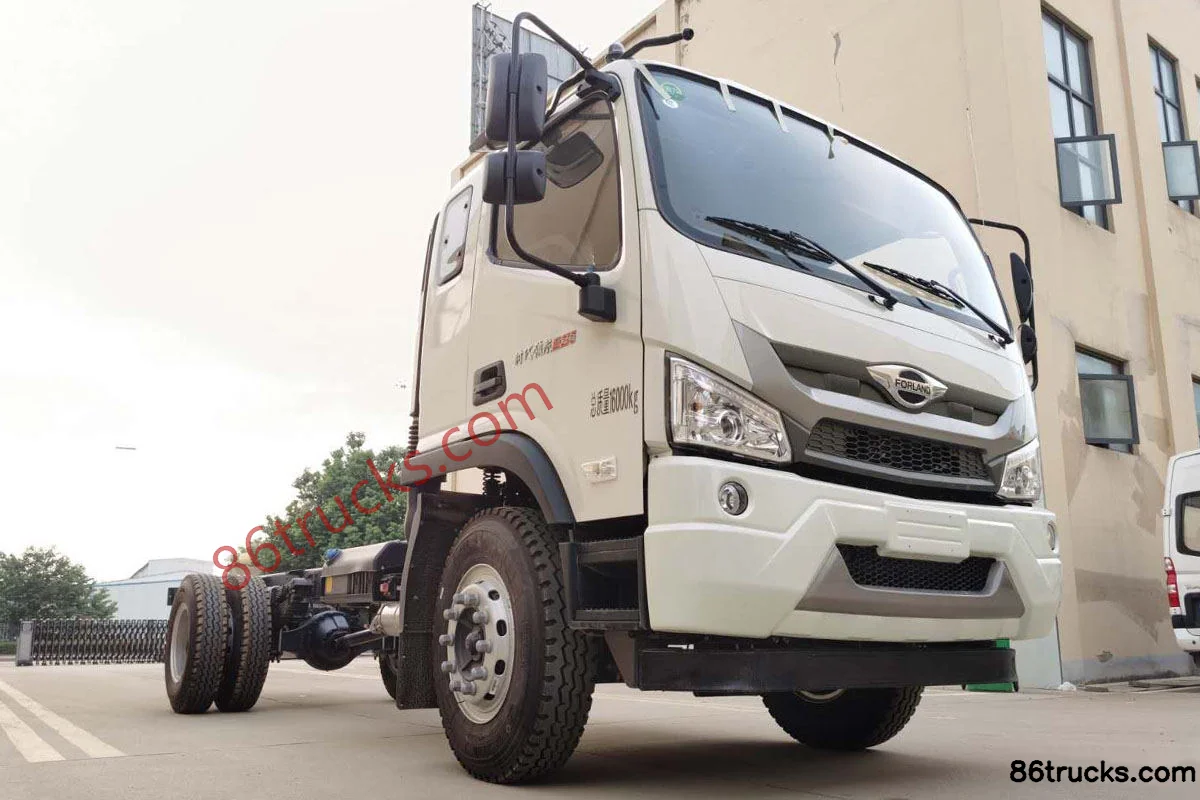

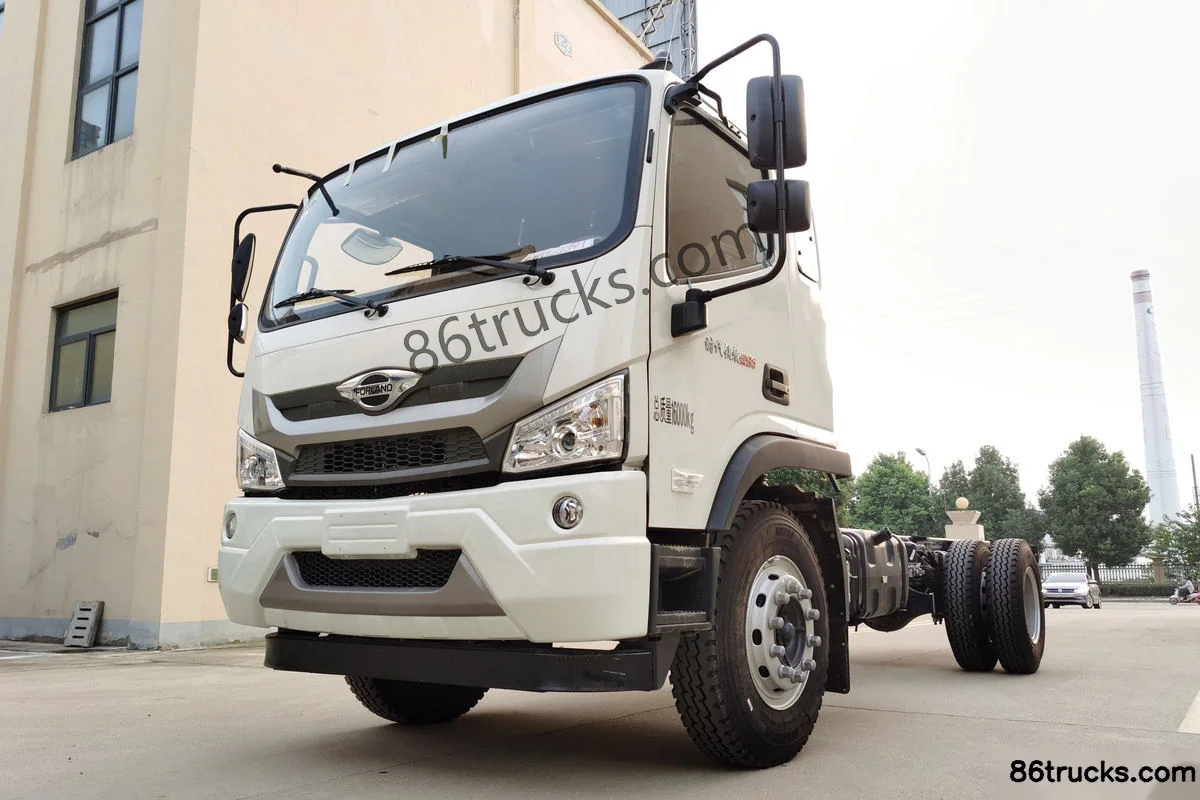

Photos

Exterior2

2 photos

FAQ

What is the export price of Foton Times ES5 190hp 4X2(6 wheels) Power Supply Truck Chassis (China VI), and what does it include?

Foton Times ES5 190hp 4X2(6 wheels) Power Supply Truck Chassis (China VI) export reference is about From $20,819; MSRP is ¥14.99M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Times ES5 190hp 4X2(6 wheels) Power Supply Truck Chassis (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Times ES5 190hp 4X2(6 wheels) Power Supply Truck Chassis (China VI)?

Key specs of Foton Times ES5 190hp 4X2(6 wheels) Power Supply Truck Chassis (China VI): Drive: 4x2; Horsepower: 190 hp; Emission: China VI. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Times ES5 190hp 4X2(6 wheels) Power Supply Truck Chassis (China VI) suited for?

Foton Times ES5 190hp 4X2(6 wheels) Power Supply Truck Chassis (China VI) is a power supply truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Foton Times ES5 190hp 4X2(6 wheels) Power Supply Truck Chassis (China VI) differ from other variants in the same series?

Foton Times ES5 190hp 4X2(6 wheels) Power Supply Truck Chassis (China VI) belongs to Foton Forland Linghang ES5 Medium Truck (power supply truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Times ES5 190hp 4X2(6 wheels) Power Supply Truck Chassis (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Times ES5 190hp 4X2(6 wheels) Power Supply Truck Chassis (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
