Xichai CA6DN1-39E4 390 hp 12.5L China IV Diesel Engine

Export reference
MSRP N/A
Intake type:: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load:: ≤193g/kW.h
noise at 1m:: ≤96.5dB
Suitable Range: 12-25m high-grade highways, 40t+ heavy cargo trucks, 16m³ concrete mixer trucks, 60+ loaders
Engine Model: CA6DN1-39E4
Engine Series: Aowei 6DN1 Series

Overview

The Xichai CA6DN1-39E4 390 hp 12.5L China IV Diesel Engine is a parts product with fit for 12-25m high-grade highways, 40t+ heavy cargo trucks, 16m³ concrete mixer trucks, 60+ loaders and spec CA6DN1-39E4.

China IV 390 Diesel

Model Specs

Legend: ● Standard ○ Optional - N/A

Engine parameters
Engine Series: Aowei 6DN1 Series
Engine manufacturer: Xichai
Suitable Range: 12-25m high-grade highways, 40t+ heavy cargo trucks, 16m³ concrete mixer trucks, 60+ loaders
Intake type: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load: ≤193g/kW.h
Engine net weight: 1250kg
Engine Dimensions: 1483×885×1284mm
noise at 1m: ≤96.5dB
Bore × Stroke: 131x155mm
Valves per cylinder: 4pcs
Engine Brand: Xichai
Engine Model: CA6DN1-39E4
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.53L
Emission standard: China IV
Max output power: 287kW
Max hp: 390Horsepower
Max torque: 1750N·m
Max torque speed: 1200-1300rpm
Rated speed: 1900rpm
Engine Type: 6-cylinder inline, direct injection, turbocharged intercooled, electronic common rail

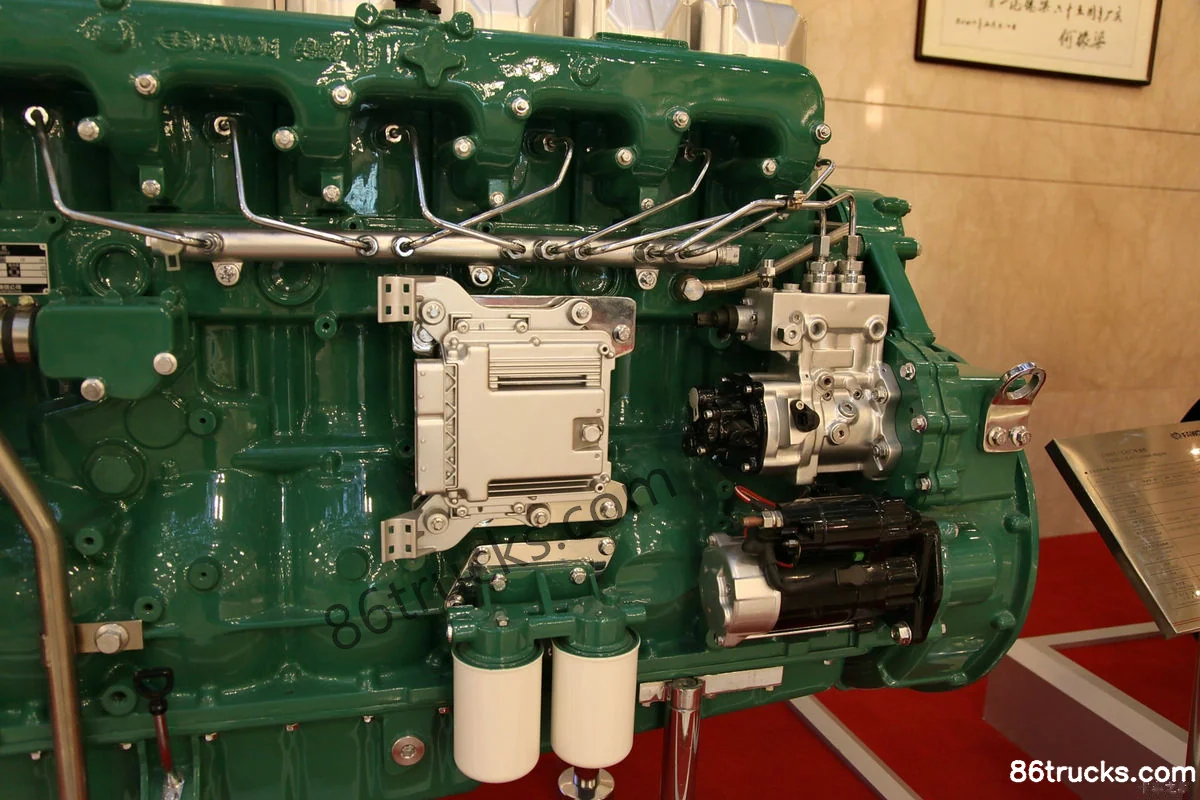

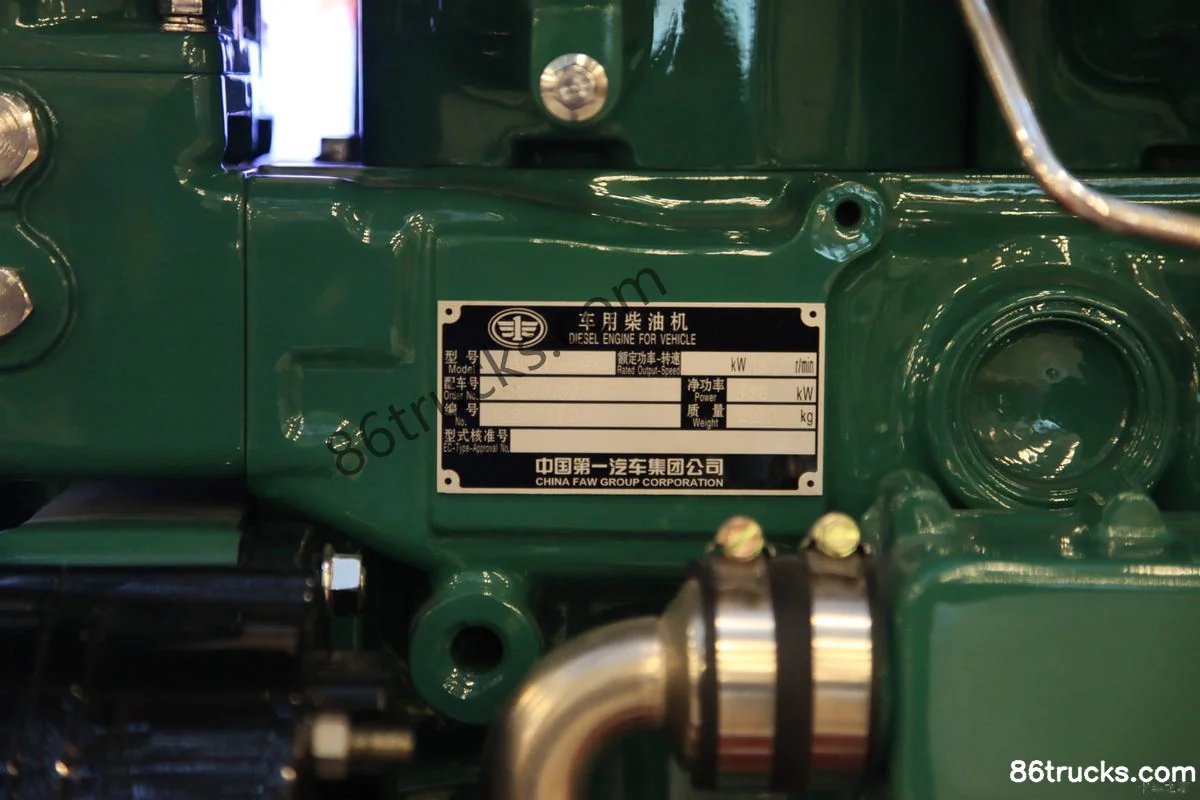

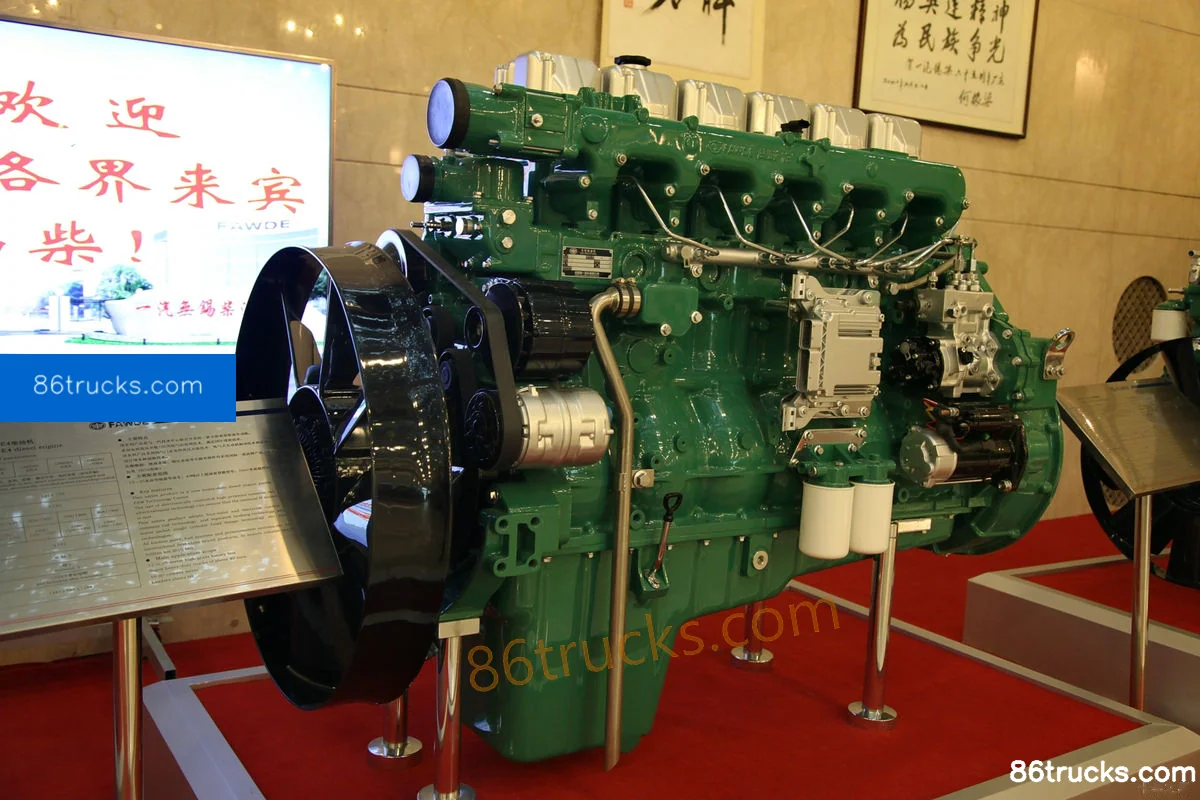

Photos

Exterior3

3 photos

FAQ

What emission standard does Xichai CA6DN1-39E4 390 hp 12.5L China IV Diesel Engine use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Xichai CA6DN1-39E4 390 hp 12.5L China IV Diesel Engine?

Key specs of Xichai CA6DN1-39E4 390 hp 12.5L China IV Diesel Engine: Horsepower: 390 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Xichai CA6DN1-39E4 390 hp 12.5L China IV Diesel Engine suited for?

Match Xichai CA6DN1-39E4 390 hp 12.5L China IV Diesel Engine to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Xichai CA6DN1-39E4 390 hp 12.5L China IV Diesel Engine differ from other variants in the same series?

Xichai CA6DN1-39E4 390 hp 12.5L China IV Diesel Engine belongs to Xichai Aowei 6DN1 Series (engine). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Xichai CA6DN1-39E4 390 hp 12.5L China IV Diesel Engine?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Xichai CA6DN1-39E4 390 hp 12.5L China IV Diesel Engine?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
