Sinotruk Xianfeng 137 hp 4X2(6 wheels) 3.1 m dump truck

Export reference
From $22,889
MSRP ¥16.48M CNY
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.72ton
Wheelbase:: 2600mm
Tire Size:: 7.00R16LT 8PR
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 137
Cargo box type: Dump type

Overview

The Sinotruk Xianfeng 137 hp 4X2(6 wheels) 3.1 m dump truck is a Light Truck featuring 1.645t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN25PLUS2 engine, 137 hp, China VI emissions and WLY transmission.

China VI 137 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3048F17FB3
Drive type: 4X2
Wheelbase: 2600mm
engine: Yunnei PowerYN25PLUS2
transmission: WLYWLY10H35
Rear Axle Ratio: 6.166
Cab length: 4.995m
Cab width: 1.9m
Cab height: 2.18m
Front track width: 1501mm
rear track: 1605mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Yong'an, Fujian
tonnage class: Light Truck
Approach angle: 20°
departure angle: 16°
Remarks: Standard: metallic paint, full-enclosed interior; Optional: reverse buzzer, 265/70R16-10PR tire, rear axle 4.2T (drum), ratio 5.833/5.375, electric air horn, 11/9+7
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN25PLUS2
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.499L
Emission standard: China VI
Max output power: 101kW
Max hp: 137Horsepower
Transmission Parameters
Transmission Model: WLYWLY10H35
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.1m
Cargo box width: 1.8m
Cargo box height: 0.8m
Cab parameters
Cab: Single Row
Cab width: 1750mm
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 80L
Chassis Specs
Front axle description: 2T
Front axle allowable load: 1785kg
Frame Dimensions: 196/760mm
rear axle allowable load: 2710kg
Axle ratio: 6.166
Leaf spring count: 3/8+5
Tire
Tire Size: 7.00R16LT 8PR
interior configuration
AC control type: Manual
Exterior features
Aluminum air tank:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

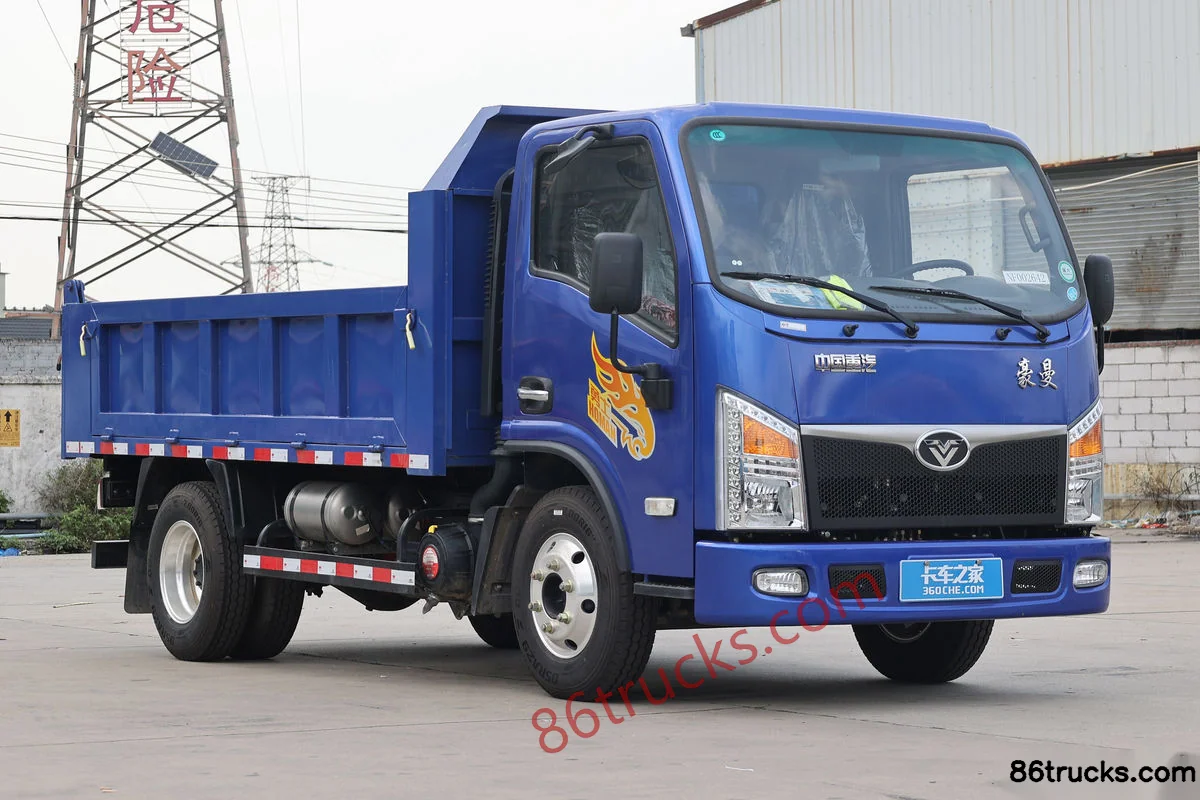

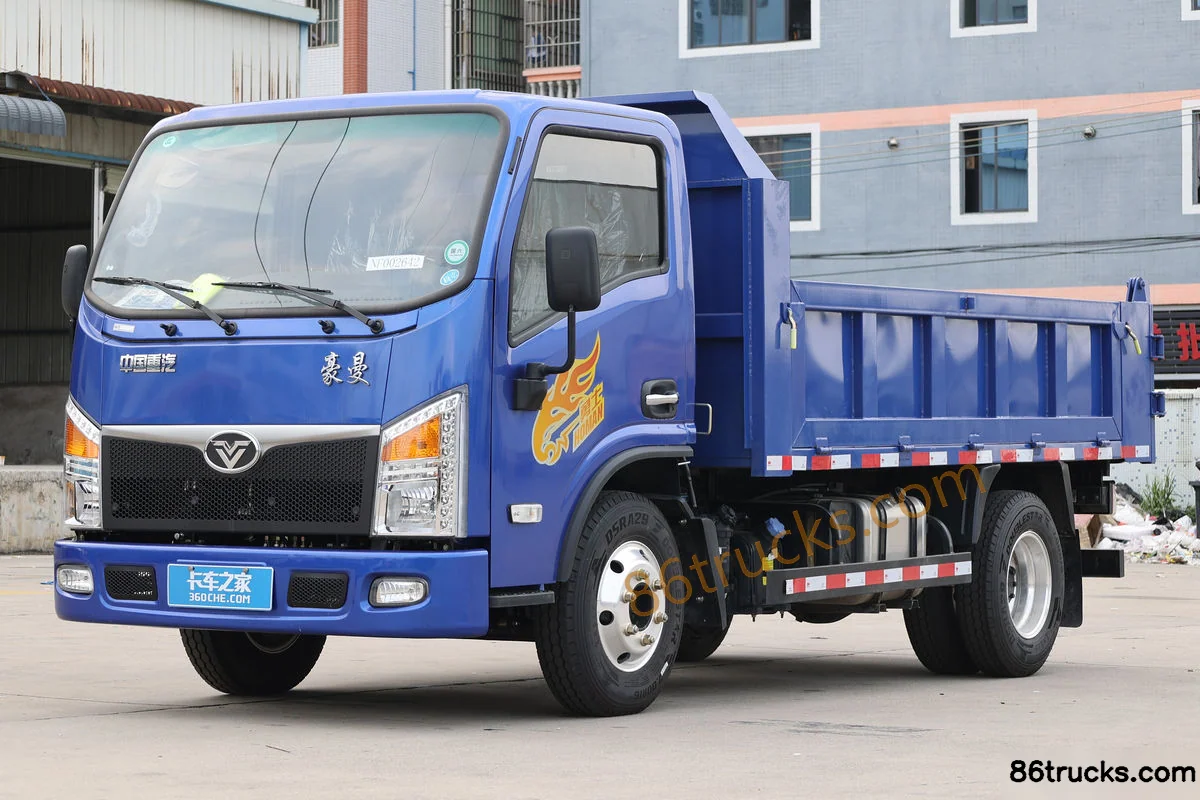

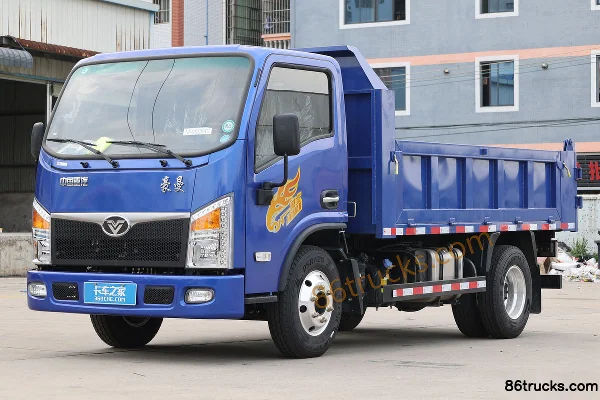

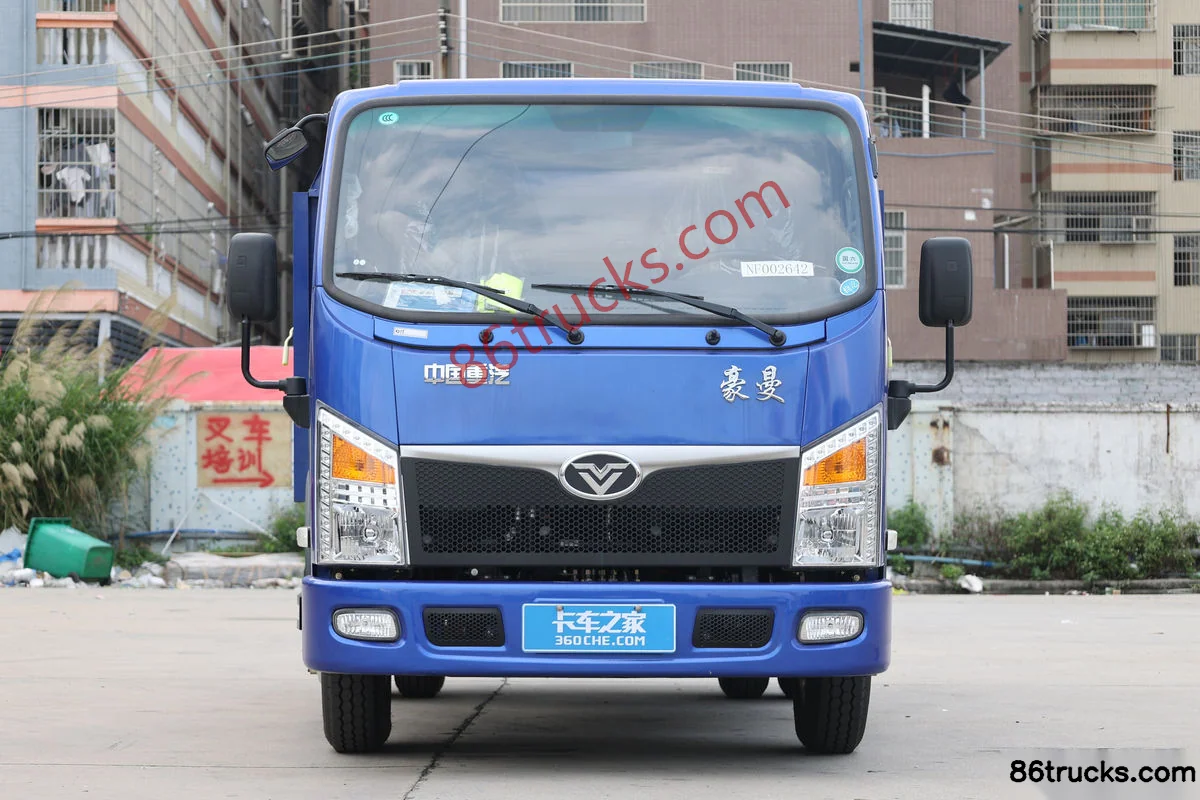

Exterior3

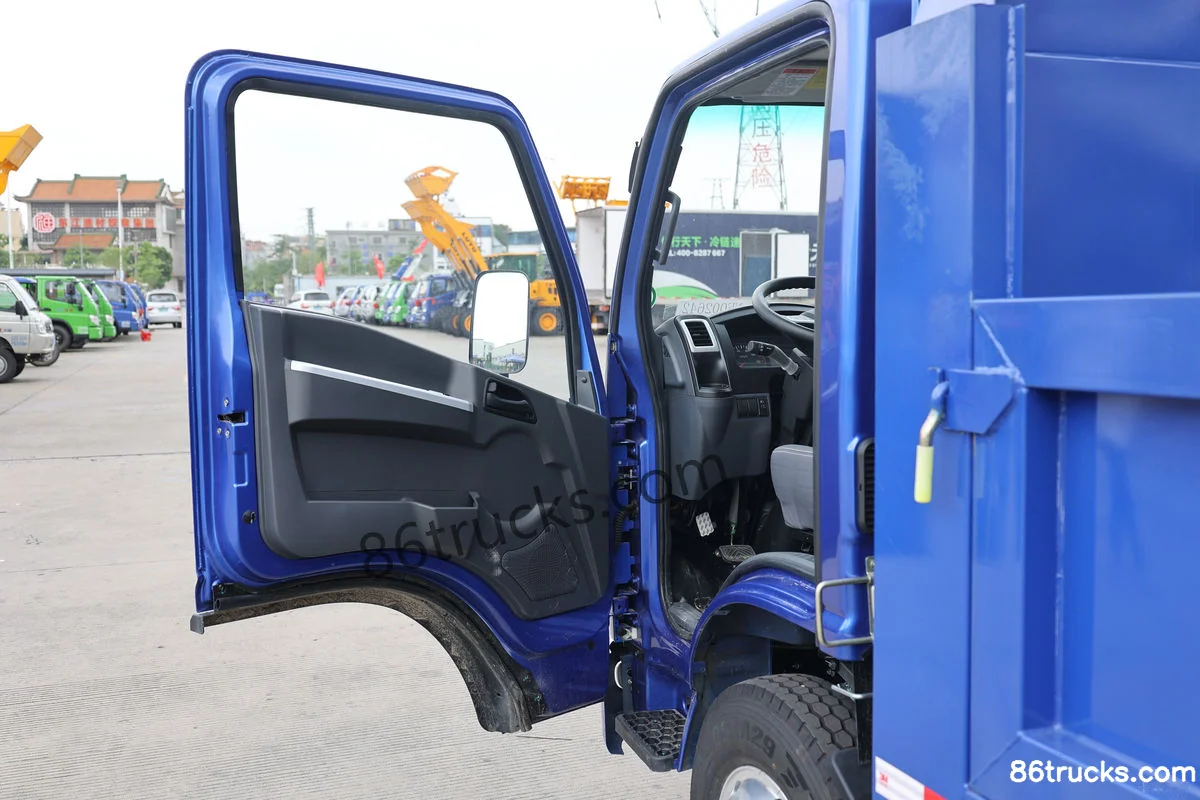

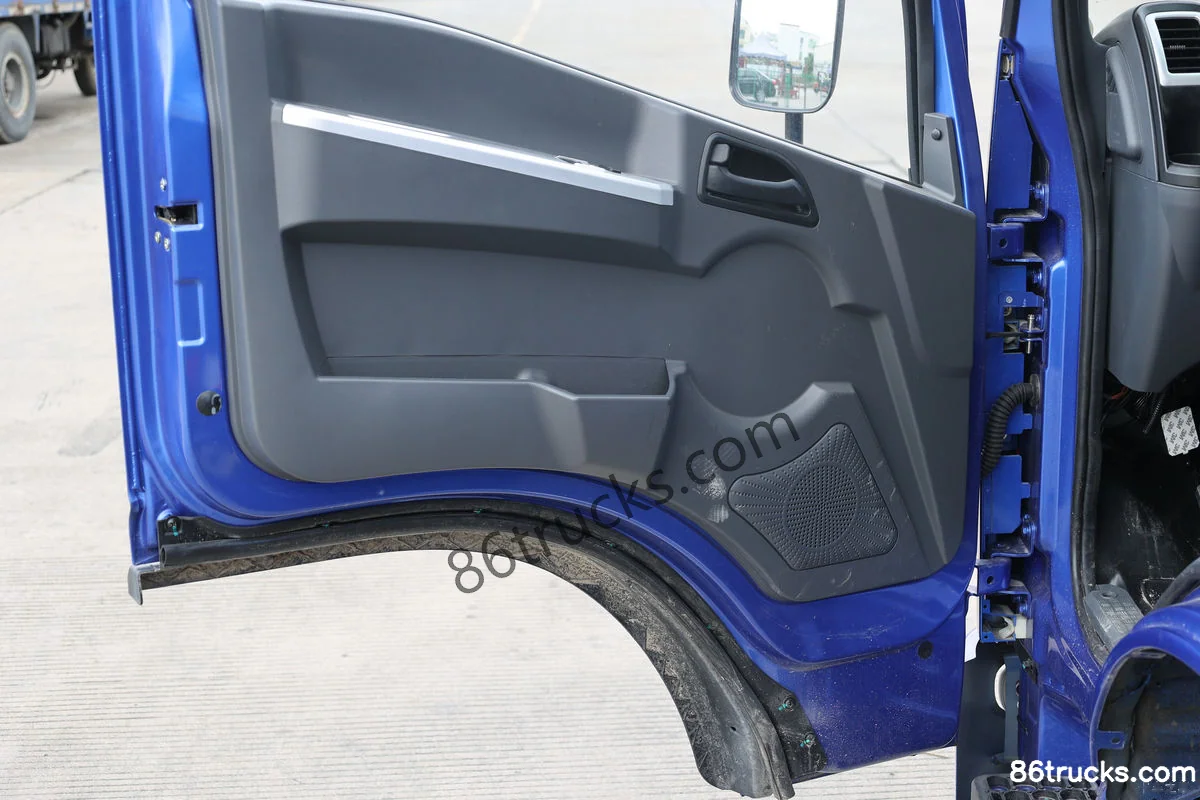

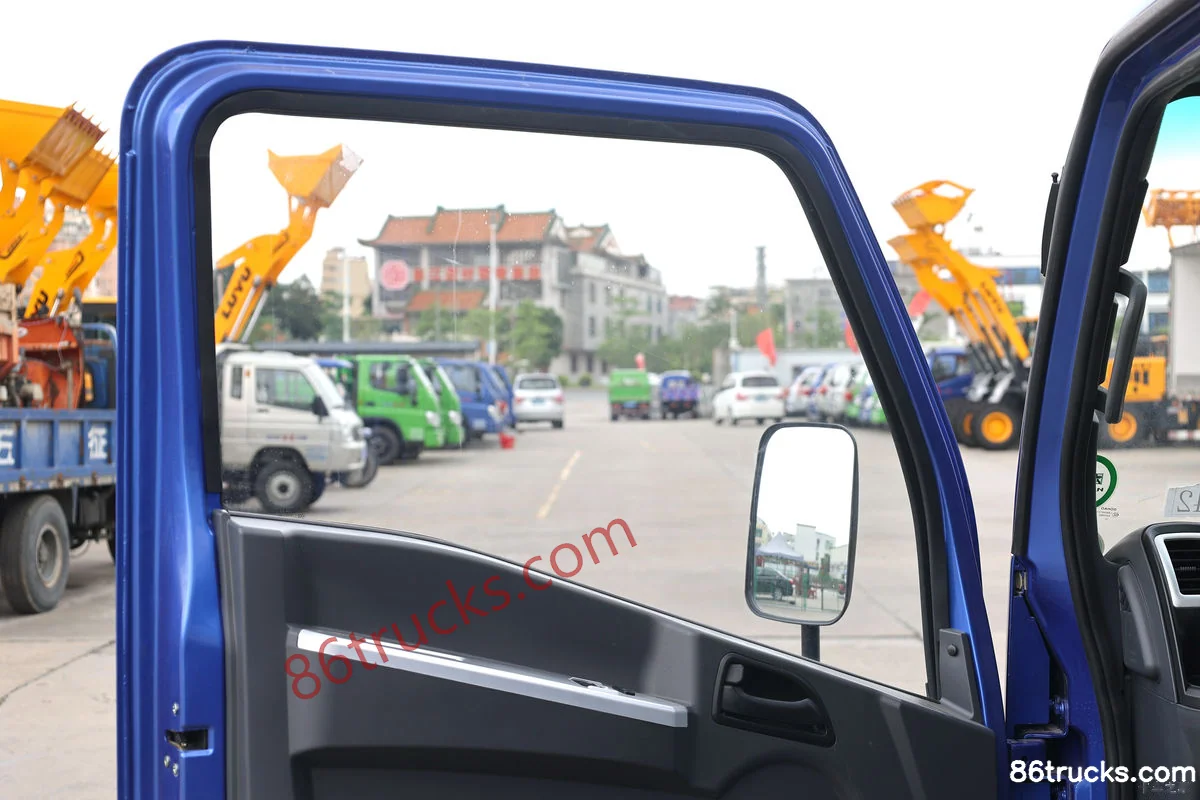

Cab3

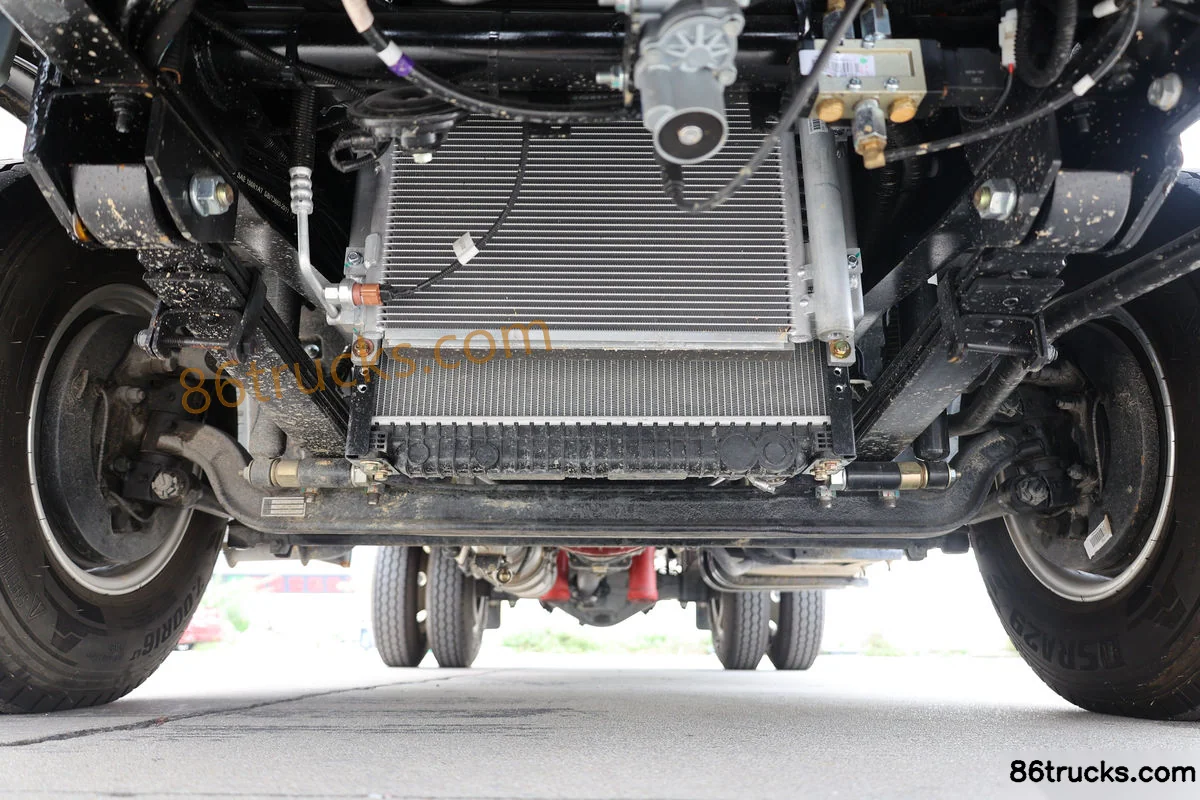

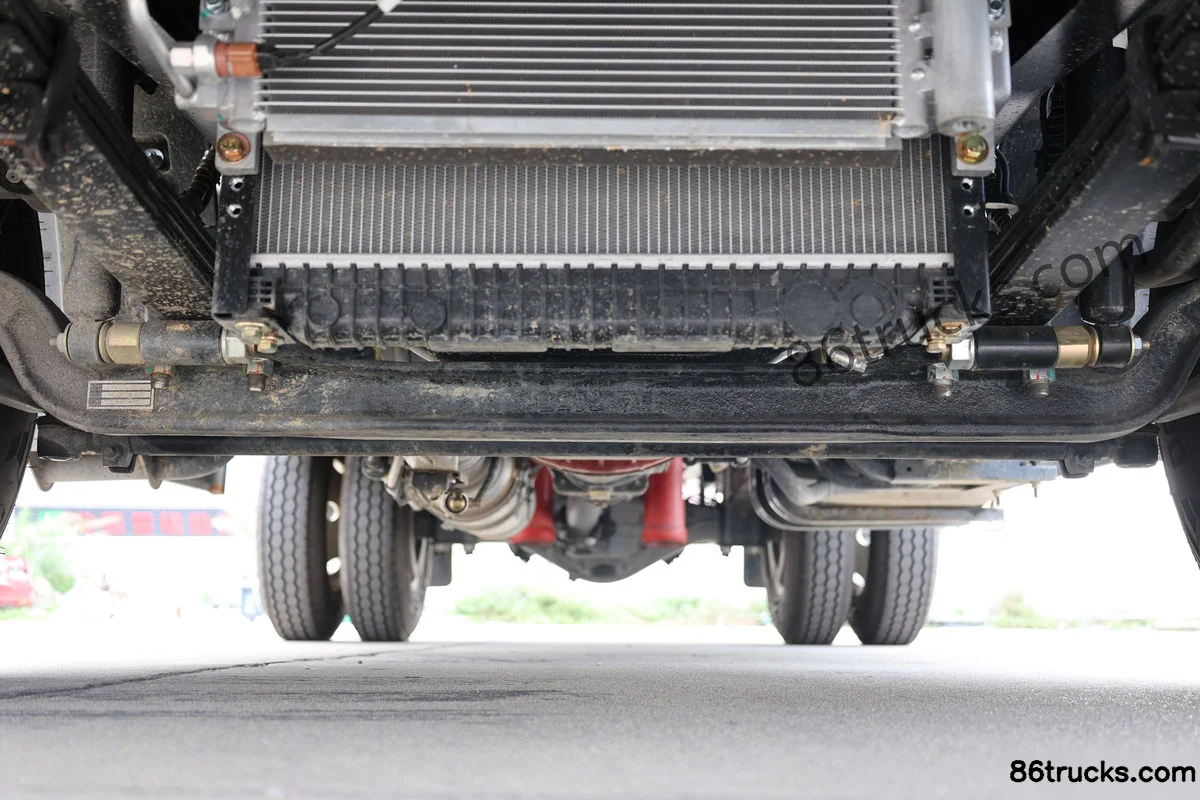

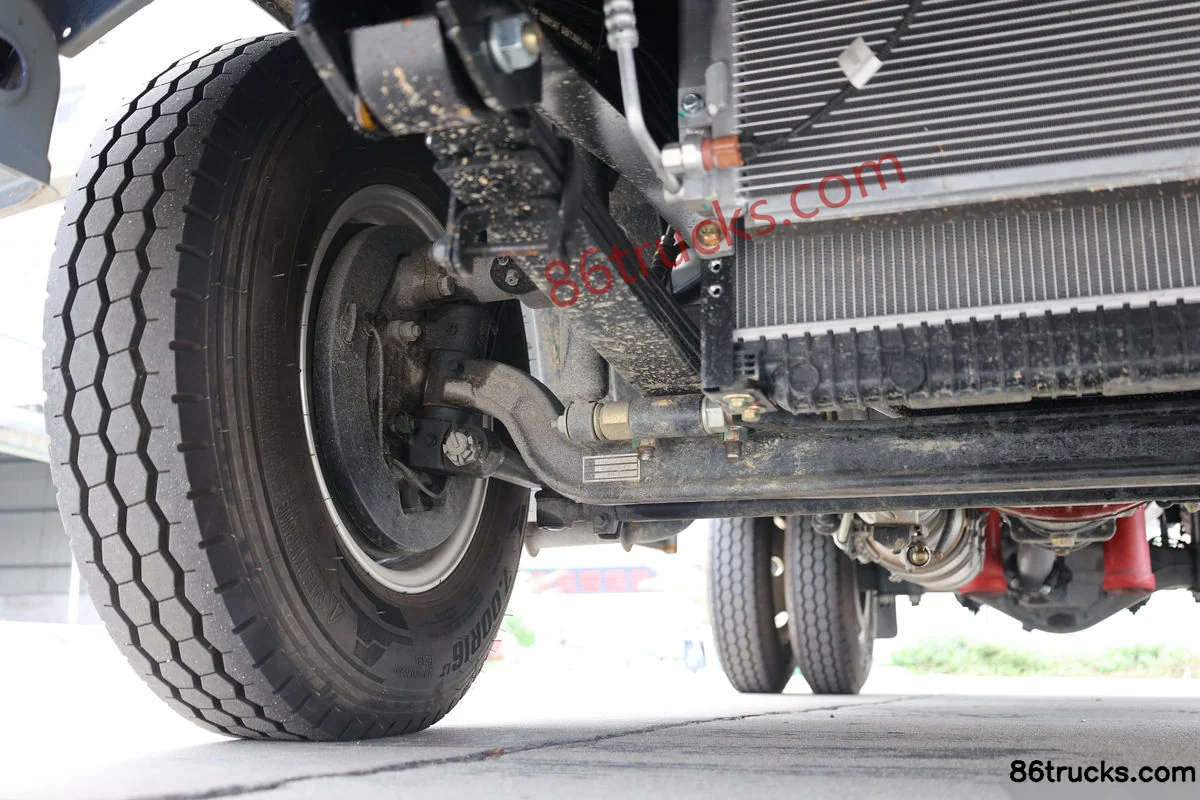

Chassis3

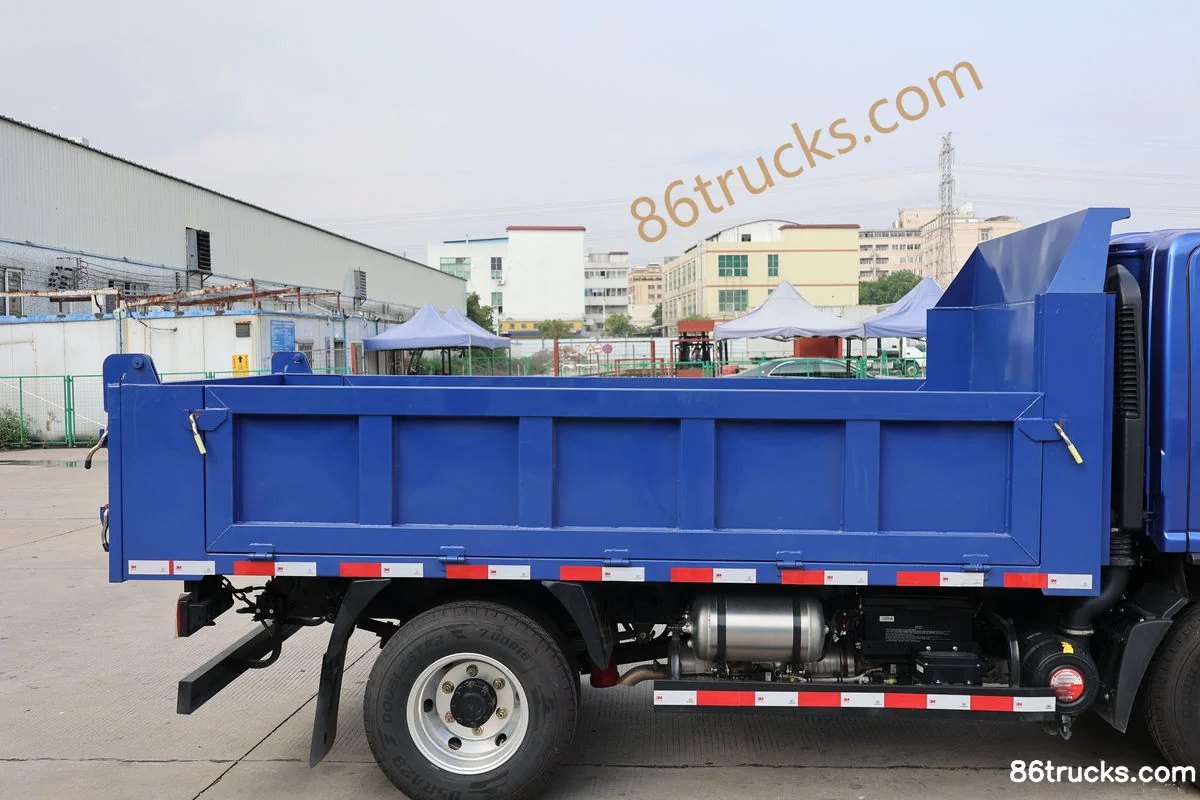

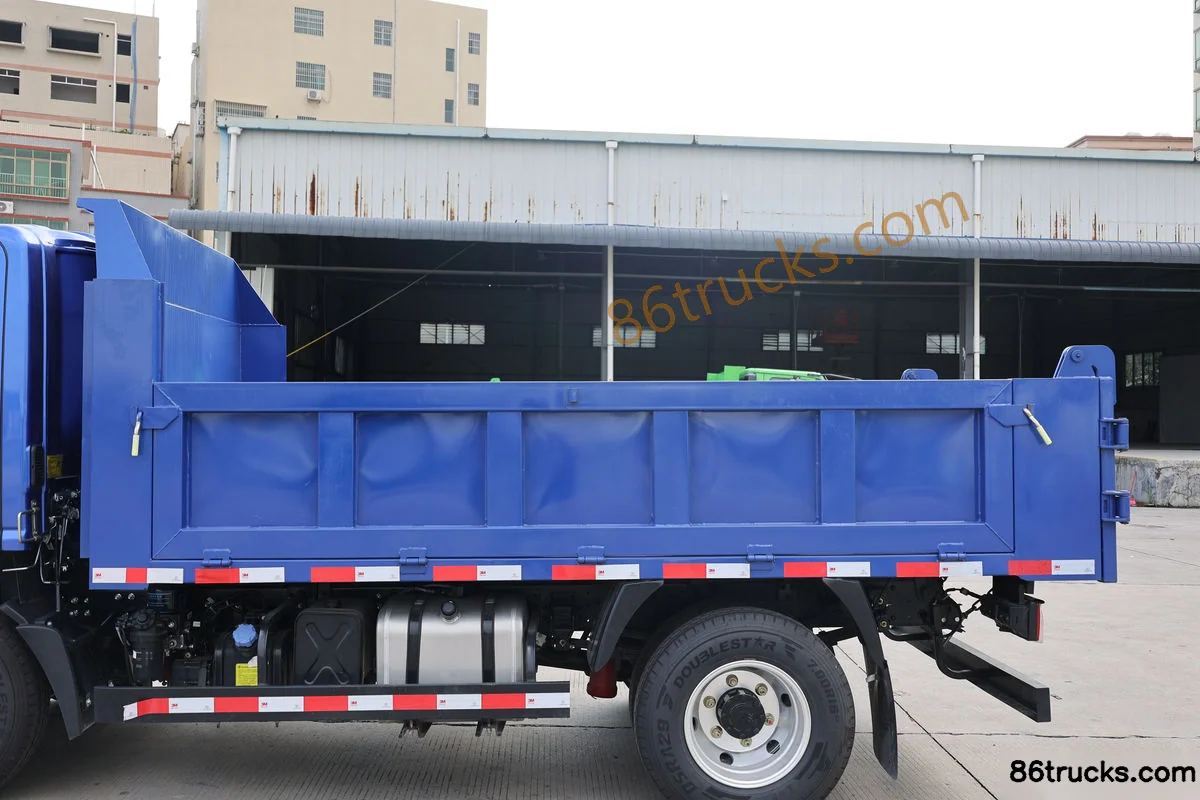

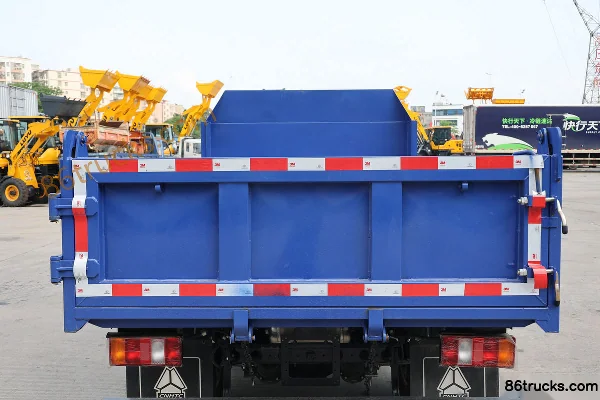

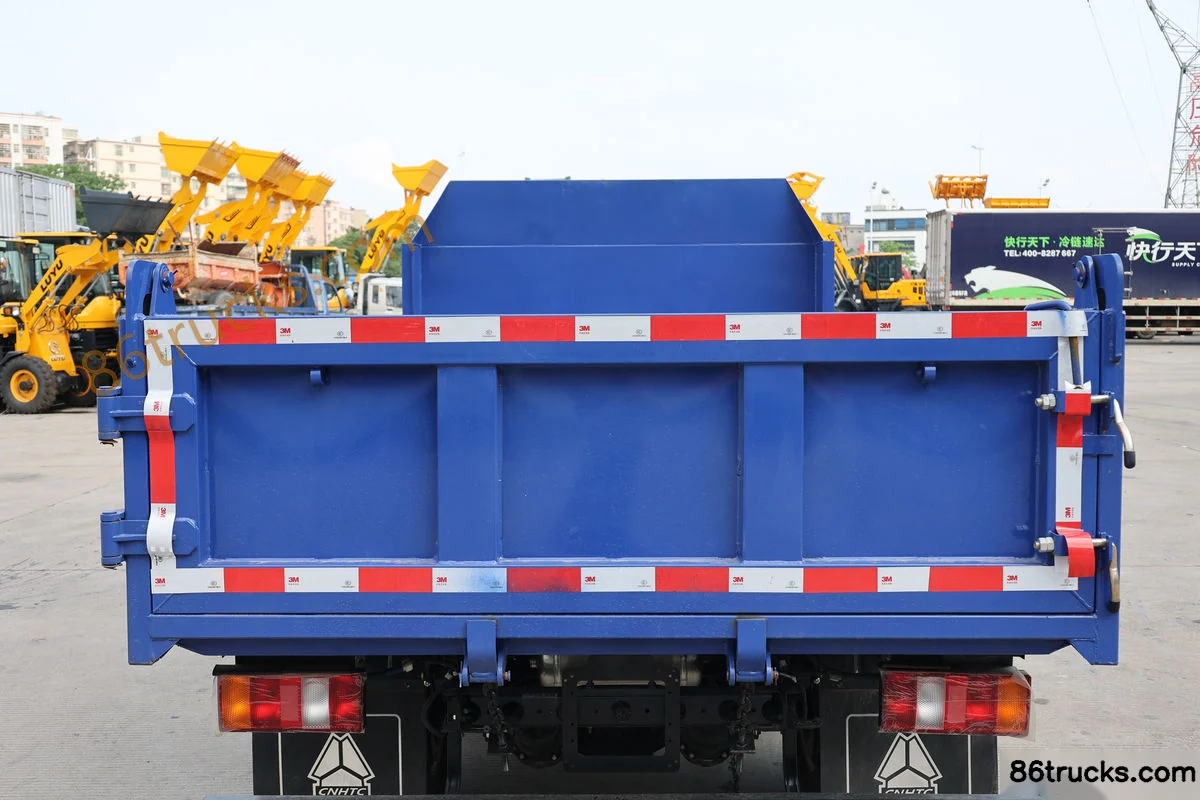

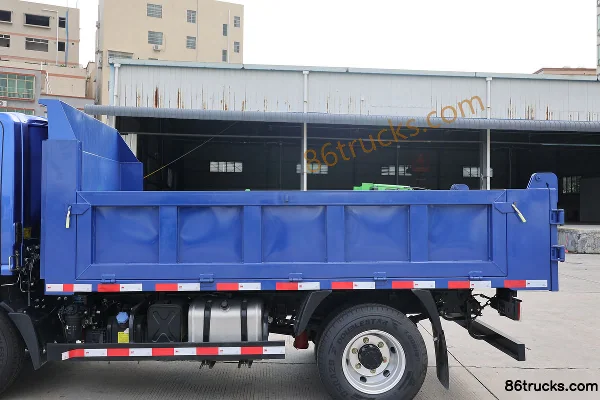

Body3

12 photos

FAQ

What is the export price of Sinotruk Xianfeng 137 hp 4X2(6 wheels) 3.1 m dump truck, and what does it include?

Sinotruk Xianfeng 137 hp 4X2(6 wheels) 3.1 m dump truck export reference is about From $22,889; MSRP is ¥16.48M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Xianfeng 137 hp 4X2(6 wheels) 3.1 m dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Xianfeng 137 hp 4X2(6 wheels) 3.1 m dump truck?

Key specs of Sinotruk Xianfeng 137 hp 4X2(6 wheels) 3.1 m dump truck: Drive: 4x2; Horsepower: 137 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Xianfeng 137 hp 4X2(6 wheels) 3.1 m dump truck suited for?

Sinotruk Xianfeng 137 hp 4X2(6 wheels) 3.1 m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Xianfeng 137 hp 4X2(6 wheels) 3.1 m dump truck differ from other variants in the same series?

Sinotruk Xianfeng 137 hp 4X2(6 wheels) 3.1 m dump truck belongs to Sinotruk Pioneer Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Xianfeng 137 hp 4X2(6 wheels) 3.1 m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Xianfeng 137 hp 4X2(6 wheels) 3.1 m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
