Kama Kaijie M 129 hp 4X2(6 wheels) 4.62m truck-mounted crane

Export reference
From $20,278
MSRP ¥14.6M CNY
Emission: China V
Fuel: Diesel
Wheelbase:: 4200mm
Cab dimensions:: 7.66×2.28×3.51m
Type:: Truck with crane
GVWR:: 9.995ton
Lifting capacity: 4.5ton
Drive 4X2 (6 wheels)
Horsepower 129
Rated mass: 3.34ton

Overview

The Kama Kaijie M 129 hp 4X2(6 wheels) 4.62m truck-mounted crane is a truck-mounted crane featuring 4.5ton tank capacity, 9.995t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 129 hp, China V emissions and Diesel fuel.

China V 129 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.66×2.28×3.51m
Type: Truck with crane
Drive type: 4X2
Wheelbase: 4200mm
Rated mass: 3.34ton
GVWR: 9.995ton
Front/rear suspension: 1.27/2.19m
Energy Type: Diesel
Body Parameters
Crane model: ST5S3
Lifting capacity: 4.5ton
crane self-weight: 1.55ton
Vehicle certification code: KMC5102JSQA42P5
Body Brand: Kama
Engine parameters
Injection System: Common Rail
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN38CRE1
fuel type: Diesel
Displacement: 3.76L
Emission standard: China V
Max output power: 95kW
Max hp: 129Horsepower
Max torque: 365N·m
Max torque speed: 1600-2400rpm
Rated speed: 3000rpm
Chassis Specs
Chassis Brand: Kama
Chassis Series: Kaijie M
Chassis Model: KMC1102A42P5
Leaf spring count: 9/11+8
Transmission Parameters
Number of gears: 6Gear
Transmission Model: 6-speed transmission
Tire
Tire Size: 8.25-16LT,8.25R16LT
Number of tires: 6pcs

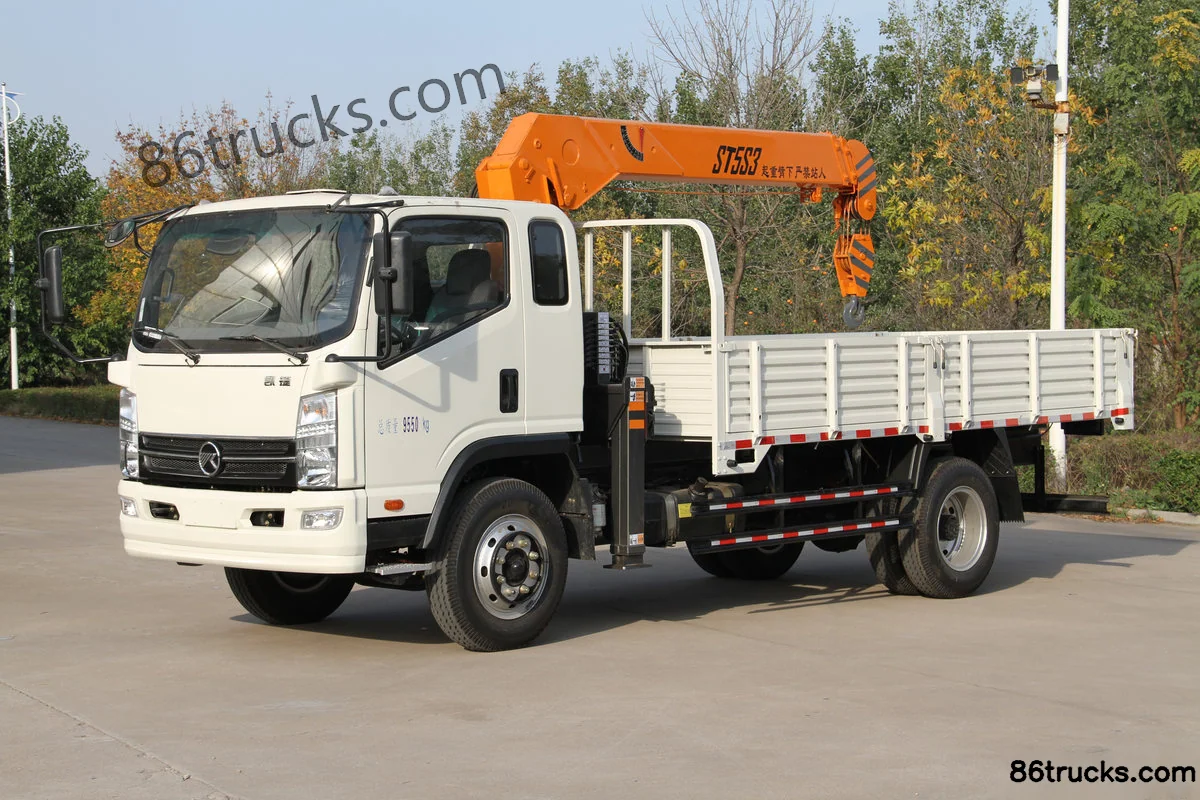

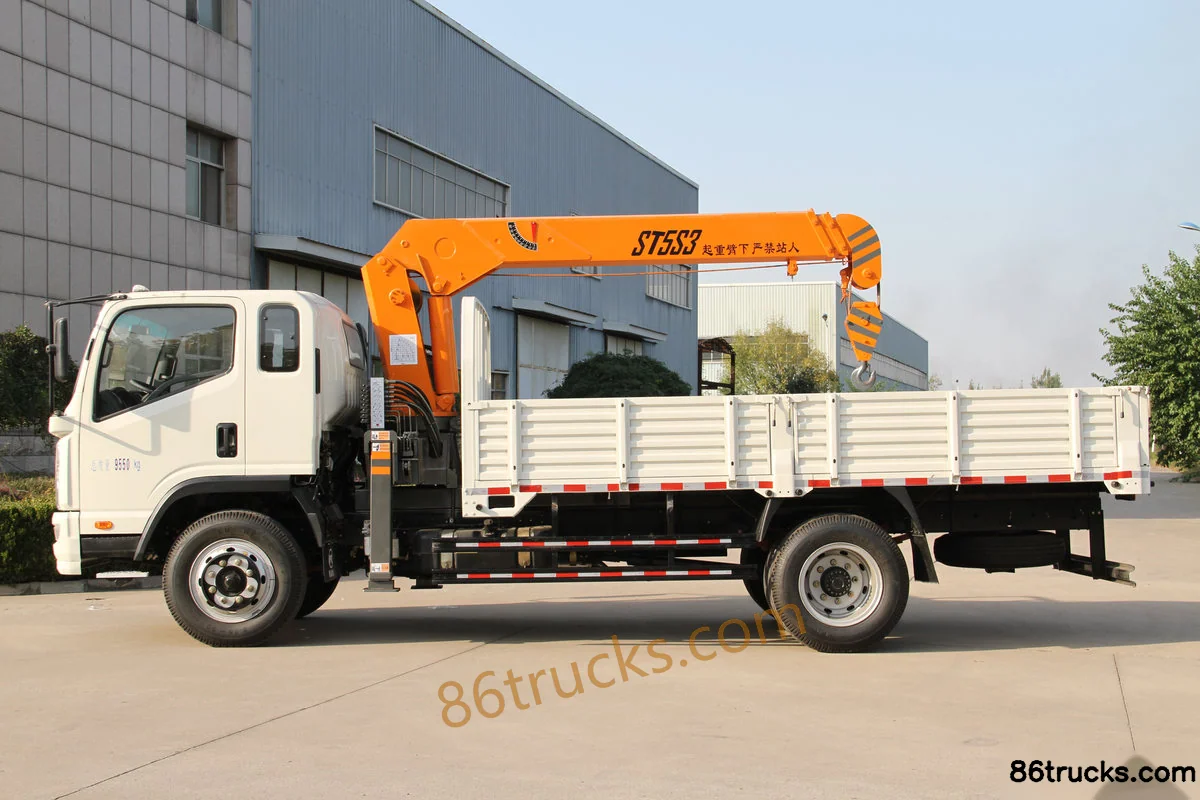

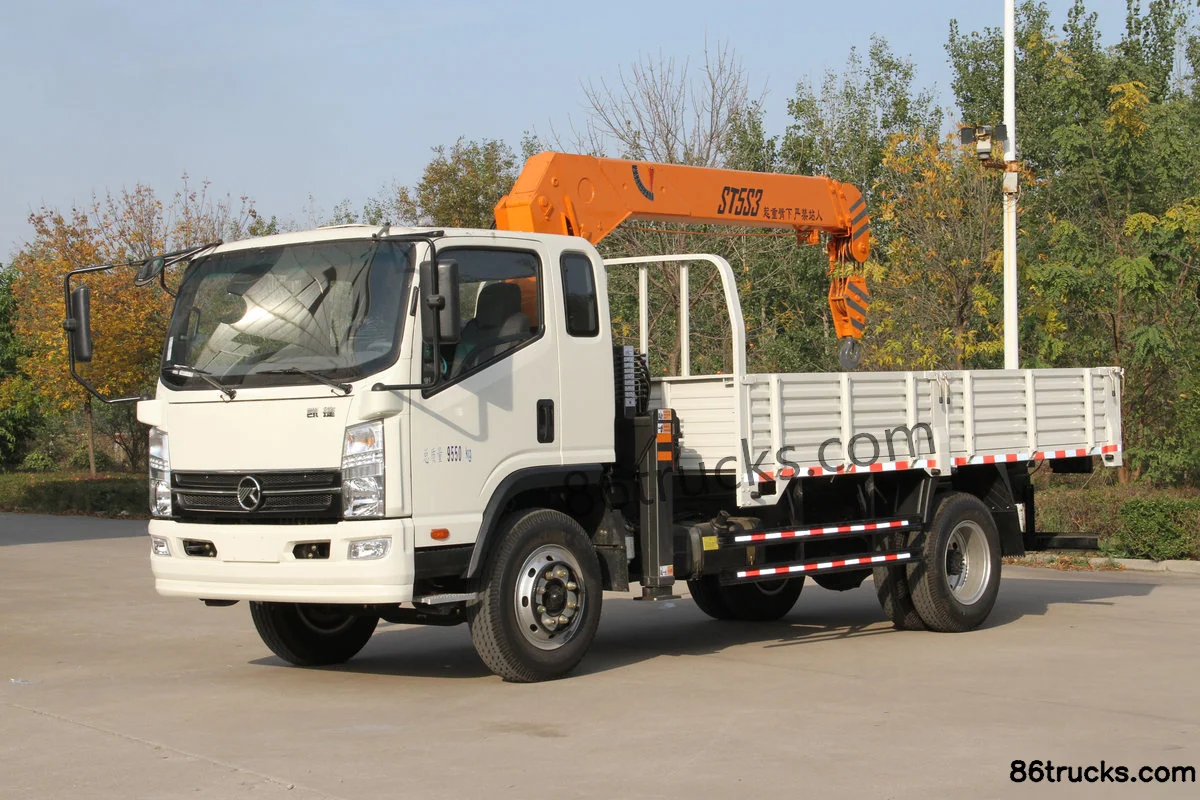

Photos

Exterior3

3 photos

FAQ

What is the export price of Kama Kaijie M 129 hp 4X2(6 wheels) 4.62m truck-mounted crane, and what does it include?

Kama Kaijie M 129 hp 4X2(6 wheels) 4.62m truck-mounted crane export reference is about From $20,278; MSRP is ¥14.6M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Kama Kaijie M 129 hp 4X2(6 wheels) 4.62m truck-mounted crane use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Kaijie M 129 hp 4X2(6 wheels) 4.62m truck-mounted crane?

Key specs of Kama Kaijie M 129 hp 4X2(6 wheels) 4.62m truck-mounted crane: Drive: 4x2; Horsepower: 129 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Kaijie M 129 hp 4X2(6 wheels) 4.62m truck-mounted crane suited for?

Kama Kaijie M 129 hp 4X2(6 wheels) 4.62m truck-mounted crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Kama Kaijie M 129 hp 4X2(6 wheels) 4.62m truck-mounted crane differ from other variants in the same series?

Kama Kaijie M 129 hp 4X2(6 wheels) 4.62m truck-mounted crane belongs to Kama Kaijie M1 light truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Kaijie M 129 hp 4X2(6 wheels) 4.62m truck-mounted crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Kaijie M 129 hp 4X2(6 wheels) 4.62m truck-mounted crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
