Kama Kaijie M3 130 hp 4X2(6 wheels) truck-mounted crane (China VI)
EXW
Export quote
Kama Kaijie M1 light truck truck-mounted crane
Main model photos
403 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Kama Kaijie M3 130 hp 4X2(6 wheels) truck-mounted crane (China VI) | 4x2 / 130hp / China VI | ||
| Kama Kaijie M6 129hp 4X2(6 wheels) 4.62m truck-mounted crane | 4x2 / 129hp / China V | From $23,194 | |
| Kama Kaijie M 156 hp 4X2(6 wheels) 4.62m truck-mounted crane | 4x2 / 156hp / China V | From $21,667 | |
| Kama Kaijie M 129 hp 4X2(6 wheels) 4.62m truck-mounted crane | 4x2 / 129hp / China V | From $20,278 | |
| Kama Kaijie M 95hp 4X2(6 wheels) 3.5m truck-mounted crane | 4x2 / 95hp / China V | From $20,556 |

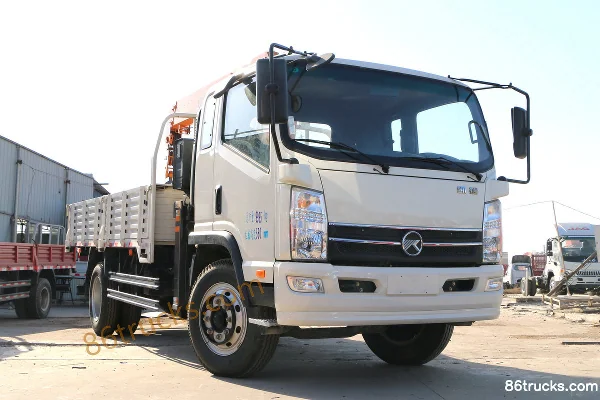

Kama Kaijie M6 129hp 4X2(6 wheels) 4.62m truck-mounted crane
EXW
From $23,194
Export quote
Kama Kaijie M 156 hp 4X2(6 wheels) 4.62m truck-mounted crane
EXW
From $21,667
Export quote

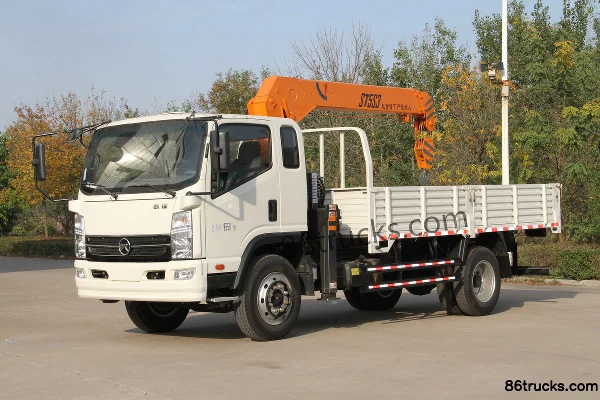

Kama Kaijie M 129 hp 4X2(6 wheels) 4.62m truck-mounted crane
EXW
From $20,278
Export quote
Kama Kaijie M 95hp 4X2(6 wheels) 3.5m truck-mounted crane
EXW
From $20,556
Export quote
Series Specs
Basic Info
Cab dimensions: 7.66×2.28×3.16 / 7.66×2.28×3.51 / 5.995×2.24×2.9m
Type: truck-mounted crane / Truck with crane
Drive type: 4X2
Wheelbase: 4200 / 3300mm
Rated mass: 3.34 / 0.43ton
GVWR: 9.995 / 4.495ton
Front/rear suspension: 1.27/2.19 / 1.135/1.56m
Energy Type: Diesel
Body Parameters
Other special notes: Jining Sitong Crane 4T
Crane model: ST5S3
Lifting capacity: 4.5ton
crane self-weight: 1.55ton
Vehicle certification code: KMC5102JSQA42P5 / KMC5042JSQA33D5
Body Brand: Kama
Engine parameters
Injection System: Common Rail
Engine Brand: Weichai / Yunnei Power
Engine Model: WeichaiWP2.3NQ130E61 / Yunnei PowerYN38CRE1 / Yunnei PowerYNF40E2 / Yunnei PowerYN27CRE1
Displacement: 2.29 / 3.76 / 3.92 / 2.672L
Emission standard: China VI / China V
Max output power: 96 / 95 / 115 / 70kW
Max hp: 130 / 129 / 156 / 95Horsepower
Max torque: 380 / 365 / 500 / 250N·m
Max torque speed: 1600-2400 / 1200-2000 / 1600-2600rpm
Rated speed: 3200 / 3000 / 2600rpm
Chassis Specs
Chassis Brand: Kama
Chassis Series: Kaijie M
Chassis Model: KMC1042K330DP6 / KMC1102A42P5 / KMC1042A33D5
rear axle description: 1080AQSM / 1069
Axle ratio: 4.875
Leaf spring count: 3/5+3 / 9/11+8 / 7/9+5
Transmission Parameters
Number of gears: 5 / 6Gear
Transmission Model: WLYWLY10H46 / 6-speed transmission / WLYWLY535
Cab parameters
Cab: 2030 day cab with half bunk, front-tilt wheel cover / Kaijie
Tire
Tire Size: 7.50R16 / 8.25-16LT / 8.25-16LT,8.25R16LT / 7.00-16LT 8PR
Number of tires: 6pcs
FAQ
What kind of truck is Kama Kama Kaijie M1 light truck truck-mounted crane?
Kama Kama Kaijie M1 light truck is an export-oriented truck-mounted crane lineup with about 5 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Kama Kaijie M1 light truck truck-mounted crane?
Kama Kaijie M1 light truck truck-mounted crane export reference is about $20,278 – $23,194. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Kama Kaijie M1 light truck truck-mounted crane cover?
Kama Kaijie M1 light truck truck-mounted crane mainly covers: Drive: 4x2; Horsepower: 95 hp / 129 hp / 130 hp / 156 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Kama Kaijie M1 light truck truck-mounted crane?
For Kama Kaijie M1 light truck truck-mounted crane: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Kama Kaijie M1 light truck truck-mounted crane include?
Kama Kaijie M1 light truck truck-mounted crane currently lists about 5 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Kama Kaijie M1 light truck truck-mounted crane?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
