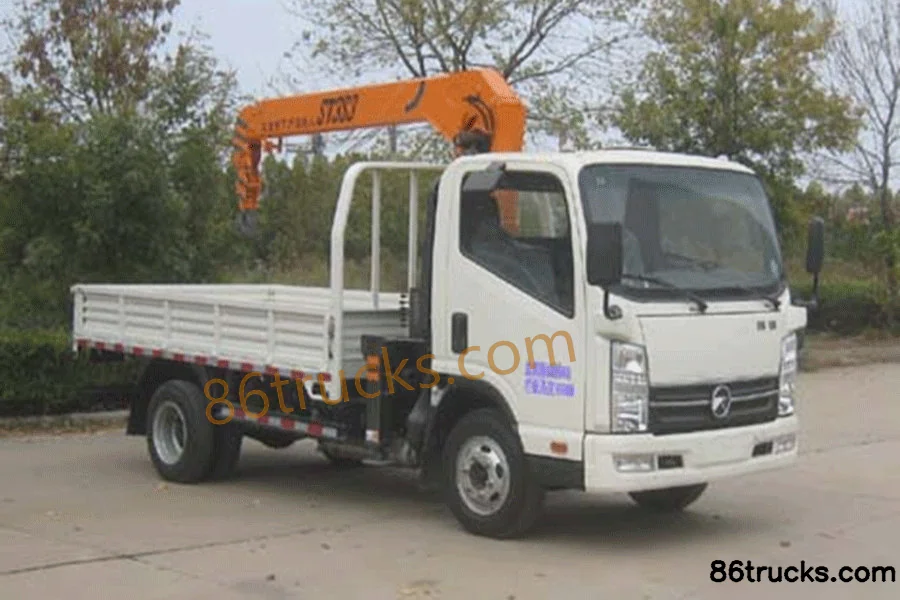

Kama Kaijie M 95hp 4X2(6 wheels) 3.5m truck-mounted crane

Export reference
From $20,556
MSRP ¥14.8M CNY
Fuel: Diesel
Wheelbase:: 3300mm
Cab dimensions:: 5.995×2.24×2.9m
Type:: truck-mounted crane
GVWR:: 4.495ton
Front/rear suspension:: 1.135/1.56m
Drive 4X2 (6 wheels)
Horsepower 95
Rated mass: 0.43ton
Emission China V

Overview

The Kama Kaijie M 95hp 4X2(6 wheels) 3.5m truck-mounted crane is a truck-mounted crane featuring 4.495t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 95 hp, China V emissions and Diesel fuel.

China V 95 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.995×2.24×2.9m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 3300mm
Rated mass: 0.43ton
GVWR: 4.495ton
Front/rear suspension: 1.135/1.56m
Energy Type: Diesel
Body Parameters
Other special notes: Jining Sitong Crane 4T
Vehicle certification code: KMC5042JSQA33D5
Body Brand: Kama
Engine parameters
Injection System: Common Rail
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN27CRE1
fuel type: Diesel
Displacement: 2.672L
Emission standard: China V
Max output power: 70kW
Max hp: 95Horsepower
Max torque: 250N·m
Max torque speed: 1600-2600rpm
Rated speed: 3200rpm
Chassis Specs
Chassis Brand: Kama
Chassis Series: Kaijie M
Chassis Model: KMC1042A33D5
rear axle description: 1069
Axle ratio: 4.875
Leaf spring count: 7/9+5
Transmission Parameters
Number of gears: 5Gear
Transmission Model: WLYWLY535
Cab parameters
Cab: Kaijie
Tire
Tire Size: 7.00-16LT 8PR
Number of tires: 6pcs

Photos

Exterior1

1 photos

FAQ

What is the export price of Kama Kaijie M 95hp 4X2(6 wheels) 3.5m truck-mounted crane, and what does it include?

Kama Kaijie M 95hp 4X2(6 wheels) 3.5m truck-mounted crane export reference is about From $20,556; MSRP is ¥14.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Kama Kaijie M 95hp 4X2(6 wheels) 3.5m truck-mounted crane use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Kaijie M 95hp 4X2(6 wheels) 3.5m truck-mounted crane?

Key specs of Kama Kaijie M 95hp 4X2(6 wheels) 3.5m truck-mounted crane: Drive: 4x2; Horsepower: 95 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Kaijie M 95hp 4X2(6 wheels) 3.5m truck-mounted crane suited for?

Kama Kaijie M 95hp 4X2(6 wheels) 3.5m truck-mounted crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Kama Kaijie M 95hp 4X2(6 wheels) 3.5m truck-mounted crane differ from other variants in the same series?

Kama Kaijie M 95hp 4X2(6 wheels) 3.5m truck-mounted crane belongs to Kama Kaijie M1 light truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Kaijie M 95hp 4X2(6 wheels) 3.5m truck-mounted crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Kaijie M 95hp 4X2(6 wheels) 3.5m truck-mounted crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
