JAC Kangling 29 Narrow Body 102 hp 4X2(6 wheels) 3.37m Semi Row Stake Light Truck

Export reference
From $10,417
MSRP ¥7.5M CNY
Horsepower: 102
Emission: China V
Fuel: Diesel
Engine: Yunnei Dewei D19
Transmission: Xingrui
Curb Weight:: 2.45ton

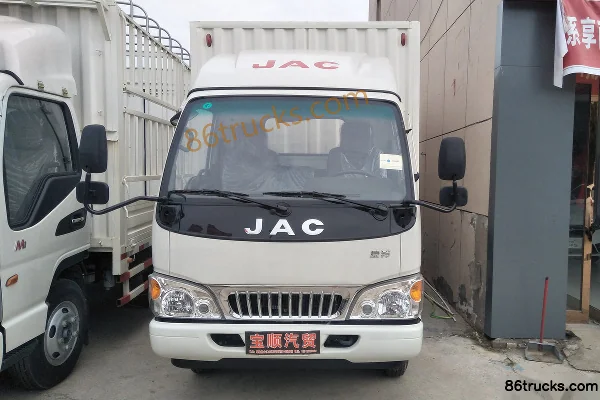

JAC Kangling 29 Narrow Body 102 hp 4X2(6 wheels) 3.37m Semi Row Stake Light Truck exterior
seating capacity: 3Personnel
Rated payload: 1.9ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The JAC Kangling 29 Narrow Body 102 hp 4X2(6 wheels) 3.37m Semi Row Stake Light Truck is a Light Truck featuring 3.37m cargo length, Stake type cargo body, 3Personnel volume and 1.9t payload. On the powertrain side, it comes with a Yunnei Dewei D19 engine, 102 hp, 4X2 (6 wheels) drive and China V emissions.

China V 102 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC5040CCYP93K1B4V
Type: stake truck
Drive type: 4X2
Wheelbase: 2850mm
Box length class: 3.4m
engine: Yunnei PowerD19TCIE1
transmission: Xingrui LC5T28
Cab length: 5.43m
Cab width: 1.91m
Cab height: 2.9m
Front track width: 1420mm
rear track: 1395mm
Curb Weight: 2.45ton
Rated payload: 1.9ton
GVWR: 4.48ton
Max. speed: 90km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 18°
departure angle: 14°
Front/rear suspension: 1.09/1.49m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD19TCIE1
Engine info: Yunnei Dewei D19
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 1.91L
Emission standard: China V
Max output power: 75kW
Max hp: 102Horsepower
Max torque: 250N·m
Max torque speed: 1600-2600rpm
Rated speed: 3600rpm
Engine Type: 4-cylinder inline, 16-valve, DOHC, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: Xingrui LC5T28
Transmission Brand: Xingrui
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.37m
Cargo box width: 1.81m
Cargo box height: 0.37m
*Cargo box interior width: 1.8099999427795
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1610kg
rear axle description: 2870
rear axle allowable load: 2870kg
Leaf spring count: 7/5+3
Tire
Tire Size: 6.50R16
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
Load-sensing proportioning valve (SABS):
interior configuration
steering wheel adjustment: Manual
Service brake
Brake Type: Hydraulic brake
Parking brake: parking brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

0 photos

FAQ

What is the export price of JAC Kangling 29 Narrow Body 102 hp 4X2(6 wheels) 3.37m Semi Row Stake Light Truck, and what does it include?

JAC Kangling 29 Narrow Body 102 hp 4X2(6 wheels) 3.37m Semi Row Stake Light Truck export reference is about From $10,417; MSRP is ¥7.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Kangling 29 Narrow Body 102 hp 4X2(6 wheels) 3.37m Semi Row Stake Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling 29 Narrow Body 102 hp 4X2(6 wheels) 3.37m Semi Row Stake Light Truck?

Key specs of JAC Kangling 29 Narrow Body 102 hp 4X2(6 wheels) 3.37m Semi Row Stake Light Truck: Drive: 4x2; Horsepower: 102 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei Dewei D19; Transmission: Xingrui. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling 29 Narrow Body 102 hp 4X2(6 wheels) 3.37m Semi Row Stake Light Truck suited for?

JAC Kangling 29 Narrow Body 102 hp 4X2(6 wheels) 3.37m Semi Row Stake Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Kangling 29 Narrow Body 102 hp 4X2(6 wheels) 3.37m Semi Row Stake Light Truck differ from other variants in the same series?

JAC Kangling 29 Narrow Body 102 hp 4X2(6 wheels) 3.37m Semi Row Stake Light Truck belongs to JAC H1 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling 29 Narrow Body 102 hp 4X2(6 wheels) 3.37m Semi Row Stake Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling 29 Narrow Body 102 hp 4X2(6 wheels) 3.37m Semi Row Stake Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
