Hongyan Jingang Heavy Truck 290hp 6X4(10 wheels) 5.8m Dump Truck

Export reference
From $44,444
MSRP ¥32M CNY
Emission: China III / Euro III
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.2ton
Wheelbase:: 3825+1350mm
Tire Size:: 12.00-20 11.00-20
Rated payload: 12.6ton
Drive 6X4 (10 wheels)
Horsepower 290
Cargo box type: Dump type

Overview

The SAIC Hongyan Hongyan Jingang Heavy Truck 290hp 6X4(10 wheels) 5.8m Dump Truck is a Heavy truck featuring 12.6t payload, 25t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP10.290 engine, 290 hp, China III / Euro III emissions and Fast Gear transmission.

China III / Euro III 290 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info

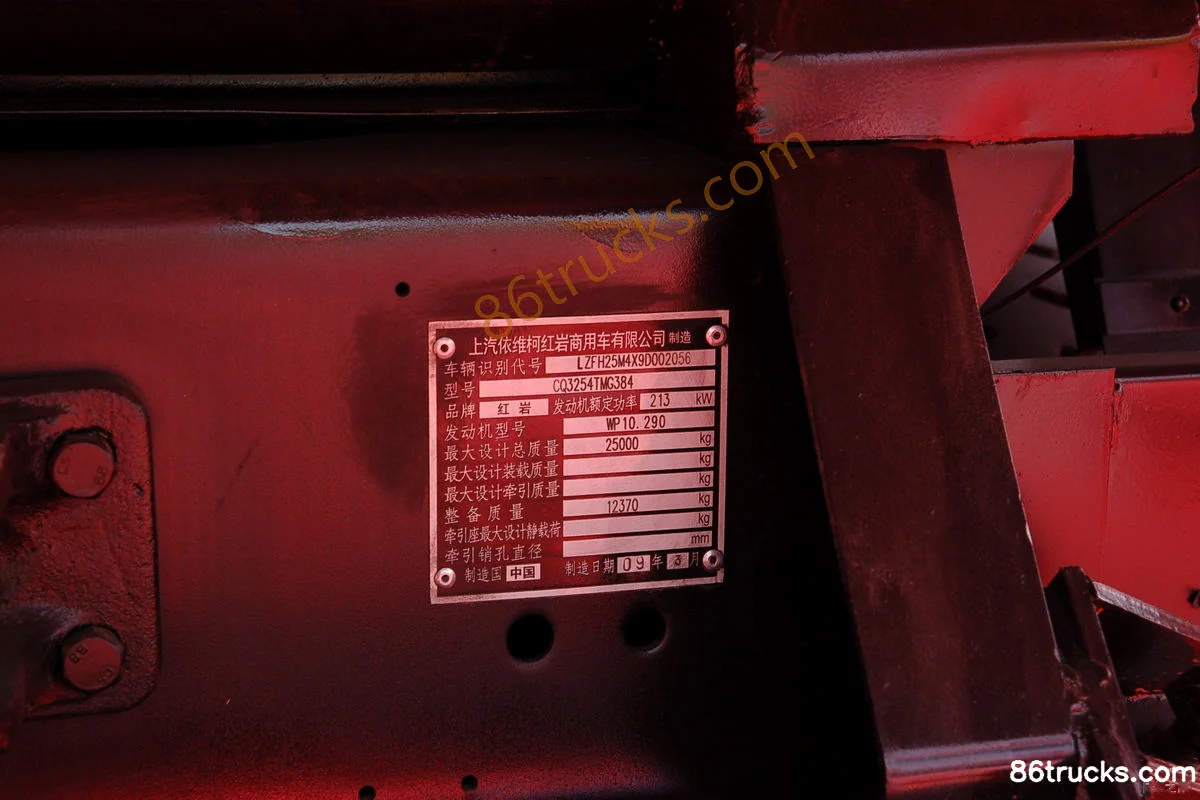

Model code (announced): CQ3254TPG384
Drive type: 6X4
Wheelbase: 3825+1350mm
engine: WeichaiWP10.290
transmission: Fast Gear9JS119
Rear Axle Ratio: 5.73
Cab length: 8.45m
Cab width: 2.5m
Cab height: 3.51m
Front track width: 2006mm
rear track: 1800mm
Curb Weight: 12.2ton
Rated payload: 12.6ton
GVWR: 25ton
Origin: Chongqing
tonnage class: Heavy truck
Approach angle: 26°
departure angle: 24°
Remarks: Optional T-type cab; 2 Optional mining bucket body; 3 Optional eco-friendly covered body, cover weight 300 kg, body length also 8.45 m, cargo box length also 5.8 m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.290
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1160N·m
Max torque speed: 1200-1600rpm
Rated speed: 2200rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast Gear9JS119
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.8m
Cargo box width: 2.3m
Cargo box height: 1.1m

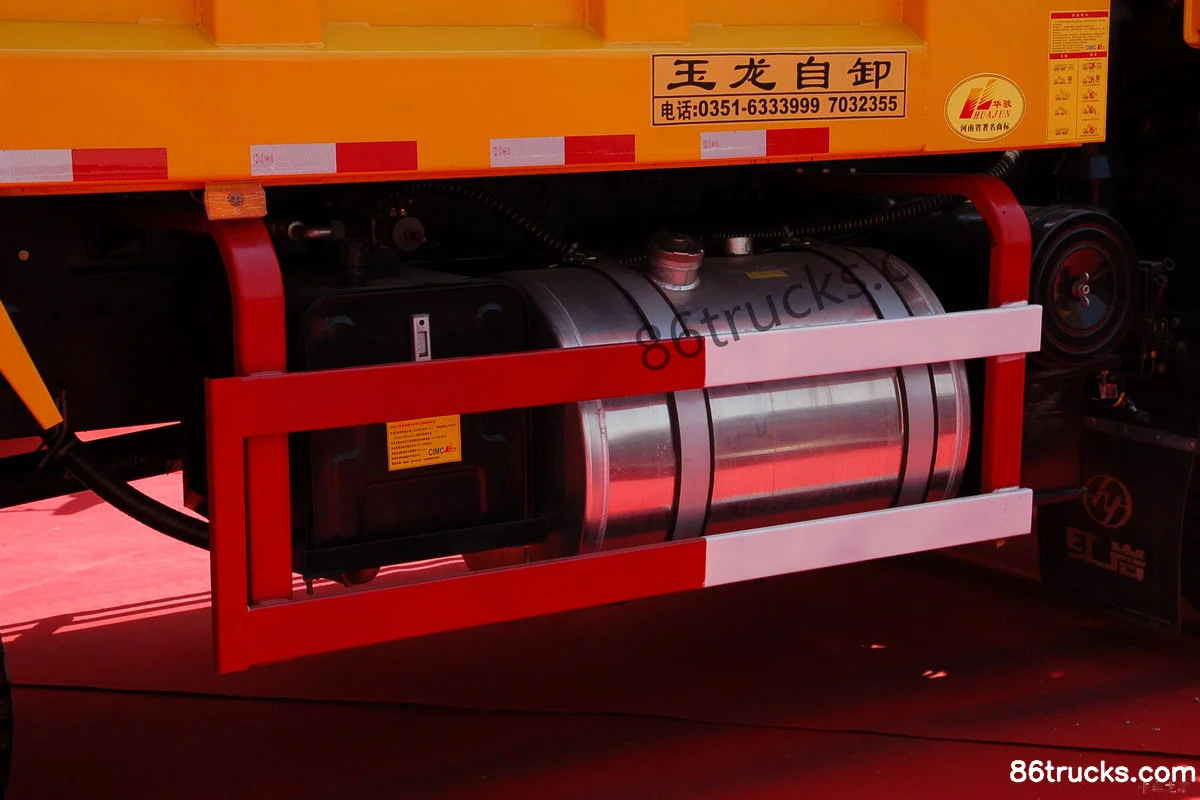

fuel tank
Fuel tank capacity: 300L
Chassis Specs
rear axle description: Full-floating, dual reduction with inter-axle differential, Steyr steel axle
rear axle allowable load: 18000kg
Axle ratio: 5.73

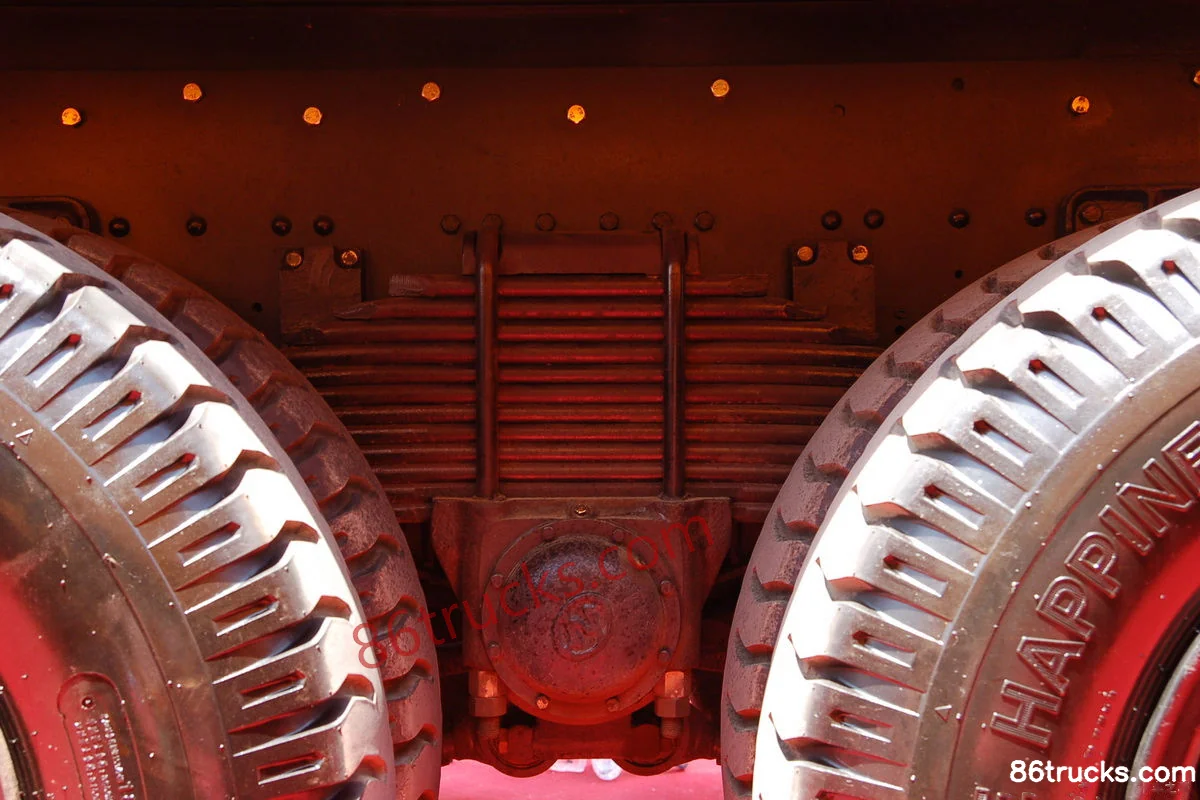

Leaf spring count: 9/12
Tire
Tire Size: 12.00-20 11.00-20
Number of tires: 10pcs

Photos

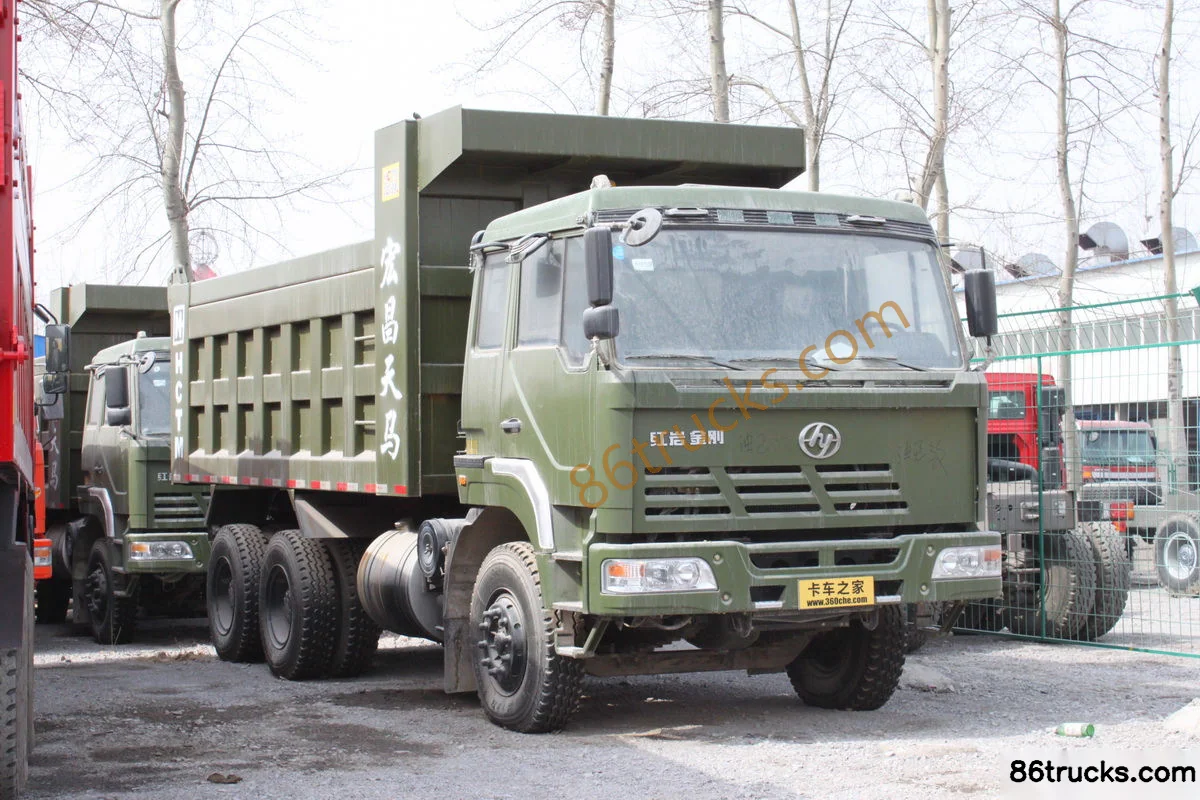

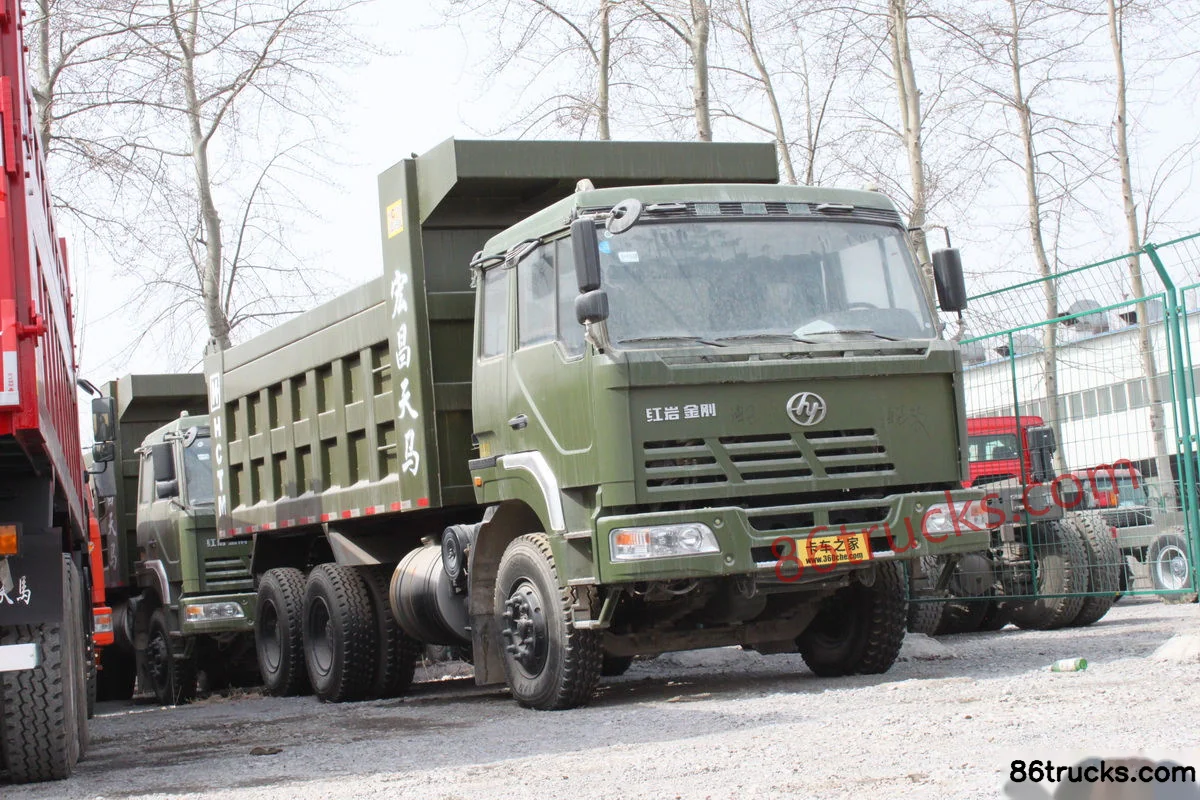

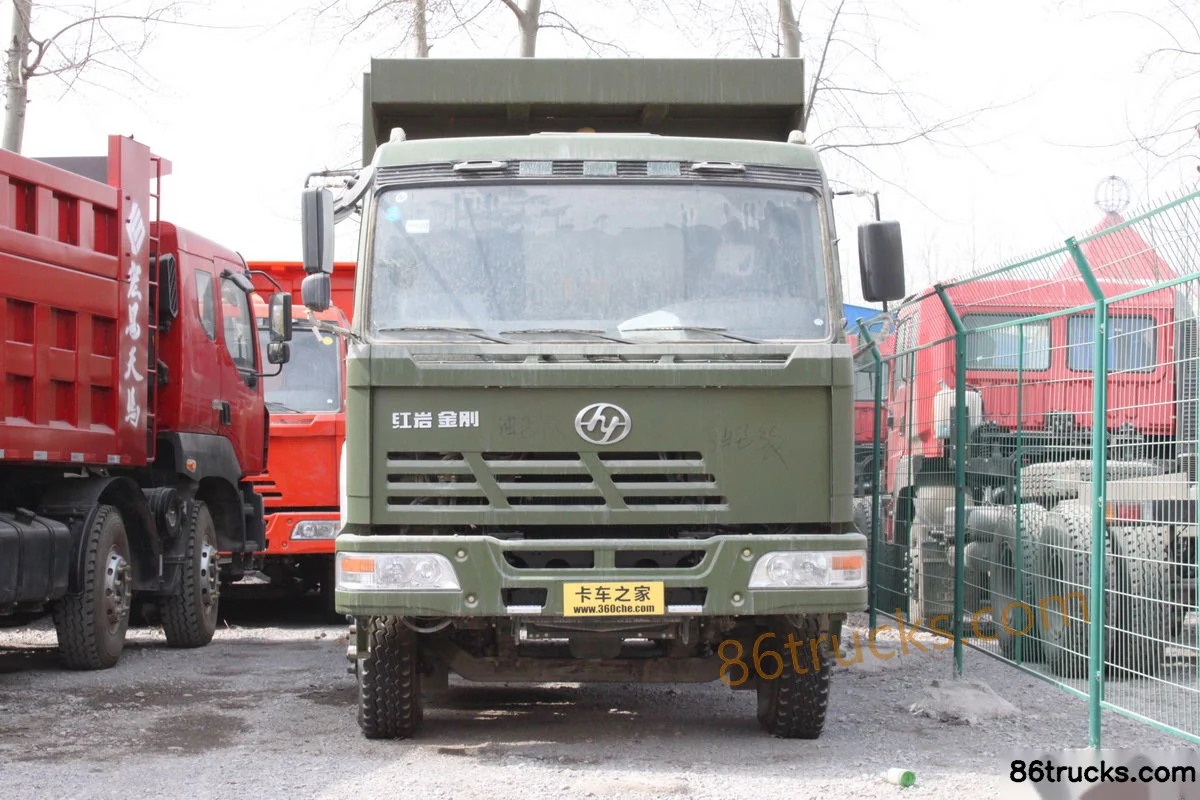

Exterior3

Cab3

6 photos

FAQ

What is the export price of Hongyan Jingang Heavy Truck 290hp 6X4(10 wheels) 5.8m Dump Truck, and what does it include?

Hongyan Jingang Heavy Truck 290hp 6X4(10 wheels) 5.8m Dump Truck export reference is about From $44,444; MSRP is ¥32M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Hongyan Jingang Heavy Truck 290hp 6X4(10 wheels) 5.8m Dump Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hongyan Jingang Heavy Truck 290hp 6X4(10 wheels) 5.8m Dump Truck?

Key specs of Hongyan Jingang Heavy Truck 290hp 6X4(10 wheels) 5.8m Dump Truck: Drive: 6x4; Horsepower: 290 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hongyan Jingang Heavy Truck 290hp 6X4(10 wheels) 5.8m Dump Truck suited for?

Hongyan Jingang Heavy Truck 290hp 6X4(10 wheels) 5.8m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Hongyan Jingang Heavy Truck 290hp 6X4(10 wheels) 5.8m Dump Truck differ from other variants in the same series?

Hongyan Jingang Heavy Truck 290hp 6X4(10 wheels) 5.8m Dump Truck belongs to SAIC Hongyan King Kong Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hongyan Jingang Heavy Truck 290hp 6X4(10 wheels) 5.8m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hongyan Jingang Heavy Truck 290hp 6X4(10 wheels) 5.8m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
