JAC Kangling X5 1.3L 87 hp 4X2(6 wheels) 3.1m Single Row Van Mini Truck (China V)

Export reference
From $7,639
MSRP ¥5.5M CNY
Horsepower: 87
Emission: China V
Fuel: gasoline
Engine: Liuji gasoline 1.3L
Transmission: Qingshan
Curb Weight:: 1.756ton
seating capacity: 2Personnel
Rated payload: 0.749ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Kangling X5 1.3L 87 hp 4X2(6 wheels) 3.1m Single Row Van Mini Truck (China V) is a mini truck featuring 3.1m cargo length, Van body cargo body, 2Personnel volume and 0.749t payload. On the powertrain side, it comes with a Liuji gasoline 1.3L engine, 87 hp, 4X2 (6 wheels) drive and China V emissions.

China V 87 gasoline 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5030XXYPV7E1B3V-1
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 2600mm
Box length class: 3.1m
engine: Wuling LiujiLJ469Q-1AEB
transmission: QingshanMR513B89
Rear Axle Ratio: 4.175
Cab length: 5.26m
Cab width: 1.7m
Cab height: 2.5m
Front track width: 1360mm
rear track: 1180mm
Curb Weight: 1.756ton
Rated payload: 0.749ton
GVWR: 2.635ton
Max. speed: 105km/h
Origin: Hefei, Anhui
tonnage class: mini truck
Approach angle: 19.6°
departure angle: 17.9°
Front/rear suspension: 1.185/1.475m
Energy Type: gasoline
Engine parameters
Engine Brand: Wuling Liuji
Engine Model: Wuling LiujiLJ469Q-1AEB
Engine info: Liuji gasoline 1.3L
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 1.249L
Emission standard: China V
Max output power: 64kW
Max hp: 87Horsepower
Max torque: 105N·m
Max torque speed: 4000rpm
Rated speed: 6000rpm
Engine Type: Naturally aspirated, liquid-cooled, electronic injection, inline
Transmission Parameters
Transmission Model: QingshanMR513B89
Transmission Brand: Qingshan
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.1m
Cargo box width: 1.56m
Cargo box height: 1.65m
*Cargo box interior width: 1.5599999427795
Cab parameters
Cab tilting: Manual
seating capacity: 2Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 60L
Chassis Specs
Front axle allowable load: 950kg
rear axle allowable load: 1685kg
Axle ratio: 4.175
Leaf spring count: 3/3+2
Tire
Tire Size: 6.00-13LT 8PR,175R14LT 6PR
Number of tires: 6pcs

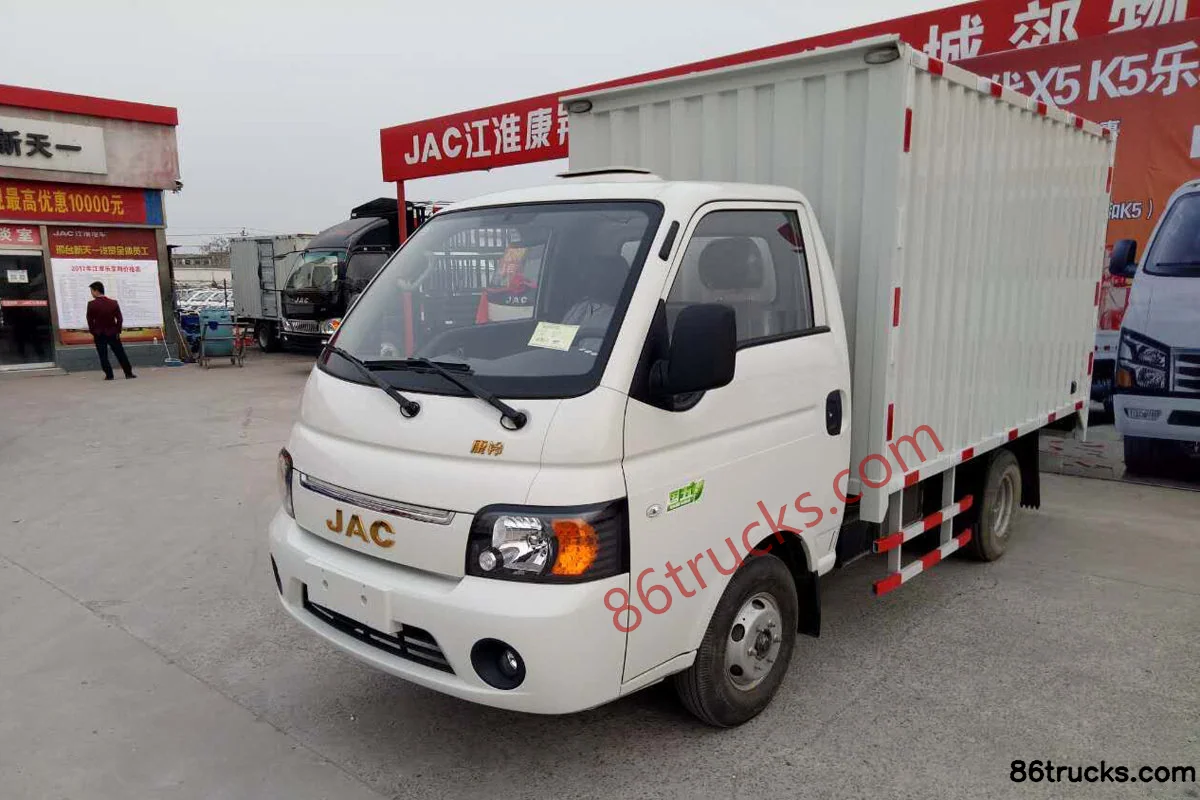

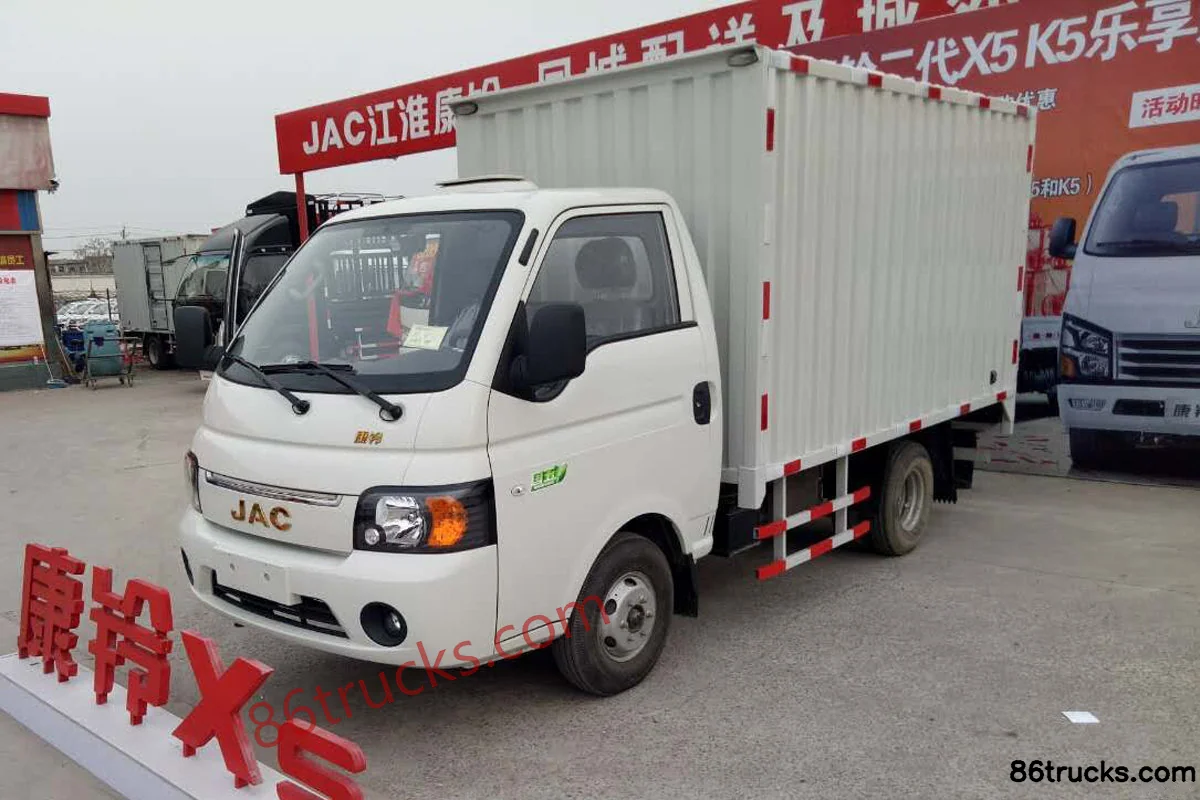

Photos

Exterior2

2 photos

FAQ

What is the export price of JAC Kangling X5 1.3L 87 hp 4X2(6 wheels) 3.1m Single Row Van Mini Truck (China V), and what does it include?

JAC Kangling X5 1.3L 87 hp 4X2(6 wheels) 3.1m Single Row Van Mini Truck (China V) export reference is about From $7,639; MSRP is ¥5.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Kangling X5 1.3L 87 hp 4X2(6 wheels) 3.1m Single Row Van Mini Truck (China V) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling X5 1.3L 87 hp 4X2(6 wheels) 3.1m Single Row Van Mini Truck (China V)?

Key specs of JAC Kangling X5 1.3L 87 hp 4X2(6 wheels) 3.1m Single Row Van Mini Truck (China V): Drive: 4x2; Horsepower: 87 hp; Emission: China V; Fuel: gasoline; Engine: Liuji gasoline 1.3L; Transmission: Qingshan. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling X5 1.3L 87 hp 4X2(6 wheels) 3.1m Single Row Van Mini Truck (China V) suited for?

JAC Kangling X5 1.3L 87 hp 4X2(6 wheels) 3.1m Single Row Van Mini Truck (China V) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Kangling X5 1.3L 87 hp 4X2(6 wheels) 3.1m Single Row Van Mini Truck (China V) differ from other variants in the same series?

JAC Kangling X5 1.3L 87 hp 4X2(6 wheels) 3.1m Single Row Van Mini Truck (China V) belongs to JACX5 Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling X5 1.3L 87 hp 4X2(6 wheels) 3.1m Single Row Van Mini Truck (China V)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling X5 1.3L 87 hp 4X2(6 wheels) 3.1m Single Row Van Mini Truck (China V)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
