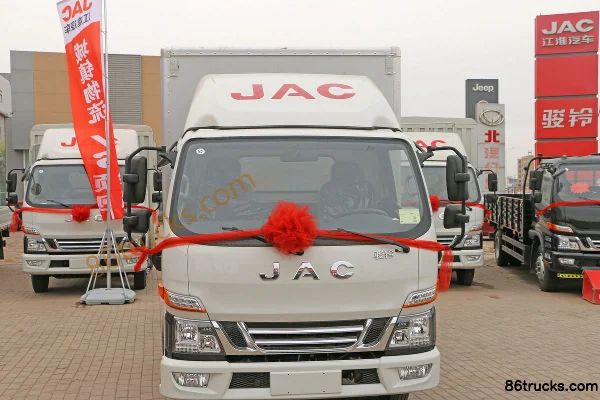

JAC Junling V5 116 hp 4X2(6 wheels) 3.85m half-row cage van light truck

Export reference
From $14,583
MSRP ¥10.5M CNY
Horsepower: 116
Emission: China V
Fuel: Diesel
Engine: Yunnei 490
Transmission: JAC
Curb Weight:: 2.72ton
seating capacity: 3Personnel
Rated payload: 1.58ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The JAC Junling V5 116 hp 4X2(6 wheels) 3.85m half-row cage van light truck is a Light Truck featuring 3.85m cargo length, Stake type cargo body, 3Personnel volume and 1.58t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Yunnei 490 engine, 116 hp, 4X2 (6 wheels) drive and China V emissions.

China V 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5043CCYP92K2C2NV
Type: stake truck
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 3.9m
engine: Yunnei PowerYN27CRE10
transmission: JACML528A
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.18m
Cab height: 3.25m
Front track width: 1580mm
rear track: 1560mm
Curb Weight: 2.72ton
Rated payload: 1.58ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 21°
departure angle: 15°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.1/1.587m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN27CRE10
Engine info: Yunnei 490
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.672L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 305N·m
Max torque speed: 1600-2600rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: JACML528A
Transmission Brand: JAC
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.85m
Cargo box width: 1.9m
*Cargo box interior width: 1.8999999761581
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 85L
Chassis Specs
Front axle allowable load: 1800kg
rear axle description: tandem rear axle
rear axle allowable load: 2695kg
Axle ratio: 4.875
Leaf spring count: 3/3+3,3/9+7,5/9+7
Tire
Tire Size: 6.50R16LT 10PR,7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of JAC Junling V5 116 hp 4X2(6 wheels) 3.85m half-row cage van light truck, and what does it include?

JAC Junling V5 116 hp 4X2(6 wheels) 3.85m half-row cage van light truck export reference is about From $14,583; MSRP is ¥10.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Junling V5 116 hp 4X2(6 wheels) 3.85m half-row cage van light truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling V5 116 hp 4X2(6 wheels) 3.85m half-row cage van light truck?

Key specs of JAC Junling V5 116 hp 4X2(6 wheels) 3.85m half-row cage van light truck: Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei 490; Transmission: JAC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling V5 116 hp 4X2(6 wheels) 3.85m half-row cage van light truck suited for?

JAC Junling V5 116 hp 4X2(6 wheels) 3.85m half-row cage van light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Junling V5 116 hp 4X2(6 wheels) 3.85m half-row cage van light truck differ from other variants in the same series?

JAC Junling V5 116 hp 4X2(6 wheels) 3.85m half-row cage van light truck belongs to JAC V5 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling V5 116 hp 4X2(6 wheels) 3.85m half-row cage van light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling V5 116 hp 4X2(6 wheels) 3.85m half-row cage van light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
