JAC V5 2.5L Diesel 152hp 4X2(6 wheels) Xingrui 5-Speed 4.22m Single Row Flatbed Light Truck
EXW
From $12,778
Export quote
JAC V5 light truck Cargo Trucks
Main model photos
803 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC V5 2.5L Diesel 152hp 4X2(6 wheels) Xingrui 5-Speed 4.22m Single Row Flatbed Light Truck | 4x2 / 152hp / China VI | From $12,778 | |
| JAC V5 Underground Garage Edition 2.5L Diesel 137hp 4X2(6 wheels) WLY 8-Speed 3.7m Single Row Flatbed Light Truck | 4x2 / 137hp / China VI | From $13,764 | |
| JAC V5 2.3L Diesel 140hp 4X2(6 wheels) JAC 5-Speed 3.85m Single-Row Stake Truck | 4x2 / 140hp / China VI | From $15,667 | |
| JAC V5 2.3L Diesel 140 hp 4X2(6 wheels) JAC 5-speed 3.85m Single Row Flatbed Light Truck | 4x2 / 140hp / China VI | From $14,972 | |
| JAC V5 2.3L Diesel 140 hp 4X2(6 wheels) JAC 5-speed 3.82m Single Row Box Van Light Truck | 4x2 / 140hp / China VI | From $15,667 |

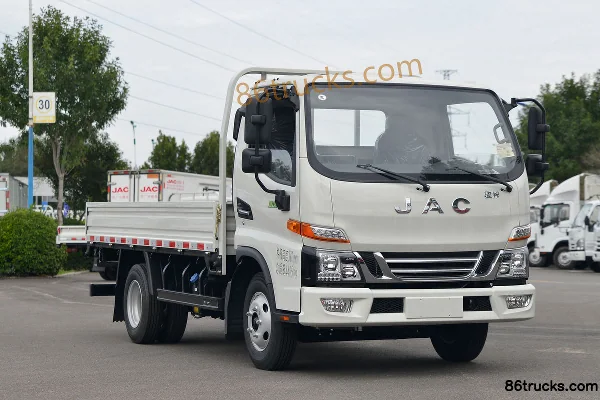

JAC V5 Underground Garage Edition 2.5L Diesel 137hp 4X2(6 wheels) WLY 8-Speed 3.7m Single Row Flatbed Light Truck
EXW
From $13,764
Export quote
JAC V5 2.3L Diesel 140hp 4X2(6 wheels) JAC 5-Speed 3.85m Single-Row Stake Truck
EXW
From $15,667
Export quote

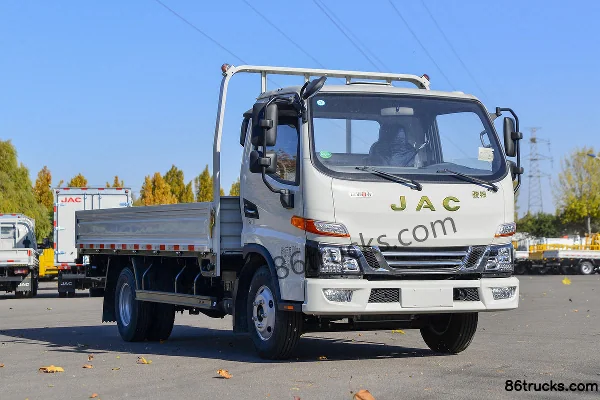

JAC V5 2.3L Diesel 140 hp 4X2(6 wheels) JAC 5-speed 3.85m Single Row Flatbed Light Truck
EXW
From $14,972
Export quote
JAC V5 2.3L Diesel 140 hp 4X2(6 wheels) JAC 5-speed 3.82m Single Row Box Van Light Truck
EXW
From $15,667
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Junling V5 152 hp 4X2(6 wheels) 3.82m semi-sleeper box truck (China VI) | 4x2 / 152hp / China VI | ||
| JAC Junling V5 152 hp 4X2(6 wheels) 4.15m Single-Cab Van Truck (China VI) | 4x2 / 152hp / China VI | ||
| JAC Junling V5 152 hp 4X2(6 wheels) 3.85m Half-Cab Cargo Truck with Side Panels (China VI) | 4x2 / 152hp / China VI | ||
| JAC Junling V5 152 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI) | 4x2 / 152hp / China VI | ||
| JAC Junling V5 152 hp 4X2(6 wheels) 3.85m Double Row Flatbed Light Truck (China VI)(JAC 6-Speed) | 4x2 / 152hp / China VI |
JAC Junling V5 152 hp 4X2(6 wheels) 3.82m semi-sleeper box truck (China VI)
EXW
Export quote
JAC Junling V5 152 hp 4X2(6 wheels) 4.15m Single-Cab Van Truck (China VI)
EXW
Export quote
JAC Junling V5 152 hp 4X2(6 wheels) 3.85m Half-Cab Cargo Truck with Side Panels (China VI)
EXW
Export quote
JAC Junling V5 152 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI)
EXW
Export quote
JAC Junling V5 152 hp 4X2(6 wheels) 3.85m Double Row Flatbed Light Truck (China VI)(JAC 6-Speed)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): HFC1043P32K1C7S / HFC1045P32K3C7S-1 / HFC5043CCYP32K1C7S / HFC5043XXYP32K1C7S / HFC5045CCYP32K1C7NS / HFC5045XXYP32K1C7NS / HFC1045P32K1C7NS / HFC1041P13K1B4S / HFC5043CCYP31K6C7S / HFC5043XXYP31K6C7S / HFC1043P31K6C7S / HFC5048XXYP31K1C7S-S1 / HFC1048P31K1C7S-S / HFC1042P31K1C7S-1 / HFC5043XYKB32K1C7S / HFC5043CCYB32K1C7S-1 / HFC5043CCYB32K1C7S / HFC5043XXYB32K1C7S-1 / HFC5043XXYB32K1C7S / HFC1043B32K1C7S
Type: Cargo Trucks / stake truck / enclosed cargo truck
Drive type: 4X2
Wheelbase: 3365 / 2850 / 2950mm
Box length class: 4.2 / 3.7 / 3.8 / 3.9 / 3.5m
Engine Model: Yunnei PowerHFC4DF152 / Yunnei PowerYN25PLUS2 / QuanchaiQ23A-143C60 / Yunnei PowerYN25PLUS160A / QuanchaiQ23A-143E60 / HFC4DF152 / Q23A-143C60 / YN25PLUS160A / Q23A-143E60
Transmission Model: Xingrui 5-speed / WLYWLY8GS36 / JACML540B / WLY8GS46 / Xingrui ML532D / JACML540A / WLY8GS36 / ML540B / ML532D
Rear Axle Ratio: 4.33 / 4.875
Cab length: 5.995 / 5.475 / 5.62 / 5.52 / 5.485 / 5.65 / 5.985m
Cab width: 2.2 / 2 / 2.015 / 2.005 / 2.11 / 2.175 / 2.165 / 2.18 / 2.125 / 2.115 / 1900m
Cab height: 2.42 / 2.9 / 2.365 / 3.05 / 2.45 / 2.09 / 3.1 / 2.32m
Front track width: 1595 / 1460mm
rear track: 1560 / 1475mm
Curb Weight: 2.565 / 2.25 / 2.6 / 2.805 / 2.715 / 2.8 / 2.56 / 2.595 / 2.72ton
Rated payload: 1.735 / 1.495 / 1.575 / 1.49 / 1.73 / 1.8 / 1.57 / 1.485 / 1.725 / 1.58ton
GVWR: 4.495 / 3.94 / 4.29 / 4.485 / 4.48ton
Max. speed: 100 / 110km/h
Origin: Hefei, Anhui / Suining, Sichuan
tonnage class: Light Truck
Approach angle: 21 / 18 / 22 / 24°
departure angle: 14.5 / 15 / 14 / 18°
Remarks: Standard: MP3 radio, steel air tank. / Optional 5.375 ratio. / Optional ratio 5.375/6.142.
Front/rear suspension: 1.075/1.55 / 1.075/1.595 / 1.075/1.545 / 1.075/1.555 / 1.13/1.505 / 1.075/1.515 / 1.11/1.48 / 1.11/1.52 / 1.11/1.51m
Version: Underground Garage Version / Comfort Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power / Quanchai
Engine info: Yunnei Power2.5L / Quanchai2.3L
Number of cylinders: 4cylinder
Cylinder arrangement: Inline
Displacement: 2.499 / 2.3L
Emission standard: China VI
Max output power: 112 / 101 / 103 / 114kW
Max hp: 152 / 137 / 140 / 155 / 143Horsepower
Max torque: 320 / 350 / 420 / 335N·m
Max torque speed: 1100-3000 / 1600-2200 / 1400-2400rpm
Rated speed: 3000 / 3300rpm
Engine Oil Change Interval: 20,000 km
Transmission Parameters
Transmission Brand: Xingrui (formerly Liu'an) / WLY / JAC
shift method: Manual
Forward gears: 5 / 8Gear
FAQ
What kind of truck is JAC JAC V5 light truck Cargo Trucks?
JAC JAC V5 light truck is an export-oriented Cargo Trucks lineup with about 715 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JAC V5 light truck Cargo Trucks?
JAC V5 light truck Cargo Trucks export reference is about $11,014 – $22,194. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JAC V5 light truck Cargo Trucks cover?
JAC V5 light truck Cargo Trucks mainly covers: Drive: 4x2; Horsepower: 137 hp / 140 hp / 152 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC V5 light truck Cargo Trucks?
For JAC V5 light truck Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does JAC V5 light truck Cargo Trucks include?
JAC V5 light truck Cargo Trucks currently lists about 715 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC V5 light truck Cargo Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
