JAC Junling V5 152 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI)

Export reference
MSRP N/A
Horsepower: 152
Emission: China VI
Fuel: Diesel
Engine: QuanchaiQ25
Transmission: JAC
Curb Weight:: 2.72ton

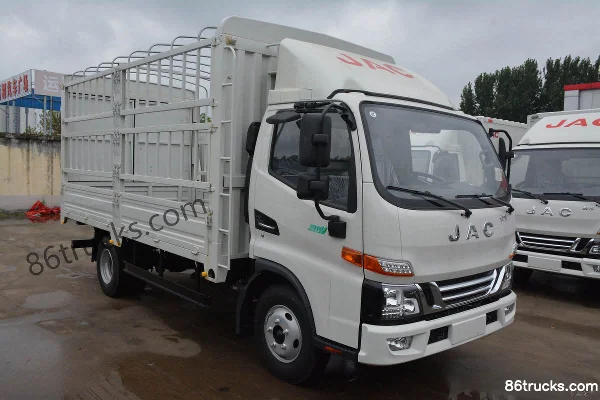

JAC Junling V5 152 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI) exterior
seating capacity: 3Personnel
Rated payload: 1.58ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The JAC Junling V5 152 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI) is a Light Truck featuring 4.18m cargo length, Stake type cargo body, 3Personnel volume and 1.58t payload. On the powertrain side, it comes with a QuanchaiQ25 engine, 152 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 152 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC5043CCYP31K1C4NS
Type: stake truck
Drive type: 4X2
Wheelbase: 3365mm
Box length class: 4.2m
engine: QuanchaiQ25-152E60
transmission: JACML645B
Rear Axle Ratio: 4.33
Cab length: 5.995m
Cab width: 2.11m
Cab height: 3.02m
Front track width: 1595mm
rear track: 1560mm
Curb Weight: 2.72ton
Rated payload: 1.58ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Suining, Sichuan
tonnage class: Light Truck
Approach angle: 24°
departure angle: 16°
Remarks: Standard: MP3 radio; Optional: 4.875 ratio, MP5, 6.50R16 8PR tires, aluminum side and rear guards.
Front/rear suspension: 1.075/1.555m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ25-152E60
Engine info: QuanchaiQ25
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.5L
Emission standard: China VI
Max output power: 112kW
Max hp: 152Horsepower
Max torque: 440N·m
Max torque speed: 1400rpm
Rated speed: 3000rpm
Engine Oil Change Interval: 20,000 km
Transmission Parameters
Transmission Model: JACML645B
Transmission Brand: JAC
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Transmission oil change interval: 60,000 km
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.18m
Cargo box width: 2.01m
*Cargo box interior width: 2.0099999904633
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 100L
Chassis Specs
Front axle description: 2T
Front axle allowable load: 1620kg
Frame Dimensions: 180*65*4.5/750mm
rear axle description: 4T
rear axle allowable load: 2875kg
Axle ratio: 4.33
Leaf spring count: 4/4+2
Frame Type: Dovetail beam
rear axle oil change interval: 60,000 km
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
side skirt:
Aluminum air tank:
Wiper type: flat wiper blades
Service brake
Engine brake: none
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
standard instrument cluster:
LCD instrument cluster:
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
maintenance service
24-hour service hotline:
Rescue service:

Photos

0 photos

FAQ

What emission standard does JAC Junling V5 152 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling V5 152 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI)?

Key specs of JAC Junling V5 152 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI): Drive: 4x2; Horsepower: 152 hp; Emission: China VI; Fuel: Diesel; Engine: QuanchaiQ25; Transmission: JAC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling V5 152 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI) suited for?

JAC Junling V5 152 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Junling V5 152 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI) differ from other variants in the same series?

JAC Junling V5 152 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI) belongs to JAC V5 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling V5 152 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling V5 152 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
