Foton Xiangling M1 1.2L 86 hp 4X2(6 wheels) Gasoline 3.05m semi-row flatbed micro truck (single rear tire)

Export reference
From $5,917
MSRP ¥4.26M CNY
Horsepower: 86
Emission: China V
Fuel: gasoline
Engine: Foton gasoline 1.2L
Transmission: Qingshan
Curb Weight:: 1.21ton
seating capacity: 2Personnel
Rated payload: 0.745ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton Xiangling M1 1.2L 86 hp 4X2(6 wheels) Gasoline 3.05m semi-row flatbed micro truck (single rear tire) is a mini truck featuring 3.05m cargo length, stake body cargo body, 2Personnel volume and 0.745t payload. On the powertrain side, it comes with a Foton gasoline 1.2L engine, 86 hp, 4X2 (6 wheels) drive and China V emissions.

China V 86 gasoline 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1020V3PV4-AA
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2800mm
Box length class: 3.1m
engine: Foton4W12M1
transmission: QingshanMR513B
Rear Axle Ratio: 5.286
Cab length: 5.14m
Cab width: 1.68m
Cab height: 1.92m
Front track width: 1320mm
rear track: 1410mm
Curb Weight: 1.21ton
Rated payload: 0.745ton
GVWR: 2.085ton
Max. speed: 110km/h
Origin: Shandong Zhucheng
tonnage class: mini truck
Approach angle: 21°
departure angle: 28°
Remarks: Optional air conditioning, T-BOX telematics terminal, reverse camera + multimedia, imitation leather seats
Front/rear suspension: 1.075/1.265m
Energy Type: gasoline
Engine parameters
Engine Brand: Foton
Engine Model: Foton4W12M1
Engine info: Foton gasoline 1.2L
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 1.206L
Emission standard: China V
Max output power: 63kW
Max hp: 86Horsepower
Max torque: 112N·m
Max torque speed: 4000-4400rpm
Rated speed: 6000rpm
Transmission Parameters
Transmission Model: QingshanMR513B
Transmission Brand: Qingshan
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.05m
Cargo box width: 1.56m
Cargo box height: 0.36m
*Cargo box interior width: 1.5599999427795
Cab parameters
Cab: Xiangling M1
Cab width: 1550mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 835kg
rear axle description: 102 rear axle
rear axle allowable load: 1250kg
Axle ratio: 5.286
Leaf spring count: -/5
Tire

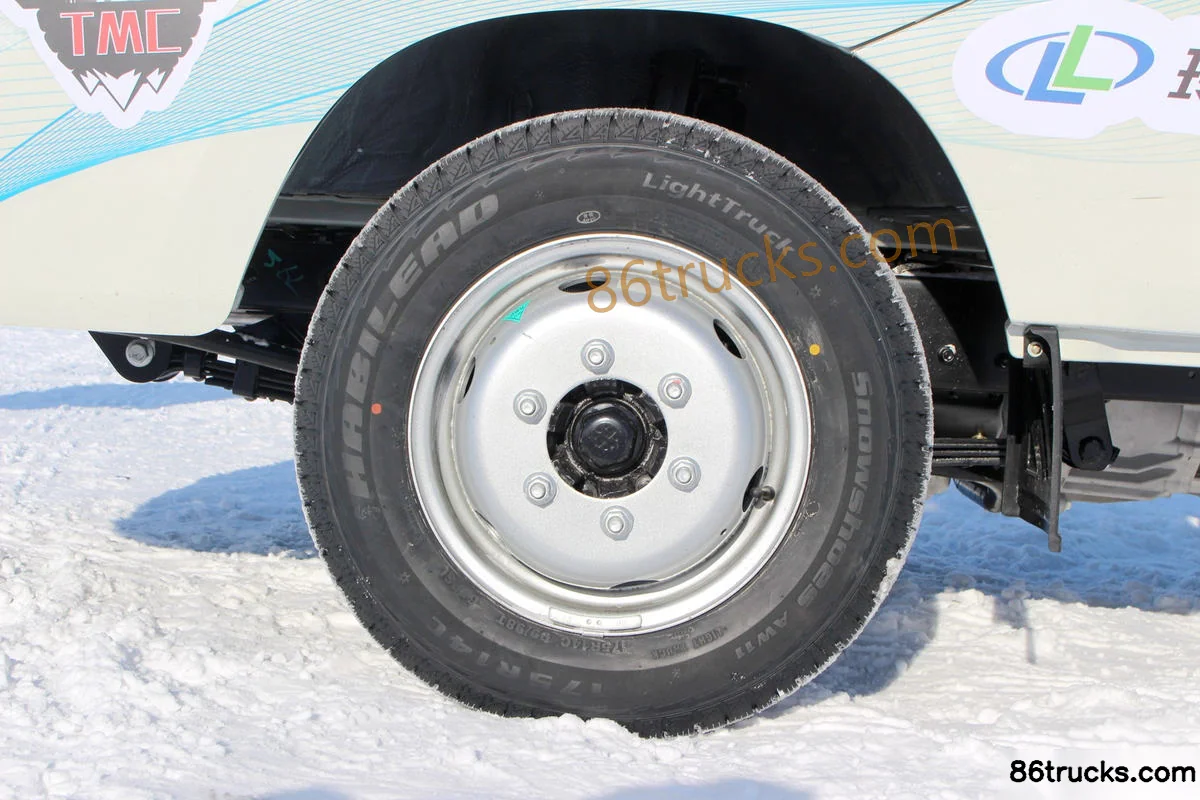

Tire Size: 175R14LT 6PR (with spare tire)
Number of tires: 4pcs
Control configuration
ABS:
Power steering:
interior configuration
AC control type: Optional manual.

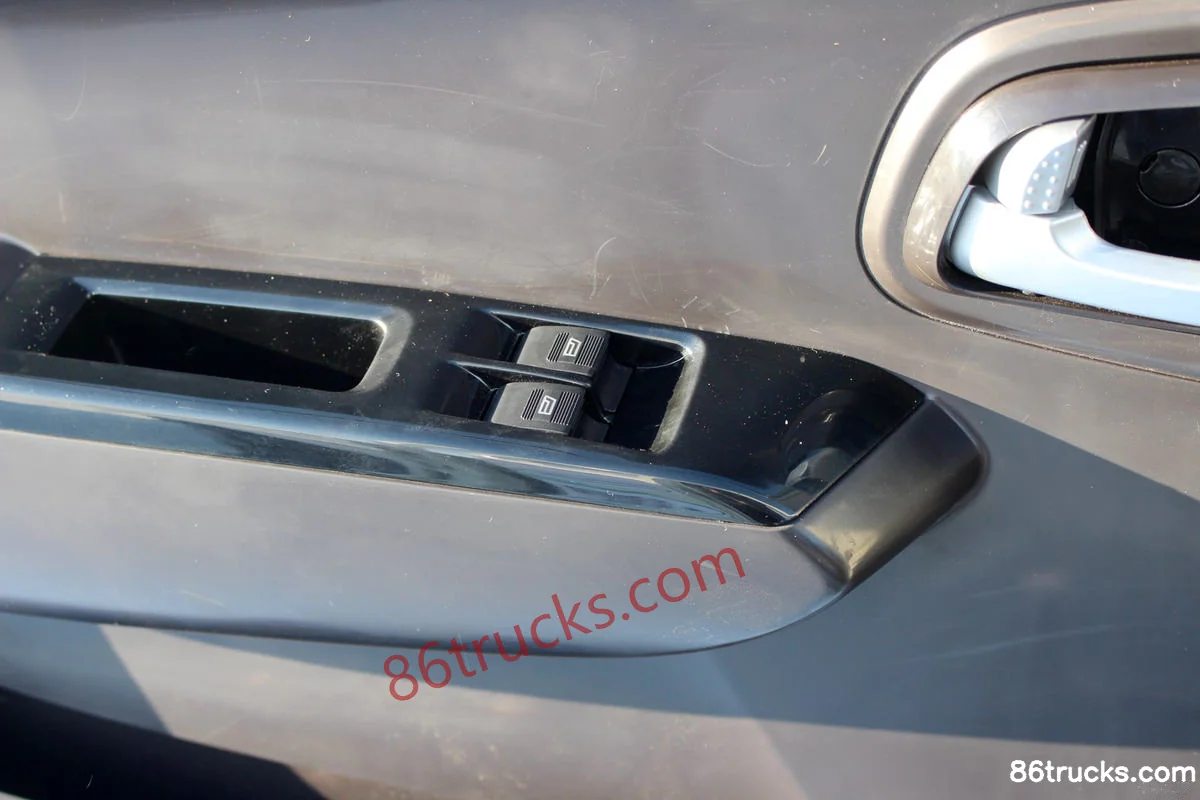

Power Windows:
Electronic Central Lock:
lighting configuration
daytime running lights:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

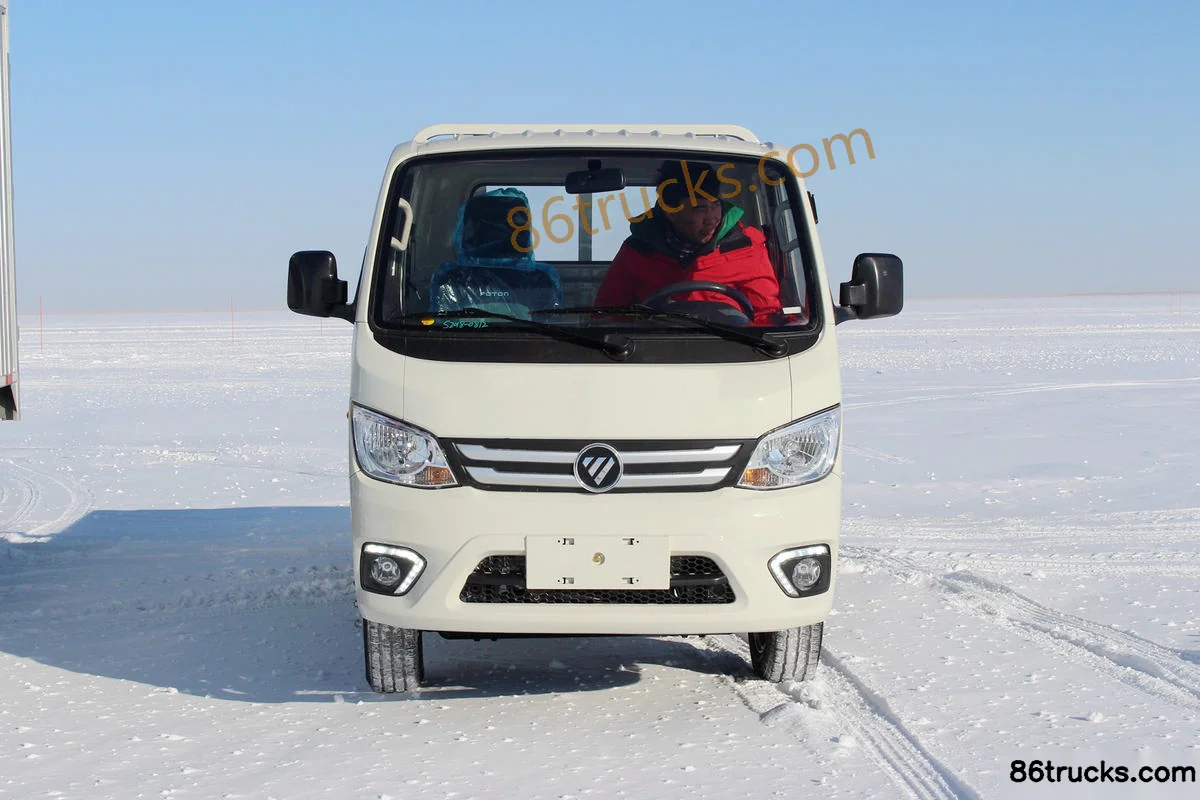

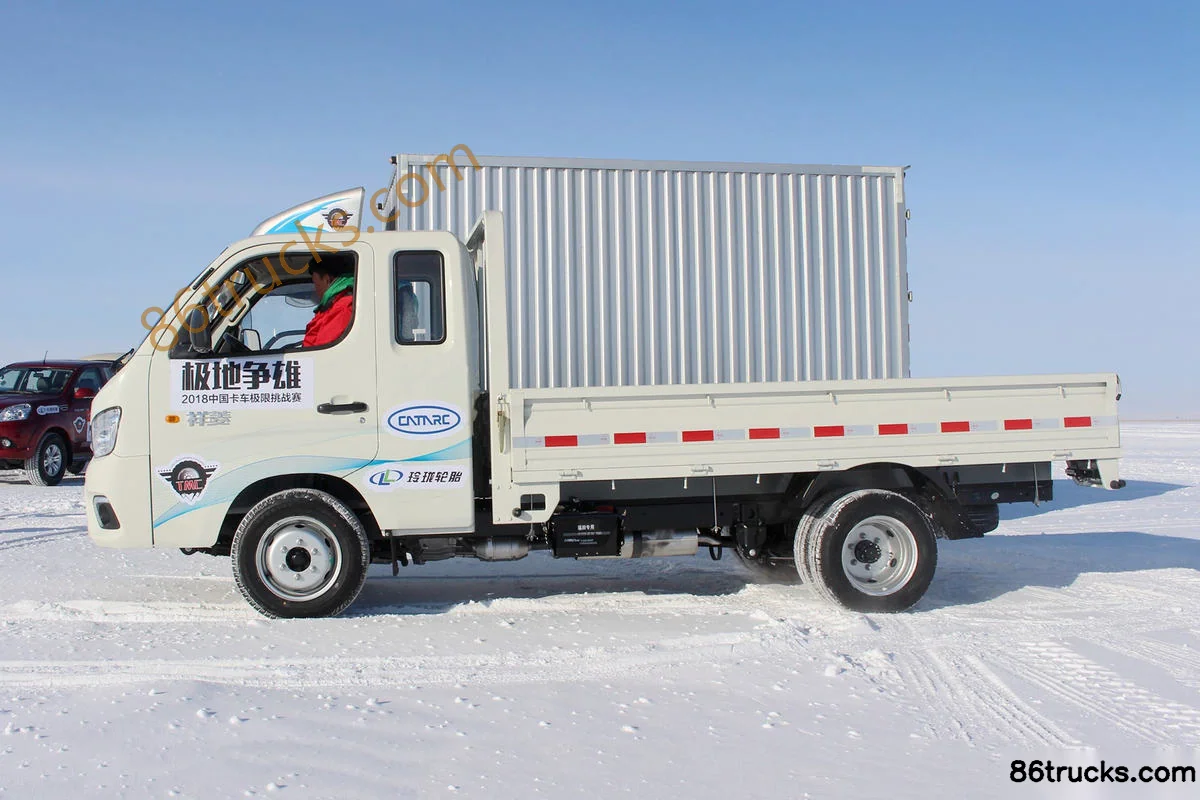

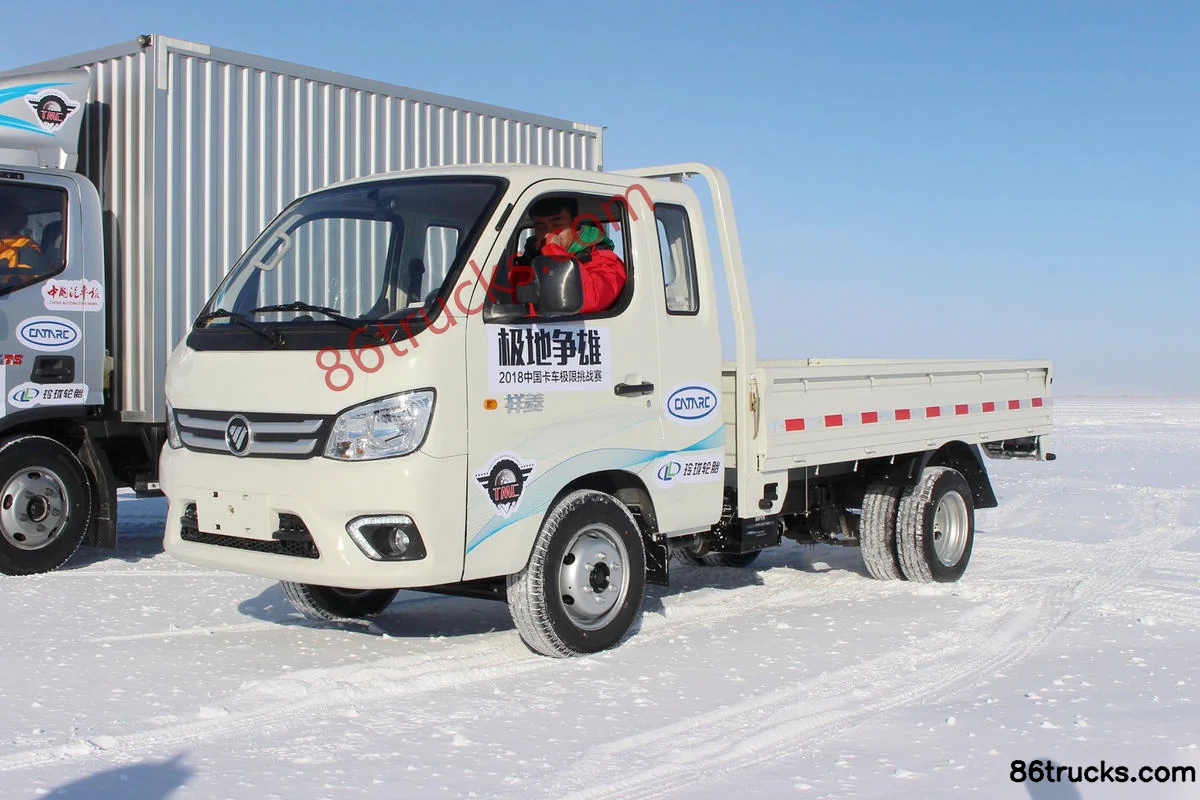

Exterior3

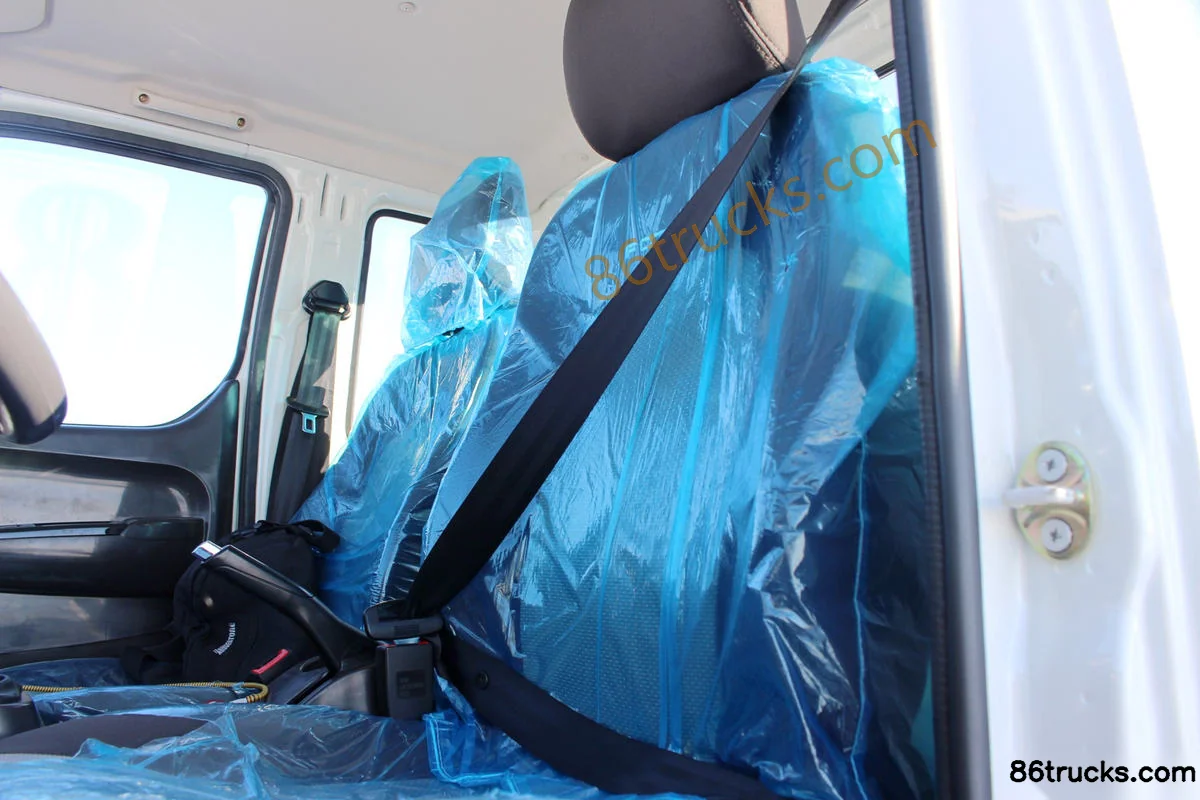

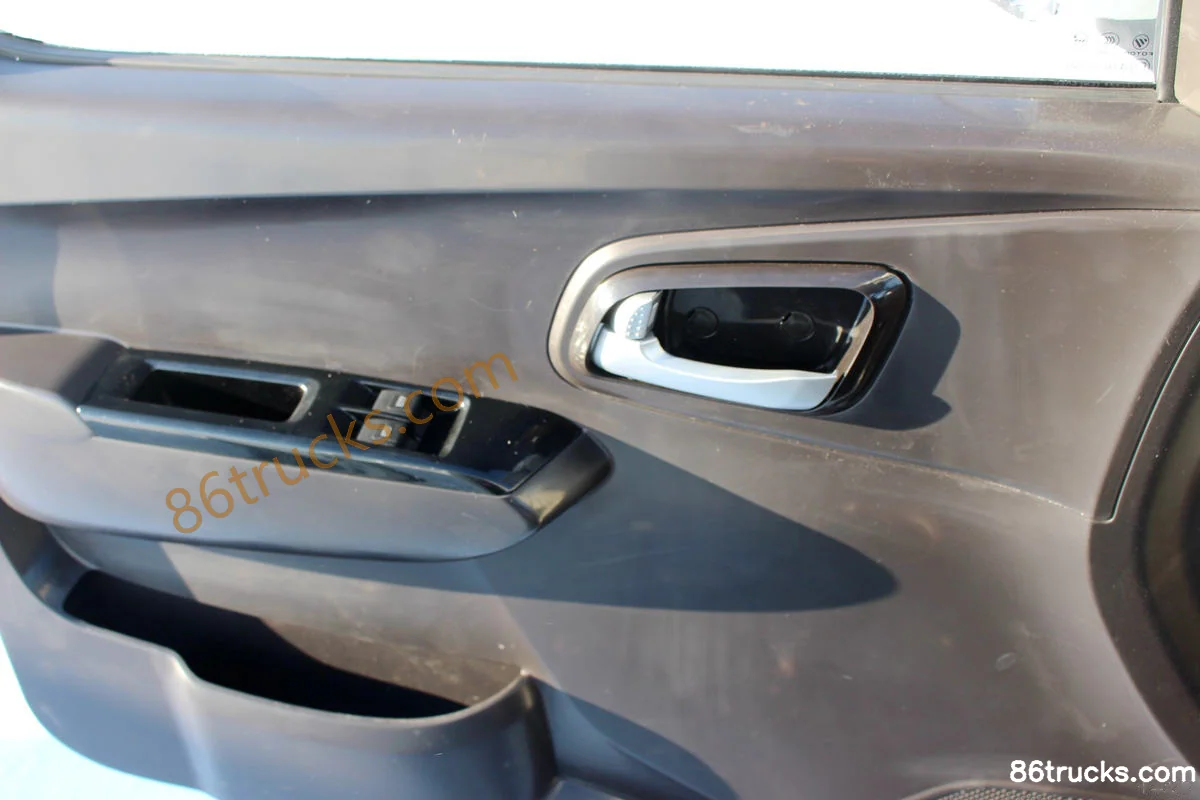

Cab3

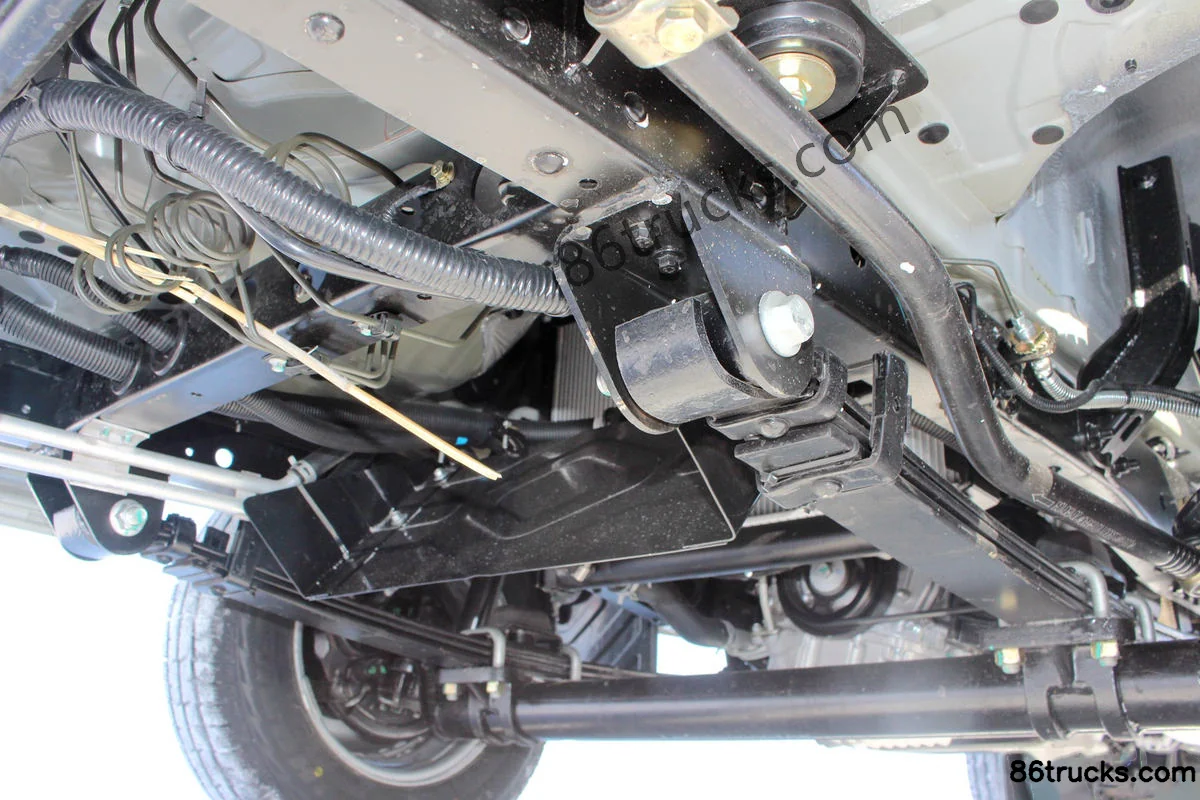

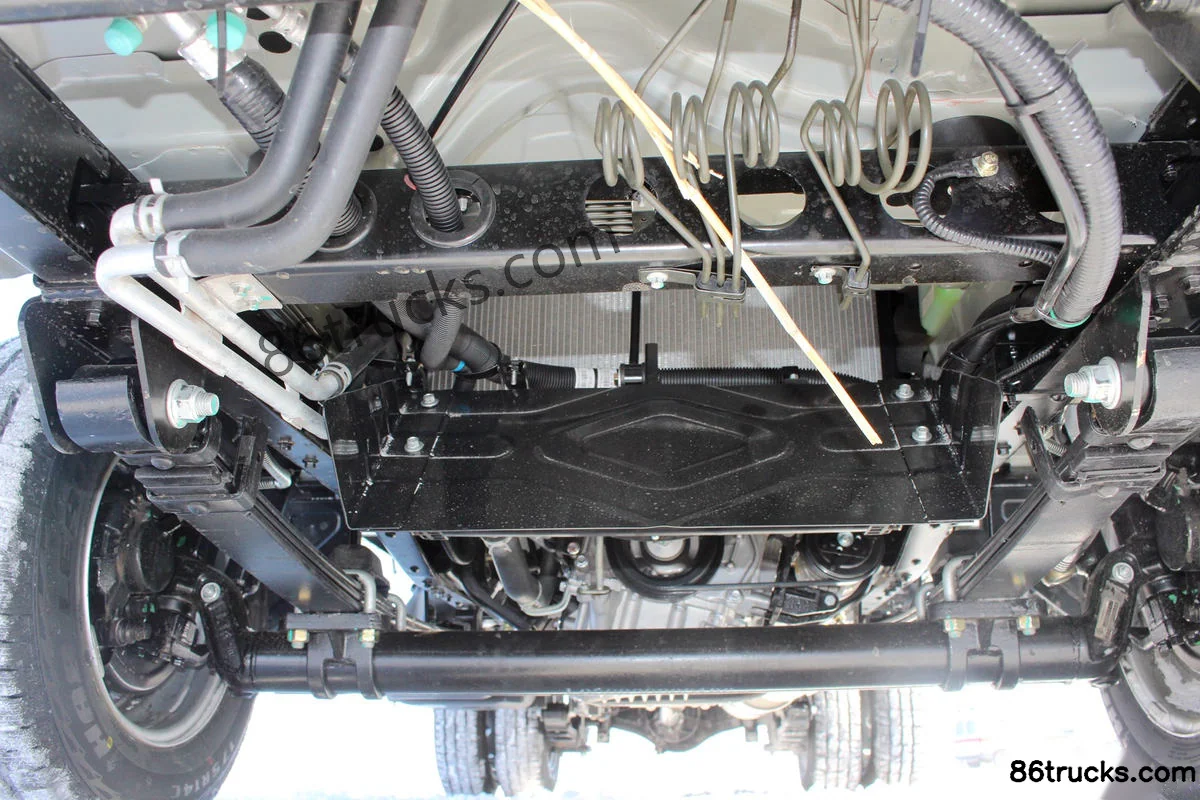

Chassis3

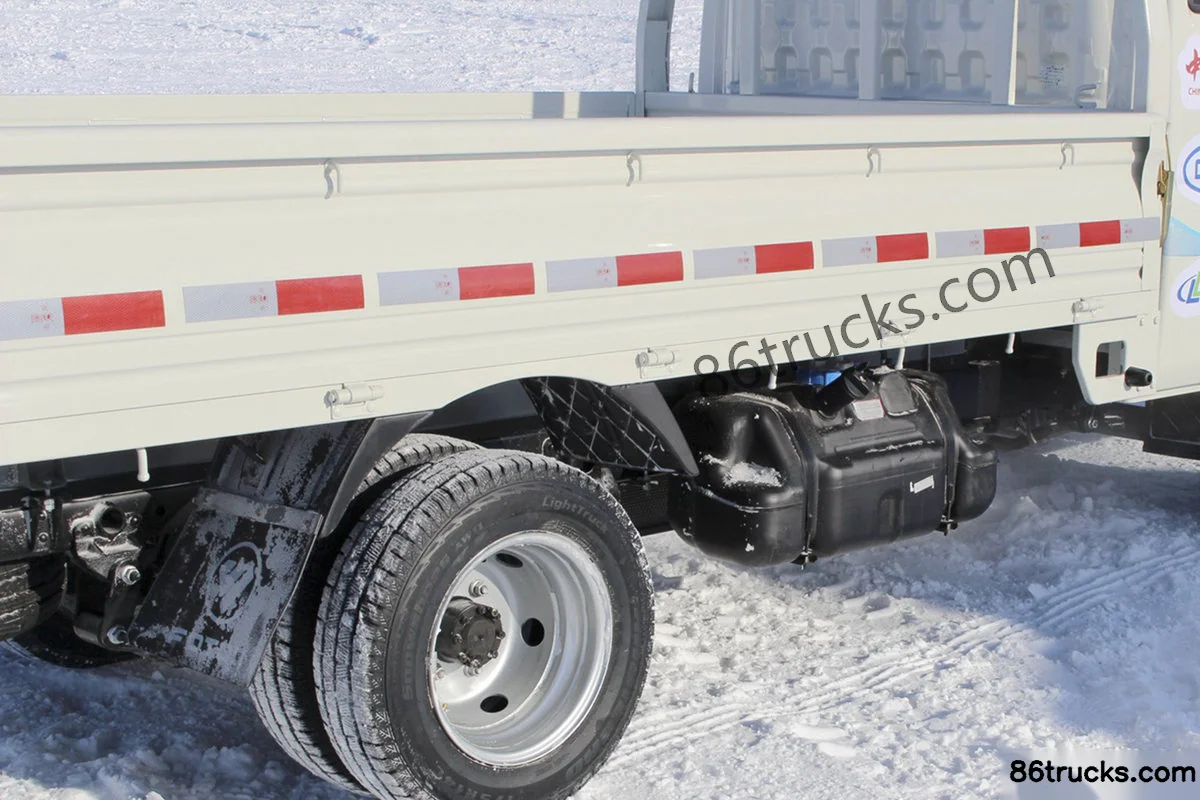

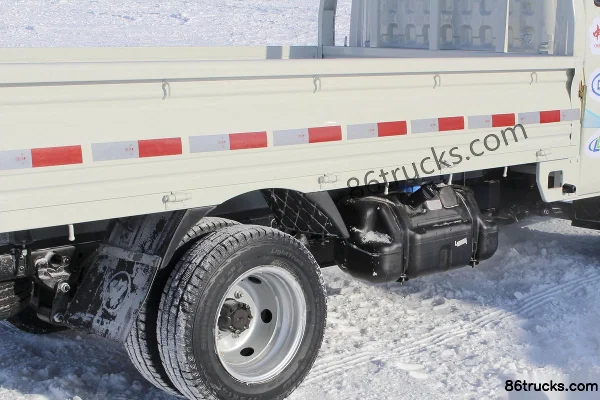

Body1

10 photos

FAQ

What is the export price of Foton Xiangling M1 1.2L 86 hp 4X2(6 wheels) Gasoline 3.05m semi-row flatbed micro truck (single rear tire), and what does it include?

Foton Xiangling M1 1.2L 86 hp 4X2(6 wheels) Gasoline 3.05m semi-row flatbed micro truck (single rear tire) export reference is about From $5,917; MSRP is ¥4.26M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Xiangling M1 1.2L 86 hp 4X2(6 wheels) Gasoline 3.05m semi-row flatbed micro truck (single rear tire) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Xiangling M1 1.2L 86 hp 4X2(6 wheels) Gasoline 3.05m semi-row flatbed micro truck (single rear tire)?

Key specs of Foton Xiangling M1 1.2L 86 hp 4X2(6 wheels) Gasoline 3.05m semi-row flatbed micro truck (single rear tire): Drive: 4x2; Horsepower: 86 hp; Emission: China V; Fuel: gasoline; Engine: Foton gasoline 1.2L; Transmission: Qingshan. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Xiangling M1 1.2L 86 hp 4X2(6 wheels) Gasoline 3.05m semi-row flatbed micro truck (single rear tire) suited for?

Foton Xiangling M1 1.2L 86 hp 4X2(6 wheels) Gasoline 3.05m semi-row flatbed micro truck (single rear tire) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Xiangling M1 1.2L 86 hp 4X2(6 wheels) Gasoline 3.05m semi-row flatbed micro truck (single rear tire) differ from other variants in the same series?

Foton Xiangling M1 1.2L 86 hp 4X2(6 wheels) Gasoline 3.05m semi-row flatbed micro truck (single rear tire) belongs to Foton M1 Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Xiangling M1 1.2L 86 hp 4X2(6 wheels) Gasoline 3.05m semi-row flatbed micro truck (single rear tire)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Xiangling M1 1.2L 86 hp 4X2(6 wheels) Gasoline 3.05m semi-row flatbed micro truck (single rear tire)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
