JAC Junling V5 120 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Cargo Truck (JAC Transmission)

Export reference
From $12,708
MSRP ¥9.15M CNY
Horsepower: 120
Emission: China V
Fuel: Diesel
Engine: Ankang 2.8
Transmission: JAC
Curb Weight:: 2.565ton
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Junling V5 120 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Cargo Truck (JAC Transmission) is a Light Truck featuring 3.85m cargo length, stake body cargo body, 3Personnel volume and 1.735t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Ankang 2.8 engine, 120 hp, 4X2 (6 wheels) drive and China V emissions.

China V 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1043P91K1C2V
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 3.9m
engine: Anhui CumminsHFC4DA1-2D
transmission: JACML528A
Cab length: 5.995m
Cab width: 2.11m
Cab height: 2.35m
Front track width: 1685mm
rear track: 1525mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 22°
departure angle: 18°
market segment: Building materials, agricultural products
Front/rear suspension: 1.1/1.587m
Energy Type: Diesel
Engine parameters
Engine Brand: Anhui Cummins
Engine Model: Anhui CumminsHFC4DA1-2D
Engine info: Ankang 2.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China V
Max output power: 88kW
Max hp: 120Horsepower
Max torque: 285N·m
Max torque speed: 1800-2200rpm
Rated speed: 3200rpm
Transmission Parameters
Transmission Model: JACML528A
Transmission Brand: JAC
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.85m
Cargo box width: 2.1m
Cargo box height: 0.4m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab width: 1900mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1620kg
rear axle allowable load: 2875kg
Leaf spring count: 8/7+6
Tire
Tire Size: 7.00R16
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
Multifunction steering wheel:

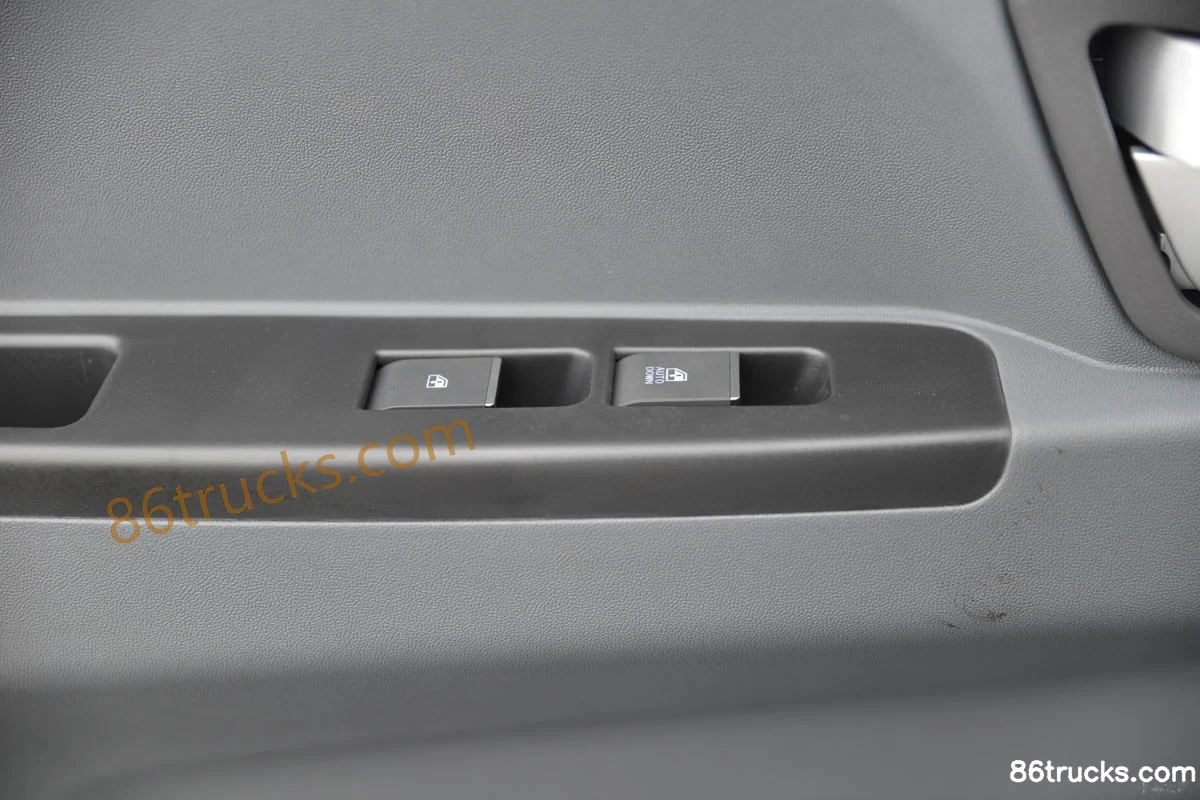

Power Windows:
Electronic Central Lock:
lighting configuration
daytime running lights:

Photos

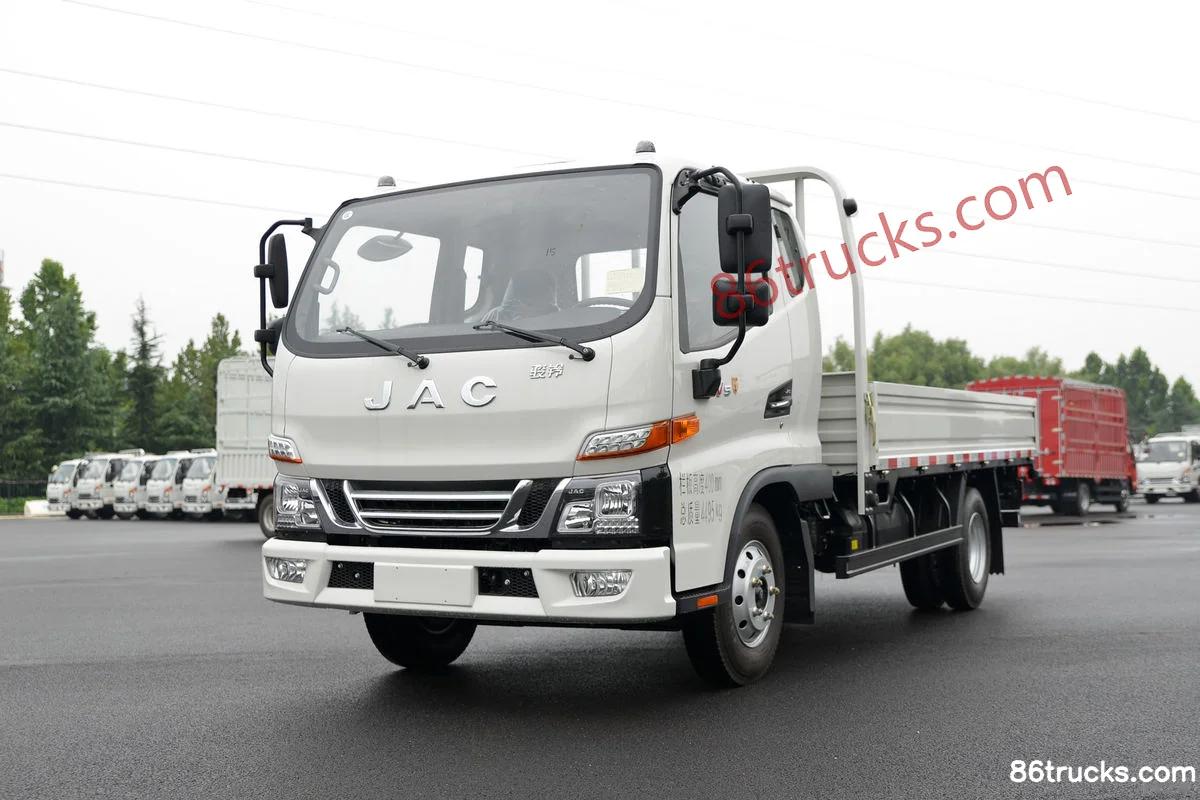

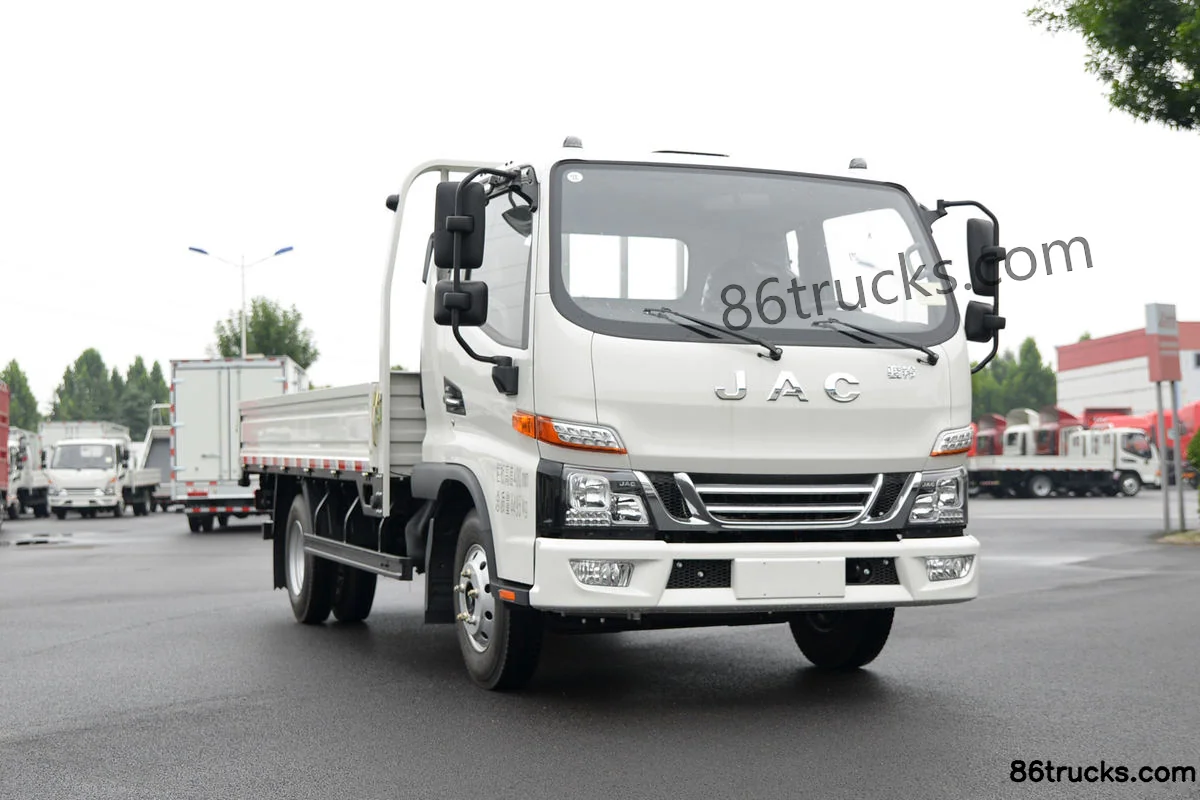

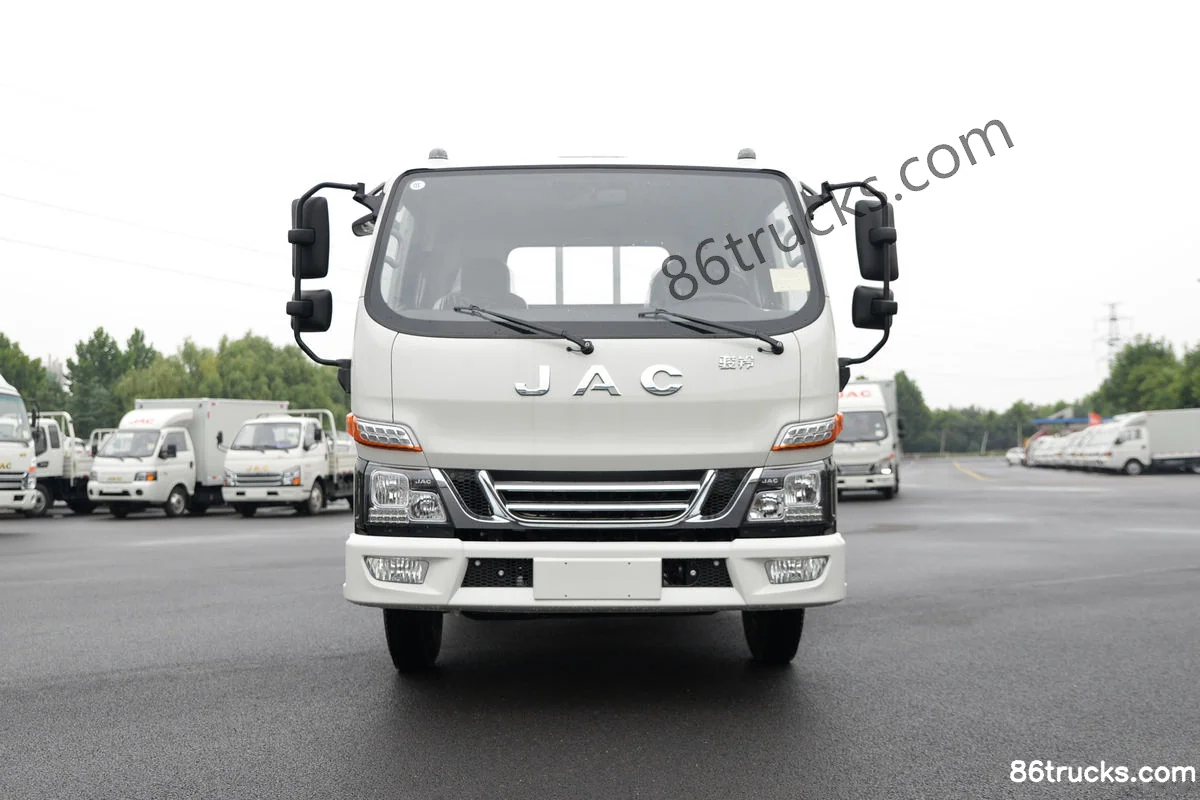

Exterior3

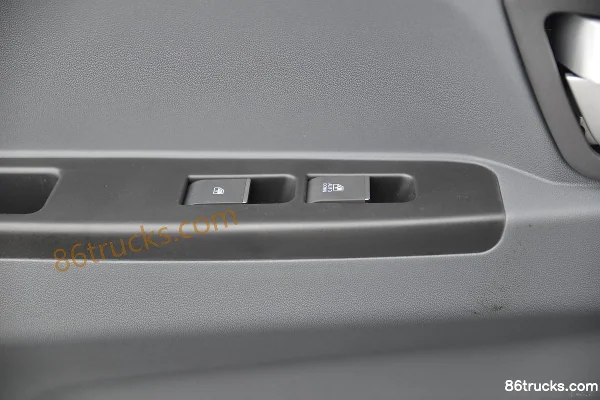

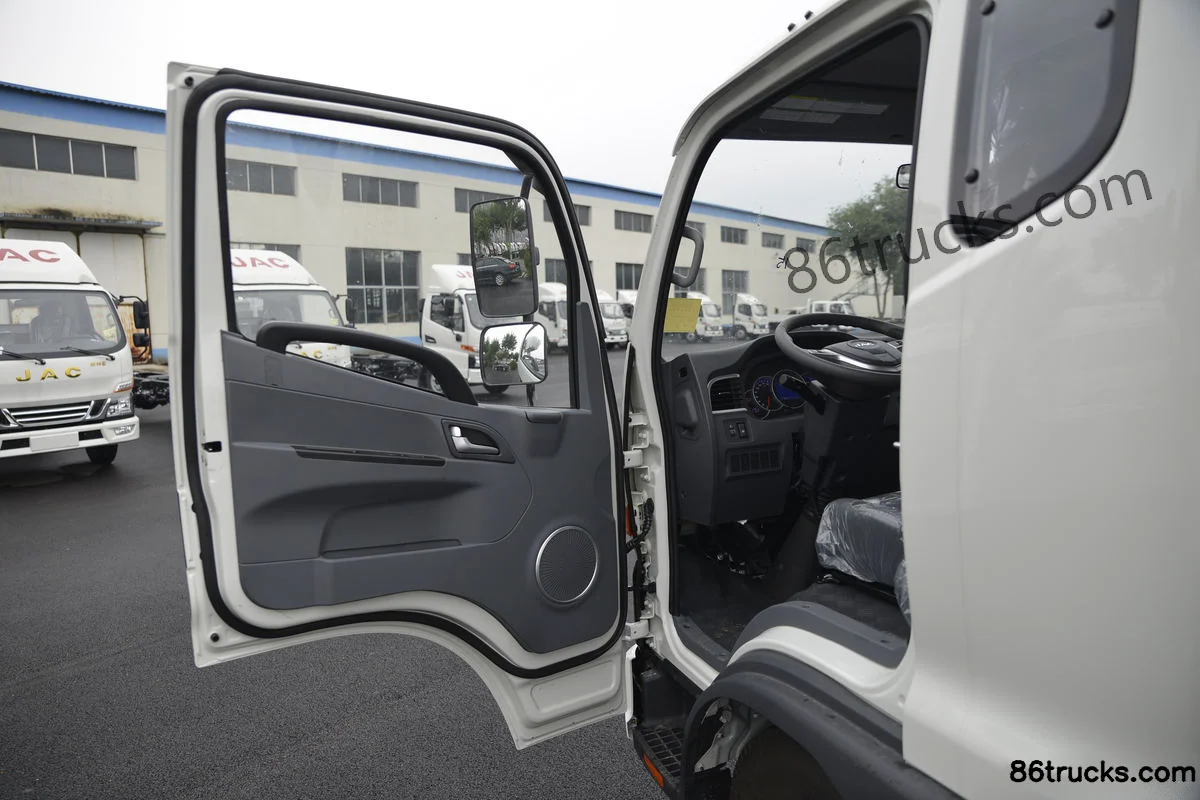

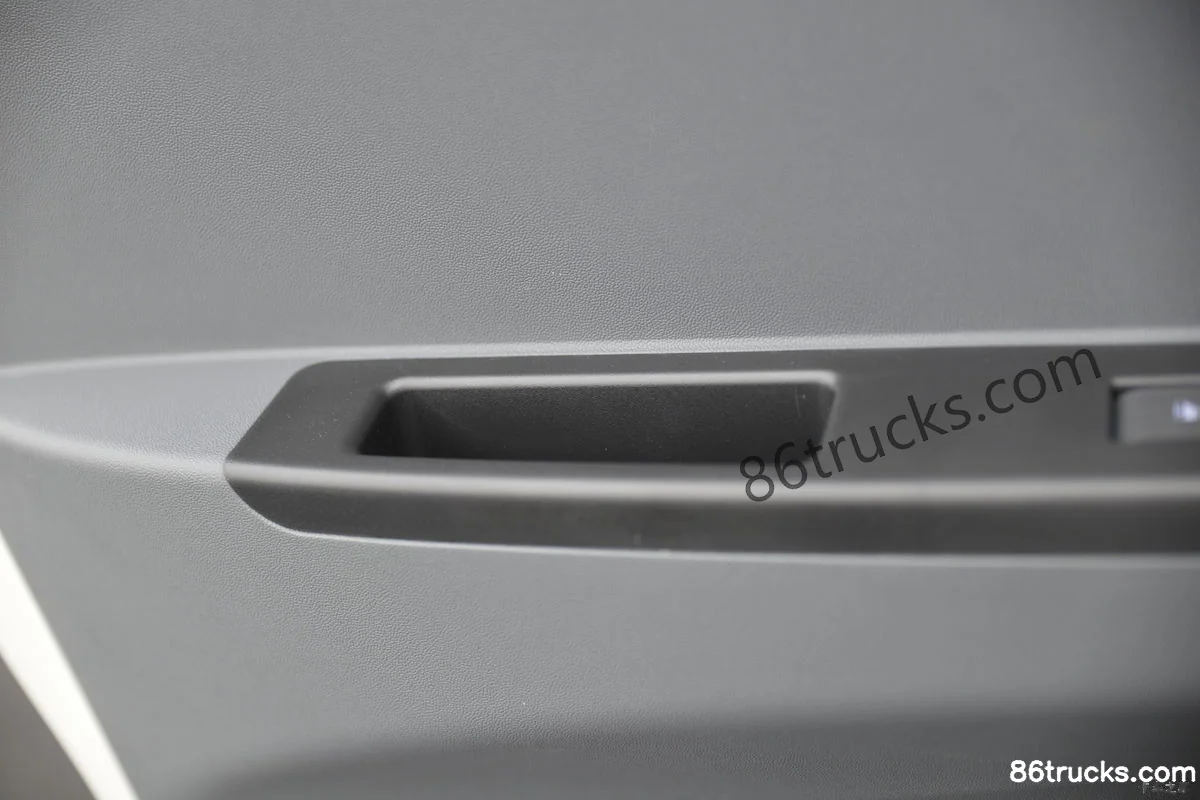

Cab3

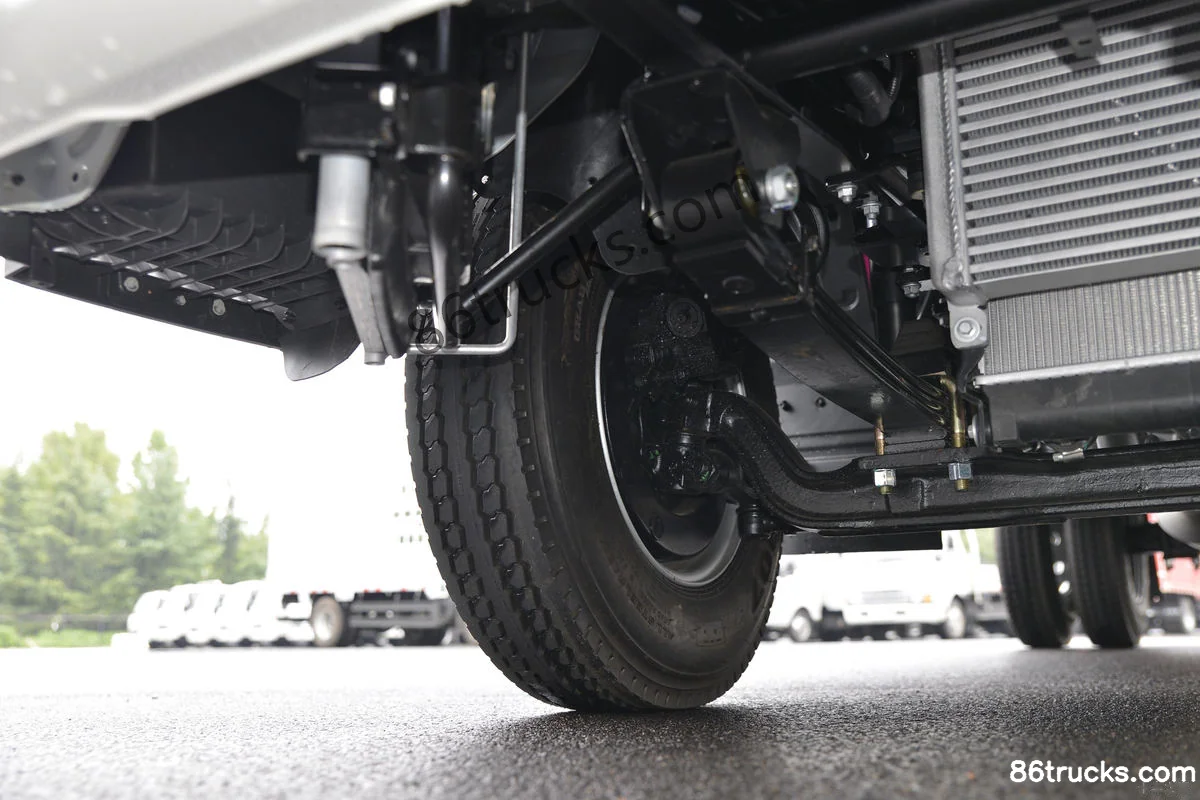

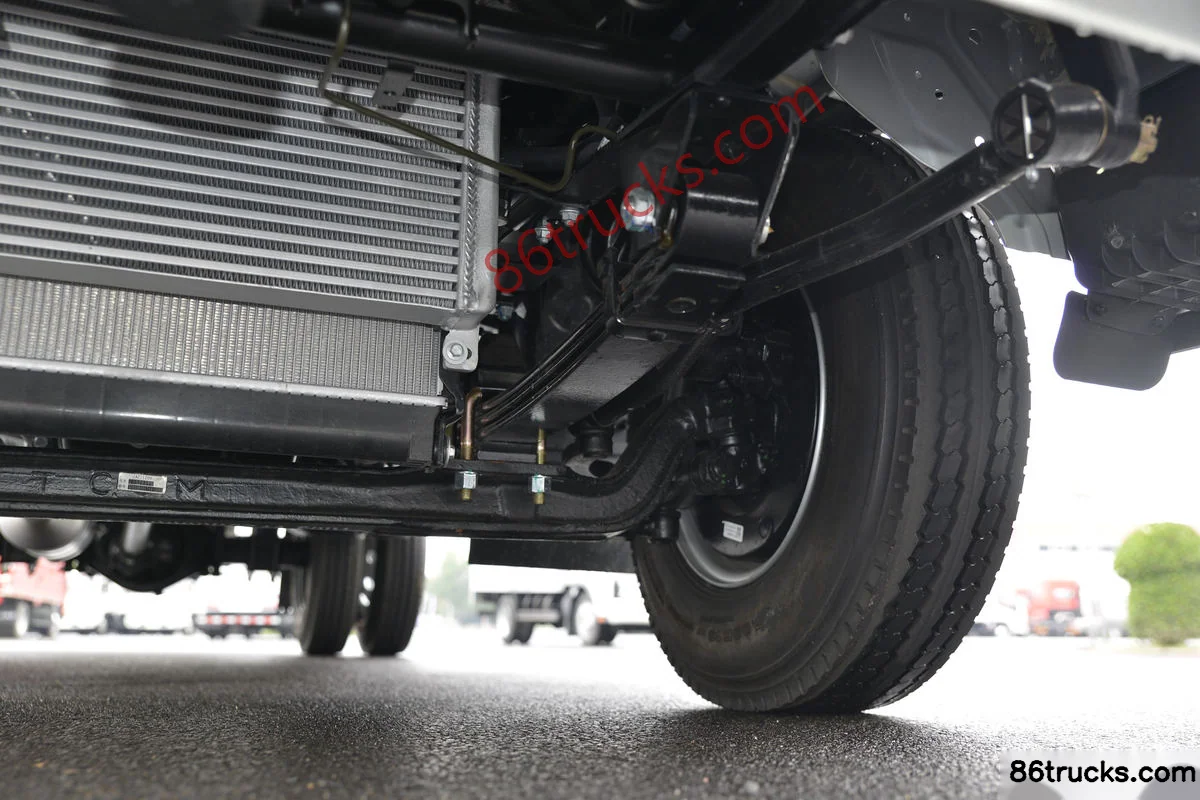

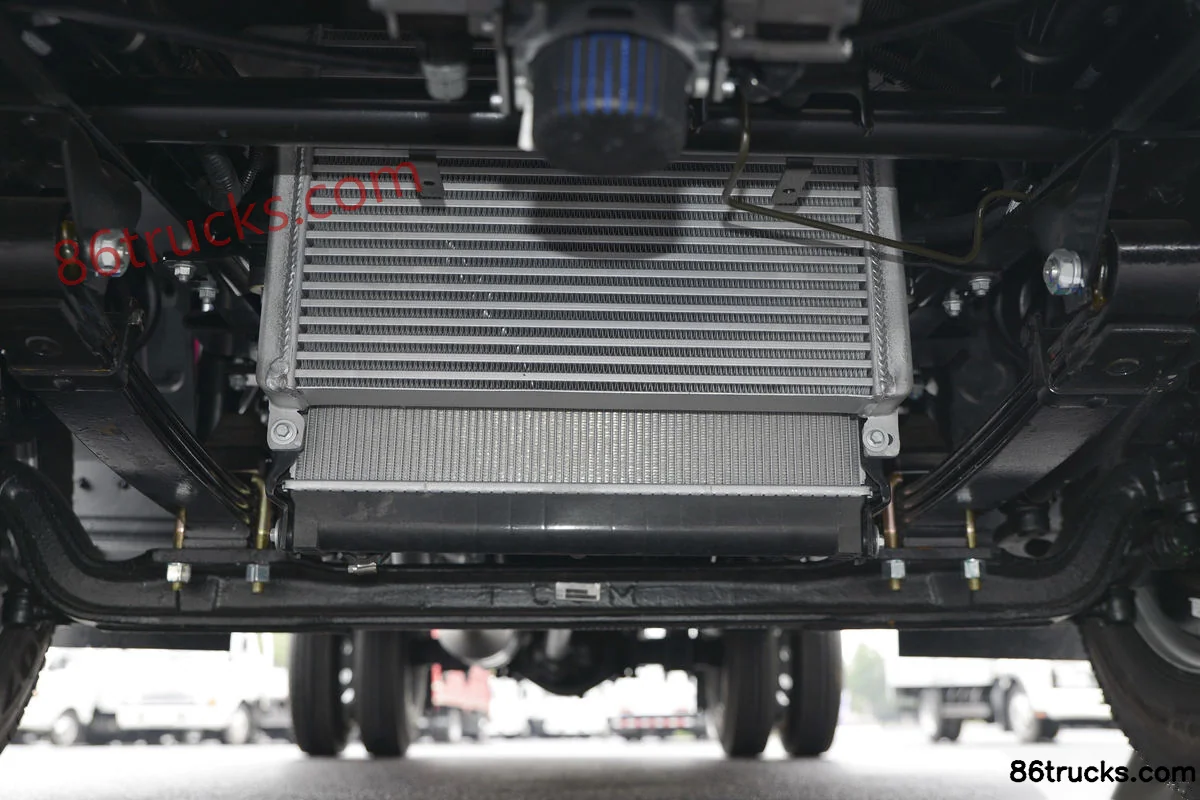

Chassis3

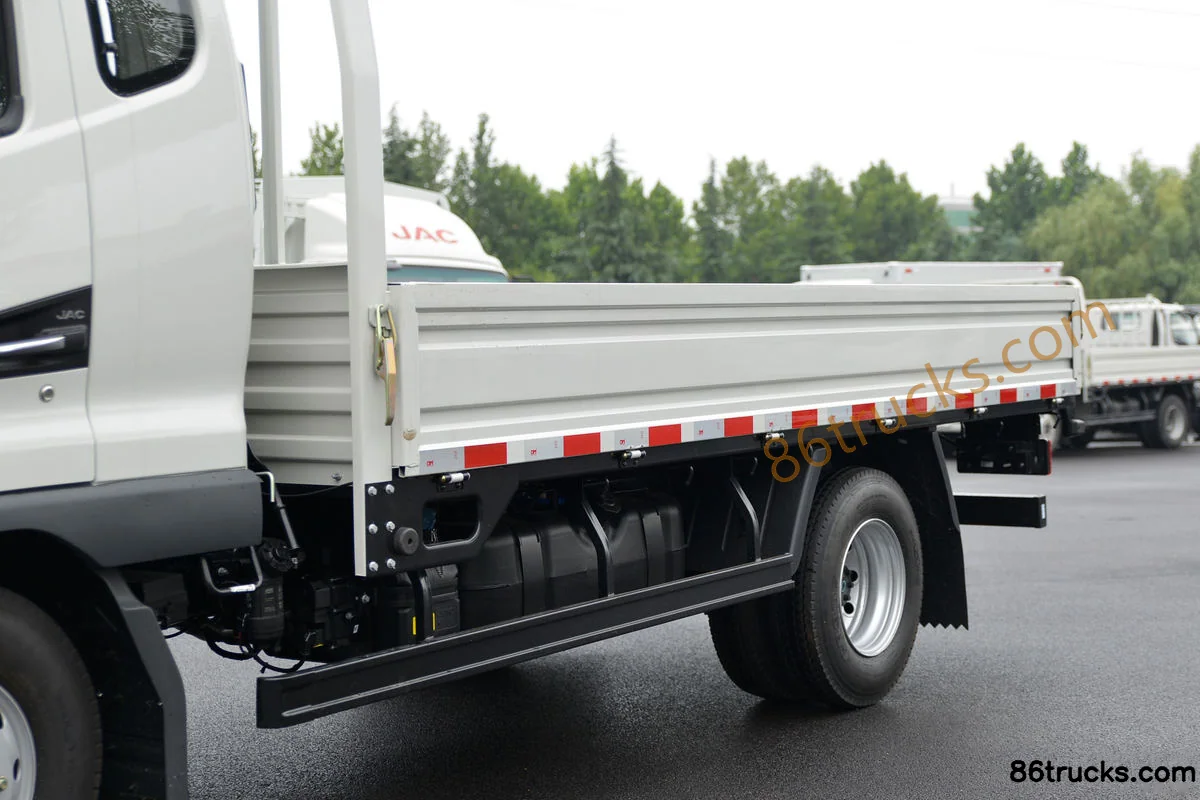

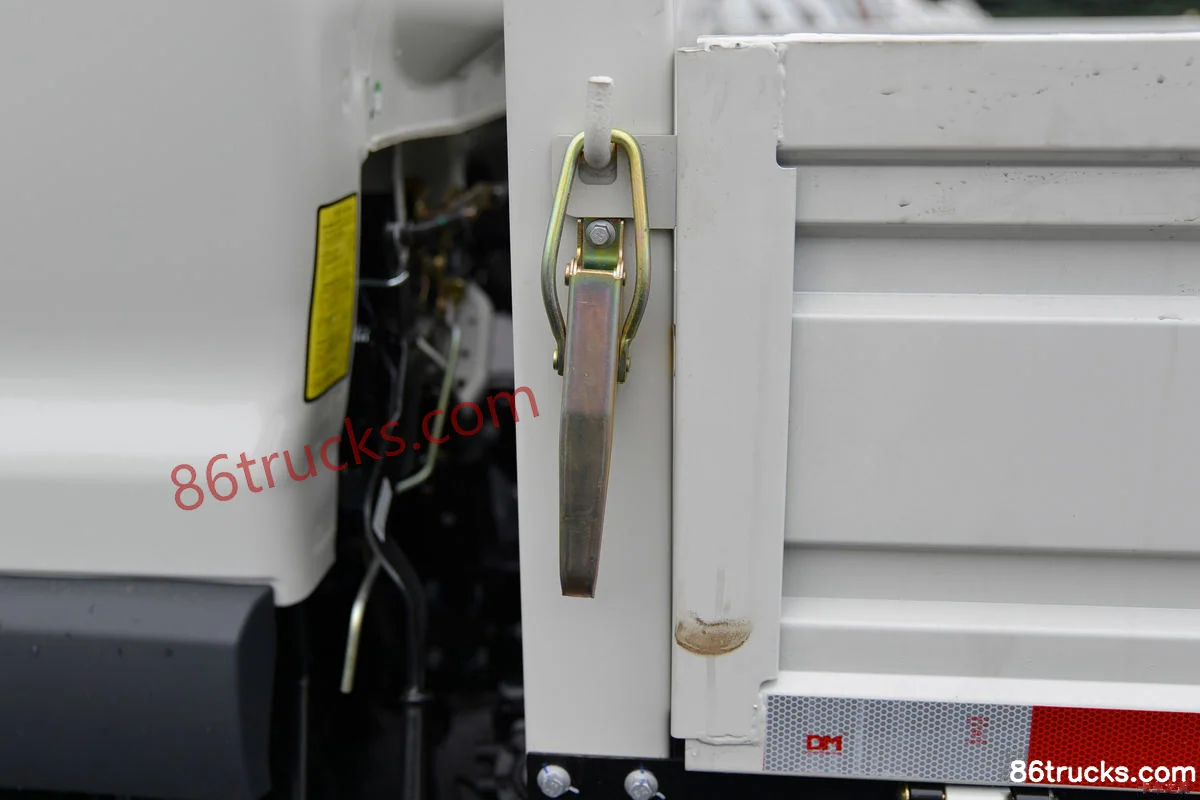

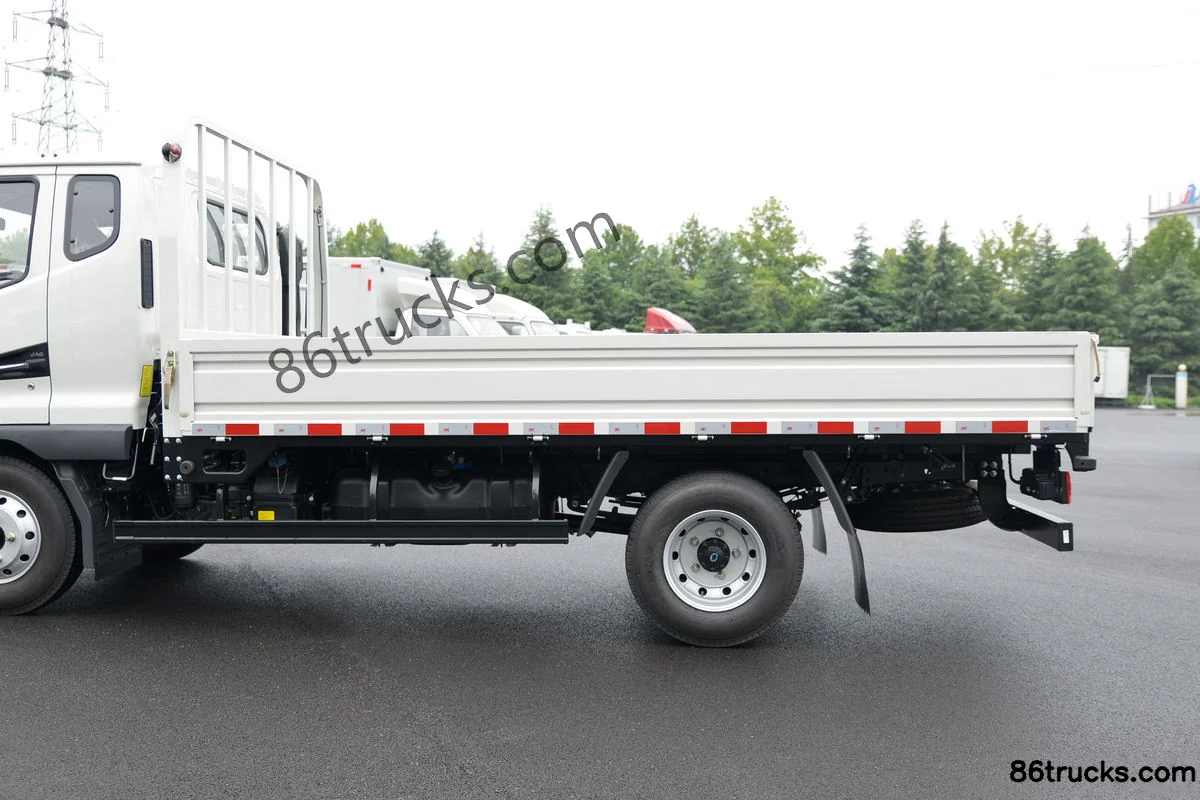

Body3

12 photos

FAQ

What is the export price of JAC Junling V5 120 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Cargo Truck (JAC Transmission), and what does it include?

JAC Junling V5 120 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Cargo Truck (JAC Transmission) export reference is about From $12,708; MSRP is ¥9.15M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Junling V5 120 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Cargo Truck (JAC Transmission) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling V5 120 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Cargo Truck (JAC Transmission)?

Key specs of JAC Junling V5 120 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Cargo Truck (JAC Transmission): Drive: 4x2; Horsepower: 120 hp; Emission: China V; Fuel: Diesel; Engine: Ankang 2.8; Transmission: JAC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling V5 120 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Cargo Truck (JAC Transmission) suited for?

JAC Junling V5 120 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Cargo Truck (JAC Transmission) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Junling V5 120 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Cargo Truck (JAC Transmission) differ from other variants in the same series?

JAC Junling V5 120 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Cargo Truck (JAC Transmission) belongs to JAC V5 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling V5 120 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Cargo Truck (JAC Transmission)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling V5 120 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Cargo Truck (JAC Transmission)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
