Dongfeng Longjun 135 hp 4X2(6 wheels) 4.44m dump truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Curb Weight:: 7.615ton
Wheelbase:: 3850mm
Tire Size:: 10.00-20 16PR
Model code (announced):: DNC3160G-40

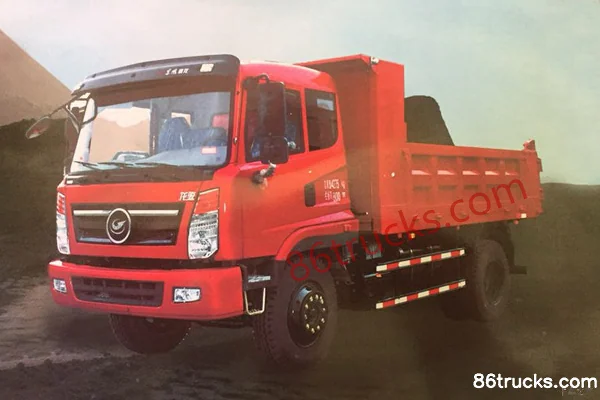

Dongfeng Longjun 135 hp 4X2(6 wheels) 4.44m dump truck exterior
Rated payload: 7.99ton
Drive 4X2 (6 wheels)
Horsepower 135
Cargo box length: 4.44m

Overview

The Dongfeng Longjun 135 hp 4X2(6 wheels) 4.44m dump truck is a Medium-duty truck featuring 7.99t payload, 15.8t GVW, 4.44m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a WeichaiWP4.135E40 engine, 135 hp, China IV emissions and 8-speed transmission.

China IV 135 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): DNC3160G-40
Drive type: 4X2
Wheelbase: 3850mm
engine: WeichaiWP4.135E40
transmission: 8-speed
Cab length: 6.8m
Cab width: 2.48m
Cab height: 2.88m
Front track width: 1790mm
rear track: 1650mm
Curb Weight: 7.615ton
Rated payload: 7.99ton
GVWR: 15.8ton
Origin: Nanchong, Sichuan
tonnage class: Medium-duty truck
Approach angle: 30°
departure angle: 20°
Remarks: 105A battery, power steering, clutch booster, air dryer
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP4.135E40
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.5L
Emission standard: China IV
Max output power: 100kW
Max hp: 135Horsepower
Max torque: 500N·m
Max torque speed: 1400-1600rpm
Rated speed: 2300rpm
Engine Type: Electronic high-pressure common rail + SCR
Transmission Parameters
Transmission Model: 8-speed gearbox
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Body Parameters
Lifting type: Small Front Lift 130
Cargo box parameters
Cargo box length: 4.44m
Cargo box width: 2.3m
Cargo box height: 0.8m
fuel tank
Fuel tank capacity: 160L
Chassis Specs
Front axle description: 148S(3.8T)
Front axle allowable load: 5800kg
Frame Dimensions: 800×250(7+4)mm
rear axle description: 10TS
rear axle allowable load: 10000kg
Leaf spring count: 8/11+8
Tire
Tire Size: 10.00-20 16PR
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Parking brake: Spring brake
Exhaust brake:

Photos

0 photos

FAQ

What emission standard does Dongfeng Longjun 135 hp 4X2(6 wheels) 4.44m dump truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Longjun 135 hp 4X2(6 wheels) 4.44m dump truck?

Key specs of Dongfeng Longjun 135 hp 4X2(6 wheels) 4.44m dump truck: Drive: 4x2; Horsepower: 135 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Longjun 135 hp 4X2(6 wheels) 4.44m dump truck suited for?

Dongfeng Longjun 135 hp 4X2(6 wheels) 4.44m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Longjun 135 hp 4X2(6 wheels) 4.44m dump truck differ from other variants in the same series?

Dongfeng Longjun 135 hp 4X2(6 wheels) 4.44m dump truck belongs to Dongfeng Longjun Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Longjun 135 hp 4X2(6 wheels) 4.44m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Longjun 135 hp 4X2(6 wheels) 4.44m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
