Sinotruk HOWO 336hp 8X4(12 wheels) Concrete Mixer Truck

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 16.55ton
Wheelbase:: 1800+3600+1350mm
Tire Size:: 11.00-20,11.00R20,12.00-20,12.00R20
Cab dimensions:: 10.82×2.496×3.995m
Truck Type:: concrete mixer truck
Rated payload: 14.32ton
Drive 8X4 (12 wheels)
Horsepower 336
Emission China III / Euro III

Overview

The Sinotruk HOWO 336hp 8X4(12 wheels) Concrete Mixer Truck is a concrete mixer truck featuring 14.32t payload, 16.55ton GVW, 8X4 (12 wheels) drive and 10.82×2.496×3.995m cab. On the powertrain side, it comes with 336 hp, China III / Euro III emissions and Diesel fuel.

China III / Euro III 336 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.82×2.496×3.995m
Drive type: 8X4
Truck Type: concrete mixer truck
Wheelbase: 1800+3600+1350mm
Vehicle origin: Jinan
Front/rear track width: Front track: 2022/2022mm; Rear track: 1830/1830mm
Curb Weight: 16.55ton
Rated payload: 14.32ton
Max. speed: 90km/h
Front/rear suspension: 1.5/2.57m
Body Parameters
Mixing drum capacity: 6.7m³
Vehicle certification code: ZZ5317GJBN3667C1
Others: Hydraulic pump, hydraulic motor, and reducer all use imported major components
Engine parameters
Engine Model: Sinotruk WD615.95E
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 247kW
Max hp: 336Horsepower
Rated speed: 2200rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, electronic fuel injection pump, EGR
Chassis Specs
Chassis Series: HOWOHOWO-7
Chassis Model: ZZ1317N3667C1
rear axle description: 16-ton HC16
Leaf spring count: L14 R13 / L14 R13 / 12,11/11/12,4/4/-,11/11/-
Transmission Parameters
Number of gears: 10Gear
Transmission Model: HOWO HW10
Tire
Tire Size: 11.00-20,11.00R20,12.00-20,12.00R20
Number of tires: 12pcs

Photos

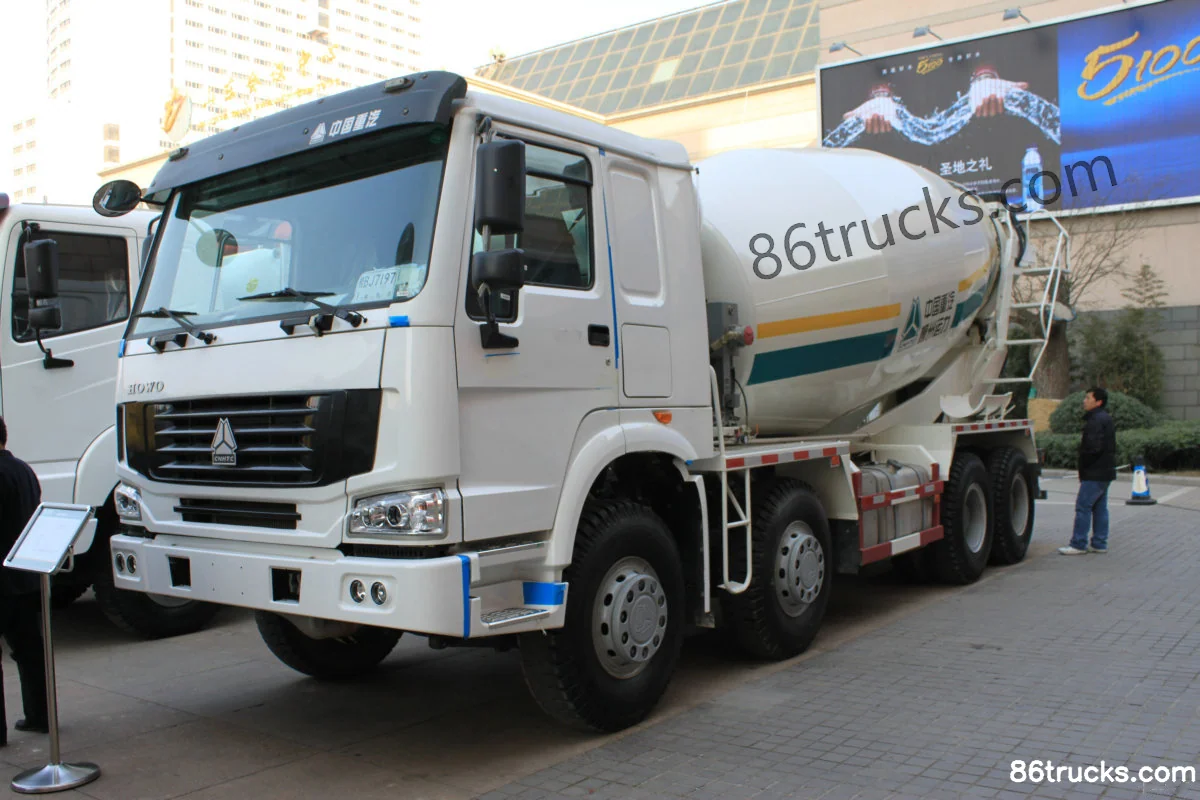

Exterior1

1 photos

FAQ

What emission standard does Sinotruk HOWO 336hp 8X4(12 wheels) Concrete Mixer Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO 336hp 8X4(12 wheels) Concrete Mixer Truck?

Key specs of Sinotruk HOWO 336hp 8X4(12 wheels) Concrete Mixer Truck: Drive: 8x4; Horsepower: 336 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO 336hp 8X4(12 wheels) Concrete Mixer Truck suited for?

Sinotruk HOWO 336hp 8X4(12 wheels) Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO 336hp 8X4(12 wheels) Concrete Mixer Truck differ from other variants in the same series?

Sinotruk HOWO 336hp 8X4(12 wheels) Concrete Mixer Truck belongs to Sinotruk HOWO-7 heavy-duty truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO 336hp 8X4(12 wheels) Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO 336hp 8X4(12 wheels) Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
