Tangjun Ouling T3 Series 116 hp 4X2(6 wheels) 3.8m Dump Truck

Export reference
From $19,278
MSRP ¥13.88M CNY
Emission: China V
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.72ton
Wheelbase:: 3400mm
Tire Size:: 8.25R16LT 6PR
Rated payload: 1.58ton
Drive 4X2 (6 wheels)
Horsepower 116
Cargo box type: Dump type

Overview

The Tangjun Ouling T3 Series 116 hp 4X2(6 wheels) 3.8m Dump Truck is a Light Truck featuring 1.58t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN38CRE2 engine, 116 hp, China V emissions and WLY transmission.

China V 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZB3040JPD7V
Drive type: 4X2
Wheelbase: 3400mm
engine: Yunnei PowerYN38CRE2
transmission: WLYWLY10H46
Rear Axle Ratio: 6.33
Cab length: 5.995m
Cab width: 2.36m
Cab height: 2.635m
Front track width: 1642mm
rear track: 1665mm
Curb Weight: 2.72ton
Rated payload: 1.58ton
GVWR: 4.495ton
Origin: Zibo, Shandong
tonnage class: Light Truck
Approach angle: 23°
departure angle: 20°
Remarks: Fuel tank capacity optional: 120L
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN38CRE2
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.76L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 325N·m
Max torque speed: 1600-2400rpm
Rated speed: 3000rpm
Engine Type: 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: WLYWLY10H46
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.8m
Cargo box width: 2.1m
Cargo box height: 0.8m
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 140L
Chassis Specs
Front axle allowable load: 1500kg
rear axle allowable load: 2995kg
Axle ratio: 6.33
Leaf spring count: 10/12+9
Tire
Tire Size: 8.25R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Parking brake: Spring brake

Photos

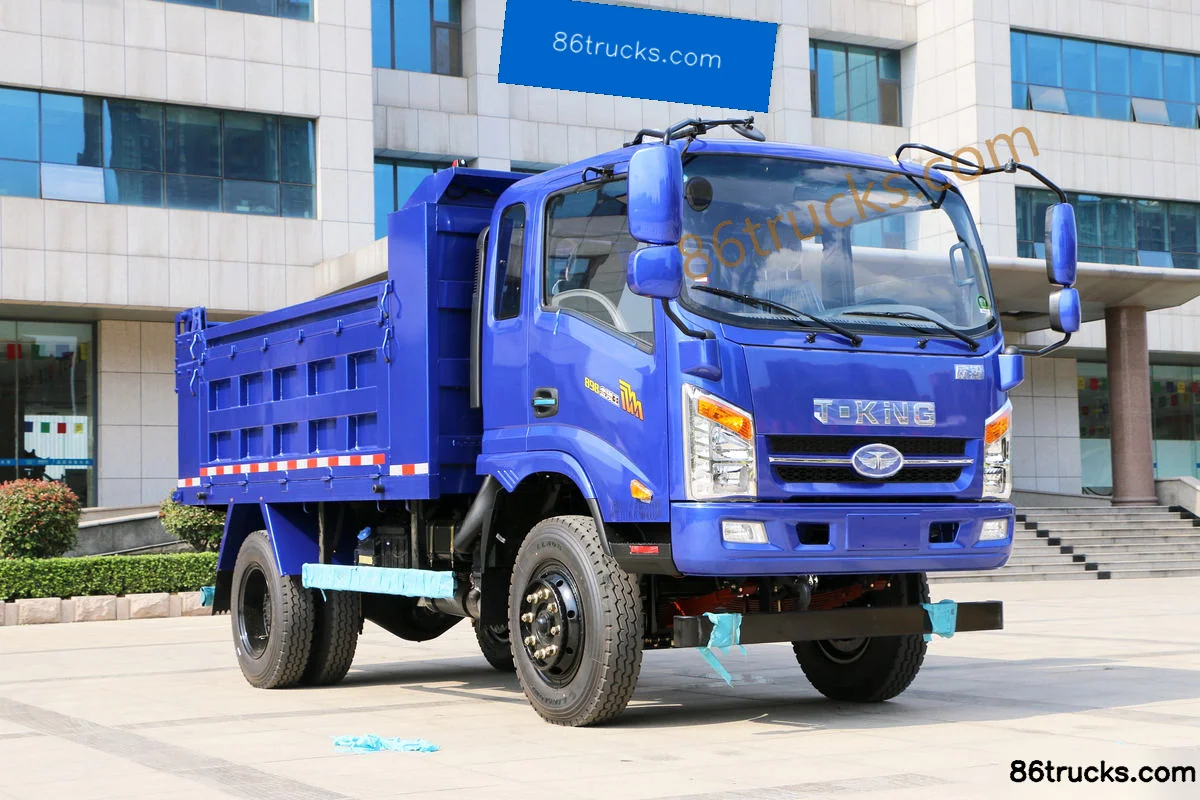

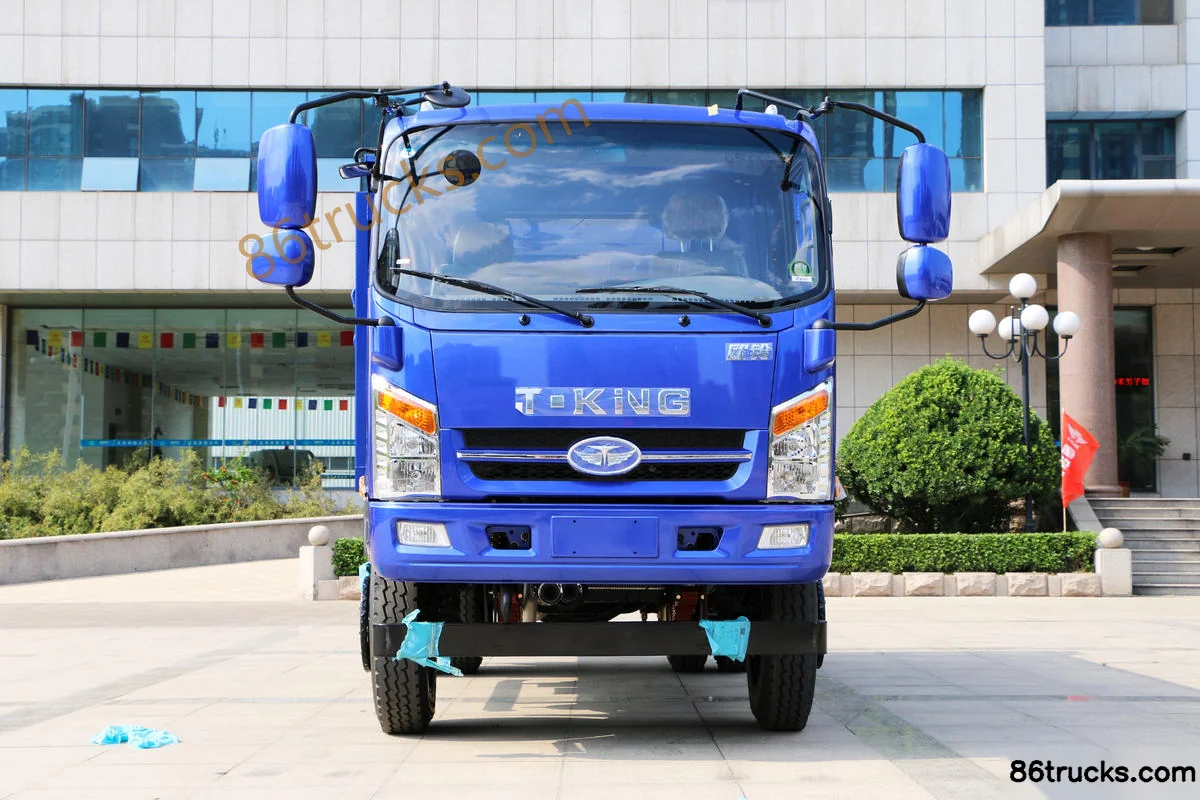

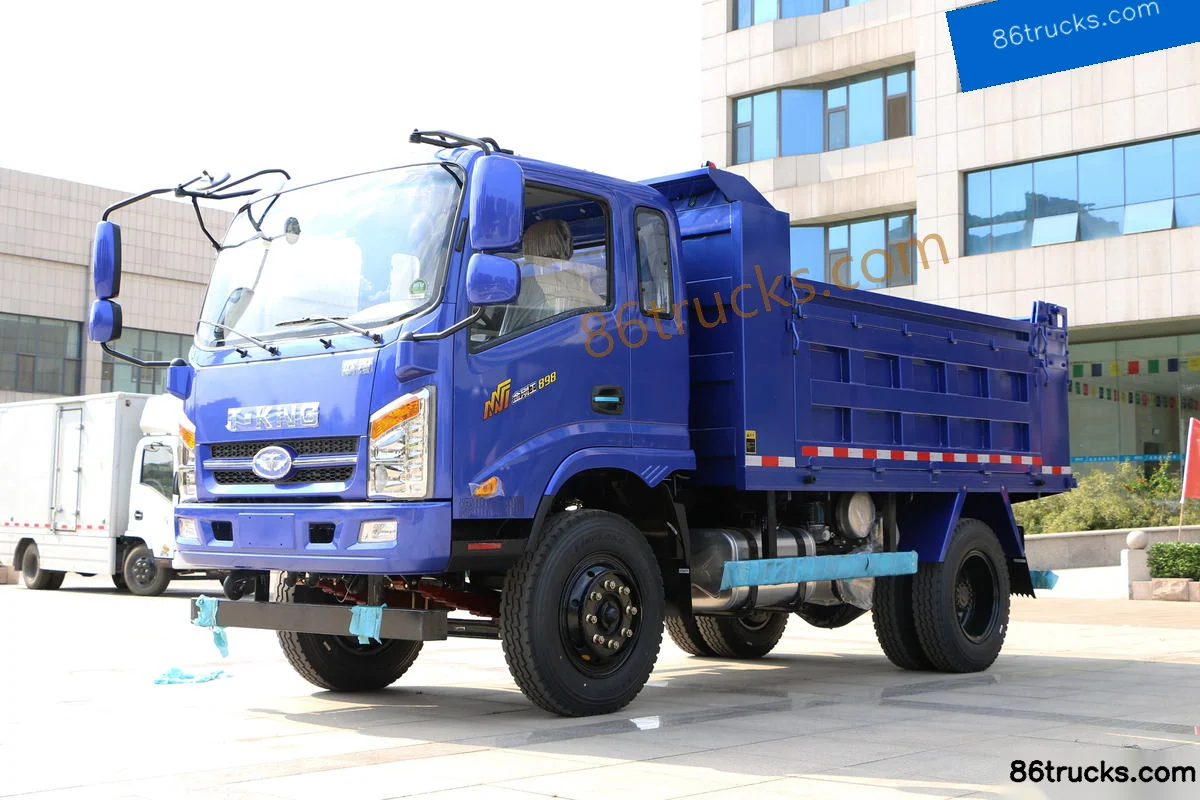

Exterior3

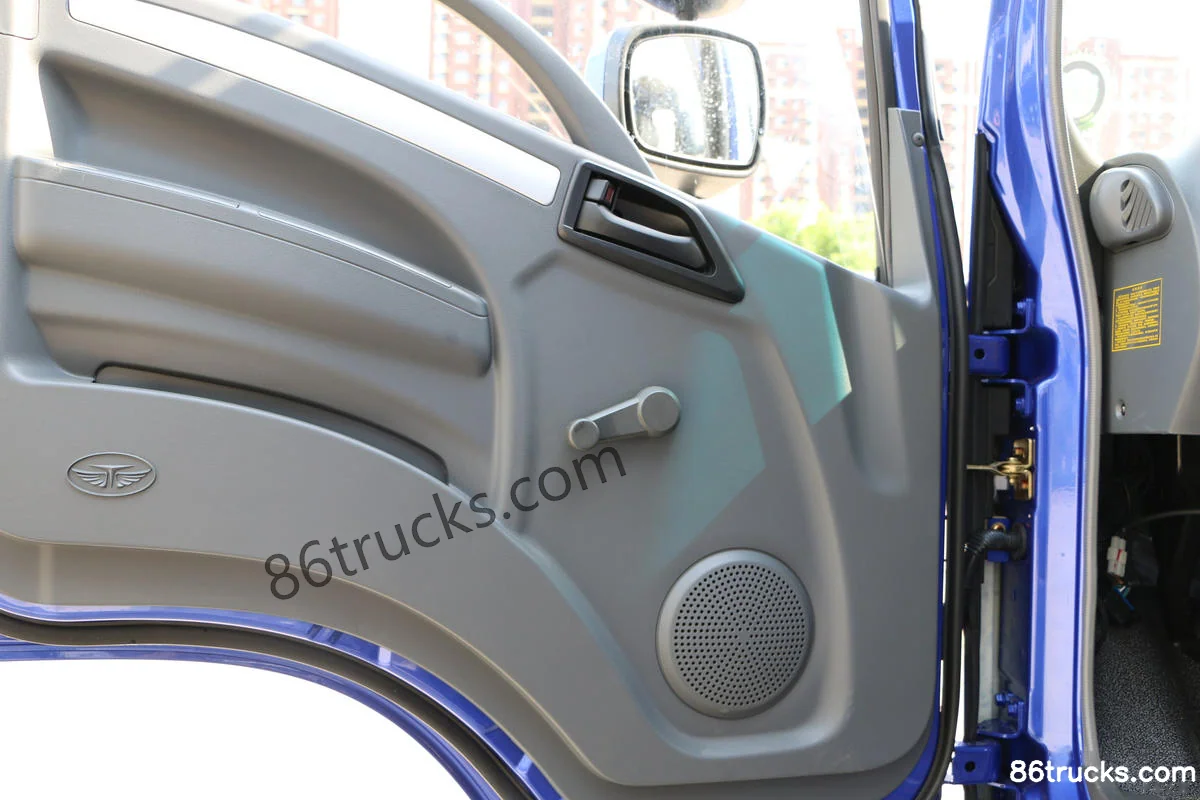

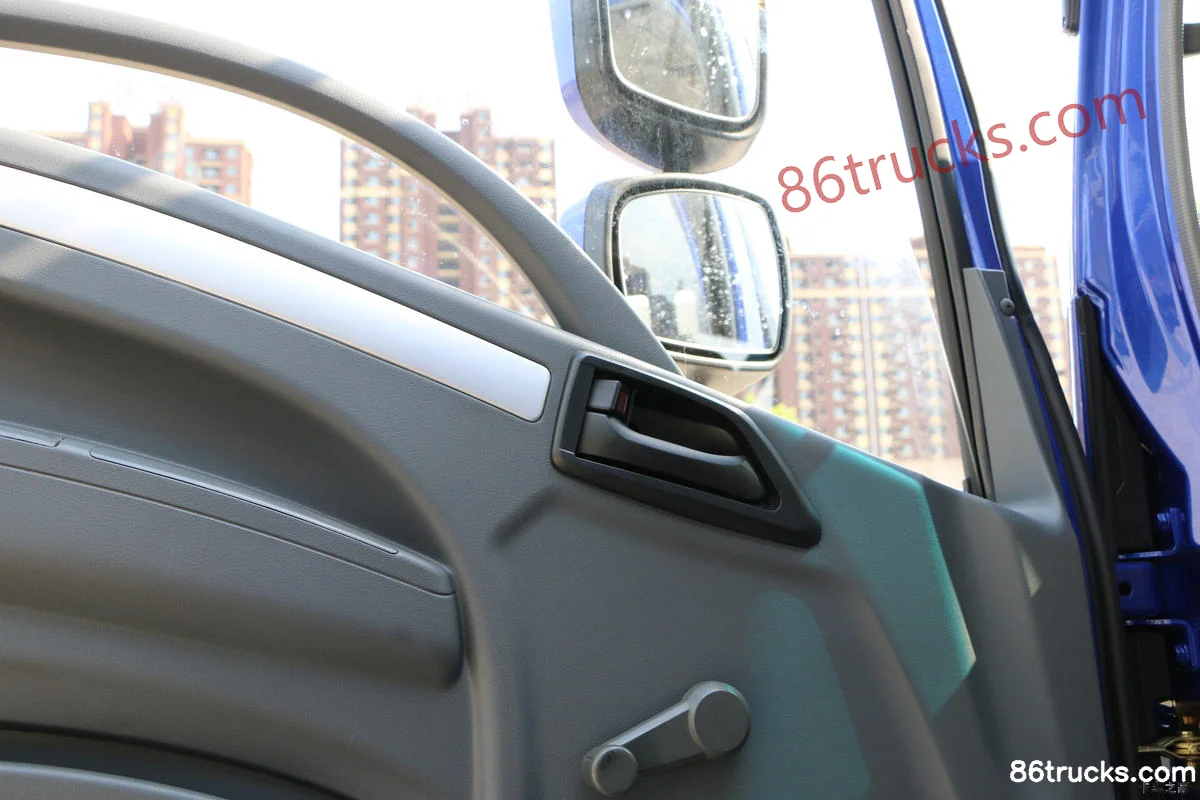

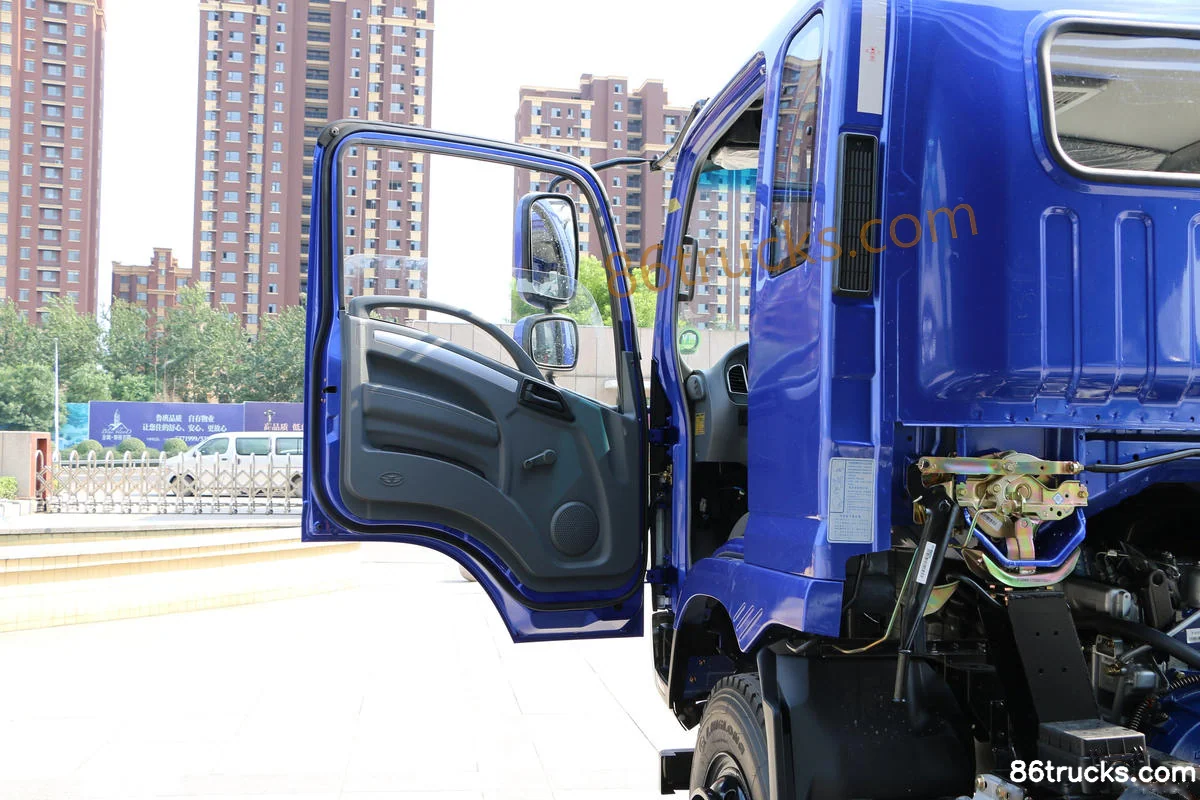

Cab3

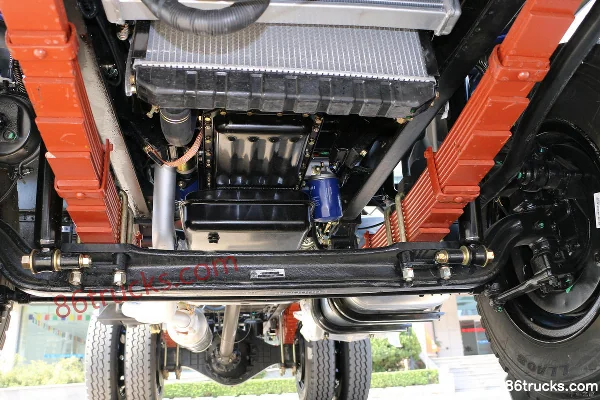

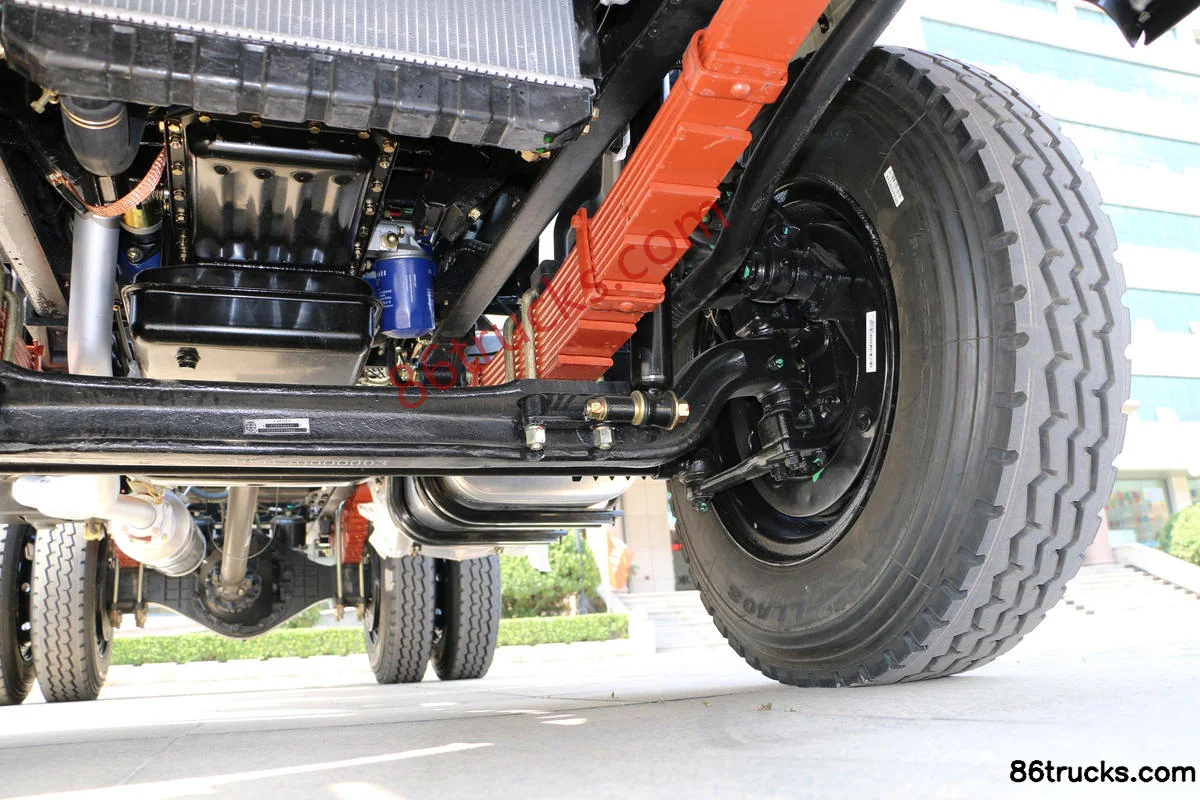

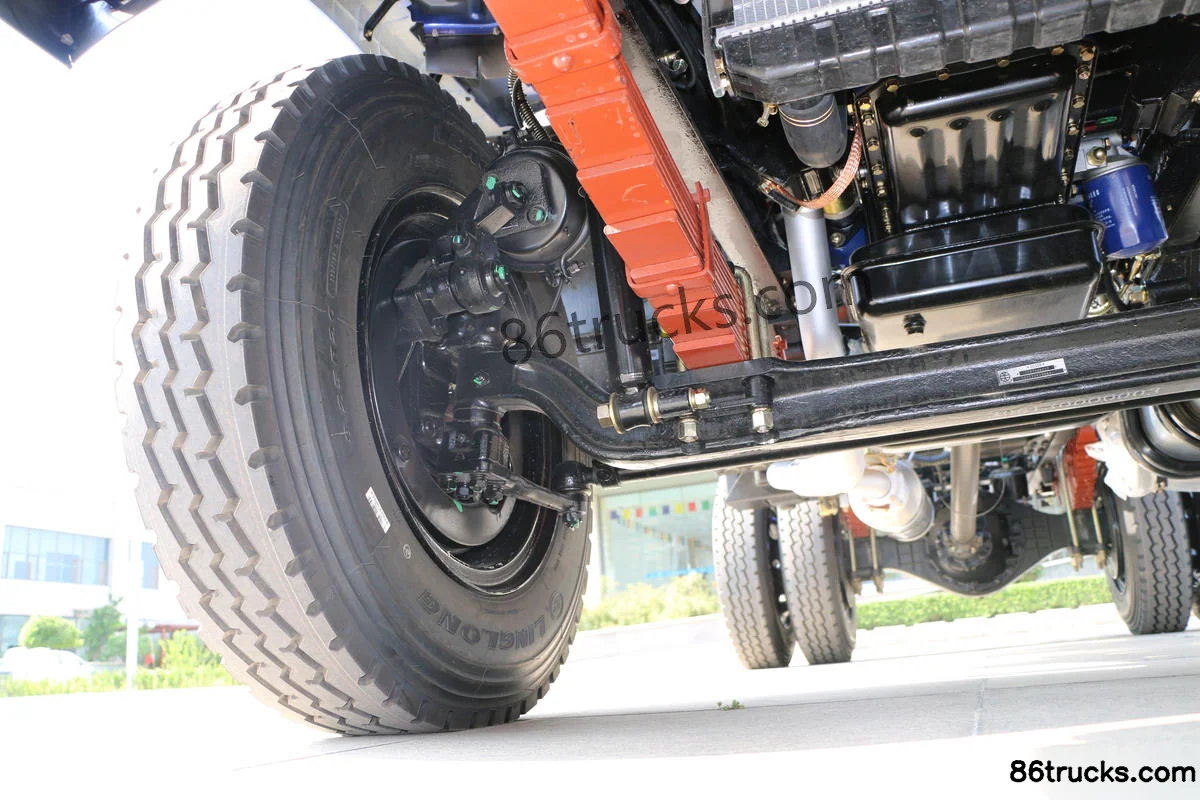

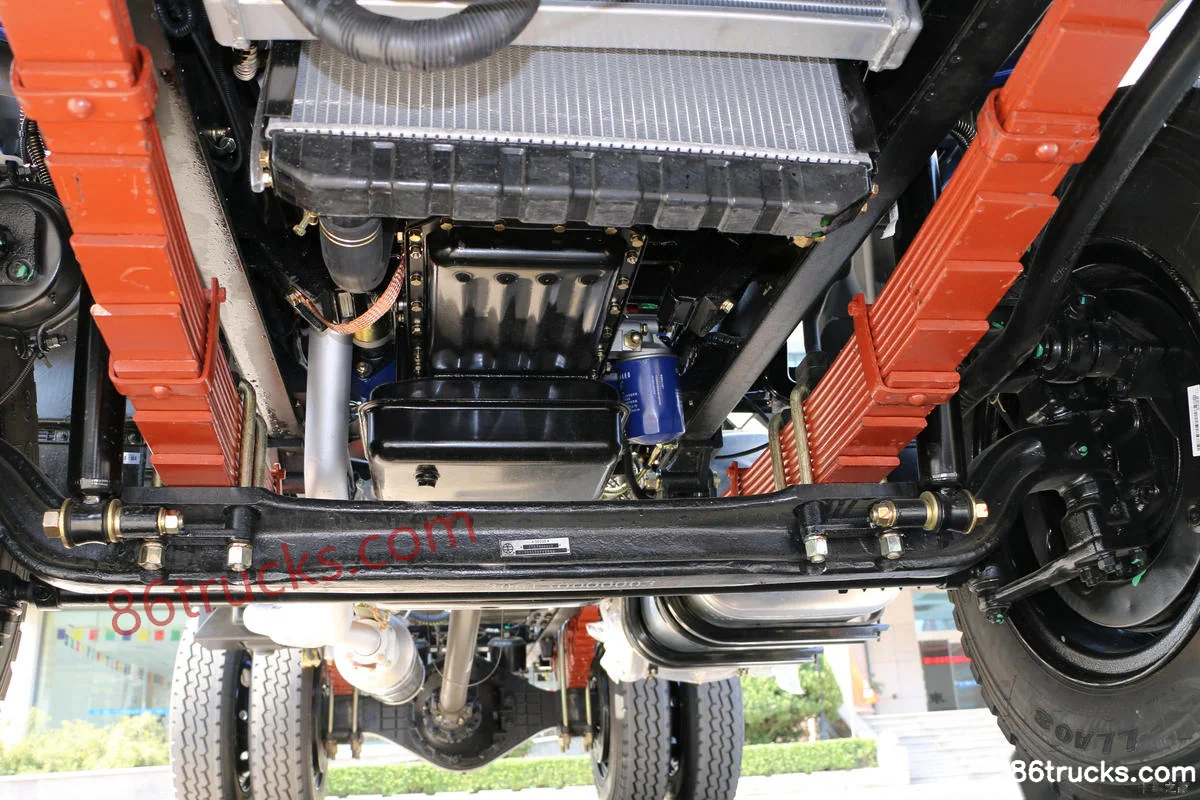

Chassis3

9 photos

FAQ

What is the export price of Tangjun Ouling T3 Series 116 hp 4X2(6 wheels) 3.8m Dump Truck, and what does it include?

Tangjun Ouling T3 Series 116 hp 4X2(6 wheels) 3.8m Dump Truck export reference is about From $19,278; MSRP is ¥13.88M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Tangjun Ouling T3 Series 116 hp 4X2(6 wheels) 3.8m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Tangjun Ouling T3 Series 116 hp 4X2(6 wheels) 3.8m Dump Truck?

Key specs of Tangjun Ouling T3 Series 116 hp 4X2(6 wheels) 3.8m Dump Truck: Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Tangjun Ouling T3 Series 116 hp 4X2(6 wheels) 3.8m Dump Truck suited for?

Tangjun Ouling T3 Series 116 hp 4X2(6 wheels) 3.8m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Tangjun Ouling T3 Series 116 hp 4X2(6 wheels) 3.8m Dump Truck differ from other variants in the same series?

Tangjun Ouling T3 Series 116 hp 4X2(6 wheels) 3.8m Dump Truck belongs to T3 Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Tangjun Ouling T3 Series 116 hp 4X2(6 wheels) 3.8m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Tangjun Ouling T3 Series 116 hp 4X2(6 wheels) 3.8m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
